Tripp Lite S3MT Series Manuel utilisateur
1
Owner’s Manual
S3MT-Series 3-Phase Input
and Output Transformers:
480V-208V and 208V-480V
Model: S3MT-100KWR480V
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 19 • Français 37
2
1. Introduction ................................................................................. 3
2. Important Safety Warnings.......................................................... 5
3. Installation .................................................................................. 6
3.1 Mechanical Data ...................................................................................6
3.2 Package Inspection ..............................................................................7
3.3 Unpacking the UPS ...............................................................................7
3.4 Package Contents.................................................................................9
3.5 Cabinet Overview ..................................................................................9
3.6 Power Cables ......................................................................................11
3.7 Input and Output Transformer-to-UPS Connection Line Diagram........12
3.8 Input and Output Transformer Connections........................................13
4. Operation................................................................................... 14
4.1 Over-Temperature Protection..............................................................14
4.1.1 Over-Temperature Warning LED Light .......................................................... 14
4.1.2 Over-Temperature Protection Relay and Thermal Switch............................. 14
5. Specifications............................................................................ 15
6. Storage...................................................................................... 18
7. Warranty and Regulatory Compliance........................................ 18
Table of Contents
3
1. Introduction
Tripp Lite’s S3MT-100KWR480V is a 480V Wrap-Around Transformer that includes two transformers in one enclosure: a
480V (Delta) to 208V (Wye) input isolation step-down transformer and a 208V (Wye) to 480V (Wye) output auto step-up
transformer.
The input isolation transformer mitigates utility line surges and spikes, while protecting the UPS. The output auto transformer
is designed to support 480V (Wye) IT loads. This model has built-in circuit breakers to prevent dangerous circuit overloads.
Eight ball-bearing fans maintain quiet operation and help to dissipate transformer heat. An overheat-sensing relay and switch,
combined with an LED light in the front panel, provide over-temperature warning and overheating protection. The UPS system’s
small footprint and quiet acoustic profile enable installations with minimal space and noise impact. The transformer features a
rugged all-metal housing with a front panel similar to the S3M-Series 208V 3-Phase UPS line.
UPS Model Series Number Capacity Description
S3MT-100KWR480V AG-0513 100kW Input Transformer: 480V to 208V Isolation
Step-Down Transformer
Output Transformer: 208V to 480V Auto Step-
Up Transformer
Typical applications
4-Wire (3Ph+N+PE) IT equipment loads in government, manufacturing, hospitals, industrial settings and corporate settings
that have 480V electrical mains and 480V IT loads.
Key Features
• The input step-down transformer provides 480V (Delta) to 208V/120V (Wye) isolation protection to the UPS input
• The output auto transformer provides 208V (Wye) to 480V (Wye) step-up to support 480V IT loads
• Circuit breakers at the output of the input transformer and the input of the output transformer
• Overheating warning and protection
• 96.7% to 97.8% efficiency
• Copper windings
• Wide input voltage and frequency operating range: Voltage: -20% to +25% @ 100% load and 40-70 Hz
• Insulation class: 180 material
• Reliability-tested according to ISTA-3B for vibration, shock, drop (tip test)
• UL and CSA TUV certifications
• Rugged all-metal housing shipped ready for installation
• 2-year warranty
4
1. Introduction

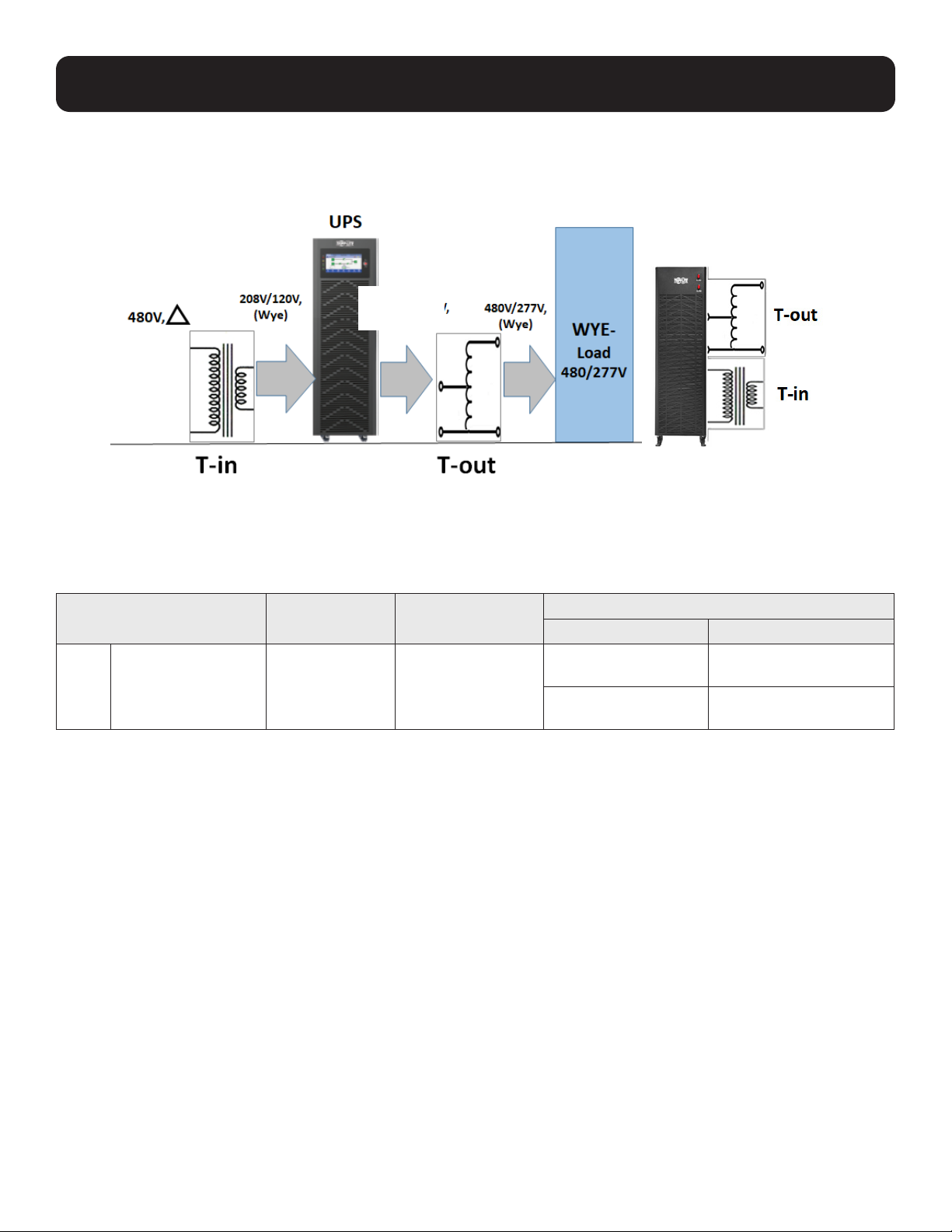

Typical Configurations
The 480V Wrap-Around (WR) Transformer includes both the input (T-in) and output (T-out) transformers in one enclosure.
This 480V Wrap-Around Transformer may be purchased separately or as part of kit model with a Tripp Lite S3M80K or
S3M100K 3-Phase UPS:
Wrap-Around
Transformer Models
Maximum
Constant Load
Compatible with
208V 3Ph UPS
Kit Models: UPS + Transformer
Kit Models Kit Models Include
480V S3MT-100KWR480V 100kW 80-100kW UPS
S3M80K-100KWR4T S3M80K UPS +
S3MT-100KWR480V
S3M100K-100KWR4T S3M100K UPS +
S3MT-100KWR480V
208V/120V,
(Wye)
Note: The input (T-in) and the output
(T-out) transformers are both inside
one cabinet, as shown above.
5
2. Important Safety Warnings
SAVE THESE INSTRUCTIONS
This manual contains important instructions for model S3MT-100KWR480V that should be followed during installation and
maintenance of the transformer and UPS.
CAUTION! Risk of electrical shock! Hazardous live parts inside this unit are energized from the transformer even when
the breaker is turned off.
WARNING! The unit intended for installation in a controlled environment.
CAUTION! A transformer can present a risk of electric shock and high short circuit current. The following precaution should
be observed when working on the transformer:
• Remove watches, rings or other metal objects.
• Use tools with insulated handles.
To reduce the risk of electric shock, disconnect the transformer and UPS from the mains supply before performing
maintenance or service.
Servicing the 3-phase transformer and UPS should be performed by Tripp Lite certified personnel with knowledge the 3-phase
transformer and UPS and all required precautions.
The transformer is extremely heavy. Caution should be taken in moving and positioning equipment. The instructions contained
within this manual are important and should be closely followed at all times during installation and follow-up maintenance of
the 3-phase transformer and UPS.
CAUTION!
The transformer has a dangerous level of heat. If the transformer’s front-panel red LED indicator is on,
the unit’s outlets may have a dangerous level of heat.
All servicing on this equipment must be carried out by qualified Tripp Lite-certified personnel.
Before conducting any maintenance, repair or shipment, first ensure everything is turned off completely
and disconnected.
Special Symbols – The following symbols are used on the transformer to warn you of precautions:
RISK OF ELECTRIC SHOCK - Observe the warning that a risk of electric shock is present.
CAUTION - REFER TO OWNER’S MANUAL for information regarding important operating and maintenance instructions.
SAFE GROUNDING TERMINAL - Indicates THE primary safe ground.
6
3. Installation
3.1 Mechanical Data
Physical Requirements
Leave space around the cabinet for operation and ventilation (Figure 3-1):
1. Leave at least 23.6 in. (600 mm) space in the front for ventilation
2. Leave at least 20 in. (500 mm) space at the right and left for operation
3. Leave at least 20 in. (500 mm) space at the back for ventilation
Figure 3-1
31.5”
(800 mm)
77.6”
(1970 mm)
33.5”
(850 mm)
≥20”
(500 mm)
≥20”
(500 mm)
≥20”
(500 mm)
≥20”
(500 mm)
≥23.6”
(600 mm)
7
3. Installation
3.2 Package Inspection
1. Don’t lean the transformer cabinet when removing it from the packaging.
2. Check the appearance to see if the transformer cabinet was damaged during transport. Do not power on the transformer
cabinet if any damage is found. Contact the dealer immediately.
3. Check the accessories against the packing list and contact the dealer in case of missing parts.
3.3 Unpacking the UPS

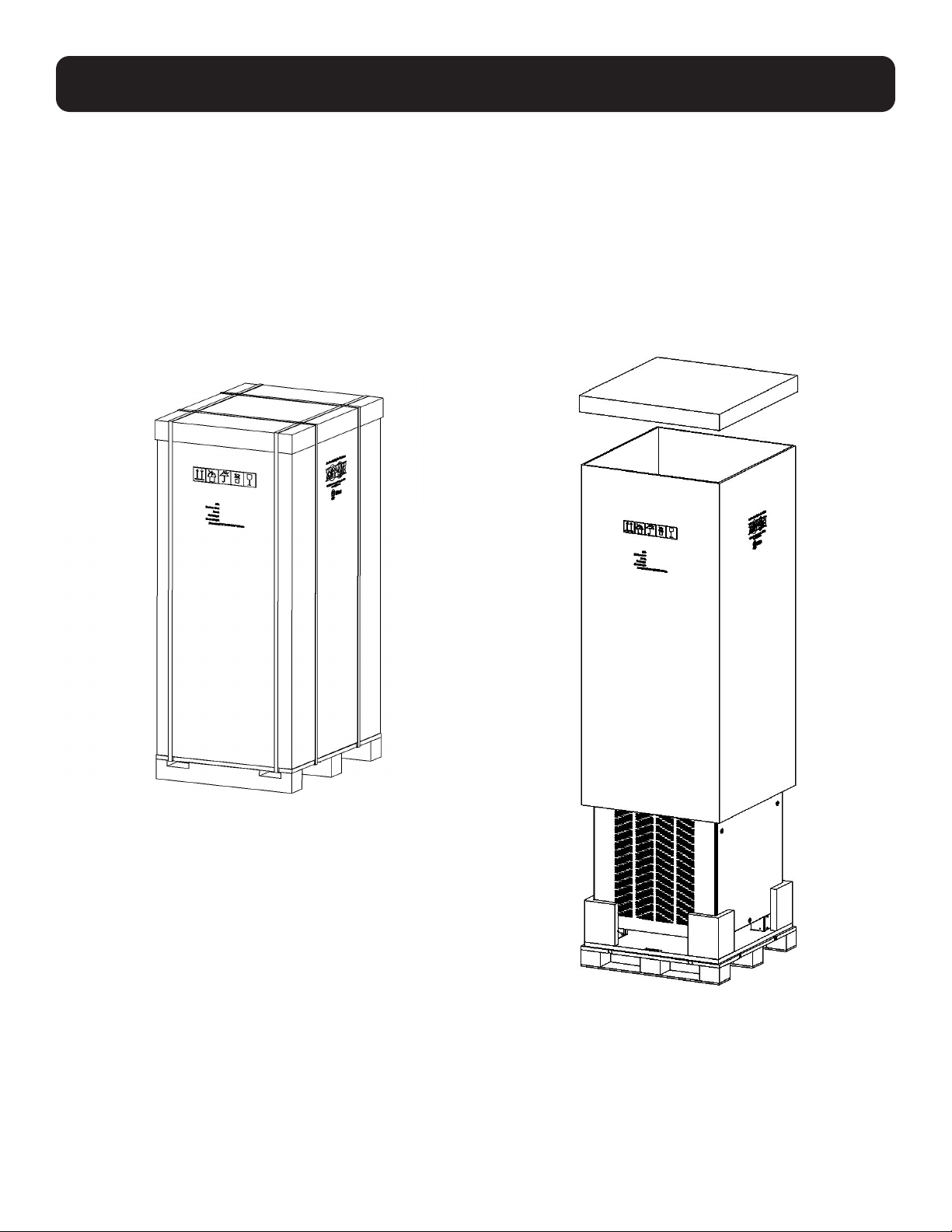

1. Hold the sliding plate steady. Cut and remove the binding
straps (Figure 3-2).
Figure 3-2
2. Remove the plastic bag and the outer carton (Figure 3-3).
Figure 3-3
8
3. Installation
3. Remove the foam packing material and the beveled pallet
(Figure 3-4).
Figure 3-4
4. Remove the screws securing the cabinet to the pallet
(Figure 3-5).
Figure 3-5
5. Lift the cabinet with a forklift and remove the packing pallets (Figure 3-6).
Figure 3-6
9
3. Installation
3.5 Cabinet Overview
1Output Transformer Over-Temperature Alarm LED
2Input Transformer Over-Temperature Alarm LED
3Output Transformer Cooling Fans
4Input Transformer Cooling Fans
5Input Transformer Breaker with Trip
6Output Transformer Breaker with Trip
7Input Transformer Cabling Terminal
8Output Transformer Cabling Terminal
9Bottom Entry Knockouts
(for Power Cable Entry and Exit
Rear ViewFront View
13
2
4
3.4 Package Contents
Contents TL P/N S3MT-100KWR480V
Input and Output Transfers in One Cabinet 1
Owner’s Manual 933D06 1
Bottom Skirts 1038F8A 2
Bottom Skirts 103924A 2
Screws for Skirts 3011C3 24
10
3. Installation

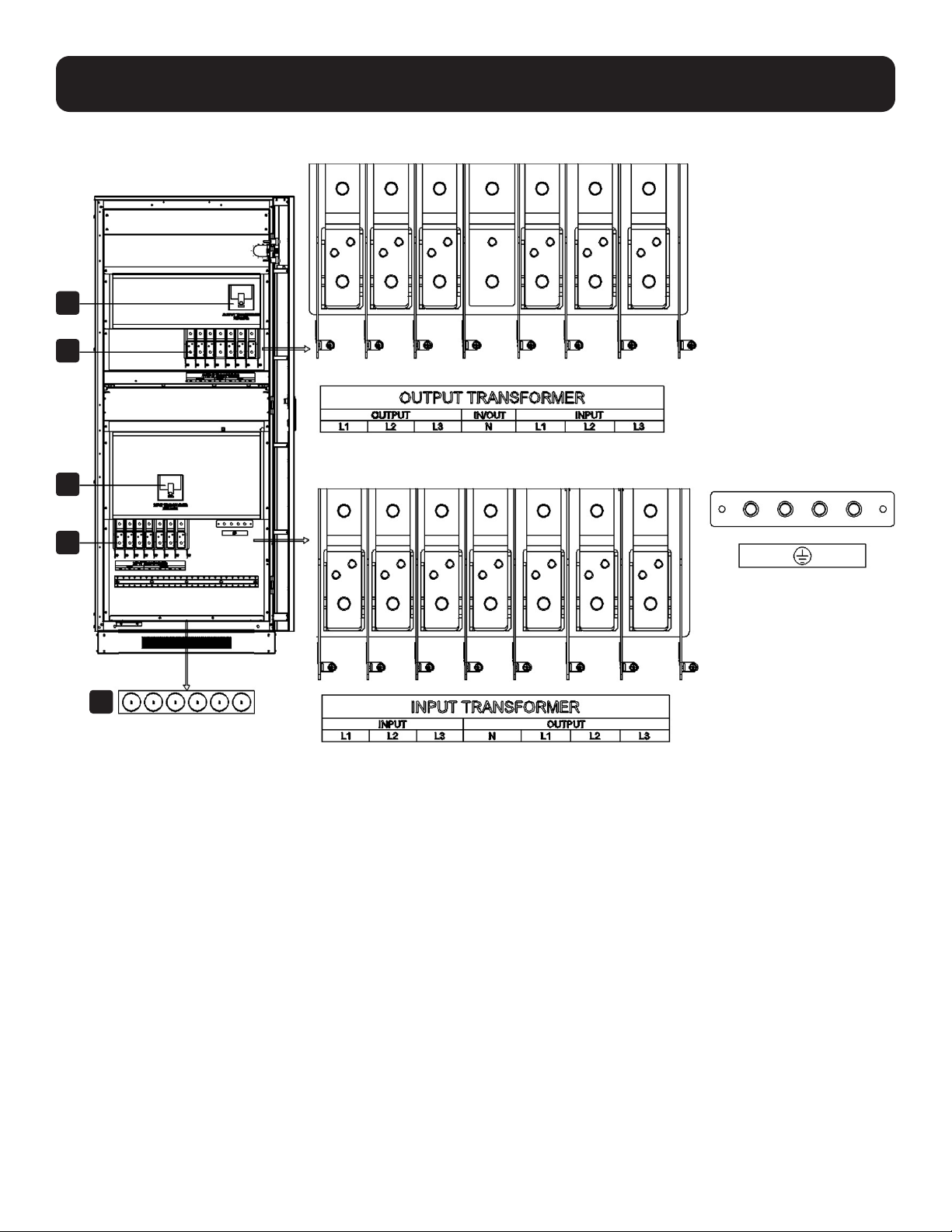

Front View (Terminal Block without Cover) of S3MT-100WR480V
5
6
7
9
8
