Tripp Lite U209-005-C Manuel utilisateur

USB Type-C to Serial

Adapter Cable

Model: U209-005-C

* USB Type-C™ and USB-C™ are trademarks of

USB Implementers Forum

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

16-05-332-9335E4-EN.indd 1 5/26/2016 11:14:06 AM

Package Contents

Features

• U209-005-C USB Type-C to Serial Adapter

Cable

• Owner’s Manual

• Driver CD

• Supports data transfer rates up to 250 Kbps

• Supports remote wake up and power

management

• Premium double-shielded cable eliminates

cross-talk and reduces EMI/RFI interference

• No external power supply required

• Compact 5-foot length ﬁts in backpack or

laptop bag for easy travelling

16-05-332-9335E4-EN.indd 2 5/26/2016 11:14:06 AM

System Requirements

• Computer with an available USB Type-C port

• Compatible with Windows®, Mac®and Linux®

operating systems

• Compatible with Android™ devices (tablets/

phones) with USB Host Mode (OTG) support

and Android OS version 3.2 and above

• Android-powered devices will require a USB

Host Mode (OTG) cable to connect to the

U209-005-C

16-05-332-9335E4-EN.indd 3 5/26/2016 11:14:06 AM

Installation

Note: The following instructions show how to install

the driver on a Windows 7 computer. The installation

steps will be similar for other Windows operating

systems. For non-Windows operating systems,

reference the installation ﬁles on the CD or on

Tripp Lite’s website at www.tripplite.com. Compatible

Android devices do not require a driver for use with

the U209-005-C, but do require that a terminal

server application be downloaded. The Proliﬁc

PL2303 USB-UART app is recommended and can be

found in the Google Play Store.

1. Without connecting the U209-005-C, power

on your computer and insert the driver

CD that came with the product into your

computer’s CD ROM drive.

2. Click on the CD icon to access its ﬁle

contents, then click on the “PL2303” ﬁle to

run the driver installation application.

16-05-332-9335E4-EN.indd 4 5/26/2016 11:14:06 AM

Installation

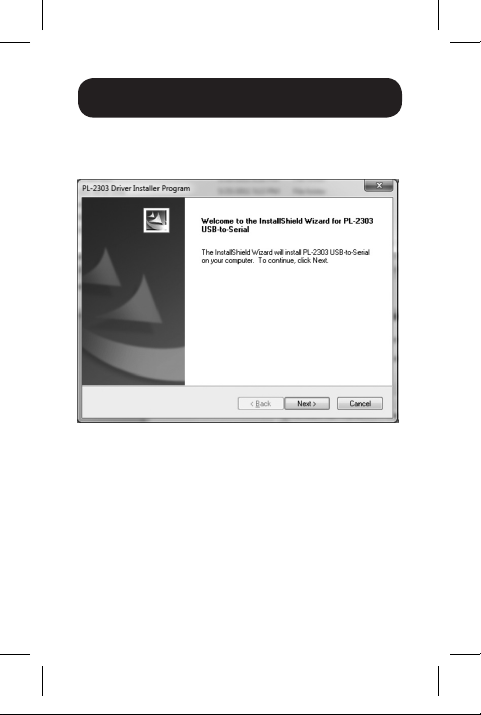

3. When the driver installer program launches,

click the Next button to start installation.

16-05-332-9335E4-EN.indd 5 5/26/2016 11:14:06 AM

Installation

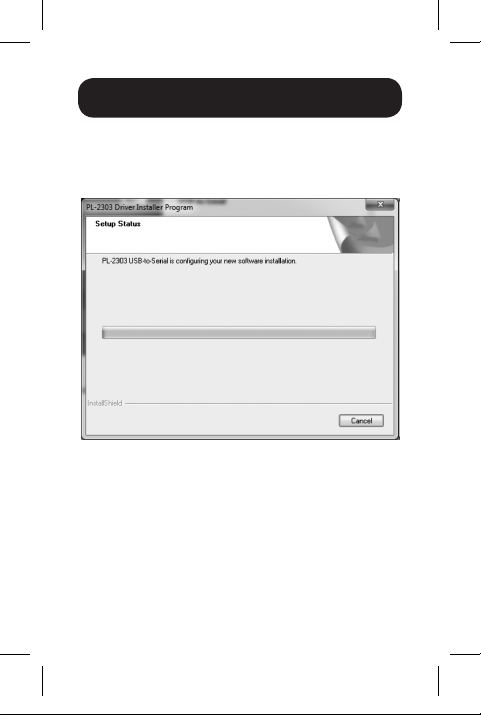

4. The driver installation begins. A progress

bar tracks where you are in the installation

process.

16-05-332-9335E4-EN.indd 6 5/26/2016 11:14:07 AM

Installation

5. Once the installation process is complete,

click the Finish button to close out of the

program.

6. Connect the U209-005-C to an available

USB-C port on your computer. Windows will

detect the adapter cable and assign it a

COM port upon completing the installation.

16-05-332-9335E4-EN.indd 7 5/26/2016 11:14:07 AM

Installation

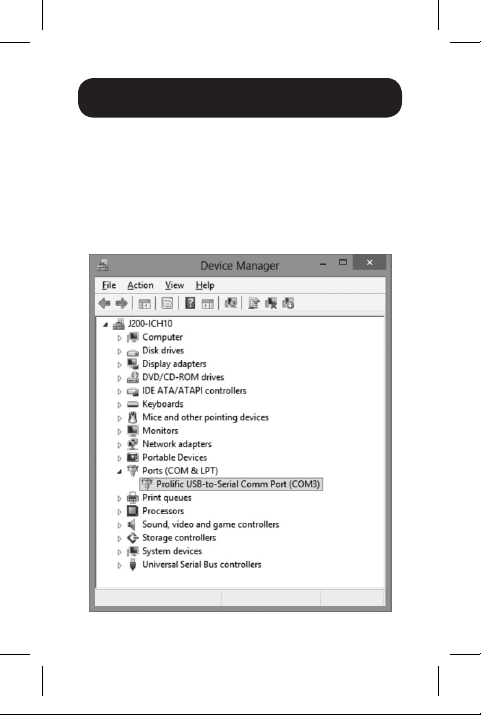

7. To verify your adapter cable has been

successfully installed, navigate to your

computer’s Control Panel and open the

Device Manager screen. The adapter cable

will appear in the Ports section, with its

assigned COM port next to it.

16-05-332-9335E4-EN.indd 8 5/26/2016 11:14:07 AM

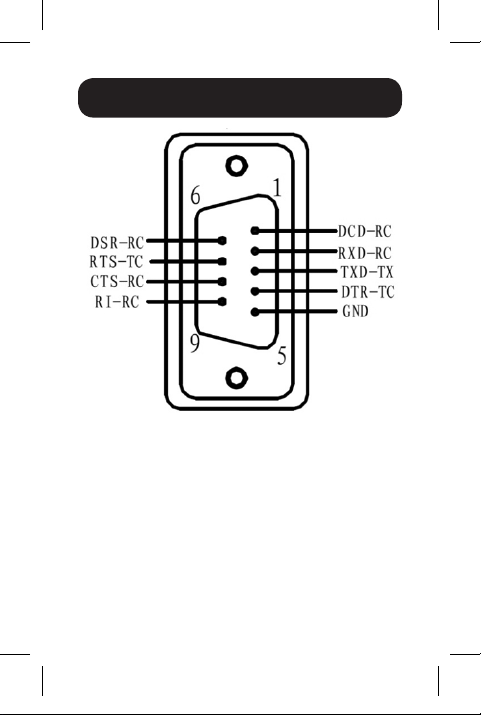

Pinout

16-05-332-9335E4-EN.indd 9 5/26/2016 11:14:07 AM

Warranty and Product

Registration

2-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in

materials and workmanship for a period of two (2) years

from the date of initial purchase. TRIPP LITE’s obligation

under this warranty is limited to repairing or replacing (at its

sole option) any such defective products. To obtain service

under this warranty, you must obtain a Returned Material

Authorization (RMA) number from TRIPP LITE or an authorized

TRIPP LITE service center. Products must be returned to

TRIPP LITE or an authorized TRIPP LITE service center with

transportation charges prepaid and must be accompanied by

a brief description of the problem encountered and proof of

date and place of purchase. This warranty does not apply to

equipment, which has been damaged by accident, negligence

or misapplication or has been altered or modiﬁed in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE.

Some states do not permit limitation or exclusion of implied

warranties; therefore, the aforesaid limitation(s) or exclusion(s)

may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE

BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF

THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGE. Speciﬁcally, TRIPP LITE is not liable for any

costs, such as lost proﬁts or revenue, loss of equipment, loss

of use of equipment, loss of software, loss of data, costs of

substitutes, claims by third parties, or otherwise.

16-05-332-9335E4-EN.indd 10 5/26/2016 11:14:07 AM
