Tripp Lite CSD1006AC Manuel utilisateur

Owner’s Manual

Desktop

Charging Stations

USB Charging (Model: CSD1006USB)

AC Charging with Surge Suppression (Model: CSD1006AC)

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Product Features 2

Package Contents 2

Optional Accessories 3

Important Safety Warnings 3

Setup 4

USB Charging 5

AC Charging 8

Adjusting Storage Shelf 11

Dividers (All Models)

Speciﬁcations 12

Product Registration and 13

Warranty Information

Ultimate Lifetime Insurance 15

Policy (CSD1006AC only)

Este manual esta disponible en español en la página de Tripp Lite: www.tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite : www.tripplite.com

17-01-037-93362C-EN.indd 1 1/5/2017 5:07:12 PM

Product Features

Package Contents

Both Models

• Charge up to 10 tablets, smartphones or other mobile devices

• Doubles as a USB or AC charger and storage unit, providing space to neatly

organize your devices as they charge

• Removable dividers customize the unit’s storage space according to the number

and size of devices being charged

CSD1006USB Model

• BC1.2 rapid charging with a single port is capable of providing up to 5V 2.4A

• Overcurrent protection prevents devices from pulling more power than the charger

is capable of supporting

• Overcharging protection stops charging when a device battery is full

CSD1006AC Model

• 2880-joule surge suppression rating

• EMI/RFI noise ﬁltering

• Diagnostic LED indicates Protected (green) and Grounded (red)

• Automatic shutoff cuts power to outlets when the protection circuit has been

compromised

• $25,000 Ultimate Lifetime Insurance for connected equipment

(U.S., Canada, and Puerto Rico only)

CSD1006USB

• USB Charger

• External Power Supply with 5-15P

Plug (Input: 100V-240V, 50/60 Hz;

Max Output: 12V, 8A)

• Enclosure unit with locking lid

• USB charger enclosure mount

• Keys

• Combination cable lock

• Owner’s Manual

CSD1006AC

• 10-Outlet AC Surge Protector

• Enclosure unit with locking lid

• Keys

• Combination cable lock

• Owner’s Manual

17-01-037-93362C-EN.indd 2 1/5/2017 5:07:12 PM

Optional Accessories

Important Safety Warnings

• M100-Series USB to Lightning™ Cables

• M110-Series USB to Apple®30-Pin Cables

• Always read the safety instructions carefully.

• Keep these instructions for future reference.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other equipment (including ampliﬁers) that produces heat.

• Unplug the unit when unused for extended periods of time.

• To reduce the risk of ﬁre or electric shock, do not expose this unit to rain or

moisture, including any dripping or splashing.

• Objects ﬁlled with liquids, such as vases, should never be placed on or near the

unit.

• The unit presents an electric shock hazard; do not open.

• The outlet used to power the unit should be easily accessible and located near

the equipment.

• The power supply cord is for indoor use only.

•

Maximum ambient temperature around the adapter must not exceed 104°F (40°C).

• The power supply cord’s plug and inlet are used as the disconnect device for

the unit and its connected peripherals. The power supply cord should be easily

accessible during operation.

• Refer to the marking label on the unit for input and output ratings. Do not

overload the power supply.

• Use of this equipment in life support applications where failure of this equipment

can reasonably be expected to cause the failure of the life support equipment or

to signiﬁcantly affect its safety or effectiveness is not recommended.

17-01-037-93362C-EN.indd 3 1/5/2017 5:07:12 PM

Setup

Both Models

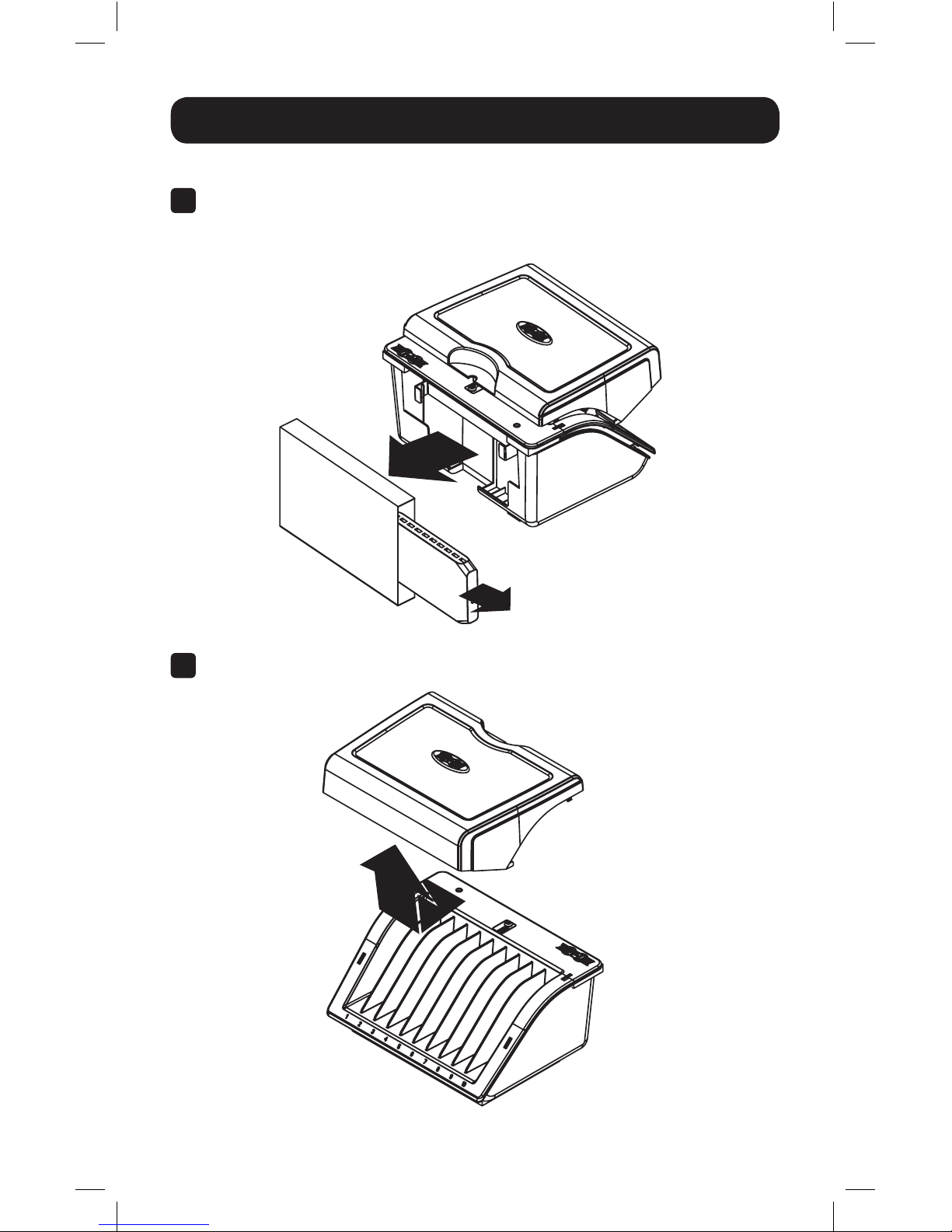

1After removing the protective packing, locate the separate box at the

rear of the enclosure unit containing the USB or AC charger. Remove the

USB charger or surge protector from its box.

2Remove the enclosure lid by pushing out and lifting up.

17-01-037-93362C-EN.indd 4 1/5/2017 5:07:13 PM

Setup

3Lift and remove the storage shelf from the enclosure.

4Attach the charging unit to the enclosure:

CSD1006USB Model

ASlide the included mounting bracket onto the enclosure’s rear slots.

17-01-037-93362C-EN.indd 5 1/5/2017 5:07:13 PM

Setup

CSD1006USB Model (continued)

BInsert the USB charging unit into the mounting bracket with the USB ports

facing upward.

CConnect USB charging cables appropriate for the number and type of

devices. The slots located at the top and front of the enclosure base allow for

convenient cable routing.

17-01-037-93362C-EN.indd 6 1/5/2017 5:07:13 PM

Setup

CSD1006USB Model (continued)

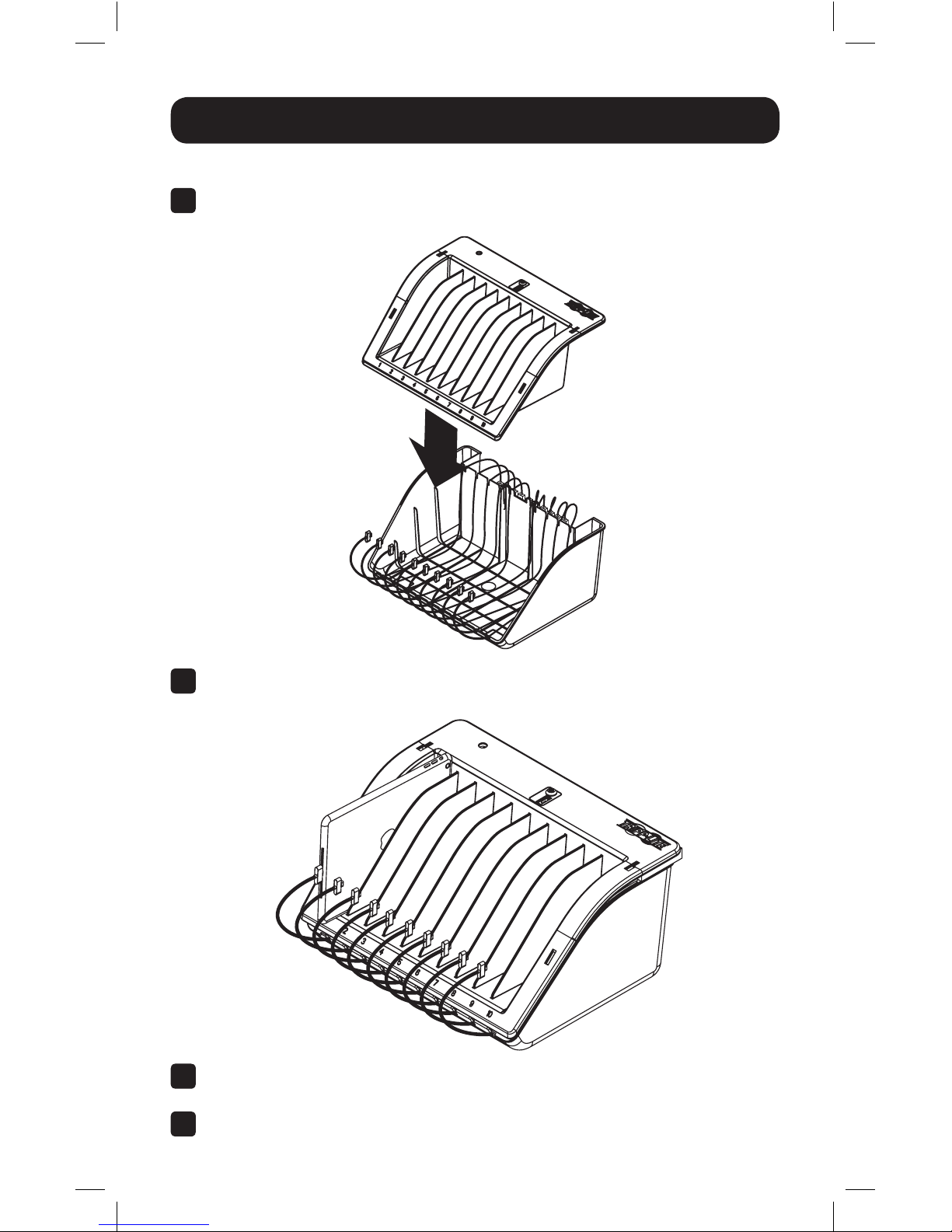

DOnce all desired USB cables are connected, place the storage shelf on top of

the enclosure base.

Note: To remove or adjust storage

shelf dividers, refer to pg. 11.

EConnect the electronic devices to the USB power cables and place items inside

the shelf tray.

FUse the included power supply to connect the charging unit to a Tripp Lite

surge protector or AC wall outlet.

GProceed to step 5.

17-01-037-93362C-EN.indd 7 1/5/2017 5:07:14 PM

Setup

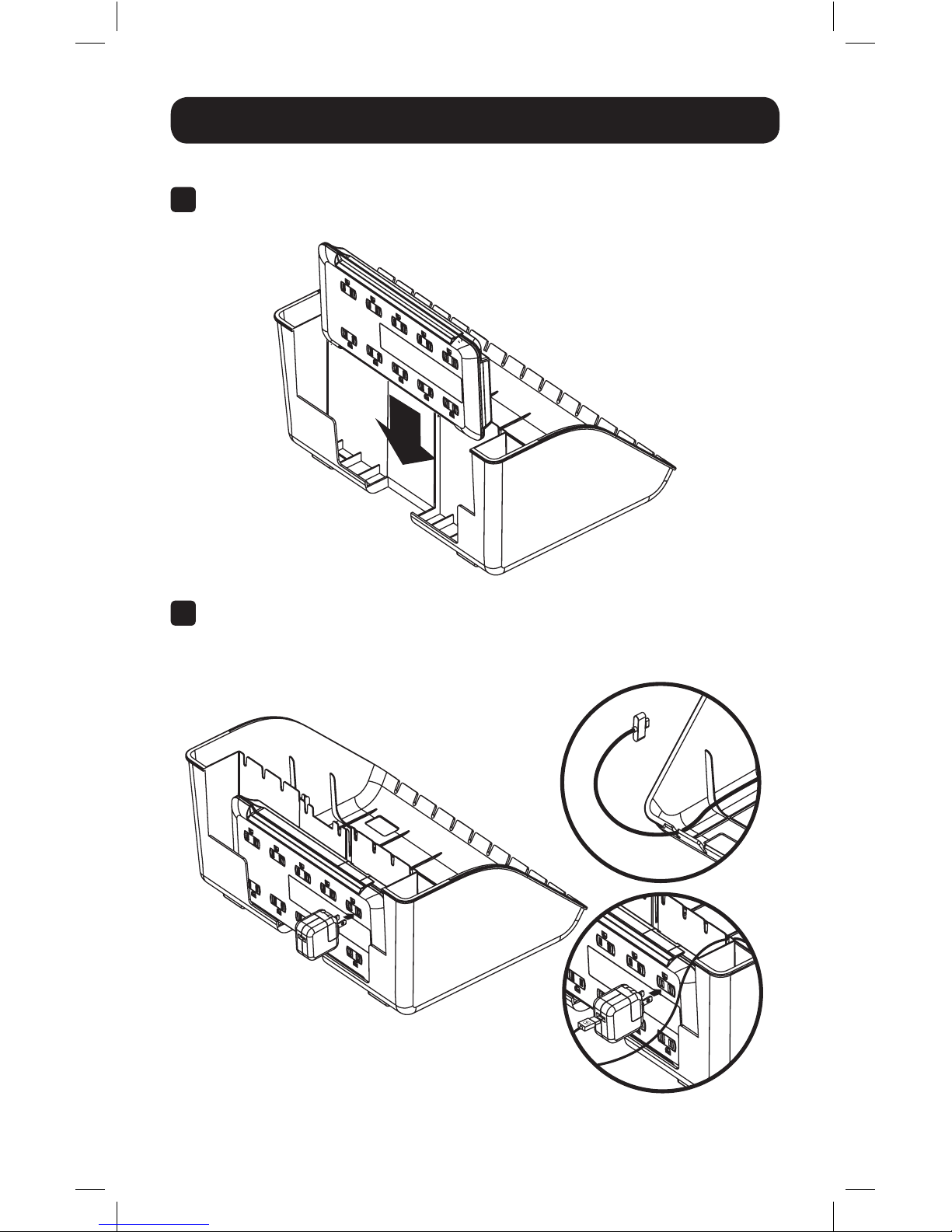

BConnect the AC power cables appropriate for the number and type of

devices. The slots located at the top and front of the enclosure base allow for

convenient cable routing.

CSD1006AC Model

AInsert the AC surge protector into the enclosure’s rear slots. Make sure the AC

outlets are facing outward.

17-01-037-93362C-EN.indd 8 1/5/2017 5:07:14 PM

Setup

CSD1006AC Model (continued)

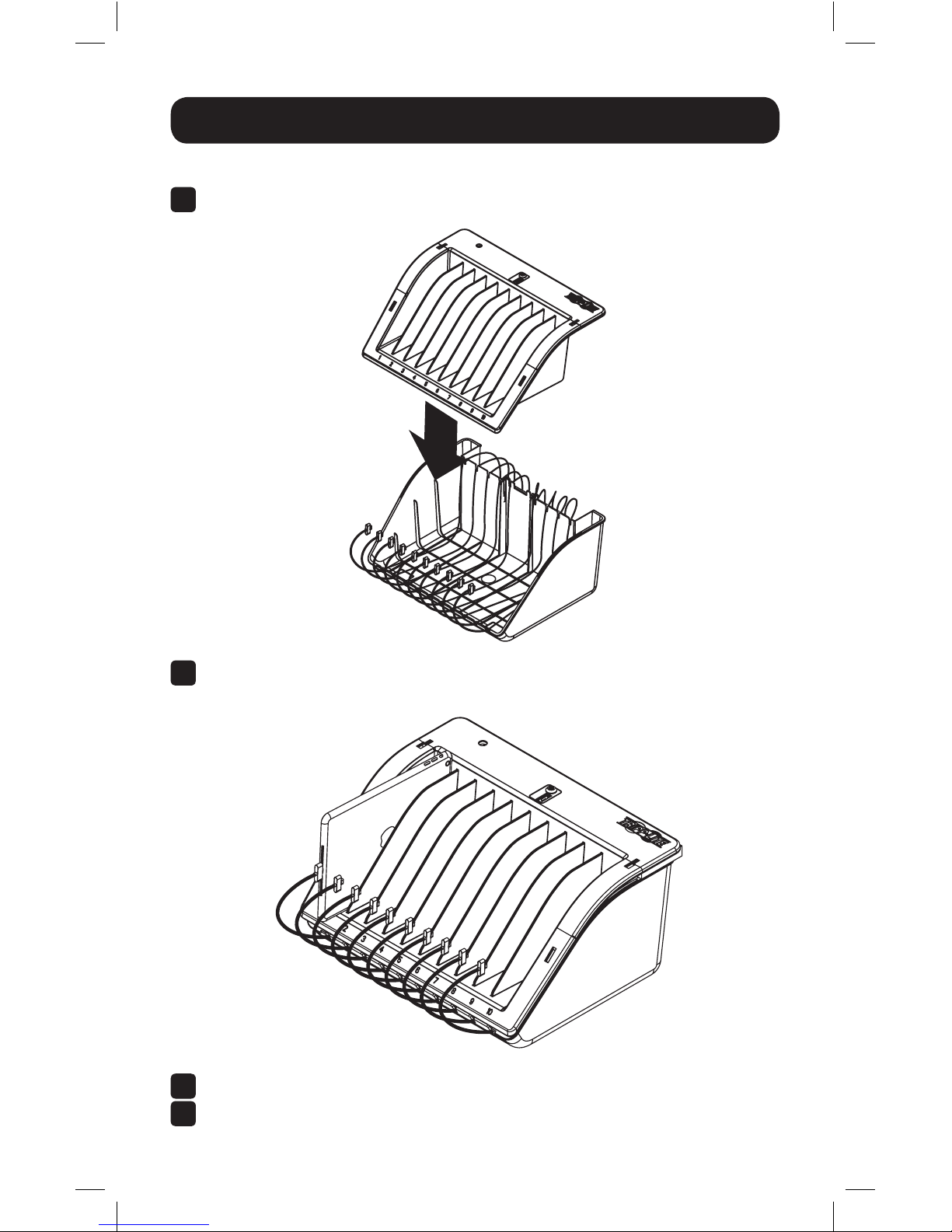

COnce all desired AC power cables are connected, place the storage shelf on top

of the enclosure base.

DConnect the electronic devices to the AC power cables and place items inside

the shelf tray.

EPlug the charging unit into an AC wall outlet.

FProceed to step 5.

Note: To remove or adjust storage

shelf dividers, refer to pg. 11.

17-01-037-93362C-EN.indd 9 1/5/2017 5:07:15 PM

Setup

Both Models

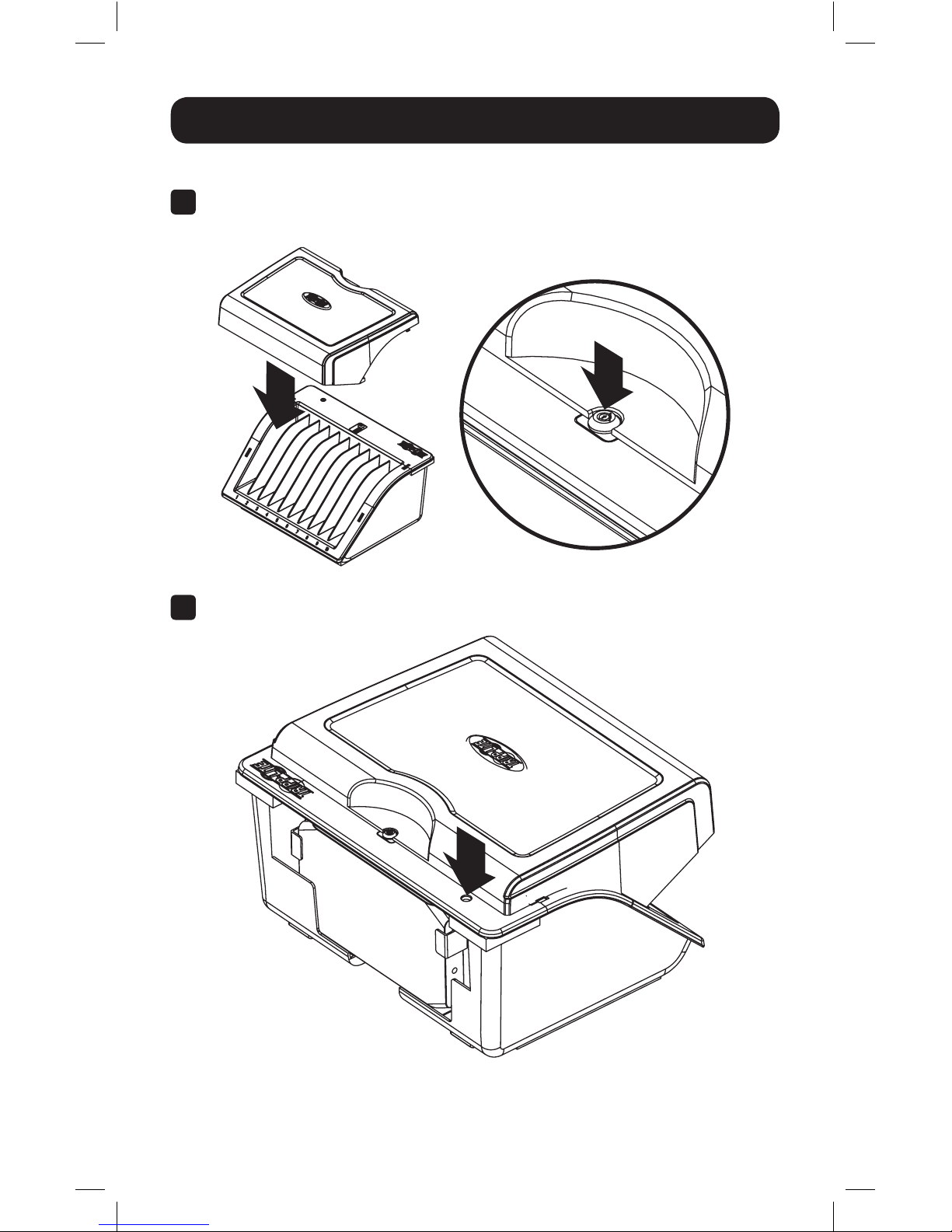

5To prevent device tampering and theft, reattach the enclosure lid to the

top of the enclosure. Use the included key to lock the barrel lock.

6Secure the enclosure unit to a desk using the included combination

cable lock.

17-01-037-93362C-EN.indd 10 1/5/2017 5:07:15 PM
