OPERATION Location Control indication
1 I. Shift the valve handle to
the open position.
II. Insert two CR123 batteries
into the disconnection unit
(valve.)

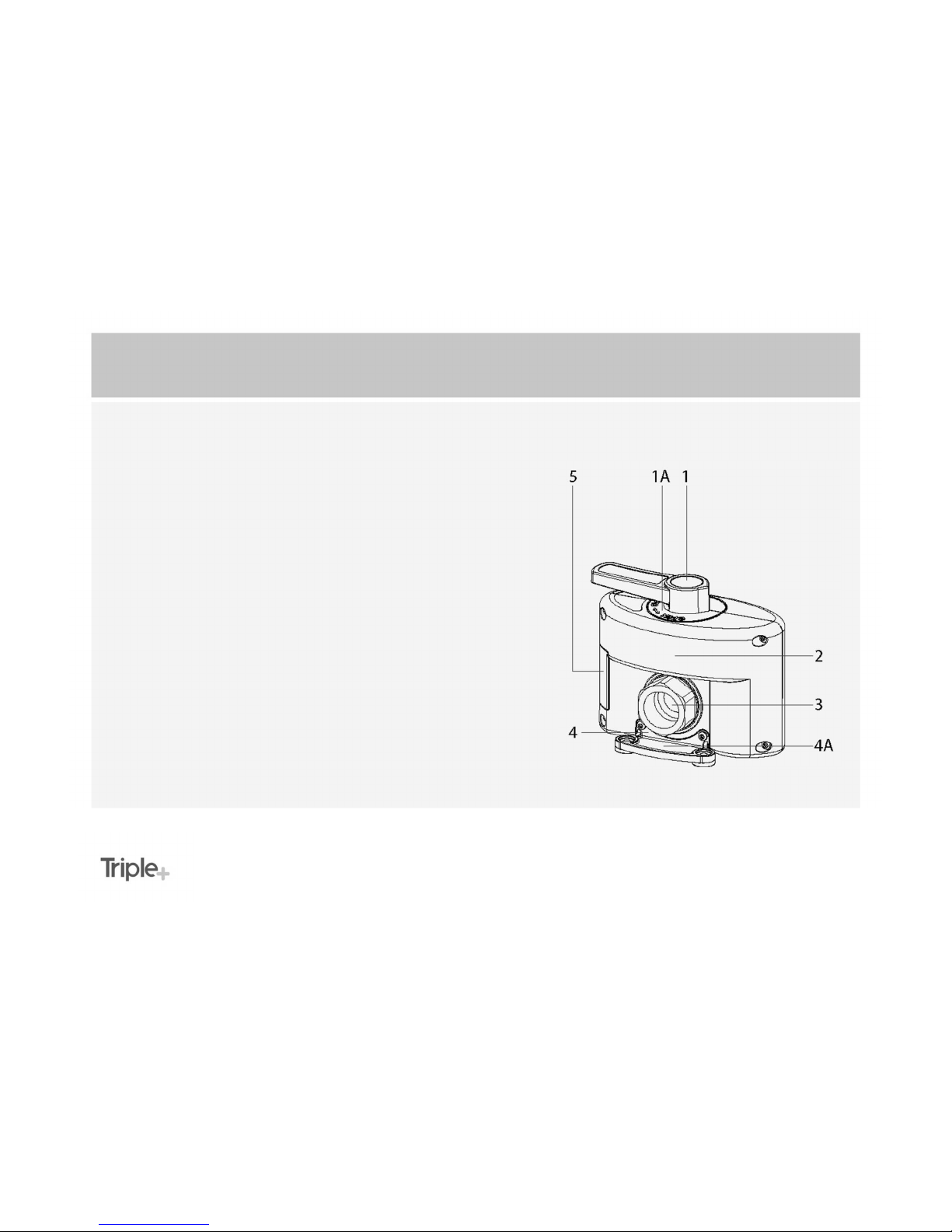

A water valve that is
installed on the main
water line
I. A green indicator lights up within the battery housing.
II. The valve performs an opening action and then a closing one.
III. Wait for the conclusion of the engine's operation.
IV. Ensure that the valve can be manually opened and closed.
2 Hoo the repeater to the main
supply with the transformer.
Position the repeater
where measurements
indicate qualitative and
continuous
transmission.
The four indicators flash 3 times.
The voltage indicator flashes.
Wait for approximately two minutes by the repeater to ensure that the
indicator of communication with the valve is lit continuously (in addition to the
flashing voltage indicator.)
In case the communication indicator flashes or is turned off, the systems
should be brought closer.
3 Hoo the controller to the main
supply with the transformer.
Position the controller
where measurements
indicate qualitative and
continuous
transmission from the
valve and the
controller.
The four indicators flash 3 times.
The voltage indicator flashes.
Wait for approximately two minutes by the controller to ensure that the
communication indicator is lit continuously (in addition to the voltage
indicator.)
4 Ensuring qualitative and
continuous communication
between the system's
components.
Repeater Ma e sure that the green indicator lights are continuously on (voltage will be
flashing, valve and controller communications will be continuously on.)
System synchronization: valve - controller synchronization table
