TRIOBIKE CARGO Manuel utilisateur

2 KIDS KIT INSTALLATION MANUAL

ENGLISH V 1.0

CARGO

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

a

b

c

d

X22

X14

1 1

3 3

3

4

5 5

6 6

6 6

4

2b b

2

2

2

2

2

2

2

3

front panel

rear panel

bottom panelleft

panel

left

extension

right

extension

right

panel

a a

cc

d d

PARTS AND PLACEMENT

X2

X8

X4

X2

X2

X4

X2

X2

X2

X2

1

2

3

4

20

16

5

6

45

60

20

70

All manuals and user guides at all-guidesbox.com

4

INSTALLING THE 2 KIDS KIT

1- Place and fix the front panel and the Abrackets using bolts #1 + washers + nuts on the

back side. The brackets have to stay on top of the panel.

2- Place the brackets Band C on the frame, then put the bottom panel over them. The

frame, panel and brackets holes have to match. Fix everything using bolts #3 + nuts and

washers on the back side.

top

top

bottom

bottom

5

All manuals and user guides at all-guidesbox.com

6

4- Place the rear panel and brackets Das shown in the picture, and fix them on the

extension panels using bolts #5 + washers + nuts. The brackets have to stay in front of the

panel.

INSTALLING THE 2 KIDS KIT

7

INSTALLING THE 2 KIDS KIT

3- Place the extension panels as shown in the picture. Fix them on the bottom of the

external hole of brackets Cwith bolts #4 + nuts and washers.

All manuals and user guides at all-guidesbox.com

8

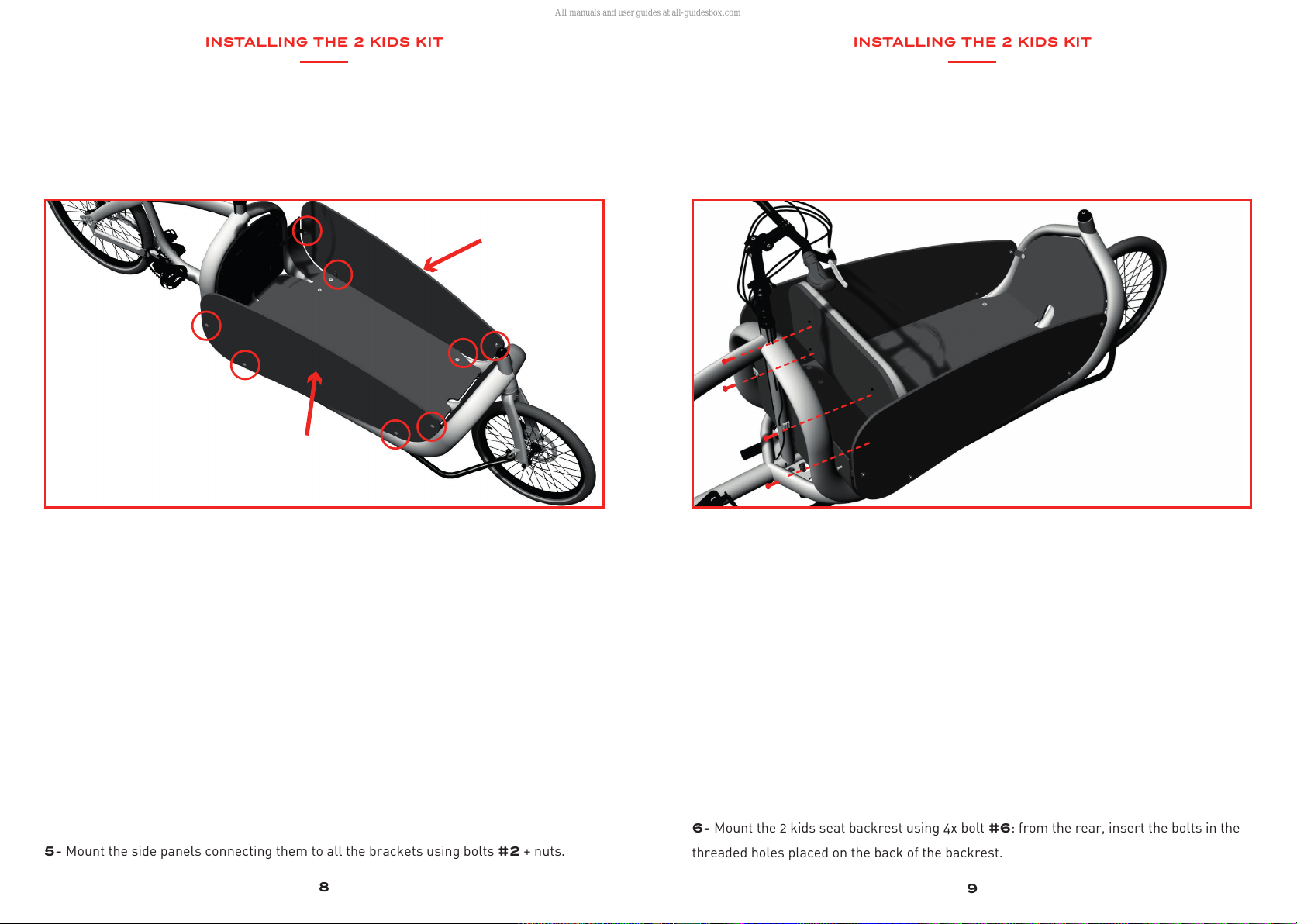

5- Mount the side panels connecting them to all the brackets using bolts #2 + nuts.

INSTALLING THE 2 KIDS KIT

9

6- Mount the 2 kids seat backrest using 4x bolt #6: from the rear, insert the bolts in the

threaded holes placed on the back of the backrest.

INSTALLING THE 2 KIDS KIT

All manuals and user guides at all-guidesbox.com

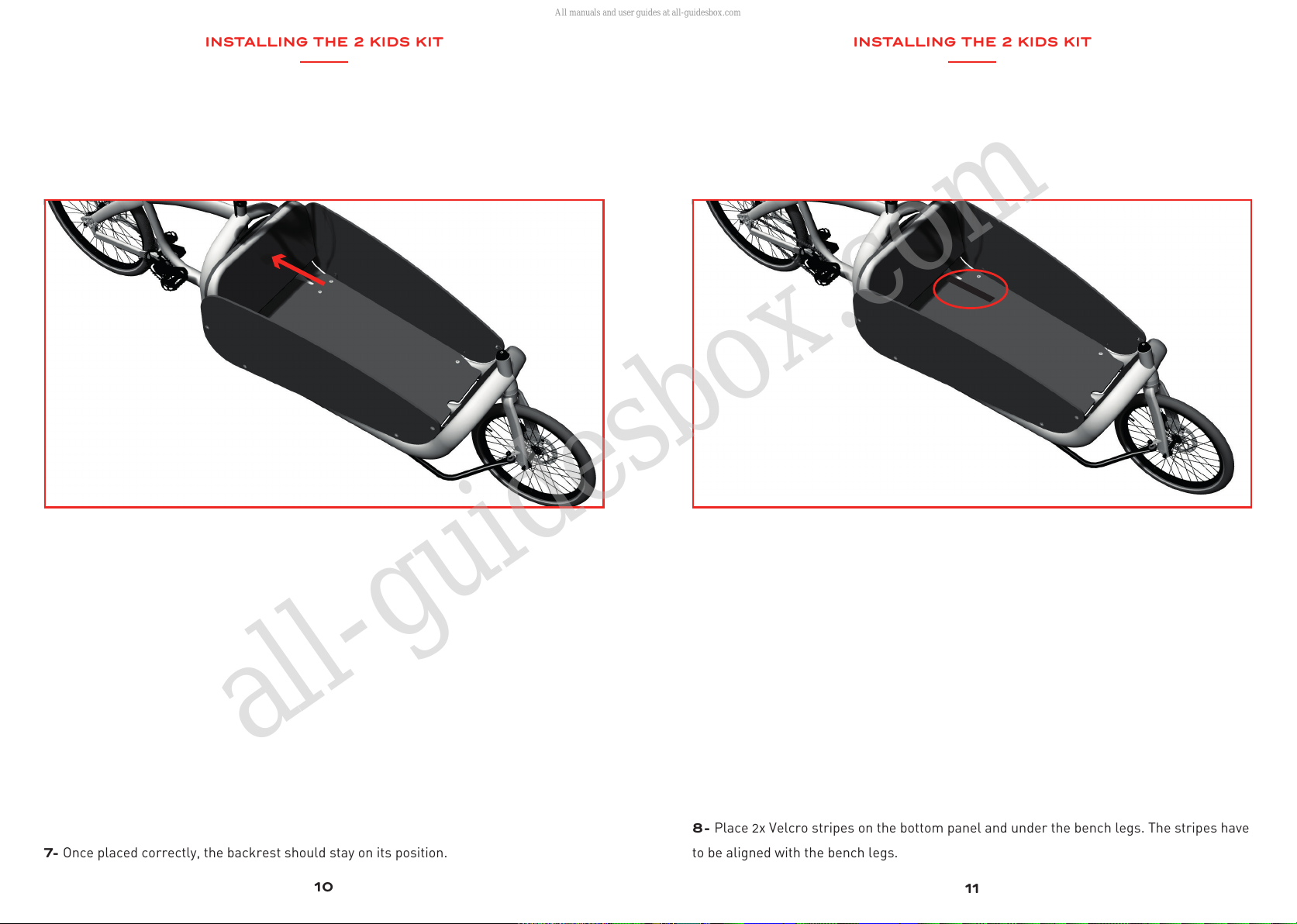

7- Once placed correctly, the backrest should stay on its position.

8- Place 2x Velcro stripes on the bottom panel and under the bench legs. The stripes have

to be aligned with the bench legs.

10 11

INSTALLING THE 2 KIDS KIT INSTALLING THE 2 KIDS KIT

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

9- Fix the bench pushing it towards the bottom panel.

INSTALLING THE 2 KIDS KIT

12

All manuals and user guides at all-guidesbox.com

TRIOBIKE A/S

Vesterbrogade 149, 1620 Copenhagen V - Denmark

phone: +45 3670 0070

[email protected] | www.triobike.com
