Trinity 100 QT Manuel utilisateur

OWNER’S MANUAL

TRINITY 100 QT STAINLESS STEEL COOLER

W/ SHELF

Model # TXK-0804

Everything in its place.®

OWNER’S MANUAL

Your TRINITY Stainless Steel Cooler should include the following parts. Please inspect box contents to

ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY

Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online

via our “Contact Us” section at www.trinityii.com.

You will need a Phillips screwdriver for assembly.

PARTS LIST

TUB (1)

SHELF (1)

LEG (4)

SMALL

SCREW (10)

HANDLE (2)

LARGE

SCREW (12)

CAP CATCHER (1)

BOTTLE

OPENER (1)

I J

DRAIN PLUG (1)

LOCKING

CASTER (2)

NON-LOCKING

CASTER (2)

WRENCH (1)

LID (1)

ASSEMBLY INSTRUCTIONS

Turn the TUB (A) upside down, and align

LEGS (D) with the holes on the bottom of the

TUB (A). Attach LEGS (D) with the SMALL

SCREWS (E). Make sure to tighten securely.

Align the HANDLES (F) on each side of the TUB

(A). Attach the HANDLES (F) with the LARGE

SCREWS (G). Make sure to tighten securely.

The HANDLES (F) can be attached either angled

up or down based on your preference.

STEP 1

STEP 2

F (2) G (12)

A (1)

D (4) E (8) Phillips

Phillips

ASSEMBLY INSTRUCTIONS

Turn the Cooler right-side up. Attach the CAP

CATCHER (H) to the TUB (A) by sliding it

downward, over the metal notch. Attach the

BOTTLE OPENER (I) to the TUB (A) using

SMALL SCREWS (E).

Align the holes in the SHELF (C) with the bottom

of the LEG (D), making sure that the SHELF Lip is

facing the TUB (A). Screw the LOCKING CASTER

(K) into the bottom of the LEG (D), securing the

SHELF (C) in between. Please make sure the

LOCKING CASTERS (K) are installed on the same

side. Screw the NON-LOCKING CASTER (L) into

the bottom of the LEG (D) securing the SHELF (C)

in-between. Repeat for the other NON-LOCKING

CASTER (L).

Tighten all CASTERS (K, L) with the provided

WRENCH (M).

Use the provided caster wrench to tighten

completely. Failure to do as instructed could

result in the caster stem breaking.

STEP 3

STEP 4

K (2) L (2) M (1)

C (1)

Phillips

I (1) E (2)

H (1)

Set LID (B) on top of TUB (A).

Clean the inside of the Cooler thoroughly

before use.

Unscrew the DRAIN PLUG (J) assembly. Insert

the DRAIN PLUG (J) through the opening in

the TUB (A) from the inside. Make sure the

rubber seal is on the inside of the TUB (A).

From the outside, slide the washer on first,

then the second washer with the chain

attached, and then screw on the nut. Be sure

not to overtighten. Once the DRAIN PLUG (J)

is in place, screw on the cap.

STEP 5

STEP 6

ASSEMBLY INSTRUCTIONS

J (1)

Inside the tub

Outside the tub

B (1)

SERVICE PARTS LIST –TXK-0804

Part Number Description Part Number Description

1) PBR-17-002-3317 Cooler Lid 9) ZSV-99-011-3010 Non-Locking Caster

2) AMA-05-005-0150 Lid Knob 10) PBR-03-028-3116 Shelf

3) XSV-01-010-0530 Knob Screw 11) PBR-04-022-1625 Leg

4) XST-18-015-3317 Cooler Tub 12) XSV-01-010-0416 Small Screw

5) XST-02-004-0001 Bottle Opener 13) CGL-02-003-0001 Drain Plug

6) XST-02-005-0002 Cap Catcher 14) XSV-05-001-0675 Handle

7) ZSV-99-012-3010 Locking Caster 15) XSV-01-010-0615 Large Screw

8) XXX-97-002-0001 Wrench

TRINITY Customer Service provides the following replacement parts:

WARNINGS

1. Read and understand all instructions. Failure to follow all instructions may result in injury

and/or damage.

2. The warnings, cautions, and instructions discussed in this manual cannot cover all

possible conditions or situations that may occur. The user must always be aware of their

environment and ensure that they use the product in a safe and responsible manner.

3. Use the provided caster wrench to tighten completely. Failure to do as instructed could

result in the caster stem breaking thereby causing the cooler to collapse.

4. Do NOT modify the product in any way. Unauthorized modification may impair the

function and/or safety of the product, and may affect the life of the product.

5. Check for damaged parts. Before using this product, carefully check that all parts are in

good condition, and that the product will operate properly and perform its intended

function. Check for damaged parts and any other conditions that may affect the operation

of this product. Replace damaged or worn parts, and never use this product with a damaged

part.

6. Do NOT let children climb or play in the tub.

7. Do NOT overload the product.

8. Lock the casters when leaving cooler in stationary position.

9. Do NOT push cooler with cart on uneven surface. Cooler tub may detach from the cart.

Volume Capacity 25 gallons / 100 qt

Weight capacity per shelf 75 lb

Total weight capacity 275 lb

CARE AND MAINTENANCE

•Remember to drain remaining water and remove un-melted ice after use. Wipe dry for

storage.

•Avoid harsh, abrasive cleaners, and other corrosive chemicals.

•Do not use scouring pad for cleaning.

•Keep dry and avoid damp environments.

•Use a quality stainless steel cleaner and follow instructions that come with the cleaner.

Wipe ALONG the grain (NOT against).

•Cooler should not be left out unprotected in the elements. A protective Cooler Cover

(UBK-24-001-3519) is available as an accessory through www.trinityii.com.

Thank you for purchasing a TRINITY Stainless Steel Cooler. In order to register your product

and receive streamlined customer service, please fill out the following Product Registration

Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online

at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. Include a

copy of your original receipt with your submission.

First Name: Last Name:

Address:

City: State: Zip Code:

Email Address: Phone:

Product Model #: TXK-0804 Purchase Date: / /

Location of Purchase:

Please rate the importance of each feature (1=least important; 10=most important)

Quality Price Size/Capacity Appearance Other

How did you hear about our product?

Magazine Ad Catalog Salesperson Word of Mouth

Internet Store Display Other

Marital Status: Single Married

Household Income: Below $50,000 $50,000-$150,000 $150,000+

Education: High School College Graduate School

Primary Residence: Own Rent

Comments/Suggestions:

PRODUCT REGISTRATION

Table des matières

Autres manuels Trinity Accessoires

Trinity

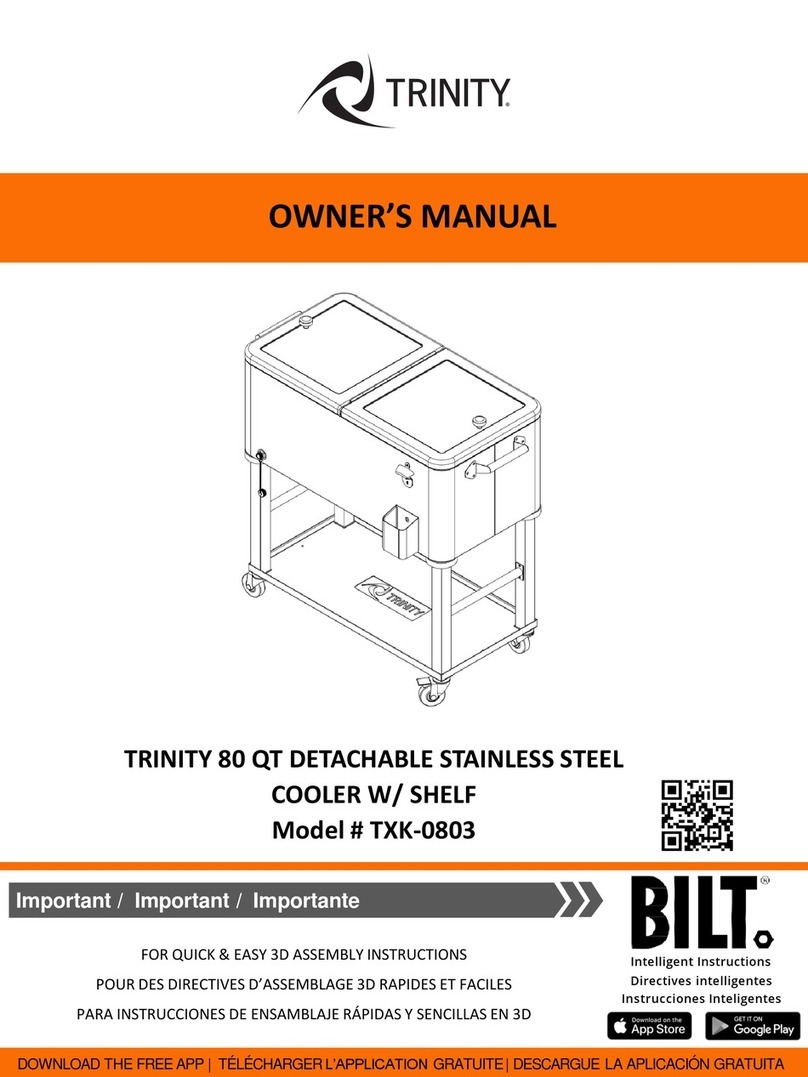

Trinity TXK-0803 Manuel utilisateur
