Small ball
Junk ring
Connect: Push down the slide jacket of
speedy connector ( 4 small
balls must be exposed ),
insert it into the connection
socket and then push upward
Release the connection of
water tap with speedy
connector is completed. If it
is required to feed water,
simply open the water tap.
Separate: Close the water tap, push down
the slide jacket of speedy
connector and pull out the
speedy connector.
Unscrew four screws of part
A and sleeve part A horizontally
over the mouth at the end of
water tap (the mouth at the end
of water tap must be flat and
smooth. Flatten it by filing if it is
not flat) and push it upward with
force making the rubber washer
firmly press the plane center of
water tap mouth. Then tighten
the screw sequentially.
After that, tightly screw on part B.
Connect Separate
The connection socket
consists of A and B two
parts. Before installation,
A and B two parts must
be unscrewed to about
5mm, or directly
disconnected. If the
bore of water tap is
larger, remove the
plastic junk ring of
part A.
Push down the slide jacket
to expose the small ball and
enable separation of connector
socket from speedy connector.
5mm
+
+
A
B
+
+
+
+
1
6
+
+
7
5
4
3
2

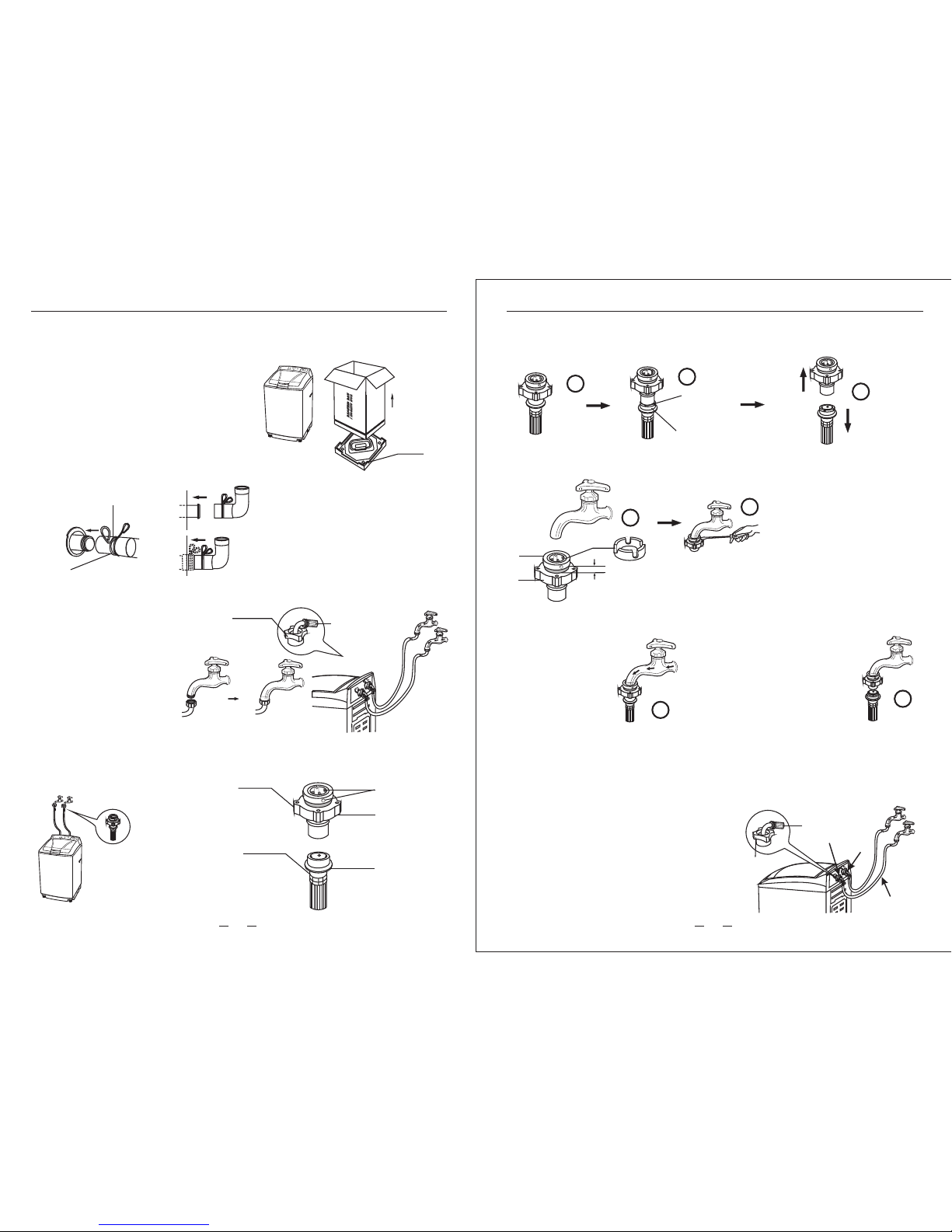

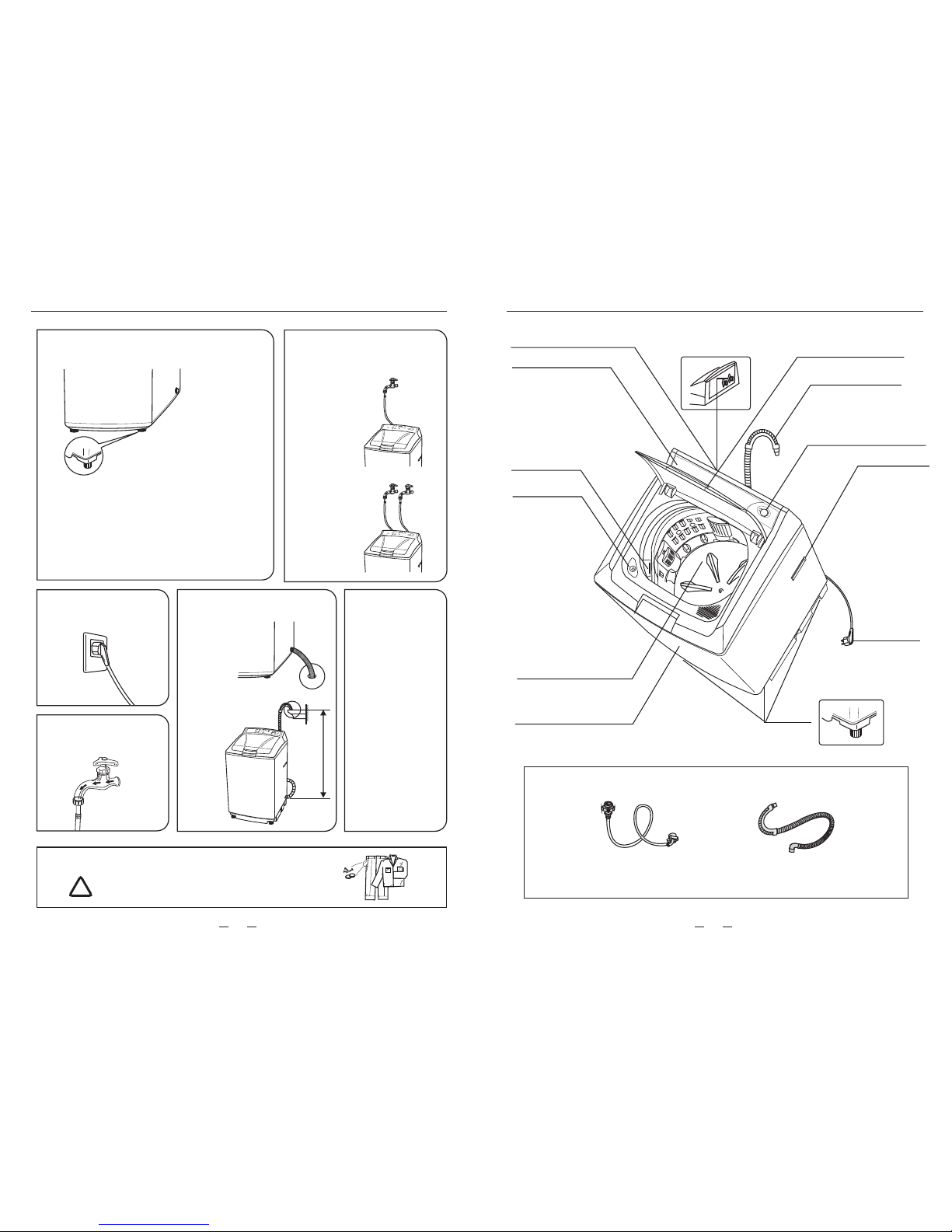

Installation of water inlet pipe
6
Installation of the washer Installation of the washer
Tightly screw another end of water inlet hose on
water inlet valve . (with rubber seal ring inside).
Note: When tightening the clamping nut, evenly
apply the force and do not twist the water inlet
valve to avoid breaking of water inlet valve joint.
Remove package
Installation of drain hose
! Remove package and take out the bottom board of
the cabinet on the foam cover.
! Open the lid of washer's door and take out accessories.
! A trial operation or washing on the foamed cushion is
strictly forbidden.
Base foamed cushion
Installation of water inlet hose
Water inlet adapter
Connector socket Fastening screw
Lock nut
Speedy connector
Slide jacket
The water inlet consists
of connection socket and
speedy connector.
+
+
Water inlet hose
Clamping nut
Installation of water inlet hose
Put the water inlet pipe(which has
metallic filtering bag) screw on to the tap.
Tightly screw another end of water
inlet hose on water inlet valve .
(with rubber seal ring inside).
Note: When tightening the
clamping nut, evenly apply the
force and do not twist the water
inlet valve to avoid breaking of
water inlet valve joint.
+
+
+
+
! Completely seat the drain
hose over the drain connector.
Installation of water inlet hose.
! Fix and tighten it with a hoop.
( As shown in the figure, and
you can use a pliers to finish
it.)
+
+
Clamping
nut
Hot water
Cold water
The two ends of
the hose is jacinth.
Water inlet hose
