5100 TriCoder™

Portable Bar Code Reader

QuickStart and Installation Guide

KwikCount/EX™

License Agreement for One User

Caref lly read all the terms and conditions of this agreement.

This License Agreement applies to KwikCount/EX.

This program is licensed to one user to use on one CPU. If the one user has one PC at home and

one PC in the office, providing the user or someone else does not simultaneously use the pro-

gram on two CPUs , copies may be installed on both CPUs. Persons or companies with multiple

CPUs, (including network users) , who simultaneously use copies from this program are in viola-

tion of this agreement; contact Worth Data for site license pricing if you need multiple copies of

programs in the same physical location. You are allowed to make copies of this software only to

facilitate the one user’s convenience and backup in use of the program. Not Copy Protected pro-

grams are still copyrighted and are not to be duplicated for use by any other person or organiza-

tion. You may not reverse engineer, decompile, disassemble the software, nor may you access

encrypted source code in interpreted script files.

C PYRIGHT: This program and its related documentation are copyrighted and as such THIS S FT-

WARE AND D CUMENTATI N ARE PR TECTED BY THE U.S. C PYRIGHT LAW (TITLE 17 UNITED

STATES C DE). Copying of this program for use on multiple computers or distribution of this pro-

gram to another party is a violation of Federal Law.

LIMITED WARRANTY: THE PR GRAM IS PR VIDED WITH SATISFACTI N GUARANTEED 30 DAYS

FR M THE DATE F PURCHASE. Worth Data does warrant for 30 days that the original licensee, if

dissatisfied for any reason, shall be entitled to a refund for the license cost, subject to prior

return authorization for programs. Deficiencies in the program will be corrected on a “best efforts”

basis by Worth Data. In any case, Worth Data’s entire liability shall be the replacement of the

defective diskette or the refund of the license cost. Worth Data SHALL N T BE LIABLE F R INDI-

RECT, SPECIAL, R C NSEQUENTIAL DAMAGES RESULTING FR M USE F THIS PR GRAM. This

license agreement shall be governed by the laws of the State of California.

For complete setup, operation and programming in ormation, please

see the TriCoder Users Manual available for download on our website:

https://www.barcodehq.com/downloads.html

Warning: This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with the instruction

manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing

device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. peration of this equipment in a residential area is likely to cause interference in which case the

user, at his own expense, will be required to take whatever measures may be required to correct the interference.

California Users:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

MODELS EQUIPPED WITH BLUETOOTH® TECHNOLOGY: CONTAIN FCC I.D. PI4411B

CLASS II LASER

Revised May 2021

No part of the contents of this manual may be reproduced or transmitted

in any form or by any means without the written permission of Worth Data.

5100TriCoderKS_5100 TriCoder K ikStart Guide 5/19/2021 3:14 PM Page 1

Components

The components included with your TriCoder will vary depending on exactly what

you have ordered. Your TriCoder shipment should contain at least:

•ALT5101, LT5101H, or LT5100 - These models all have an Integrated 1D

Laser Scanner built-in. Further, if it is a LT5100 or LT5101H it will also have a

gun handle, or

•ALT5200 or LT5200H - These models have a Integrated 2D scanner for reading

matrix bar codes and 1D bar codes. The LT5200H will also included a gun handle.

•F17 5V Worth Data USB Power Supply

•C25 Micro USB Cable

• Shoulder Strap

Installation Sequence

1. Start by installing the Integrated Hardware Utilities available from our

Website:

https://barcodehq.com/utilities/setupintegratedutils.exe

2. Connect your TriCoder to your computer with the C25 Micro USB cable.

3. Turn on the TriCoder. If this is the first time you have connected the TriCoder

to a USB cable, you will be asked to install a USB driver. Three USB upload

types are available. Generally for Windows® select “Full Speed.” For Mac

you must use “HID Keyboard.” See the TriCoder Manual for more informa

tion.

4. If you select the “Full Speed” USB option, Windows will ask you to install a

driver. Make sure you have dowloaded the USB driver from our website to a

location on your computer’s drive and follow Window’s instructions for

installing the driver.

5. Use the Demo programs that come pre-installed in the TriCoder to collect

some data. Then use the Integrared Hardwre Utilities software to move the

collected data from the TriCoder to your computer.

Before Using the TriCoder

The TriCoder operates on a single Li-ion rechargable battery. This battery is

replaceable in the field if it fails, but should provide years of use. The Worth Data

5 power adapter that comes with the TriCoder is used to recharge the battery while

they are in the TriCoder. Removal of the battery may cause data loss, so make sure

you have uploaded any data before removing the battery or storing the TriCoder.

The C25 Cable, plugged into a USB port, can also be used to slowly recharge the

TriCoder - Only if you change the setup to allow USB charging - See the TriCoder

Setup Section in the users manual for more informa-

tion.

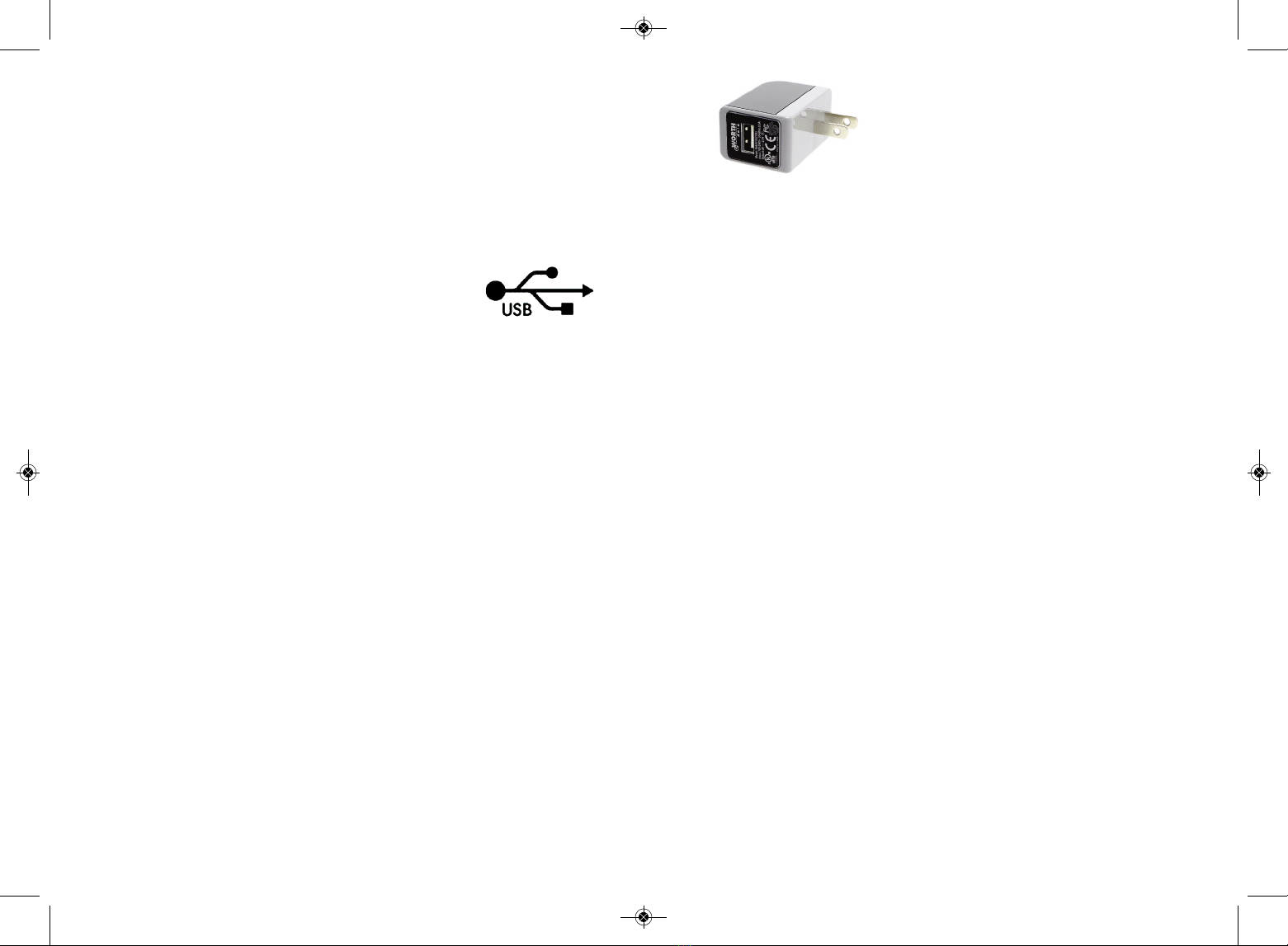

Only use the su lied F17 Worth Data Power S pply

and the C25 Micro USB Cable! - Using any other

ower su ly and cable could damage the TriCoder

and will void the warranty. Our C25 USB cable has

larger 20AWG wire for safe fast charging.

Installing the Hardware Utilities Software

The TriCoder works with the Integrated Hardware Utilities:

Integrated HardwareUtilities

• Data Upload

• Program Management

• Tables

• irtual TriCoder

• Firmware Loader

New firmware can be obtained directly from Worth Data, or down

loaded from our website

USB Drivers

• USB Drivers are available for download on our website

KwikCount/EX™

KwikCount/EX is a data integration add-in for Microsoft Excel® 2000 for

Windows or later. Features are similar to those of Hardware Utilities program

but it is designed to smoothly integrate with Excel.

ActiveX® Tool & Demos

TriCoderUSB/ActiveX is a drop in ActiveX component that allow program-

mers to easily add the ability to communicate with TriCoder via USB connec-

tion. It is compatible with isual Basic®, isual C++®, Delphi®, and most

other 32-bit development platforms.

https://www.barcodehq.com/downloads.html
