Tricity Bendix TBDW 30 Manuel utilisateur
Dishwasher
TBDW 30
INSTRUCTION BOOK
Part 2
2
The control panel
1. On/Off push button
2. Programme guide
3. Programme marker
4. Programme selector dial
Description of the appliance
1. Water hardness adjustment
2. Upper basket stop
3. Lower spray arm
4. Salt container
5. Detergent dispenser
. Rinse aid dispenser
7. Control panel
8. Filters
9. Upper spray arm
10. Upper basket
11. Le elling spacers
IN99
3
Washing programmes
Programme Degree of soil
and
type of load
Required
push button
Starting
position of the
programme
selector
Recommended
quantity of
detergent
Wash Prewash
Normal soil
Crockery and cutlery
Light soil
Crockery and cutlery
Light soil
Crockery, cutlery and
party crockery
Any.
Partial load (to be
completed later in the
day).
Cycle description
*NORMAL 5°C
WITH
PREWASH
NORMAL 5°C
NO
PREWASH
** QUICK WASH
RINSE
AND HOLD
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
Main wash up to 65°C
1 cold rinse
1 hot rinse
1 cold rinse (to a oid
food scraps from
sticking together).
*Testing programme for EN 50242 (see "Hints for Test Centres").
** This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery (except pots) so
that you may re-use them promptly.
20 g 5 g
25 g /
25 g /
//
1On/Off
On/Off
On/Off
On/Off
2
3
4
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser
Test standard: EN 50242
Reference programme: NORMAL 65°WITH PREWASH
Load: 8 standard place settings
Rinse aid selector: position 4
Detergent dosage: 20 g in the dispenser
5 g on the dispenser lid
Arrangement upper basket Arrangement lower basket
Arrangement cutlery
basket
4
1. Check the filters
Ensure they are clean and properly positioned
(see "Maintenance and cleaning" Instruction book -
part 1).
2. Check that there is rinse aid and
salt
(See Instruction book -part 1).
3. Load the dishes
Remo e any scraps of food.
Pull the lower basket out and arrange the
saucepans, plates and cutlery in it.
Pull the upper basket out and arrange the plates,
saucers, glasses and cups etc. in it.
Slide the baskets back into the machine.
4. Ensure that the spray arms can
rotate freely.
5. Measure out detergent
Add the required amount of detergent into the
dispenser according to the "Washing programmes"
chart.
Close the detergent dispenser lid.
. Set the programme
The selection of the programme occurs with the
door partially opened.
Turn the programme selector dial clockwise until
the number of the programme you wish to select
corresponds with the programme marker on the
control panel.
7. Start the programme
Depress the On/Off push button and close the
door, the machine will start.
If you wish to interrupt the washing programme at
any time open the door and press this button
again.
8. At the end of the washing
programme
At the end of the programme the dishwasher will
automatically stop.
9. Switch off the dishwasher
Wait 15/20 minutes before opening the
dishwasher’s door; in this way you will avoid
burning yourself when removing the dishes
and avoid also the damage of the nearby
furniture caused by the escape of steam.
Switch off the dishwasher by pressing the On/Off
push button.
Empty the lower basket first and then the upper
one; this will a oid water dripping from the upper
basket onto the dishes in the lower one.
When the washing programme has finished, it
is recommended that the dishwasher is
unplugged and the water tap turned off.
In general it is not advisable to open the door
while the machine is working; if the door is
opened however, a safety device ensures that
the machine stops.
Important!
Care must be taken if the door is opened during
the hot phase or immediately after a
programme has finished, as steam may escape.
Operating sequence
5
Loading your appliance
Before placing dishes in the machine, remo e any scraps of
food, to a oid clogging the filters and consequently reducing
the performance.
Do not load very small items which can fall
through the baskets.
The lower basket
The lower basket is designed to take saucepans, lids,
plates, salad bowls, cutlery etc.
Ser ing dishes and large lids should be arranged around the
edge of the basket, ensuring that the upper spray arm can
turn freely.
The cutlery basket
Long bladed knives stored in an upright position
are a potential hazard.
Long and/or sharp items of cutlery such as
carving knives must be positioned horizontally in
the upper basket.
Take care when loading or unloading sharp items
such as knives.
Cutlery should be placed in the remo able cutlery basket
with the handles facing downwards.
If the handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with the
handles facing upwards.
Mix spoons with other cutlery to pre ent them from sticking
together.
UI57
UI12
UI45
Using your appliance
6
The upper basket
The upper basket is designed for plates (dessert plates,
saucers, dinner plates of up to 24 cm in diameter), salad
bowls, cups and glasses.
Arrange items so that water can reach all surfaces.
Light items (plastic bowls etc.) should be loaded in the
upper basket and arranged so they do not mo e.
Before closing the door, ensure that the spray
arms can rotate freely.
Adjusting the height of the upper
basket
If washing ery large plates (o er 27 cm and up to 31 cm
in diameter) you can load them in the lower basket after
mo ing the upper basket to the higher position.
To move to the higher position proceed as follows:
1. Mo e the front runner stops (A) of the upper basket
outwards and slide the basket out.
2. Refit the basket in the higher position and replace the
stops (A) in their original position.
When the top basket is in the higher position it
will only take plates up to 20 cm in diameter
and you will not be able to use the cup rack.
After loading your machine always close the
door, as an open door can be a hazard.
US60
A
RC01
Dimensions Width 44.6 cm
Height 81.8 - 87.8 cm
Max depth 55.5 cm
Max depth with open door 111.4 cm
Electrical connection Voltage 220/240 V - 50 Hz
Motor rating during wash 200 W
Power of heating element 2800 W
O erall power 3000 W
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 8 place settings
Technical specifications
7

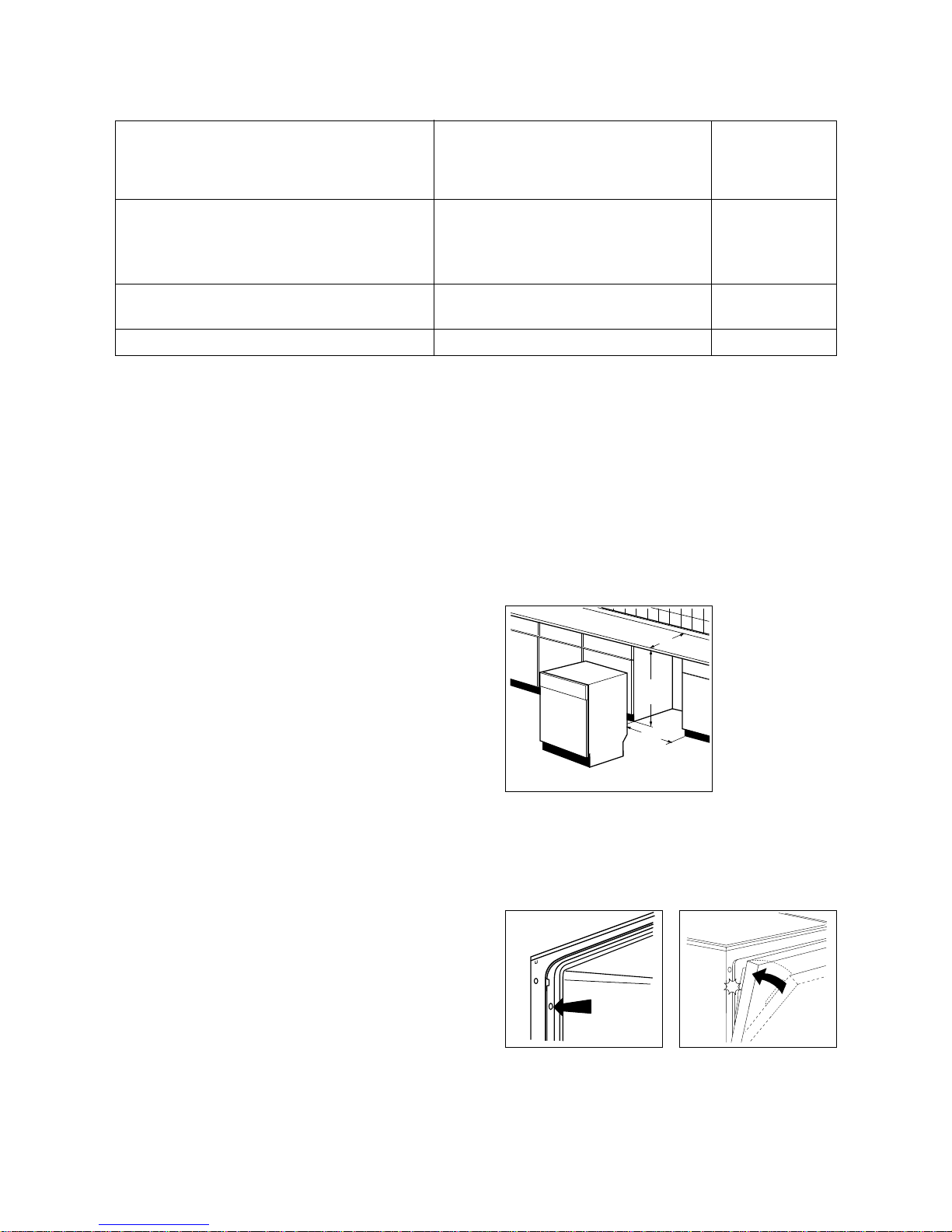

Fitting under a counter
(kitchen worktop or sink)
By remo ing the machine’s worktop, you can install it
under a close fitting sink unit or a pre-existing top,
pro iding the dimensions of the recess correspond to
those shown in the picture.
Proceed as follows:
- Remo e the machine’s worktop by unscrewing the two
front retaining screws, pull from the front and slide out
the rear slots, lifting the worktop.
Insert the machine after adjusting height and le elling with
the adjustable feet. When inserting the machine, ensure
that the water inlet and drain hoses are not kinked or
squashed.
Levelling
Good le elling is essential for correct closure and sealing
of the door.
When the appliance is correctly le elled, the door will not
catch on the le elling spacers on either side of the
cabinet.
If the door does not close correctly, loosen or tighten the
adjustable feet until the machine is perfectly le el.
820
570-600
450
IN04
IN11
IN12
152976 45/0
Tricity Bendix, 55-77 High Street, Slough, Berkshire, SL1 1DZ
Customer care telephone number...
08705 950 950
©Electrolux Household Appliances Limited 2001
From the Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as
refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year
to a value of approx. 14 billion USD in more than 150 countries around the world.
UK
