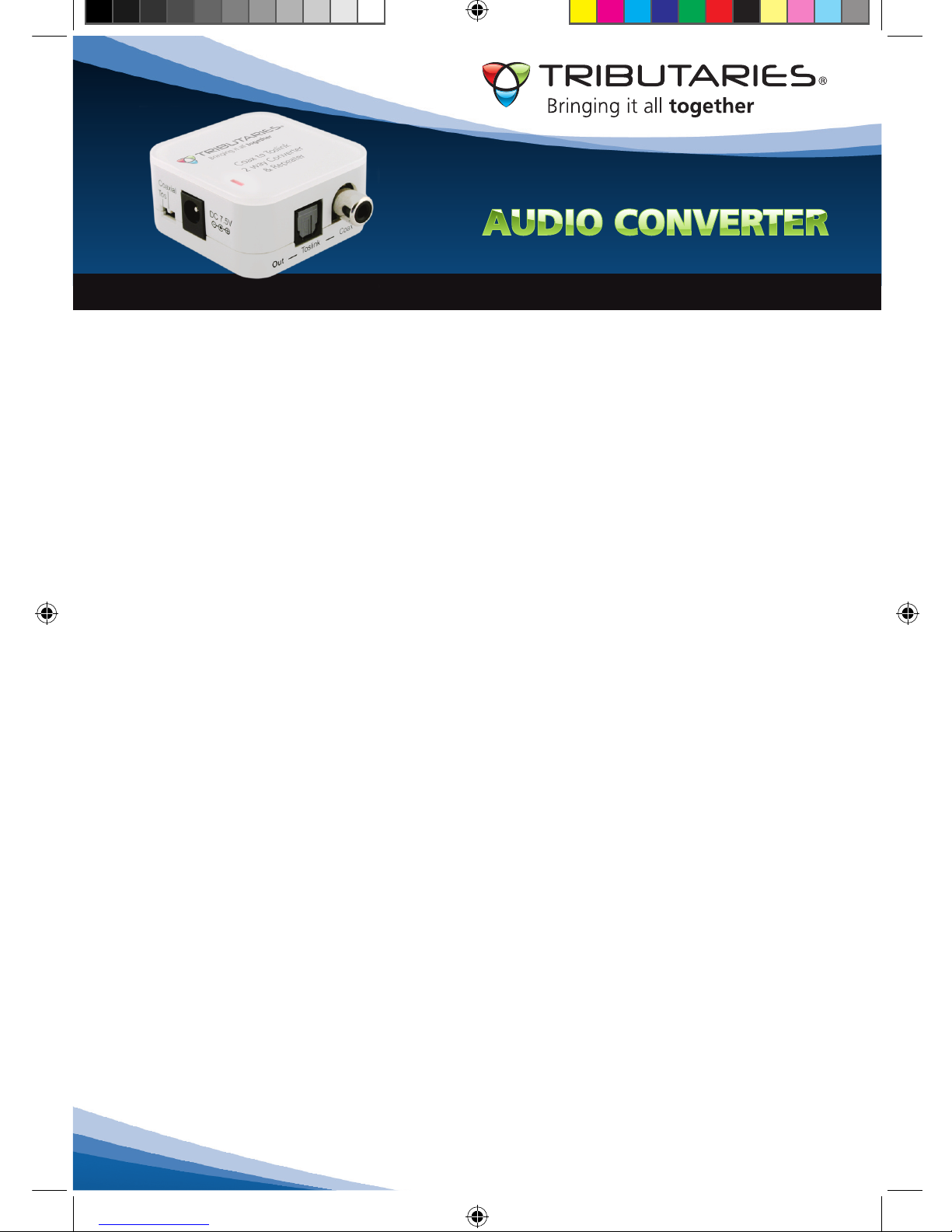

Tributaries AC100 Manuel utilisateur
www.tributariescable.com
AC100
Coaxial / Toslink Audio Converter
DIGITAL
AC100_MANUAL.indd 1 10/26/07 8:34:20 AM
AC100
Introduction
Tributaries AC100 is a compact and convenient Coaxial / Toslink digital audio
converter. It accepts a S/PDIF digital audio signal input through either Coaxial
cable or Toslink cable, and passes the signal (as is) to both its Coaxial and
Toslink output. With its built-in amplification feature, the AC100 can also serve
as a repeater and extend the transferring distance.
Features
1. Supports two-way conversion: Coaxial to Toslink or Toslink to Coaxial.
2. Supports input audio signals from 2 channels up to 5.1 channels; the output
signal follows the input.
3. Supports amplification of S/PDIF audio and extends the transferring
distance, through Coaxial and/or Toslink cables.
4. Select from Coaxial or Toslink input, and send the S/PDIF audio signal to
both Coaxial and Toslink output simultaneously.
5. Compact size and easy to install.
Package Contents
1. Tributaries® AC100 Coaxial / Toslink Audio Converter
2. 7.5VDC power supply adaptor
3. Operation Manual
Coaxial / Toslink Audio Converter
DIGITAL
AC100_MANUAL.indd 2 10/26/07 8:34:24 AM
DC 7.5V
Tos
Coaxial
12
1
2
1
Upper Cover
Switcher Panel
1
Input Panel
Output Panel
1 2
12
1
2
1
2
Out Toslink Coax
In Coax Toslink
Operational Controls and Functions
Coaxial Input: Connect to the output port of your
S/PDIF audio source such as a DVD player or amplifier,
using Coaxial cable.
Toslink Input: Connect to the output port of your S/PDIF
audio source such as a DVD player or amplifier, using
Toslink (fiber optic cable).
Toslink Output: Connect to the input port of your
S/PDIF audio equipment such as an amplifier, using
Toslink (fiber optic cable).
Coaxial Output: Connect to the input port of your
S/PDIF audio equipment such as an amplifier, using
Coaxial cable.
Input Selection: Use the mini switch to select input from
Coaxial or Toslink.
Power: Plug the power supply into AC100 unit and
connect the adaptor to AC wall outlet.
Power LED: The LED will illuminate when the power
supply is connected.
Coax to Toslink
2 way Converter
& Repeater
AC100_MANUAL.indd 3 10/26/07 8:34:25 AM
©2007 Gordon J. Gow Technologies, Inc. All rights reserved.
TRIBUTARIES® is a registered trademark of Gordon J. Gow Technologies, Inc. All other trademarks are
the property of their respective owners. As we continually strive to improve our products, TRIBUTARIES®
reserves the right to change product specifications without notice. The technical and other information
contained herein is not intended to set forth all technical and other specifications of TRIBUTARIES®
products. Additional information can be obtained on-line at www.tributariescable.com
Gordon J. Gow Technologies, Inc.
Orlando, FL 32809
www.tributariescable.com
AC100
DVD Player
Amplifier
Amplifier
Amplifier
Connection and Installation
Specifications
Input:• 1 Coaxial RCA Jack and 1 Toslink (fiber optic) port
Output:• 1 Coaxial RCA Jack and 1 Toslink (fiber optic) port
Power:• DC 7.5V / 500 mA, center positive
Dimension:• 1 5/8” (42mm)W x 1 9/16” (40mm)D x 7/8” (22mm)H
AC100_MANUAL.indd 4 10/26/07 8:34:46 AM
