TriBrer TB-700 Manuel utilisateur
OTDR Testing Platform
TB-700
User’s Manual
2020-10-01 THU 10:08
Mini OTDR OPM Loss Test
OLA SE
Distance Test Sequence Test
OLS System Settings
WARNING
Any undefined change or modification of this manual will deprive you of the right to operate t-
he equipment.
To reduce the risk of fire or electric shock, do not expose the equipment to rain or humidity.
To prevent electric shock, please do not open the shell, and it must be repaired by qualified p-
ersonnel.
Please ensure no signal in fiber before testing, active fiber may damage the device and not in
warranty range.
NOTE
As the laser is harmful to the eyes, don't look directly at the laser outlet and don't attempt to d-
isassemble the cabinet.
Using the battery:
The device can be recharged with a special battery, and cannot be mixed with
different types or capacity batteries.
Avoiding condensation:
Sudden changes in temperature should be avoided. Do not use the device immediately after
moving the device from the cold area to the hot area, or when the room suddenly heats up, b-
ecause the device may have condensation phenomenon. If the temperature changes abruptly ,
stop using it and take out the battery, and the power can be switched on after at least an hour.
Storage:
When the device is not used for a long time, please take out the battery to avoid
the damage caused by battery leakage.
※The manual is for reference only; All operations are subject to the physical device.
PRECAUTIONS FOR USE
CAUTION
DO NOT STARE INTO THE BEAM OR VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS
LASER RADIATION
635-650nm LASER
CLASS 1 LASER PRODUCT
INVISIBL E LASER RA DIATION
AVOID EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATION
EXCIMER LA SER
10mW MAX PULSE at 800-1700nm
DANGER
1
HOST
OPM
RJ-45 cable test module
VFL
LED light
3.5 inch LCD
RJ-45 test
Type-C
Power Bank
OTDR/OLS
S E T TI N G M A RK E R
+ E S C= F U L L
EN T E R SC A N
ES C
> 2s L E D
VFL
SA V E
F IL E
2
1 —— Press to enter the corresponding measurement setting interface.
2 —— Press to save current testing result or enter into the file list.
3 —— Select the cursor in OTDR testing interface.
4 —— Control VFL ON-GLINT-OFF, and press >2s to turn on/off LED light.
5 —— Zoom in/out the OTDR testing waveform combining with Navigation and ESC buttons
6 —— Long press to turn on/off the device. If OFF, it will pop up “Do you want to power off”
7 —— Press to start the measurement.
8 —— Press to back to previous menu.
9 —— Navigation buttons for selecting operation
10 —— Press to enter the next operation and confirm.
KEYS INTRODUCTION
1 2
5 7
9
106 8
3 4
2020-10-01 THU 10:08
Mini OTDR OPM Loss Test
OLA SE
Distance Test Sequence Test
OLS System Settings
EN T E R
3
Battery (charging status)VFLLED light
USB
After booting, main menu shows in default. Press Navigation buttons to
select the function module, then press “ ” button to enter into the
corresponding interface.
Title Bar: Highlight when the function module is selected.
Main Menu
2020-10-01 THU 10:08
4
Measurement
status
No. Dis. Loss Ref. dB/km C.Loss
A-B: 000.000km 0.000dB 0.000dB/km
A 0.000km
B 0.940km
4.00dB/div
X Y
0.200km/div
201001.sor
Measure Info: 1310nm 2.0km 10ns
1/6
3/6
4/6
5/6
0.000
4.301
5.589
18.712
0.00
0.12
-0.05
-.-- -.-- -.--
-.--
-.--
-51.74
-54.67
-41.03
0.28
0.22
0.00
1.18
4.07
2/6 0.940 0.08 -51.74 0.24 0.26
2020-10-01 THU 21:25
File name
Waveform
region
Scale
Event List
Measurement
info.
Distance and
Attenuation
OTDR testing interface as following shows.
Mini OTDR
No. Dis. Loss Ref. dB/km C.Loss
Measure Info: 1310nm 2.0km 10ns
10s
Laser Radiation!
Do not look directly
to the laser!
Measure setting
Press key ENTER to edit settings.
Pulse Width
Average Time
Splice Loss
ReflectionThreshold
End Threshold
Refractive Rate
Scatter Coefficient
Manual
1000ns
120s
0.05dB
65.0dB
2.0dB
1.46832
52.1dB
Average
Optical detector
Real time analyse
Scan mode
Scan type
500m
Range
Wavelength 1550nm
2020-10-01 THU 21:25
S ET TIN G
SC A N
5

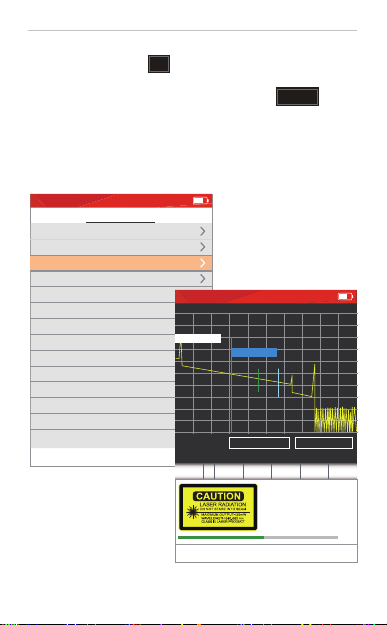

In OTDR interface, press “ ” button to enter into measurement setting
interface.
Under OTDR or measurement setting interface, press “ ” button
to start measurement. Press again to stop the testing during the measurement.
If “Real time analyse” is ON when Real time scan type is set, then it will
take average measurement again before stopping.
Mini OTDR--Measurement Settings
A-B: 000.000km 0.000dB 0.000dB/km
A 0.000km
B 0.940km
4.00dB/div
X Y
0.200km/div
201001.sor
2020-10-01 THU 21:25
No. Dis. Loss Ref. dB/km C.Loss
Measure Info: 1310nm 2.0km 10ns
10s
Laser Radiation!
Do not look directly
to the laser!
M A R K E R
6
No. Dis. Loss Ref. dB/km C.Loss
A-B: 000.000km 0.000dB 0.000dB/km
A 0.000km
B 0.940km
4.00dB/div
X Y
0.200km/div
201001.sor
Measure Info: 1310nm 2.0km 10ns
1/6
3/6
4/6
5/6
0.000
4.301
5.589
18.712
0.00
0.12
-0.05
-.-- -.-- -.--
-.--
-.--
-51.74
-54.67
-41.03
0.28
0.22
0.00
1.18
4.07
2/6 0.940 0.08 -51.74 0.24 0.26
2020-10-01 THU 21:25
After testing or open the saved waveform, then event list shows, Max. 5
events listed, if more, press “ ”“ ” to view, and the cursor will be
located in selected event, short press “ ” to choose the cursor, and
scale current waveform by pressing combined buttons.
Mini OTDR--Waveform Analysis
X-axis zoom in
A
B
23
0.000km
10.057km
Y-axis zoom in
A0.000km
1
B 10.057km
23
PD_074#0002 Rev.210202
