Triarch Indoor Lighting 31904 Guide de démarrage rapide

ASSEMBLY AND MOUNTING INSTRUCTION

For 31904

Please read the Assembly lnstruction sheet carefully before proceeding.Carefully unpack and

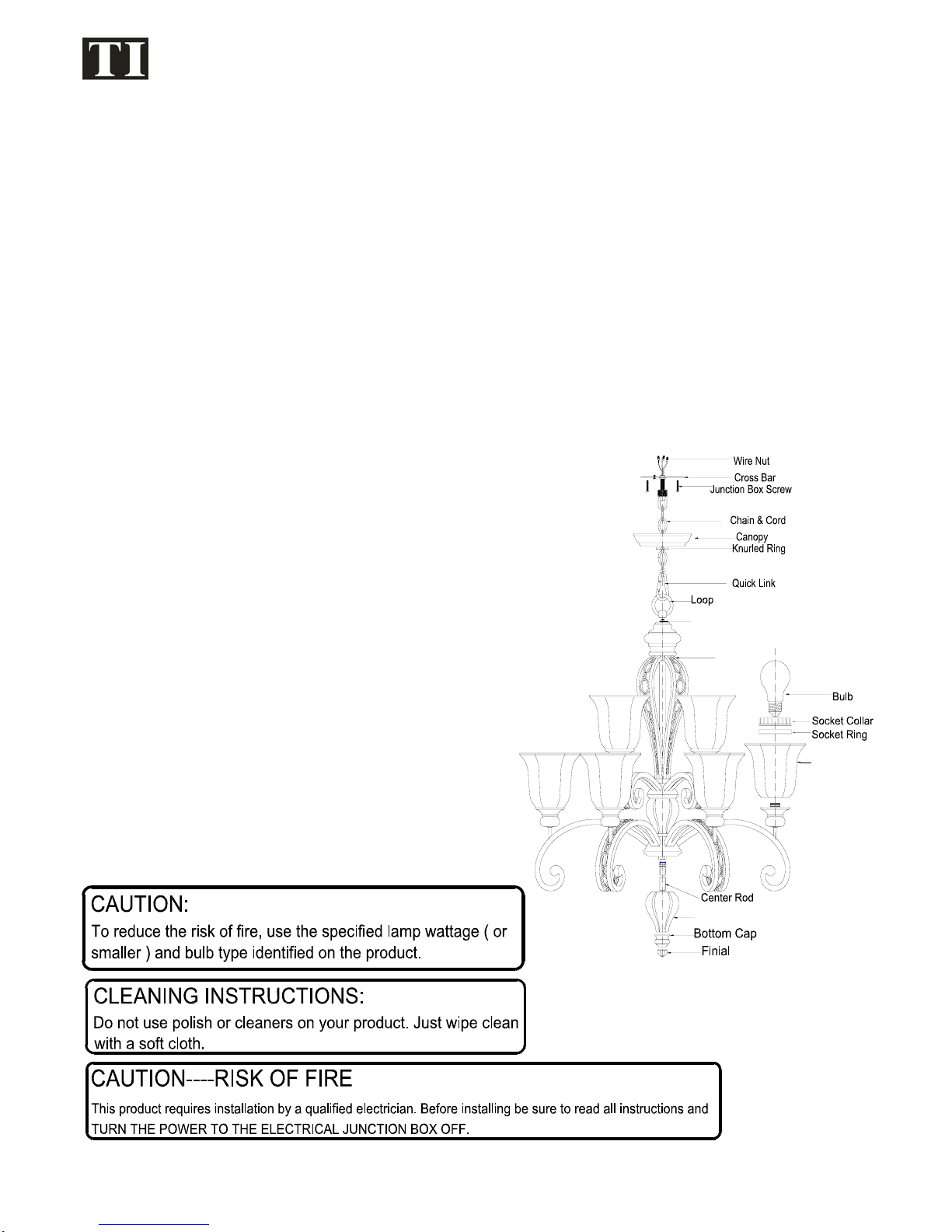

identify all parts prior to building the unit. Each part is identified on the drawingfor reference.

DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection and you must returnthe item

for any reason. Please repack the unit using the original carton and inserts.

STEP 1:Unpack all the parts and Classify them according to

the illustration shown at the side.Place the parts on a scratch free surface;

STEP 2:Make sure the power is turned off at the junction

box where the fixture is to be installed.Secure the cross

bar to the ceiling junction box using junction box screws;

STEP 3:Use the wire nuts to connect the positive

and negative wires.Connect the ground

wire to the junction box ground port;

STEP 4: Secure the canopy to the ceiling

with The knurled ring;

STEP 5:Buckle the Quick Link to the Loop;

STEP 6:InstalL the Loop to the Fixture;

STEP 7: InstaLL the center column to the

Fixture;

STEP 8:Attach the center rod bottom with

Column the bottom cap and finial;

STEP 9:InstalL the glass shades and

secure them with the socket rings and

socket colLars

Same as 31903 insdruchos

STEP 10:InstalL the correct bulbs(not

provided);

Bottom column

Fixture

Knurled Ring

Glass Shade
