TRENDnet TV-IP312 Manuel utilisateur

- 1 -

PREFACE

Thank you for purchasing the TV-IP312/TV-IP312W SecurView

Wire/Wireless Internet Camera Server or Day/Night Internet Camera

Server, a powerful dual-codec wireless network camera with the 2-

way audio function that provides the high-quality image and on-the-

spot audio via the Internet connection. The Infrared LEDs and light

sensor enable the camera to capture images even in the dark

environment. The camera can be installed as a standalone system

within your application environment easily and quickly, and supports

remote management function so that you can access and control it

using a Web browser on your computers.

This guide will provide you more information of instruction and

illustrations on how to use your camera, which includes:

Chapter 1 Introduction to Your Camera describes the features of

the camera. You will also know the components and

functions of the camera.

Chapter 2 Hardware Installation helps you install the camera

according to your application environment. You can use

this camera at home, at work, at any where you want.

Chapter 3 Accessing the Camera lets you start using your camera

without problem. The camera can be set up easily and

work within your network environment instantly.

Chapter 4 Configuring the Camera guides you through the

configuration of the camera using the web browser on

your PC.

Chapter 5 Using SecurView™ shows you the detail instructions on

operating SecurView™ software.

- 2 -

Chapter 6 Appendix provides the specification of the camera and

some useful information for using your camera.

NOTE The illustrations and configuration values in this guide are for

reference only. The actual settings depend on your practical

application of the camera.

- 3 -

Contents

PREFACE............................................................................1

CHAPTER 1........................................................................5

INTRODUCTION ..............................................................5

1.1 CHECKING THE PACKAGE CONTENTS ...........................................5

1.2 GETTING TO KNOW YOUR CAMERA .............................................6

1.3 FEATURES AND BENEFITS .........................................................10

1.4 SYSTEM REQUIREMENT ............................................................12

CHAPTER 2......................................................................13

HARDWARE INSTALLATION.....................................13

2.1 INSTALLING THE CAMERA STAND ..............................................13

2.2 CONNECTING THE CAMERA TO LAN/WLAN ..............................14

2.3 APPLICATIONS OF THE CAMERA ................................................15

CHAPTER 3......................................................................16

ACCESSING THE CAMERA .........................................16

3.1 USING IP SETUP .....................................................................16

3.2 ACCESSING TO THE CAMERA.....................................................21

3.3 CONFIGURING THE IP ADDRESS OF THE PC.................................24

CHAPTER 4......................................................................25

CONFIGURING THE CAMERA ...................................25

4.1 USING THE WEB CONFIGURATION .............................................25

4.2 USING SMART WIZARD............................................................26

4.3 BASIC SETUP..........................................................................31

4.4 NETWORK SETTINGS................................................................36

4.5 SETTING UP VIDEO &AUDIO.....................................................44

4.6 EVENT SERVER CONFIGURATION ...............................................49

4.7 MOTION DETECT ....................................................................54

4.8 EVENT CONFIG .......................................................................56

4.9 TOOLS ..................................................................................62

- 4 -

4.10 USB .....................................................................................64

4.11 INFORMATION........................................................................66

CHAPTER 5......................................................................68

SECURVIEW™ SOFTWARE .........................................68

5.1 INSTALLATION ...................................................................68

5.2 USING INSTALLATION ........................................................74

ITEM FEATURES................................................................................75

TO ADD A CAMERA...........................................................................81

TO REMOVE A CAMERA .....................................................................84

TO LINK TO THE WEB PAGE OF THE CAMERA.........................................85

TO RECORD VIDEO ...........................................................................86

TO CONFIGURE THE RECORDING SETTINGS ...........................................92

TO PLAYBACK THE RECORDED VIDEO ...................................................93

TO SET UP MOTION DETECTION OPTIONS .............................................94

ACCOUNT.......................................................................................96

OTHER ...........................................................................................96

INFORMATION .................................................................................98

CHAPTER 6......................................................................99

APPENDIX .......................................................................99

A.1 SPECIFICATION .......................................................................99

A.2 GLOSSARY OF TERMS .......................................................101

- 5 -

CHAPTER 1

INTRODUCTION

1.1 Checking the Package Contents

Please check the packaging contents. The packaging should include

the following:

TV-IP312/TV-IP312W

Multi-Language Quick Installation Guide

CD-ROM (Utility & User’s Guide)

Detachable External Antenna (for TV-IP312W only)

Camera Stand.

RJ-45 Ethernet Cable

AC Power Adapter (5VDC, 2.5A)

NOTE : If there is any item damage or missing, please contact your

local authorized deal for replacement.

- 6 -

1.2 Getting to Know Your Camera

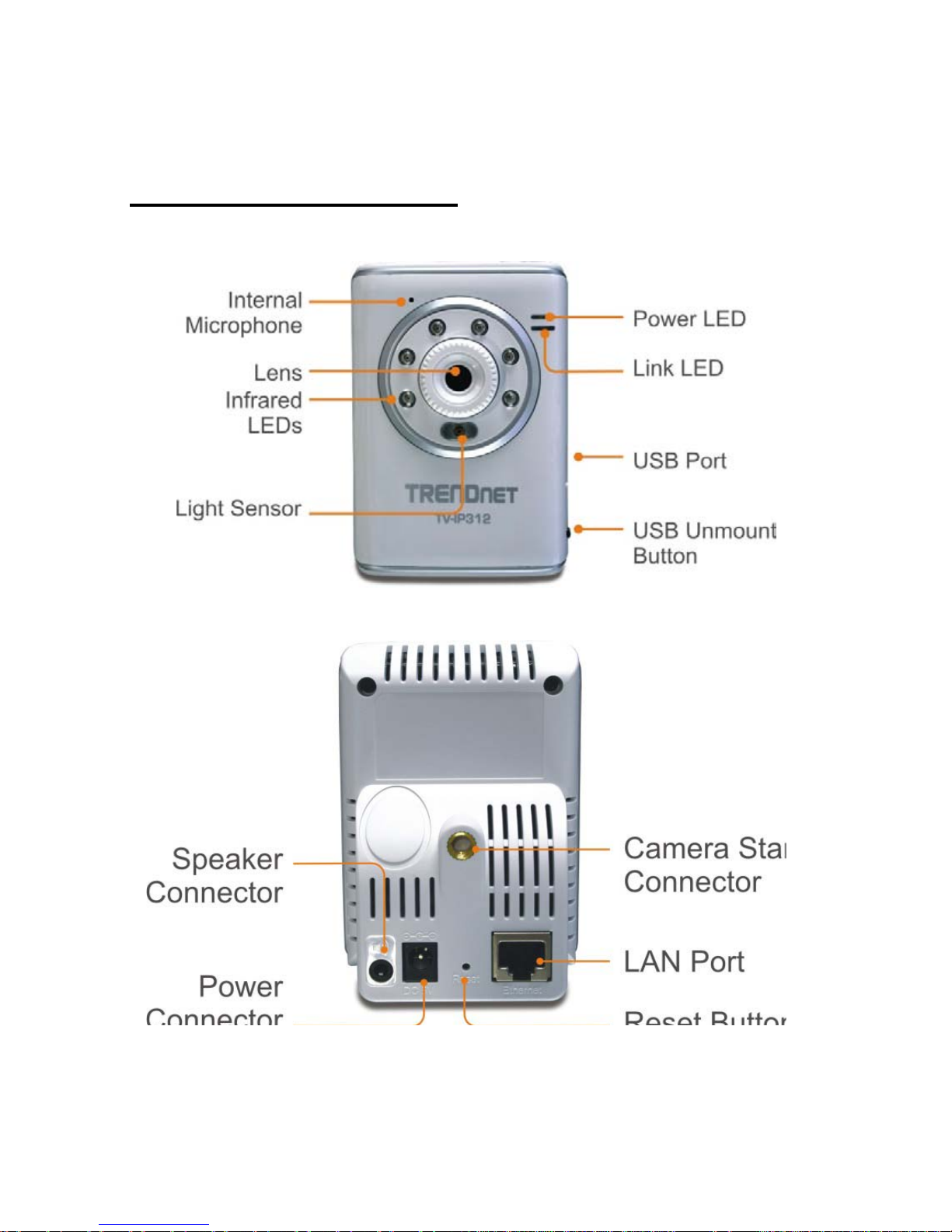

TV-IP312 (Front/Back View)

- 7 -

TV-IP312W (Front/Back View)

- 8 -

-Internal Microphone: It allows the camera to receive the sound

or voice.

-Infrared LEDs: It allows your camera to capture clear image in a

dark environment.

-Light Sensor: It is used to trigger on and off the Infrared LEDs

according the environmental light level.

-Power LED: A steady orange light indicates the camera is

powered on.

-Link LED: A flash green light indicates the camera’s network

connection correctly.

-Detachable Antenna (TV-IP312W only):

The detachable external antenna allows you to adjust its position

to obtain the maximum signal.

-USB Port: Connects an external USB Flash Drive, Hard Drive. It

provides the power distribution up to 500mA.

-USB Unmount Button: Removed the connected USB device

safely.

Pressing the Unmount button for four seconds, the Power LED

will start flashing. After the Power LED rsumes the steady orange

light, you can remove the USB device safely.

-Camera Stand Connection: Connects the camera with the

camera stand.

- 9 -

-Speaker Connector: Connects a external active speaker to the

camera.

-Power Connector: Connects the AC power adapter to supply

power to the camera.

-LAN Port: It is used to connect the network RJ-45 cable, which

supports the NWay protocol so that the camera can detect the

network speed automatically.

-Reset Button: Reset will be initiated when the reset button is

pressed once. The power LED begins to flash.

Factory Reset will be initiated when the reset button is pressed

continuously for three seconds or when Power LED begins to

light up. Release the reset button and the Power LED will begin to

flash.
