TRENDnet TEW-623PI Manuel utilisateur

The Wireless N PCI Adapter allows you to connect wirelessly with

supercharged speed, range and reliability. This 802.11n device

seamlessly connects to your wireless network without performance

degradation.

Wireless speeds increase up to 300Mbps* when connecting to

TRENDnetWirelessNaccesspointsorwirelessrouters. Thelatest

antenna technology increases wireless data coverage throughout

homes and businesses. It also supports universal wireless

connectivity with 802.11b or 802.11g networks. Advanced wireless

encryption provides secured transmissions. Increased speed and

throughput makes it the perfect solution to fulfill your multimedia

needs.

TEW-623PI(V3.0R)

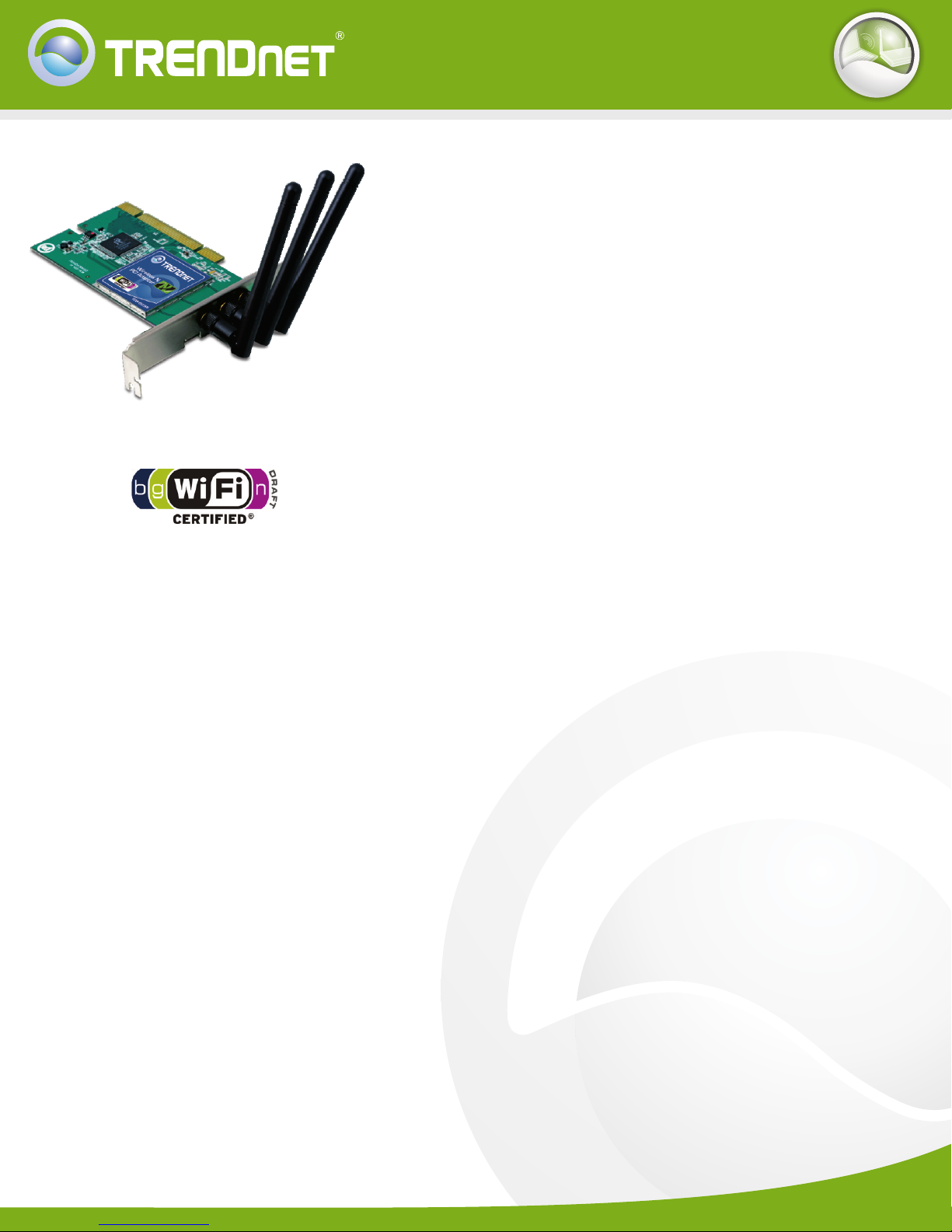

300Mbps Wireless N PCI Adapter

TEW-623PI

rev: 05.19.2009

• Wi-Fi Compliant with IEEE 802.11n Standard

• Extreme wireless performance: Up to 12x the speed of wireless g* (IEEE 802.11g)

• Up to 4x the coverage of wireless g*

•Advanced wireless encryption: WEP, WPA, WPA2, WPA-PSK and WPA2-PSK

• 3 detachable high gain antennas maximize wireless n performance with Multiple Input Multiple Output (MIMO) technology

• Intuitive user setup and diagnostics utilities

• Backwards compatible with wireless g and wireless b standards (IEEE 802.11b/g)

• Maximum reliability, throughput and connectivity with automatic data rate switching and dynamic data rate scaling

• Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported

• Compatible with Windows 2000/XP/Vista Operating Systems

• 3-Year Limited Warranty

FEATURES

wireless

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

300Mbps Wireless N PCI Adapter

TEW-623PI [V3.0R]

RELATED PRODUCTS

PACKAGE CONTENTS

TEW-638APB

TEW-639GR

TEW-624UB 300Mbps Wireless N USBAdapter

• Multi-Language Quick Installation Guide

300Mbps Wireless NAccess Point

• TEW-623PI

300Mbps Wireless N Gigabit Router

• CD-ROM ( )Utility and User’s Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

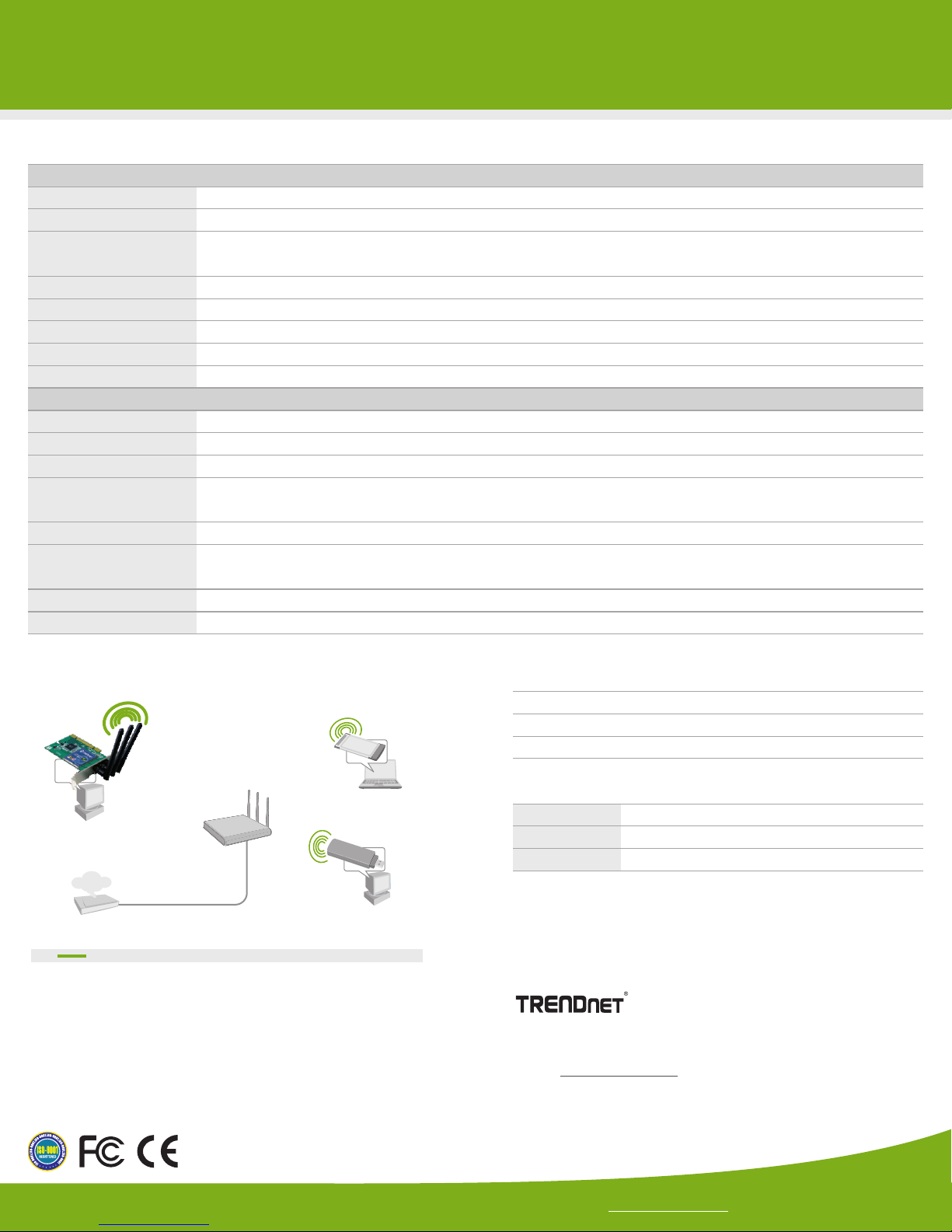

SPECIFICATIONS

Standards

Frequency

Power Consumption

(receive / transmit)

Supported OS

Weight

Temperature

Data Rate (auto fallback)

Receiving Sensitivity

Output Power

Encryption

Channels

• 32-Bit PCI Rev. 2.1/2.2/2.3

• 3 x 2dBi detachable antennas (Reverse SMAconnector)

• IEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)

• 10% ~ 90%max (Non-condensing)

• 2.412 ~ 2.484 GHz

• 802.11b: 17dBm (typical) • 802.11g: 13dBm (typical) • 802.11n: 13dBm (typical)

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• 1~11 (FCC), 1~13 (ETSI)

• 802.11b : 480mA/480mA

• 802.11g : 490mA/450mA

• Windows 2000/XP(32/64-bit)/Vista (32/64-bit)

• Operating: 0° ~ 40° C (32° ~ 104° F) • Storage: -10° ~ 70° C (-14° ~ 158° F)

• 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) • 802.11g/n: OFDM

• 802.11b: -85dBm (typical) @ 11Mbps • 802.11g: -70dBm (typical) @ 54Mbps

• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

• 90g (3.2 oz)

• FCC, CE

Humidity

Emissions

Interface

Hardware

Wireless

Module Technique

Antenna

• 802.11n (draft) : up to 300Mbps

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical

specifications. Actual data throughput and coverage will vary depending on

interference, network traffic, building materials and other conditions.

• 802.11n (draft 2.0) : -65dBm (typical) @ 300Mbps

• 802.11n : 550mA/630mA

300Mbps

300Mbps Wireless N Gigabit Router

(TEW-633GR)

Workstation with 300Mbps

Wireless N PCI Adapter

(TEW-623PI)

Notebook with 300Mbps

Wireless N PC Card

(TEW-621PC)

Workstation with 300Mbps

Wireless N USB Adapter

(TEW-624UB)

Cable/DSL

Modem

Internet
