TRENDnet's 10/100Mbps Fast Ethernet PCI adapters are Plug-and-

Play (PnP) that utilizes the latest chipset technology and 32-bit bus

mastering mode. These PCI adapters automati-cally sense and

switch to either 10Mbps or 100Mbps (20Mbps or 200Mbps in full-

duplex mode) and have dual speed connections to Ethernet/Fast

Ethernet network with a single connection over Unshielded/Shielded

Twisted Pair cable (UTP/STP). The PCI adapters turn a desktop into

a high-bandwidth graphic/multimedia workstation or a power server

running at full-duplex speed.

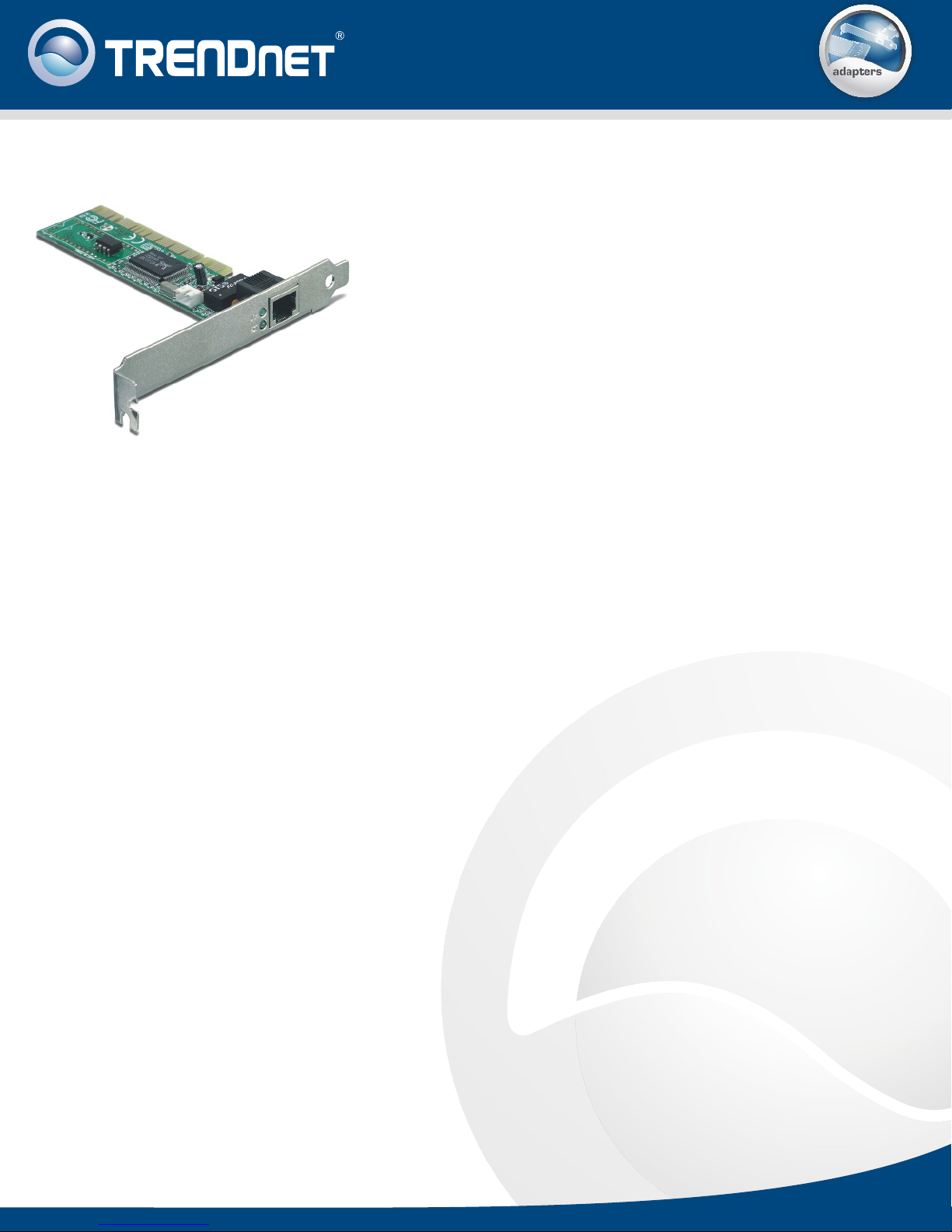

TE100-PCIWA

32-bit PCI 10/100Mbps N-way Fast Ethernet

Card with ACPI Wake-on-LAN

TE100-PCIWA

rev:01.02.2007

• Comply with IEEE 802.3 10Base-T and IEEE 802.3µ 100Base-TX Ethernet standards

• 10/100Mbps auto-sensing

• Plug-and-Play (PnP) for auto-configuration

• 32-bit PCI bus master mode

• Single RJ-45 connector with auto-detection of 10Mbps and 100Mbps

• Half-duplex and full-duplex modes

• Support N-way auto-negotiation

• Easy-to-view LED indicators

• Built-in FIFO buffers reduces overhead of memory transfers

• Supports Magic PacketT remote wake-up method - Wake-on-LAN (TE100-PCIWA)

• Compatible with all popular operating systems

• 5-Year Warranty

FEATURES

BENEFITS

Performance:

Operate in the 32-bit bus master mode, delivering throughputs as multi-megabits per second with little

stress on the host's CPU.

Flexibility:

With the Wake-on-LAN capability, network administrators can remotely wake up computers equipped with

the adapters. (TE100-PCIWA).

Migration:

Half-/full-duplex auto-detect both 10Base-T and 100Base-TX modes. Make the adapters ideal for high-

speed server when increased to 200Mbps network speed.

Cost-Effectiveness:

With its low cost of ownership and standard compliance, TRENDnet PCI PnP adapters are the perfect

choice for cost-effective workgroup networking.

Protocol

Network Media

Data Transfer Rate

Diagnostic LEDs

Network Drivers

Temperature

Humidity

• IEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX

• CSMA/CD

• 10% to 90% non-condensing

• UTP CAT 5 (100m), EIA/TIA-568 100-ohm screened twisted pair (STP) (100m)

• 10/100Mbps (Half-duplex), 20/200Mbps (Full-duplex)

• Operating: 0° to 50°C (32° to 122°F)

• Link, Activity

• Novell NetWare ODI, NDIS, SCO UNIX, LAN Manager, Windows 95/98/NT, Windows for Workgroups, Packet Driver,

• Storage: -20° to 80°C (-4° to 176°F)

Standards

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

32-bit PCI 10/100Mbps N-way Fast Ethernet Card

with ACPI Wake-on-LAN

TE100-PCIWA

RELATED PRODUCTS

TE100-PCIWN

TE100-PCIWA

TE100-PCIWS 32-bit PCI 10/100Mbps NWay Fast Ethernet Card

32-bit PCI 10/100Mbps N-way Fast Ethernet Card

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

SPECIFICATIONS

TE16PCTplus

TE16PTplus

16-bit ISA Plug-and-Play Ethernet Adapter with

BNC + RJ-45 Connectors

Certifications • FCC, CE, VCCI-II

LAN server, Warp server, and many others

TE-PCIWplus

TE-PCIWTplus

32-bit PCI 10/100Mbps N-way Fast Ethernet Card with

ACPI Wake-on-LAN

16-bit ISA Plug-and-Play Ethernet Adapter with

RJ-45 Connectors

32-bit PCI Plug-and-Play Ethernet Adapter with

BNC + RJ-45 Connectors

32-bit PCI Plug-and-Play Ethernet Adapter with

RJ-45 Connectors

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
