TRENDnet User’s Guide TV-IP302PI

Product Overview

TV-IP302PI

Package Contents

TV-IP302PI

Multi-language quick installation guide

CD-ROM (Utility software & User's guide)

Power adapter (12V DC. 1A)

Network cable (1.5 M/ 5 ft.)

RJ-45 coupler

Camera Mounting hardware

Features

The Outdoor Megapixel PoE Day / Night Internet Camera, model TV-IP302PI,

provides powerful megapixel night vision in complete darkness for up to 15 meters

(50 feet). This camera is outdoor ready with an IP66 weather rated housing. The

compact aluminum enclosure, a mere 4 inches long (10 cm), comes with an

adjustable sun visor.

Product Hardware Features

Camera Overview

Shield: It is used to protect the camera for the inclement weather.

IR Lens: IR lens for the camera.

Camera Stand: the mounting stand to hold the camera.

Shield

IR Lens

Camera Stand

TRENDnet User’s Guide TV-IP302PI

Camera Connectors

Power Connector: Connects the power adapter to supply power to the

camera if using non-PoE connection

BNC Video Out: Connect a CRT monitor or handheldmonitor.

Microphone In: Connects an external microphone to receive the on-the-

spot sound where the camera is installed.

Ethernet/PoE Port: Plugs the network cable to connect to your local area

network (LAN). If you are using the PoE, you must have the network cable

connect to your PoE switch or PoEInjector.

GPIO Port: Connect external device. Please refer to I/O setting paragraph.

It's also used for IP camera reset. Please refer to Factory Default paragraph.

Speaker Out: Connectsan external audio device(such asthe active speaker)

to deliver sound via the camera.

Application Diagram

Power

Connector

Speaker

Out

Microphone

GPIO

Port

Ethernet /PoE

Port

BNC

Video Out

TRENDnet User’s Guide TV-IP302PI

Installation

Hardware Installation

Shield Installation

1. Align the notches on the sides of the IP camera to the shield.

2. Once both notches are aligned with the shield, slide th4e shield forward.

3. Adjust the IP camera to fit the shield.

TRENDnet User’s Guide TV-IP302PI

Bracket Installation

1. Turn and lock the bracket into the mounting hole of IP camera. Use screws to fix

the bracket to ceiling or wall, and turn the knob tightly to fix the angle of

camera.

LED Indicator

The green LED will be flash when power on the camera and if there is the data

transmission.

Waterproofing

The camera is designed featuring waterproof. However, you need to protect the

connectors from water soak. For example, you can tape the junction points of the

connectors while you connectthe cablesor purchase a weatherproof cable/power

cord protector.

Camera Installation

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program. Click the Install Camera.

2. Write down the MACID of the camera.

LED

TRENDnet User’s Guide TV-IP302PI

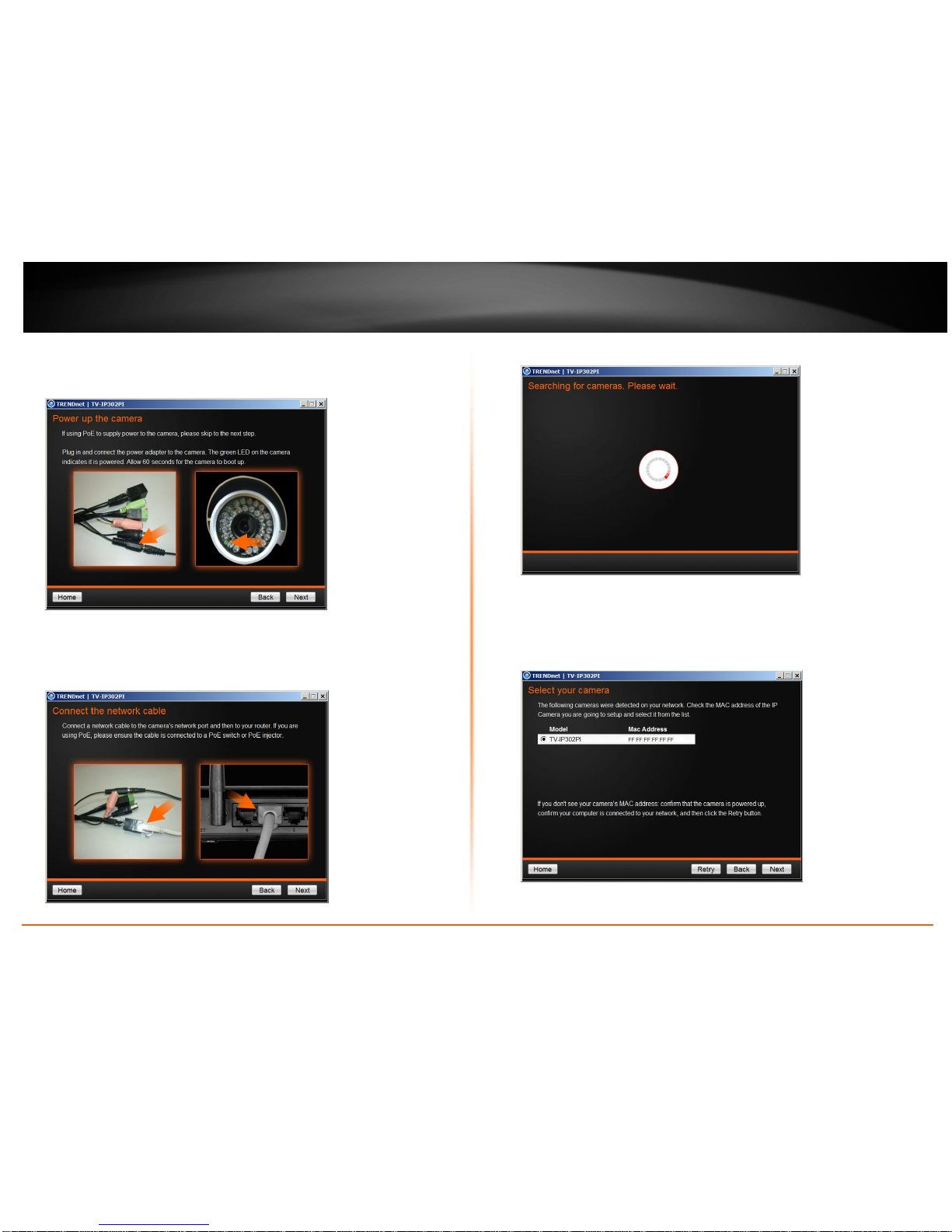

3. Plug in and connect the power adapter to the camera. If you are using the PoE

to supply powerto thecamera, please skip to the next step. Click Next when

you are done.

4. Connect a network cable to the camera’s network port and then to your router.

If you are using PoE, please ensure the cable isconnected to a PoE switch or PoE

injector.

5. Wait while camerais searching.

6. The founded cameras will show on the screen. The camera already selected by

default if you have only one camera installed. If you have more than one

camera in the same Network, you will need to identify the camera by the MAC

ID. Click Next.

TRENDnet User’s Guide TV-IP302PI

7. Select "DHCP" option to assign an IP by DHCP server or Select "Fixed IP" to set IP

addressmanually. ClickNext.

8. If you select "Fixed IP", fill out the IP address, subnet mask, default gateway,

DNS server. Please ensure that the IP address of the camera and the computer

must within the samenetwork.Click Next.

9. Type in the Password. The default password is “admin”. You must change the

default password of the camera. Enter the default password: admin and enter

the new password. The password must be between 8 and 32 characters.

(Alphanumeric: a-z, A-Z, 0-9), and confirm the new password by entering the

password twice.

10. Click “here” to access to the camera’s web page or click Next. It is

recommended that you access the IP camera now if it was using a DHCP

connection.

TRENDnet User’s Guide TV-IP302PI

11. Click Finish to exit the program or click Home to return to the main screen.

This device also supports the Mobile App. Using your mobile device to scan the

QR code to install the App.

Configuration

Viewing Camera Basic Function

Open the Web browser on your computer (example showed in this User’s Guide is

based on the Internet Explorer). In the Address bar, type the IP address you got from

"Camera Installation" chapter or found by IP Installer, and then press [Enter].

When the login window appears, enter the User name (admin) and Password and

press OK to access tothe main screen of thecamera’s WebConfiguration.

Note: if you are initially access to the camera, you will be prompted to install a new

plug-in for thecamera. Permission request depends on theInternet security settings

of your computer. Click Allow andInstall toprocess.

TRENDnet User’s Guide TV-IP302PI

After you login into the live screen of the camera, the main page will appear as

below:

The live screen of the IP camera configuration provides you with many useful

information and functions, including:

SETUP : Click the button toconfigure the camera.

SNAPSHOT: Click the button to take a snapshot. The snapshot will pop up

another window for your review first. Click disk icon to save the snapshot at

the desire destination.

System Information: It shows current system Date, Time, Video Resolution, and

Video Refreshing Rate.

Digital Zoom: The drop down menu has 3 images size available, 1/2x, 1x and 2x.

The defaultis 1/2x.

Streaming Profile: Use the drop down menu to select Streaming 1 & Streaming

2 video. (If the streaming 2 setting is closed on “AUDIO/VIDEO SETTING >>

Video”, this option will not appear)

Speaker/Microphone: Click the "Mic" to speak out through the camera. Click

the “Speaker” to receive the on-side sound and voice from the camera.

Online Visitor:It shows howmany peopleconnect tothis IP camera.

Relay On: Click the Relay out "ON" to trigger the relay output for testing. click

"Off" to stop triggering. To switch between these two types of relay out, please

refer to page 32 of the GPIO Setting session.

One the live view video, right click the mouse for the additional menu options.

Snapshot: Save a JPEG picture

Record Start: Record the video in the local PC. It will ask you where to save the

video. To stop recording, right-click the mouse again. Select “Record Stop”. The

video format is AVI. Use Microsoft Media Player to play the recorded file.

Mute: Turn off the audio. Click again to turn on it.

The "mute" button does not affect the playback recording video. As long as the

"2-Way Audio" option in the audio setting is enabled, all the audio will be

recorded into the playback video even you click "mute" in the live page.

Full Screen: Full-screen mode.

 











 






































