Quick Installation Guide
TPL-402E
TPL-402E2K
1.01
English 1
1. Before You Start
2. How to Install 2
3. LEDs and Buttons 5
1
Troubleshooting 6
Table of Contents
Version 03.16.2011
1. Before You Start
Ÿ
ŸA Desktop or Laptop PC with Network Adapter Installed
ŸExisting 10/100/1000Mbps wired network when TPL-402E is used as a bridge
device
®
ŸAdditional HomePlug AV or IEEE 1901 compliant powerline adapter (e.g.
TRENDnet TPL-303E, TPL-304E, TPL-305E, TPL-310AP, TPL-401E or another
TPL-402E) (Note: This requirement is for the TPL-402E only. The TPL-402E2K
already includes two TPL-402E adapters)
CD-ROM drive
Note:
The configuration utility will allow you to add security to your powerline network by
providing you with the ability to change the default network name and create your
own personal network name for your powerline network. The utility can also help
you troubleshoot connectivity between powerline adapters by verifying the network
name. Please refer to the User's Guide on the TPL-402E/TPL-402E2K CD-ROM
for instructions on installing and using the utility.
Package Contents
Ÿ
ŸCD-ROM (Utility and User's Guide)
ŸMulti-Language Quick Installation Guide
ŸNetwork Cable (1.5m/5ft)
TPL-402E/TPL-402E2K
System Requirements
Software Utility Requirements
1
Supported Operating Systems CPU Memory
Windows 7 (32/64-bit)
Windows Vista (32/64-bit)
Windows XP (32/64-bit)
1GHz or above
800MHz or above
300MHz or above
1GB RAM or above
512MB RAM or above
256MB RAM or above
2. How to Install
2
The example diagram shows a typical powerline network configuration in a home
environment with 3 powerline adapters installed in different rooms. The orange line
represents the powerline connectivity established through your home's electrical system
and the blue lines represent Cat. 5, 5e, 6 Ethernet connectivity to your network enabled
appliances such as a computer, router, or IP set top box connected to your television.
Note:
1. DO NOT install the TPL-402E until instructed to do so.
2. DO NOT plug the TPL-402E into a surge protector or power strip.
3. Avoid connecting the TPL-402E into an outlet that has appliances (e.g. refrigerators,
washer and dryer) plugged in.
4. In order for the TPL-402E adapters to link to each other, each unit must be on the
same electrical system.
5. It is not recommended to use this product on electrical systems that use AFCI circuit
breakers or plugged into GFI protected outlets as this may cause performance
degradation or loss in connectivity.
6. A maximum of 16 TPL-402E can be networked
7. Assuming that the TPL-402E adapters are configured with the default settings, to
create a powerline network, simply connect all TPL-402E adapters to wall outlets that
are on the same electrical system. No additional configuration in the utility is necessary.
8. The network name must be the same on all powerline adapters in order to establish
connectivity. If the network name is not the same on all powerline adapters, the
adapters will NOT establish connectivity. The default network name for the TPL-402E
is “HomePlugAV”.
500Mbps Powerline AV Adapter Kit
(TPL-402E)
Powerline Networking Solution
Internet
Gigabit Powerline
Outlet
Outlet
3
Below is an example showing how to create a Powerline network using the
TPL-402E/TPL-402E2K and your existing router to share Internet.
1. Plug a TPL-402E into an available power outlet.
This TPL-402E should be located within the
reach of the router's network cable.
2. Connect a network cable from the TPL-402E to
an available LAN network port on your router
(e.g. TEW-673GRU).
3. Plug a second TPL-402E into an available
power outlet where your remote computer or
network appliances (e.g. Game Console, IP Set
box, network enabled TV, etc.) are located.
4
Your installation is now complete
For detailed information regarding the the TPL-402E/TPL-402E2K, configuration and
advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility
CD-ROM, or TRENDnet's website at http://www.trendnet.com.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
4. Connect a network cable from the second
TPL-402E's network port into the network port
on your remote computer or network appliance
(e.g. Game Console, Blu-ray player, IP set top
box, network enabled TV, etc.).
Outlet
5. Verify that the PWR (Power), PL (Powerline)
and ETH (Ethernet Link/Act) LEDs are on for
both TPL-402E adapters.
5

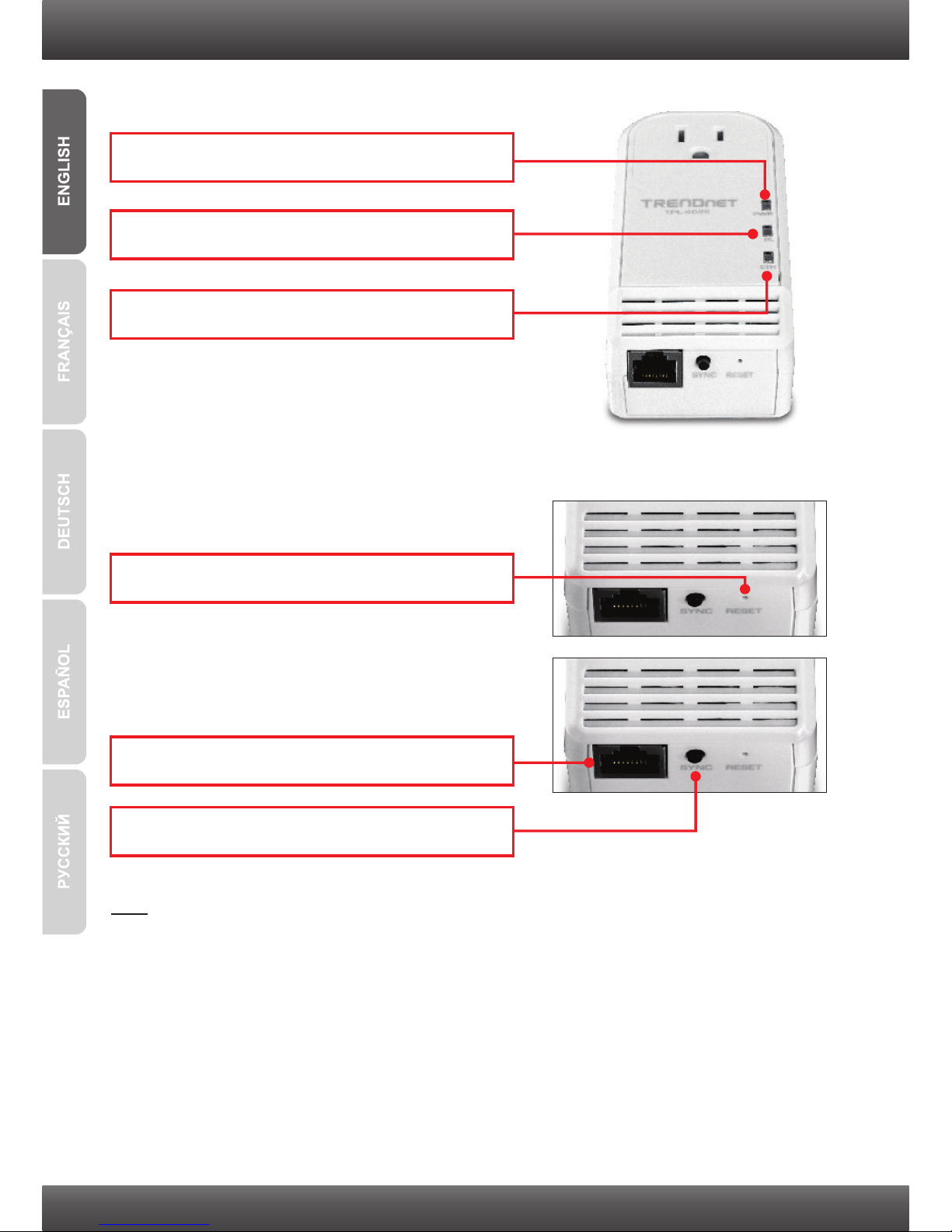

3. LEDs and Buttons
The Gigabit Ethernet/Network Port and Reset buttton are located at the bottom of the device.
Note:
1. Please refer to the User's Guide on the TPL-402E/TPL-402E2K's User's Guide CD for detailed
explanations of each LED and button.
2. The following factors may affect the powerline network’s connection quality:
a. Noise – Generated by appliances that are connected to your electrical system through power
outlets that have high power consumption requirements. (e.g. Microwaves, ovens, blow dryer,
iron, dishwasher, etc.) The quality of your household electrical wiring may also cause
additional noise on your electrical system.
b. Distance – Long lengths of electrical wiring through your electrical system between
connected powerline adapters.
Reset Button
PWR (Power)
PL (Powerline)
Sync
ETH (Gigabit Ethernet Link/Act)
Gigabit + Ethernet / Network Port
1.
1.
I have verified that my Powerline device is connected to my workstation, but I cannot
detect other Powerline devices. What should I do?
1.Verify that you are using Cat. 5, Cat. 5e or Cat. 6 Ethernet network cables for each
TPL-402E adapter.
2.Verify that the power outlet of the TPL-402E/TPL-402E2K is plugged into is on the same
electrical power distribution and/or circuit breaker box.
3.If you are still not able to establish connectivity after performing the above steps, please
reset both of the TPL-402E adapters to factory default. The default network name/key is
“HomePlugAV”. The Reset button is located on the bottom of the TPL-402E.
1. With a pin or paperclip, press and hold the reset button for 1 second and release it.
The LEDs will turn off and turn back on.
2. To verify connectivity, the Powerline LED will become solid when the powerline
adapters establish connectivity. The TPL-402E powerline adapters must have the
same network name/key in order to connect to each other.
Note: If you have problems resetting the device, unplug the powerline adapter(s) from
the power outlet, wait 15 seconds and plug the adapter(s) back into the outlet, then
repeat the reset procedure.
2. I can detect my Powerline devices on my Powerline network, but I cannot connect to the
Internet. What should I do?
Assuming that the Powerline network is connected to a router:
Make sure you are not connecting the device into a surge protector or power strip.
2. Make sure that your Router is connected to the Internet and one of the Router's LAN ports
is connected to the TPL-402E's network port. Check both TPL-402E and the router's
network port LED for positive connection status.
3. Make sure your computer's TCP/IP settings are set to Obtain an IP address automatically
(see the steps below).
Troubleshooting
6
Windows 7
1. Go into the Control Panel, click Network and
Internet, click Network and Sharing Center, click
Change Adapter Settings and then right-click the
Local Area Connection icon and then click
Properties.
2. Click Internet Protocol Version 4(TCP/IPv4)
and then click Properties. Then click on
Obtain an IP address automatically.
7
1. Go into the Control Panel, click Network and
Internet, click Network and Sharing Center, click
Manage Network Connections and then right-click
the Local Area Connection icon and then click
Properties.
Windows Vista
2. Click Internet Protocol Version 4(TCP/IPv4)
and then click Properties. Then click on Obtain
an IP address automatically.
1. Go into the Control Panel, double-click the Network
Connections icon and then right-click the Local
Area Connection icon and then click Properties.
Windows XP/2000
2. Click Internet Protocol (TCP/IP) and then click
Properties. Then click on Obtain an IP address
automatically.
4. I have a HomePlug 1.0 or HomePlug Turbo network. Can I use this with my network?
The TPL-402E is not backwards compatible with HomePlug 1.0 or HomePlug Turbo.
5. Do I need to reconfigure my TPL-402E after I hit the reset button?
No, the TPL-402E should automatically establish connection once both units are reset to
default settings.
If you still encounter problems or have any questions regarding the TPL-402E/TPL-402E2K,
please refer to the User's Guide included on the Utility CD-ROM or contact TRENDnet's Technical
Support Department.
