TRENDnet TEW-424UBK Manuel utilisateur

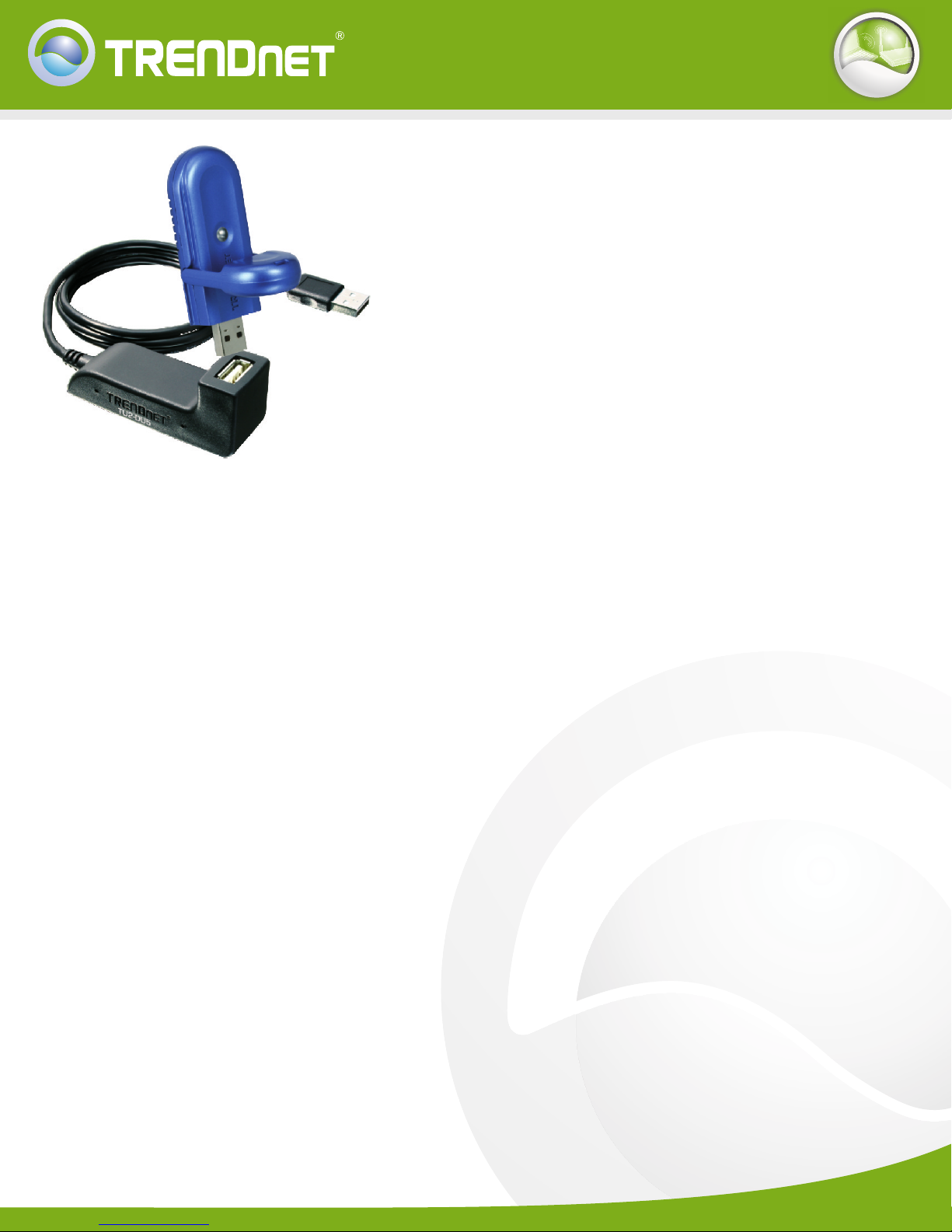

TEW-424UB 802.11g Wireless USB 2.0 Adapter brings together

the convenience of USB 2.0 and the high speed of 802.11g,

allowing you to easily connect to 802.11g networks at speeds of

up to 54Mbps. The USB 2.0 interface facilitates a hassle-free

Plug-and-Play installation, and 128-bit WEP Encryption provides

robust network security. The TEW-424UB is a feature-rich yet

convenient way to go wireless.

TEW-424UBK (v3.0R)

54Mbps Wireless G USB Adapter Kit

TEW-424UBK

rev: 07.23.2009

• Wi-Fi Compliant with IEEE 802.11g and 802.11b Wireless Standards

• Uses 2.4 GHz Frequency Band, which Complies with Worldwide Requirements

• Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode

• Compliant with Universal Serial Bus Rev 2.0, 1.1, 1.0 Specifications

• Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g

• Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b

• Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching

• Compatible with Windows 98SE, ME, 2000, XP(32/64-bit), Vista (32/64-bit), Mac OS X 10.4/10.5

• Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK

• Support WMM™ QoS (Wi-Fi Multimedia Quality of Service)

• Integrated Printed Antenna for the Multi-Path Environment

• Low Interference and High Susceptibility Guarantee Reliable Performance

• Low Power Consumption and Easy Configurations

• Range of 35~100 meters indoor, 100~300 meters outdoor (depends on the environment)

• Simple User Setup & Diagnostics Utilities

• 3-Year Limited Warranty

FEATURES

wireless

Standards

Certification

Antenna

LED Indicator

Power Consumption

Supported OS

Dimensions (LxWxH)

Weight

Module Technique

Frequency

Data Rate (auto fallback)

Receiving Sensitivity

Security

Channels

Media Access Protocol

Output Power

• USB 2.0, 1.1, 1.0 Compliant

• 10% ~ 95% max (Non-condensing)

• IEEE 802.11b and IEEE 802.11g

• FCC, CE, ETS

• 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) • 802.11g: OFDM

• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps

• 18dBm (typically) @ 802.11b • 15dBm (typically) @ 802.11g

• 2dBi Integrated Printed Antenna

• Link

• Receive Mode: 280mA • Transmit Mode: 410 mA

• Windows 98SE, ME, 2000, XP(32/64-bit), Vista (32/64-bit), Mac OS X 10.4/10.5

• 2.412 to 2.484 GHz (Industrial Scientific Medical Band)

• 80 x 30 x 12 mm (3.1 x 1.2 x 0.5 inches)

• 15 g (0.5 oz.)

• Operating: 0° ~ 40° C (32° ~ 104° F) • Storage: -10° ~ 70° C (14° ~ 158°F)

• 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

• CSMA/CA with ACK

**6Mbps for 802.11g using USB 1.1 or 1.0 Connection

• 64/128-bit WEP (Hex/ASCII),WPA-PSK/WPA2-PSK • WPA /WPA2 (Windows 2000/XP only)

• 1~11 channel (FCC), 1~13 channel (ETSI)

• 54Mbps 10% PER @ -68 dBm (typical) • 11Mbps 8% PER @ -83 dBm (typical)

Temperature

Humidity

Wireless

Interface

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

54Mbps Wireless G USB Adapter Kit

TEW-424UBK (V3.0R)

RELATED PRODUCTS

PACKAGE CONTENTS

TEW-423PI

TEW-421PC 54Mbps 802.11g Wireless PC Card

• Utility & Driver CD-ROM

• TU2-DU5

54Mbps 802.11g Wireless PCI Network Adapter

• TEW-424UBK

• Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

SPECIFICATIONS

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

Cable/DSL Modem

Internet

Workstation

54Mbps Wireless G Broadband Router

(TEW-432BRP)

54Mbps Wireless G

USB Adapter Kit

(TEW-424UBK)

* Backwards compatible with USB 1.1 at 12Mbps

USB 2.0 480Mbps
