TRENDnet TEW-424UBK Manuel utilisateur
i
Regulatory notes and statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices.
The energy levels of these emissions however are far less than the electromagnetic
energy emissions from wireless devices such as mobile phones. Wireless LAN
devices are safe for use frequency safety standards and recommendations. The use
of Wireless LAN devices may be restricted in some situations or environments for
example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or identified
as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial
plants, private buildings etc.) is not clear, please ask for authorization to use these
devices prior to operating the equipment.
Regulatory Information/disclaimers
The installation and use of this Wireless LAN device must be in strict accordance
with the instructions included in the user documentation provided with the product.
Any changes or modifications made to this device that are not expressly approved
by the manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device. The Manufacturer and its authorized
resellers or distributors will assume no liability for any damage or violation of
government regulations arising from the failure to comply with these guidelines.
USA-FCC (Federal Communications Commission) statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of this device.
FCC Radio Frequency Exposure statement
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65
and found compliant to the requirements as set forth in CFR 47 Sections 2.1091,
2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices.
The radiated output power of this Wireless LAN device is far below the FCC radio
ii
frequency exposure limits. Nevertheless, this device shall be used in such a manner
that the potential for human contact during normal operation is minimized.
When nearby persons has to be kept to ensure RF exposure compliance, in order to
comply with RF exposure limits established in the ANSI C95.1 standards, the
distance between the antennas and the user should not be less than 20 cm.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and radiates radio frequency energy. If not installed
and used in accordance with the instructions, it may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try and correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Export restrictions
This product or software contains encryption code that may not be exported or
transferred from the US or Canada without an approved US Department of
Commerce export license.
Safety Information
Your device contains a low power transmitter. When the device is transmitted it
sends out radio frequency (RF) signal.
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with a minimum distance of 20 cm
between the radiator and your body. Use the supplied antenna. Unauthorized
antennas, modifications, or attachments could damage the transmitter and may
violate FCC regulations.
iii
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be located or operating in
conjunction with any other antenna or transmitter.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950 has been conducted. These are
considered relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article
3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-
17 and EN 55024 has been conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328-2 has been conducted. These
are considered relevant and sufficient.
CE in which Countries where the product may be used freely:
Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,
Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.
France: French regulations prohibit the use of all channels except channels 10
through 13.
iv
TABLE OF CONTENT
Introduction............................................................................................................... 1
Overview of this User’s Guide ............................................................................... 1
Unpacking and Setup ................................................................................................ 2
Unpacking .............................................................................................................. 2
Setup....................................................................................................................... 2
Connecting the USB Extension Cable.................................................................... 2
IDentifying external components.............................................................................. 3
LED ........................................................................................................................ 3
Software Installation ................................................................................................. 4
Windows Vista Installation .................................................................................... 4
Windows 98SE/ME/2000/XP Utility Installation .................................................. 7
Vista Wireless Setting .......................................................................................... 12
Windows XP/2000/ME/98 Wireless Utility Setting............................................. 16
Technical Specifications ......................................................................................... 23
1
INTRODUCTION
Congratulations on your purchase of this Wireless LAN USB 2.0 Adapter.
This manual contains detailed instructions regarding the operation of this product.
Please keep this manual for future reference.
With the Wireless LAN USB 2.0 Adapter, a desktop or laptop computer can
communicate with another computer wirelessly. An easy-to-use utility is bundled
with the Wireless USB Adapter for configuration, monitoring, and diagnostic
purposes.
The Wireless LAN USB 2.0 Adapter can wirelessly transmit and receive data, at a
speed of up to 54 megabits per second.
The Wireless LAN USB 2.0 Adapter provides users with access to real-time
information anywhere in their organization. The mobility of the Wireless LAN
USB 2.0 Adapter provides productivity and service, which are not available under
wired networks. The Wireless LAN USB 2.0 Adapter can easily adapt from peer-
to-peer networks, suitable for a small number of users, to full infrastructure
networks of thousands of users that allow roaming around a broad area.
Overview of this User’s Guide
Introduction. Describes the Wireless LAN USB 2.0 Adapter and its features.
Unpacking and Setup. Helps you get started with the basic installation of the
Wireless LAN USB 2.0 Adapter.
Hardware Installation. Describes the LED indicator on the Adapter.
Software Installation. Describes how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the Wireless LAN USB 2.0 Adapter.
2
UNPACKING AND SETUP
This section provides unpacking and setup information for the Wireless LAN USB
2.0 Adapter.
Unpacking
The box should contain the following items:
One Wireless LAN USB 2.0 Adapter
One Driver & Utility CD-ROM
One Quick Installation Guide
One Type-A USB male to female extension cable
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
Before installation, check the following:
Make sure your computer is running at least a 300Mhz or above processor with
256MB RAM or above
Make sure the USB ports are USB 1.0, 1.1 or 2.0
The operating system on your computer must be the following: Windows
Vista/XP/2000/ME/98SE
Make sure the environment has minimal interference and obstructions.
Connecting the USB Extension Cable
The USB extension cable that comes with the Adapter has Type A connectors on
both ends. One end of the cable is a male Type A connector that plugs into the PC’s
USB port. The other end of the cable is a female Type A connector that plugs into
the Adapter.
This USB extension cable can be adjusted to improve the wireless connection. It is
recommended that the Wireless LAN USB 2.0 Adapter is perpendicular to the
ground.
3
IDENTIFYING EXTERNAL COMPONENTS
LED
The LED blinks green when the Wireless LAN USB 2.0 Adapter is successfully
connected to a wireless network. The LED is steady green when the Wireless USB
Adapter is not connected to a wireless network.
4
SOFTWARE INSTALLATION
This section describes how to install the driver and utility for the Wireless LAN
USB 2.0 Adapter.
Windows Vista Installation
Note: DO NOT install the utility program on the Driver CD-ROM that comes with
the unit. The utility program does not work on Windows Vista.
1) Insert the Driver CD-ROM into your CD-ROM drive
2) When the Autorun screen appears, click Exit.
2) Connect the wireless adapter to an available USB port of your Windows Vista
computer.
5

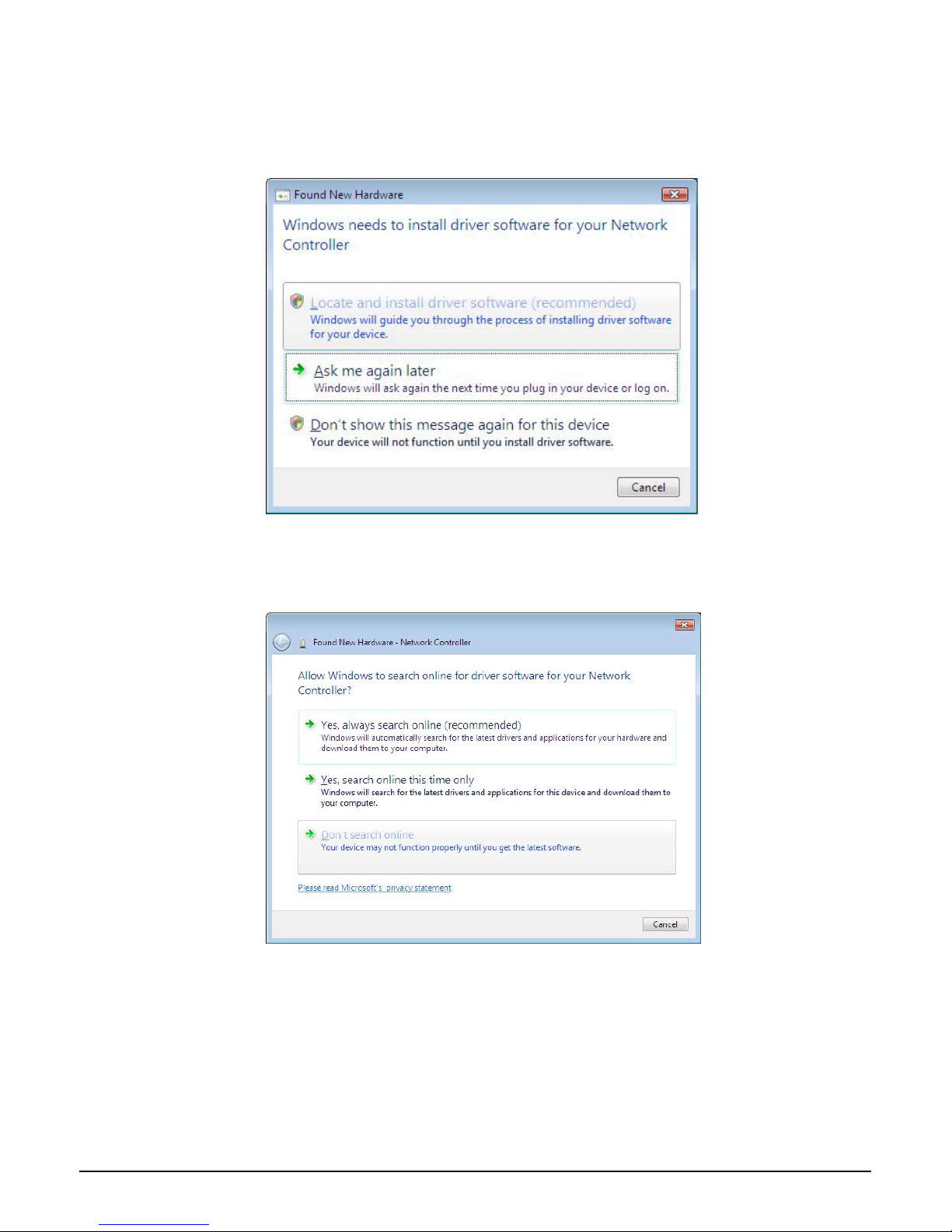

3) Click Locate and install driver software (recommended).
4) Click Don’t search online.
5) Click Browse my computer for driver software (advanced).
