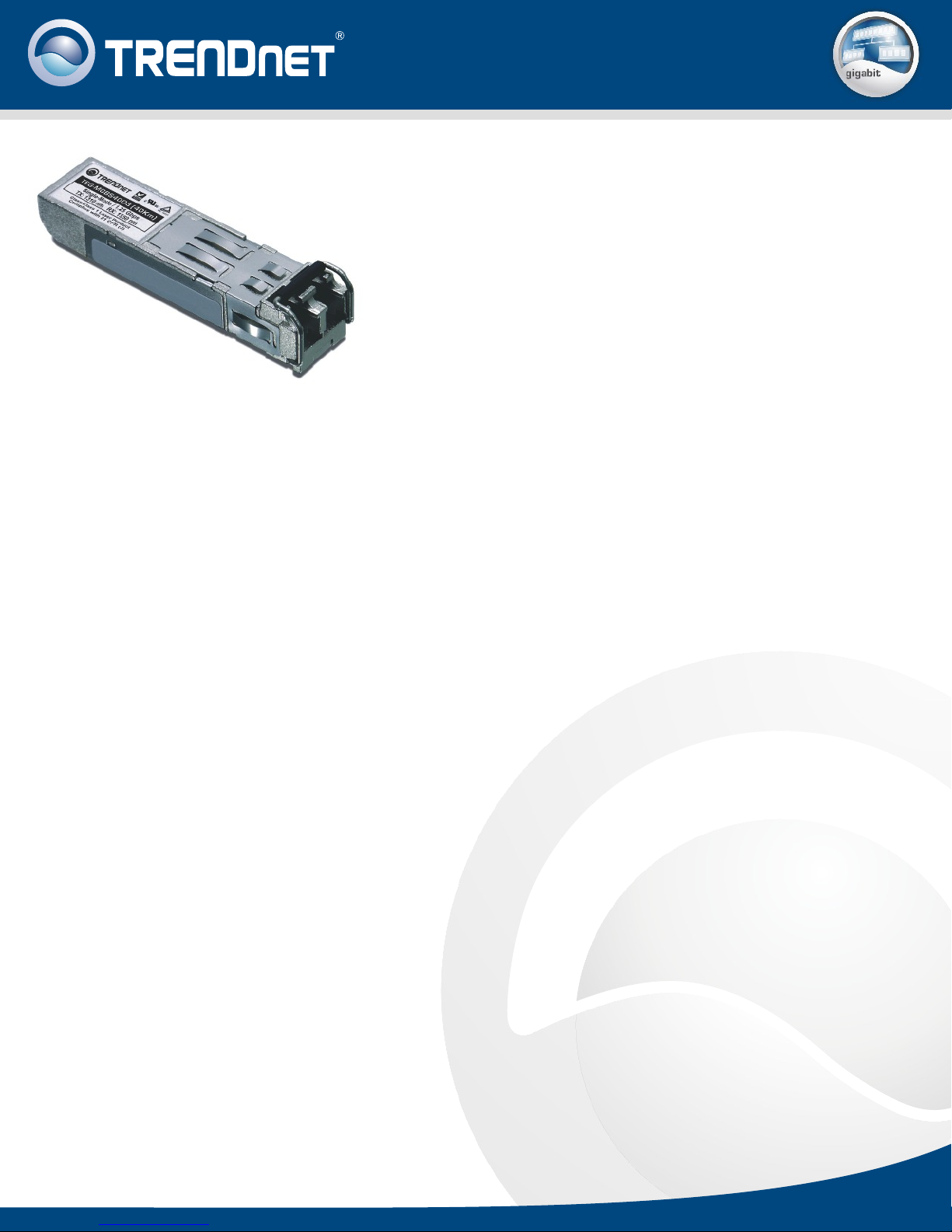

TRENDnet TEG-MGBS10 Manuel utilisateur
TEW-503PI (07-28-2005) TEG-MGBS series
rev:01.24.2007
FEATURES
• Compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel Standards
Compliant with SFP MSA, SONET/SDH standards, Class 1 laser products, EN 60825, and EN60950
Metal Enclosure, low EMI
Duplex LC connector
Hot Pluggable and Low Power Dissipation
Single 3.3V Power Supply Voltage
•
•
•
•
•
1000Mbps-LX Mini-GBIC WDM modules are designed to connect
with any Gigabit Ethernet Switch with an industry standard Mini-
GBIC slot. These RoHS-compliant single-mode modules support
distances up to 40 kilometers. These Small Form Factor Pluggable
(SFP) modules utilize an advanced metal design to minimize
Electromagnetic Interference (EMI). The modules provide a
powerful, hot-pluggable solution for server, multi-processing and
switch-to-switch applications.
TEG-MGBS10D3, TEG-MGBS10D5, TEG-MGBS40D3,
TEG-MGBS40D5
Dual Wavelength Mini-GBIC Modules
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
Dual Wavelength Mini-GBIC Modules
TEG-MGBS10D3, TEG-MGBS10D5, TEG-MGBS40D3, TEG-MGBS40D5
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
SPECIFICATIONS
Model Name
TEG-MGBS40D3
11dBm
20dBm
-20
-23
-9 ~ -3dBm
-3 ~ +3dBm
10km
40km
TEG-MGBS10D3
TEG-MGBS40D5
11dBm -20 -9 ~ -3dBm 10km
Sensitivity Pout Distance
TX: 1550nm RX: 1310nm
Wavelength Power Budget
TX: 1310nm RX: 1550nm
TX: 1550nm RX: 1310nm
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
Web:
Email: [email protected]
www.trendnet.com
TEG-MGBS10D5
20dBm -23 -3 ~ +3dBm 40km
TX: 1310nm RX: 1550nm
Application l
• Metro Access Rings
Point-to-Point Networking
Suitable for Fast Ethernet and OC-12
5-Year Warranty
•
•
•
