Trek CHECKPOINT SL Manuel d'utilisation
2022 CHECKPOINT SL/SLR
SERVICE MANUAL SUPPLEMENT
2022 Checkpoint SL/SLR
1
Safety
WARNING
Properly tighten hardware
Always tighten hardware to the specied torque.
Over-tightening hardware could deform or break the
hardware or components. Under-tightening hardware
could cause hardware or components to become loose.
Either situation could damage the bicycle and result in
injury to the rider.
WARNING
Reapply threadlocker
All reused-fasteners with pre-applied threadlocker must
be cleaned with isopropyl alcohol and have new thread-
locker applied before re-assembly. If threadlocker is not
applied, the fasteners may loosen which could damage
the bicycle and result in injury to the rider.
Legend
Apply applicable grease
Do not apply grease
Apply threadlocker
Nm Torque
Cable (zip) tie

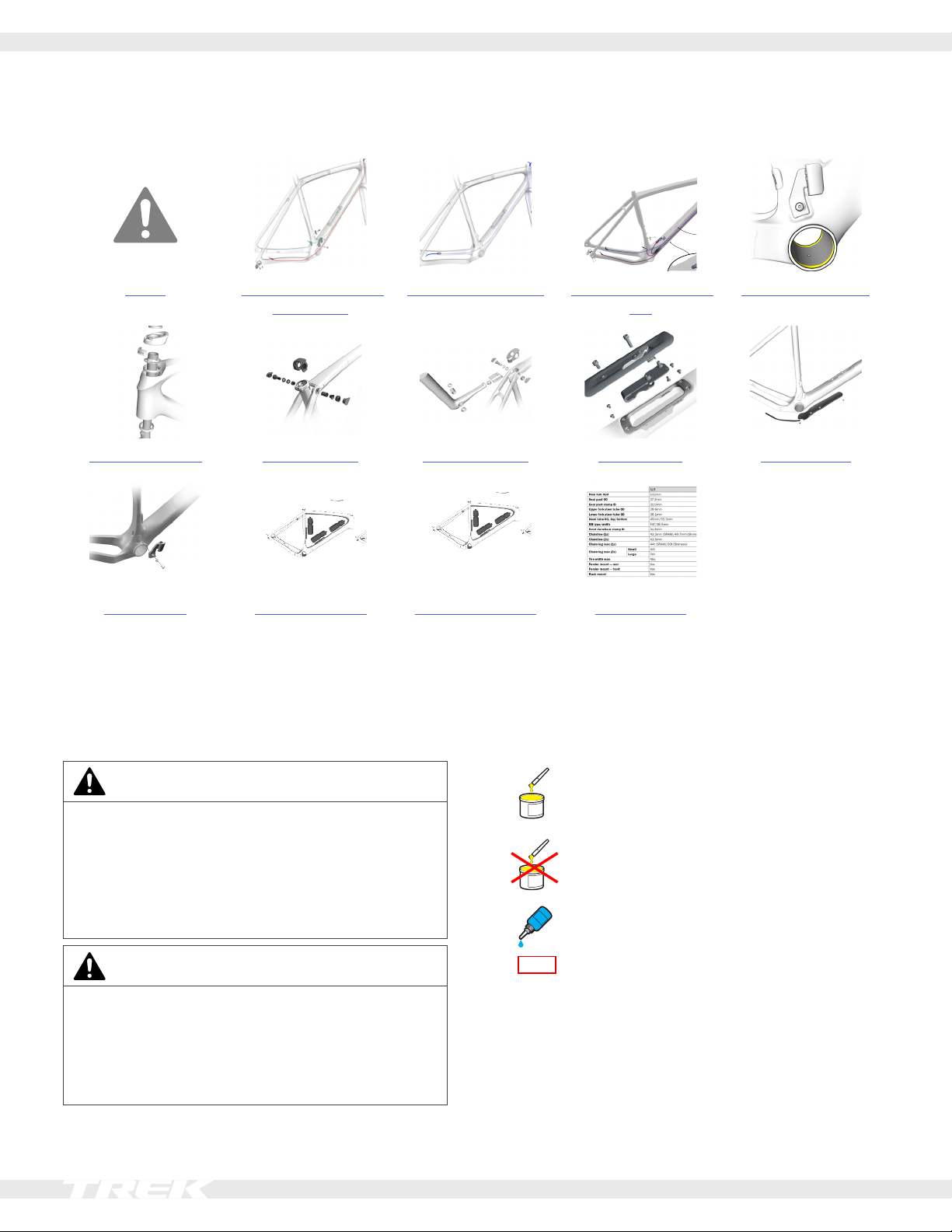

Contents
Safety Brake/shift routing —
mechanical
Brake routing — eTap Brake/shift routing —
Di2
T47 bottom bracket
Headset and fork IsoSpeed — SL IsoSpeed — SLR Storage door Frame guards
Chainkeeper Accessories — SL Accessories — SLR Specications
Copyright 2022 Trek Bicycle Corporation All Rights Reserved
2022 Checkpoint SL/SLR
2
Brake/shift routing — mechanical
1
2
3
4
5
2-3Nm
6.5Nm
max
6
7
8
9
NOTE: Tighten the front derailleur
bolt (5) to the manufacturer’s
specications.
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
3 Housing grommets — W330578
4Front derailleur washer — W531901
5Front derailleur bolt — W543903
6Front derailleur cable
7Rear derailleur cable
8Front brake hose
9Rear brake hose
10 Dropper post cable
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (3).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
2022 Checkpoint SL/SLR
3
Brake/shi routing — mechanical (continued)
Route the shift cables
1. Label both shift housings. You will need to identify
them when you assemble the headset.
2. Attach the derailleurs to the bicycle.
3. Route the front derailleur housing through the
grommet (3). Route both shift housings through the
frame as shown.
4. Connect the shift housings to the derailleurs. Insert
the grommet (3) into the frame.
5. Install the bottom bracket, headset and fork, and
handlebars.
6. Cut the cable and brake housings at the levers (make
sure you have enough slack).
7. Route the shift cables through the housings in the
frame — starting in the front — and attach them to
the derailleurs.
8. Use a cable (zip) tie to connect the shift housings
and rear brake hose to the outside of the storage
door frame.
Dropper post cable routing (SL only)
Cut out a hole in the outer dimple on the back of the
routing cap grommet. Route the dropper post cable to the
handlebars as shown below.
NOTE: A dropper post is not compatible with the SLR
model due to the seat mast system.
10
10
2022 Checkpoint SL/SLR
4
Brake routing — eTap
7
4
3
8
1
2-3Nm
2
5
6
6.5Nm
max
NOTE: Tighten the front derailleur
bolt (6) to the manufacturer’s
specications.
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
3 Plug — W330578
4 Housing grommet — W330578
5Front derailleur washer — W531901
6Front derailleur bolt — W543903
7Front brake hose
8Rear brake hose
9Dropper post cable
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (4).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
4. Use a cable (zip) tie connect the rear brake hose to
the outside of the storage door frame.
2022 Checkpoint SL/SLR
5
Brake routing — eTap (continued)
Dropper post cable routing (SL only)
NOTE: A dropper post is not compatible with the SLR
model due to the seat mast system.
9
9
2022 Checkpoint SL/SLR
6
Brake/shi routing — Di2
4
9
10
2-3Nm
11
56
7
3
2
1
6.5Nm
max
8
3Nm
NOTE: Tighten the front derailleur
bolt (6) to the manufacturer’s
specications.
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
3 Di2 exit grommet — W600208
4 Housing grommets — W330578
5Front derailleur washer — W531901
6Front derailleur bolt — W543903
7Battery holder and cable guide — W588188
8Screws (M4x9mm) — W307656
9Front brake hose
10 Rear brake hose
11 Di2 wires
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (4).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
2022 Checkpoint SL/SLR
7
Brake/shi routing — Di2 (continued)
Di2 wiring diagram
Battery
Front derailleur
Junction A
(charging port)
Junction B
Rear derailleur
2022 Checkpoint SL/SLR
8
T47 bottom bracket
Install the bottom bracket
1. Apply grease to the threads on both sides of the
frame.
2. Using your hands, thread the bottom bracket onto
the frame.
NOTICE: Do not start tightening the bottom bracket
with a tool. Dirt and other contaminants can damage
the threading.
3. Use the proper tool to torque both sides to
specication (see the Tool and spline compatibility
table below).
4. If necessary, add spacers before installing the cranks
(see the Spacers required table at the top right).
Spacers required
The table below contains bottom bracket/crank
combinations that require spacers. Your bicycle may have
other combinations that do not require spacers.
Crank Bottom bracket
Spacers required
Drive
side
Non-drive
side
Shimano CeramicSpeed
24mm 0.5mm 0.5mm
SRAM DUB SRAM DUB 2-3mm —
GXP Wheels MFG 1.0mm —
Non-driveside
washer
Driveside
washer
SRAM GXP cranks
only
Tool and spline compatibility
Tool Praxis Unior Park Tool Wheels Mfg CeramicSpeed
Model
Part number
TP-2400
594148
TP-3028
594147
1671.T47
1043614
BBT-47
568922
BBTOOL-48-44
589307 —
Bottom bracket
manufacturer
Praxis 24mm X X
30mm X X
Wheels MFG X
SRAM DUB X X
Chris King X X
Ceramic-
Speed
24mm X X X
GXP X
2022 Checkpoint SL/SLR
9
Headset and fork
6
1
5
3
4
40mm
max
2Optional
spacers
1 Spacer (5mm) — 5253930
2 Spacer, optional (10mm) — 5253931
3 Headset routing cap*
4Headset routing cap grommet — W5253580
5Headset split ring — W5266050
6Headset bearings — W540243
*This is a color-matched part — search trekbikes.com to
nd the right color for your bike.
Install the headset
1. Clean the steerer tube using isopropyl alcohol.
2. Grease both bearings (6), the fork crown race, and
both head tube bearing bores (upper and lower) as
shown to the left.
3. Insert the fork into the head tube.
TIP: Support the fork with a table during the
assembly.
4. Route the shift housings and brake hoses through
the split ring (5) as shown below (see pages 2-7 for
different routing examples).
Front
derailleur
Front
brake
Rear
derailleur
Rear
brake
Mechanical routing example
5. Complete the headset assembly as shown to the left.
Cutting the steerer tube
If cutting the steerer tube, cut ush or slightly above the
top of the stem (this helps hold the 5mm spacer above in
place).
NOTE: Before cutting, make sure the stem is set to the
nal desired stack position.
