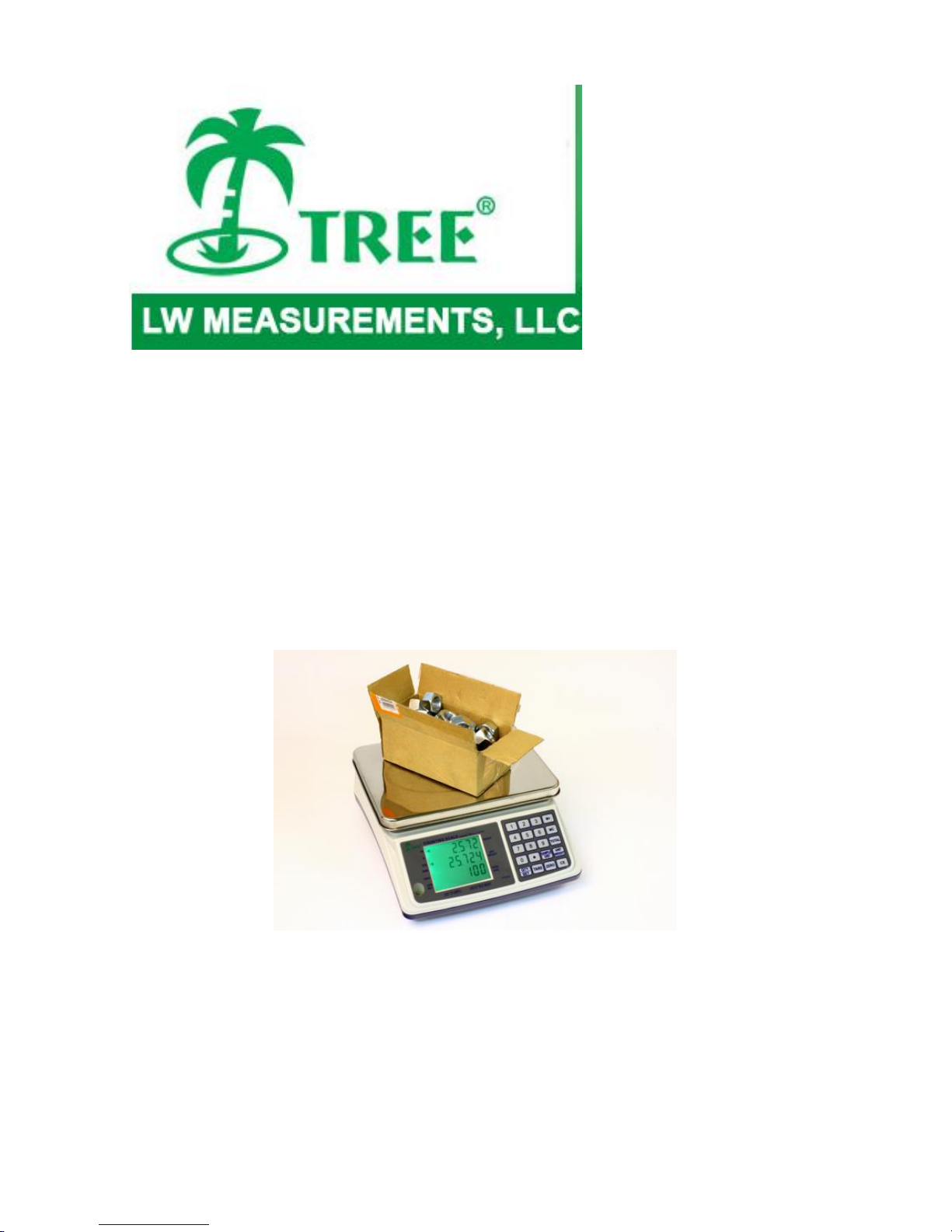

Tree MCT PLUS SERIES Manuel utilisateur

Professional

Weighing

Equipment

Intelligent Weighing Machine

MCT PLUS SERIES

WITH CHECK-WEIGHING FUNCTION

Operating Manual

Declaration of Conformity

Declaration of conformity for apparatus with CE mark

We hereby declare that the product to which this declaration refers

conforms to the following standards.

Electronic scale: MCT Plus Mid Counting Scales

Mark applied

EU Directive

Standards

2004/108/EC

EN 61326-1: 2006

Date: 14. 11. 2012 Signature:

Boon Lim,

R & D Manager

Imperial version

Metric version

MCT PLUS 3

MCT PLUS 1500

MCT PLUS 7

MCT PLUS 3000

MCT PLUS 16

MCT PLUS 7500

MCT PLUS 33

MCT PLUS 15000

MCT PLUS 66

MCT PLUS 30000

Customer Service

USA

LW Measurements LLC, 3510 Industrial Drive,

Unit H Santa Rosa, CA 95403

USA

Tel: (707) 542-2185

FAX: (707) 542-3285

EUROPE

LW Measurements Europe Ltd

Chalkwell Park House 700 London Road

Westcliff-on-Sea Essex SS0 9HQ

United Kingdom

Tel: 01702-476700

Fax: 01702-477380

ASIA

LW Measurements PTY Ltd

Block 1004, Toa Payoh North

#03-16 Singapore 318995

Tel: (65) 6458 3438

HP: (65) 8119 3401

http://www.lwmeasurements.com

Refer to our website for information about local customer service

centers and details of their addresses.

Introduction

What you should know about these Operating Instructions:

Tree® Professional Weighing Equipment products are simple to operate.

Nevertheless, you should read through these operating instructions in their

entirety, so that you can make optimum use of the full potential and the diverse

possibilities of the weighing machine in your daily work.

These operating instructions contain guidance in the form of pictograms and

keyboard diagrams, which should help you in finding the required information:

For the labeling of potential hazards and advice, please see Safety below.

Contents

Section

Heading

Safety

1.1 Representation and symbols

1.2 Safety recommendations

Your weighing machine

2.1 Construction and functions

2.1.1 Construction of the weighing machine

2.1.2 Functions of the weighing machine

2.2 Application, conformity

2.2.1 Correct use of the weighing machine

2.2.2 Conformity

2.3 Data and parameters

2.3.1 Technical data

Getting started with your weighing machine

3.1 Unpacking the equipment

3.2 Scope of delivery

3.3 Assembling your weighing machine

3.4 Choice of a suitable location

3.5 Checking the mains voltage

3.6 Leveling the weighing machine

3.7 Calibration of the weighing machine

Working with the application menu using the

Numeric Keypad

4.1 Display messages and key functions

4.1.1 Display messages

4.1.2 Key functions

4.1.3 Function setting

4.1.4 Clearing the total weight

Operation

5.1 Tare

5.1.1 Clearing the Tare weight

5.1.2 Clearing the previous Tare weight

5.2 Sample setting

5.2.1 Number setting (for counting any unknown

weight)

5.2.2 Unit weight setting (when unit weight is known)

5.3 Alarm function

5.4 Unit weight enhancement

5.5 Lack of piece weight

5.6 Hi/Lo check-weighing with counting

Calibration

Maintenance and service

Transport and storage

8.1 Transportation and shipping

8.2 Storage

1 Safety

1.1 Representations and symbols

Important instructions, which involve safety, are highlighted with the

appropriate mark:

1.2 Safety recommendations

When using the weighing equipment in surroundings with increased safety

requirements, the corresponding regulations must be observed.

The weighing machine may only be used with the power adapter supplied

exclusively for use with the weighing machine.

Before inserting the power adapter, the user must ensure that the operating

voltage stated on the power adapter agrees with the mains voltage.

If not, please contact Customer Service at the address above.

If the power adapter or its cable is damaged, the weighing machine must

immediately be disconnected from the electricity supply (pull out the power

adapter).

The weighing machine may only be operated from mains electricity supply with

a power adapter which is in perfect condition.

If there should be any reason to believe that it is no longer possible to operate

the weighing machine without danger, the weighing machine is to be

immediately unplugged from the electricity supply (pull out power adapter) and

secured against inadvertent operation.

In carrying out maintenance work, it is essential to follow the recommendations

in Chapter 6 Maintenance and Service.

The weighing machine must not be operated in an area subject to explosion

risks.

Keep this weighing machine away from water –this machine is NOT water

resistant. Shock, injury and electrical damage can occur if used in a wet

location.

Care must be taken when weighing liquids to ensure that no liquid is spilled

into the inside of the weighing machine or into connections on the rear of the

equipment or the power adapter. If liquid is spilled on the weighing machine, it

must immediately be unplugged from the mains electricity supply (pull out

power adapter). The weighing machine may only be operated again after it has

first been re-checked by a service technician.

These operating instructions must be read by each operator of the equipment

and must be available at the workplace at all times.

2 Your weighing machine

2.1 Construction and functions

2.1.1 Construction of the weighing machine

The weighing machine consists of the weighing machine body (1), the platter

(2), the weighing machine (3) the adapter, (4) this operating manual.

Figure 2.1 Your weighing machine

2.1.2 Functions of the weighing machine

The MCT Plus Series are high-quality electronic precision weighing machines

designed to function as counting scales and check-weighers with the following

specifications:

1. Imperial weight unit version

Model number

Capacity

Division

Weighing pan

Size

MCT PLUS 3

3 lb

0.0001 lb

7.6 x 10 in

MCT PLUS 7

7 lb

0.0002 lb

7.6 x 10 in

MCT PLUS 16

16 lb

0.0005 lb

7.6 x 10 in

MCT PLUS 33

33 lb

0.001 lb

7.6 x 10 in

MCT PLUS 66

66 lb

0.002 lb

7.6 x 10 in

Package

Standard Carton

13.8 X 12.2 X 6.5(in3)

Package

Master Carton

4 Units in one box: 25.4.×15 × 14.2(in3)

Operating

Temperature

32-104℉

Power source

Rechargeable batteries

or AC/DC Adapter 10V / 500 mA
