564 Grill Installation

SKU # 96200801, 96200803, 96200805

Page 1 of 3 17601471 - 1/30/14 © Travis Ind. 17601471

Compatibility:

• 564 Fireplaces

Packing List:

• Upper and Lower Grill

Installation:

NOTE: The glass frame should be in place before installing the grills.

1 The 564 SS will require some slight modifications to allow the upper grill to fit into place. Follow the directions

below to re-position the center deflectors and verify the heat shield support.

Remove the two center deflectors (use

needle-nose pliers if necessary).

These tabs bend down

to allow for removal.

NOTE: Make sure this heat

shield support is in place (it

prevents the lower shield

from sagging).

Re-attach the deflectors to the

top louver on both sides of the

notch. Bend the tabs as shown,

making sure the deflectors are

secure and flat.

The center deflectors must be in place if using an optional face to prevent the facing above the

fireplace from becoming too hot. Make sure the deflectors are secured to the top louver (see the

illustration above).

564 Grill Installation

SKU # 96200801, 96200803, 96200805

Page 2 of 3 17601471 - 1/30/14 © Travis Ind. 17601471

2 Follow the directions below to install the grills.

Hold the grill at an angle and insert the lower

slot over the bushing on the fireplace (both

sides). You may need to press on the grill to

get the tab over the bushing (this prevents

the grill from accidentally falling off).

Bend the tab over on both

sides. This is the end-stop

for the lower grill, it allows

the grill to swing forward.

Swing the grill upwards to engage

the upper slot. You will need to lift

the grill slightly to get it over the

bushing. Once in place the grill is

held in place by gravity.

UPPER GRILL INSTALLATION

NOTE: The upper grill is difficult to install the first time - be patient, after you install it, you will know

how it installs and it will be much easier the second time.



Position the grill

so the slots on

the grill align with

the mounting

studs.

You may need to

push in and

upwards on the

grill as it inserts.

The grill, when

fully inserted,

will slide down

and “click” into

place.

Upper Grill

Heat Shields

(on fireplace)

Mounting Stud

SIDE VIEW

LOWER GRILL INSTALLATION



564 Grill Installation

SKU # 96200801, 96200803, 96200805

Page 3 of 3 17601471 - 1/30/14 © Travis Ind. 17601471

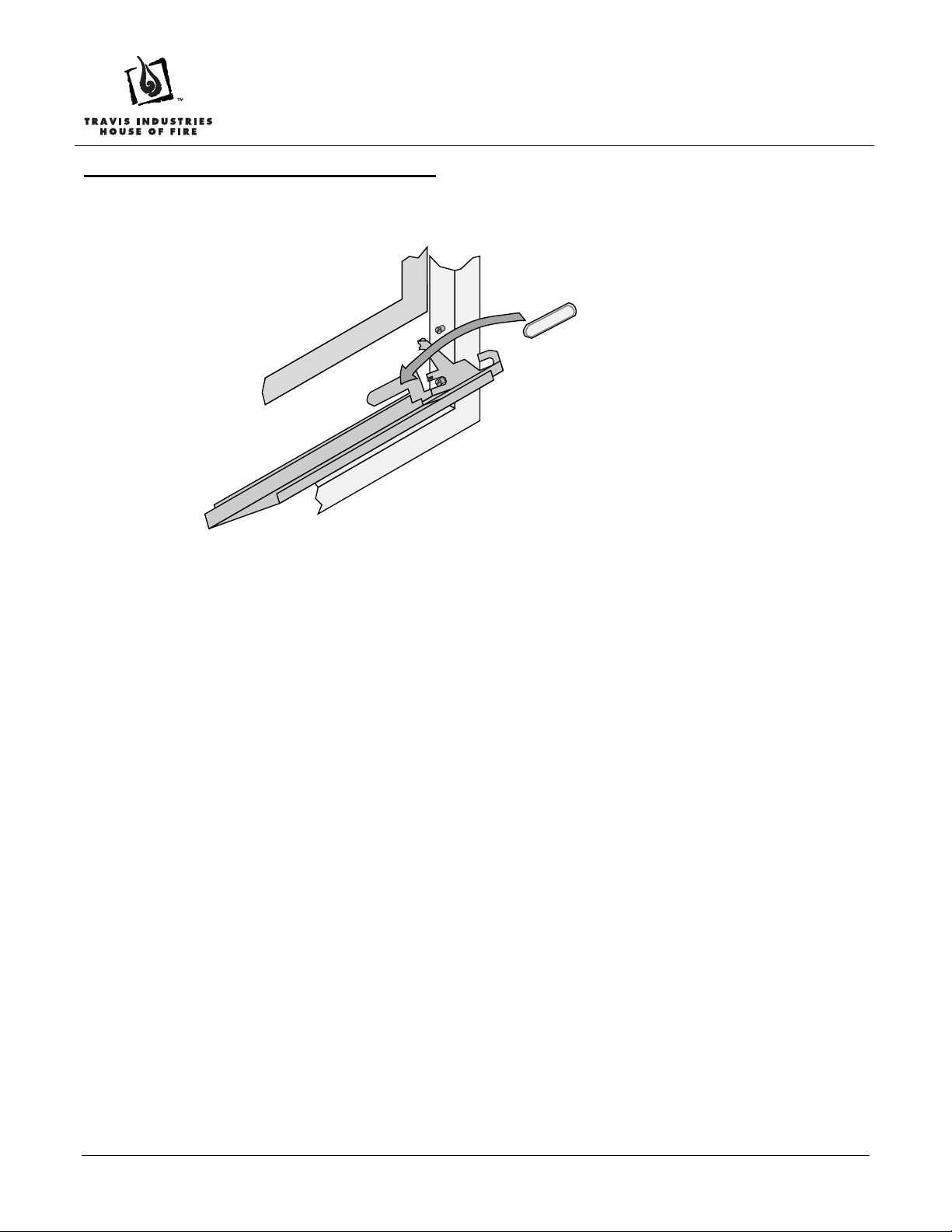

NAMEPLATE INSTALLATION:

On certain models the nameplate is shipped loose. Attach the appropriate nameplate following

the instructions below

Attach the nameplate to the

tab on the lower grill.
