564 ELECTRIC FIREPLACE/INSERT

INSTALLATION AND OWNER’S MANUAL

98501028

malfunction and result in serious injury and/or property damage.

WARNING: All electric heaters have hot or sparking parts inside.Do not use it in areaswhere

gasoline, paint or flammable liquids are stored.

and/or result in a safety hazard.

Read these instructions completely before beginning installation. Failure to follow them could

cause a heater

WARNING: This fireplace is tested and listed for use only with the optional accessories listed in

these instructions. Use of optional accessories not specifically tested for this heater could void

the heaterwarranty



Keep this manual for future reference.

SAFETY INFORMATION

When using electrical heaters, basic precautions, like the ones listed below, should always be followed in order to

reduce the risk of fire, electric shock and injury.

1. Read all instructions before using this heater.

2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the

front of the heater; keep them away from sides and rear as well.

3. Always unplug heater when it’s not in use.

4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or if the unit has been

dropped or damaged in any way.

5. Do not use the heater outdoors.

6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never place the heater

where it may fall into a bathtub or other water containers.

7. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or anything else. Arrange the

cord away from traffic areas where it could be tripped over.

8. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.

9. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric

shock, fire or damage to the heater.

10. To prevent a possible fire, do not block air intakes in any manner.

11. A heater has hot or sparking parts inside. Do not use it in areas where gasoline, paint or flammable

liquids are used or stored.

Due to high temperatures, the fireplace should be located out of

traffic and away from furniture and draperies.

The insert can become very hot when running. Keep children and

adults away from hot surfaces to avoid burns or clothing ignition. The

insert will remain hot for a time after shutdown. Allow surfaces to cool

before touching.

Do not place clothing or other flammable material on or near the

insert. Never place any objects on the insert.

12. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause

fire, electric shock or injury to persons.

13. Avoid the use of an extension cord because the extension cord may overheat and cause a fire. If you have to use

an extension cord, the cord should be No. 14 AWG minimum size and rated not less than 1875 WATTS.

14. Always use a properly grounded, protected (fuse or circuit breaker), and polarized outlet.

15. Always use ground fault protection where it is required by electrical codes.

16. Always disconnect the power before performing any cleaning, maintenance or relocation of the heater.

17. To prevent a possible fire, do not burn wood or other materials in this heater.

18 To prevent electric shock or fire, always use a certified electrician, should new circuits or outlets

be required.

19. When transporting or storing the heater, keep it in a dry place, free from excessive vibration.

LISTING APPROVALS

This heater has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room

heaters in the United States. All components are UL or CSA safety certified.

Voltage: 120 AC,

Hz: 60

Watts: 1500

Amps: 15

Note:This heater must be electrically wired and grounded in accordance with local codes or, in the absence of local

codes, with National Electric Code.

Dimensions

321/4"[818mm]

27"[687mm]

263/4"[678.8mm]

10"[253mm]

301/4"[768.8mm]

LOCATING THE FIREPLACE INSERT

Heater must be placed so it remains level (use included level to verify). Leveling bolts are provided

on the base of the fireplace to insure proper leveling.

WARNING: RISK OF FIRE. MAINTAIN ALL SPECIFIED CLEARANCES

TO COMBUSTIBLES. FAILURE TO COMPLY WITH THESE

INSTRUCTIONS MAY CAUSEA FIRE OR CAUSE THE APPLIANCE TO

OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT

MANTEL, FRONT, ETC.) ARE CLEARLY MAINTAINED.

APPLIANCE GRILLS (VENTS) LOCATED ON THE FRONTAND BACK OF THIS

ELECTRIC APPLIANCE CANNOT IN ANY WAY BE COVEREDAS IT MAY

CREATE A FIRE HAZARD.

WHEN USING PAINT OR LACQUER TO FINISH THE AREA ABOVE THE FIREPLACE, THE PAINT

OR LACQUER MUST BE HEAT RESISTANT TO PREVENT DISCOLORATION.

NOTICE: All clearances must be maintained to combustibles.

Illustrations throughout these instructions reflect typical installations

and are for design purposes only. Actual installations may vary slightly

due to individual preferences.

WARNING: Never locate this heater where it may fall into a bathtub or

any water container.

FRAMING DIMENSIONS WHEN BUILT IN

NOTE: Make sure the opening for the framing is constructed to the dimensions listed above (31-

7/8” wide by 26-3/4” tall). This ensures the face properly conceals the opening at the same time

allowing the fireplace to insert into the cavity.

When installing the fireplace, take care when routing the power cord. You may wish to allow for

additional space behind the framing for power cord access.

31-7/8"

810mm

11"

280mm

26-3/4"

680mm

SECURING THE INSERT WHEN USING HEAVY FACES

When using a heavy face with this fireplace (e.g. Artisan Face), you may wish to secure the

fireplace to the framing or floor to prevent it from tilting forward. This is especially important

if the fireplace is raised above the hearth.

Recommendations for Framed-In Applications

If this appliance is framed in, we recommend using plumbing straps or brackets to secure the

front of the fireplace to the drywall and/or framing. Secure the straps to the side or upper

flanges on the fireplace (do not screw into the fireplace). Secure the strap in a location where

it will be concealed by the face. This allows the straps to be disconnected if the appliance

needs to be removed from the framing.

Recommednations for Insert Applications

If the appliance is placed inside a fireplace (a.k.a. "insert"), we recommend using brackets to

secure the fireplace to the base of the fireplace. Remove one of the screws on the back or side

of the fireplace and secure the appliance to the floor using plumbing straps or brackets.

INSTALLATION

CAUTION: The unit's power supply cord must be connected to a properly

grounded and protected 120-volt outlet. Always use ground fault protection where

required by the electrical code.

WARNING - RISK OF FIRE! To prevent a possible fire, do not block the grills,

louvers, or air openings on the fireplace insert in any manner.

WARNING - RISK OF FIRE! The power cord must not be pinched or placed

against a sharp edge. Secure the cord to avoid tripping or snagging thus reducing

the risk of fire, electric shock or personal injury. Do not run the cord under

carpeting. Do not cover the cord with throw rugs, runners or similar items.

Arrange the cord away from traffic areas where it could be tripped over.

Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas.

Note: Follow all national and local electrical codes.

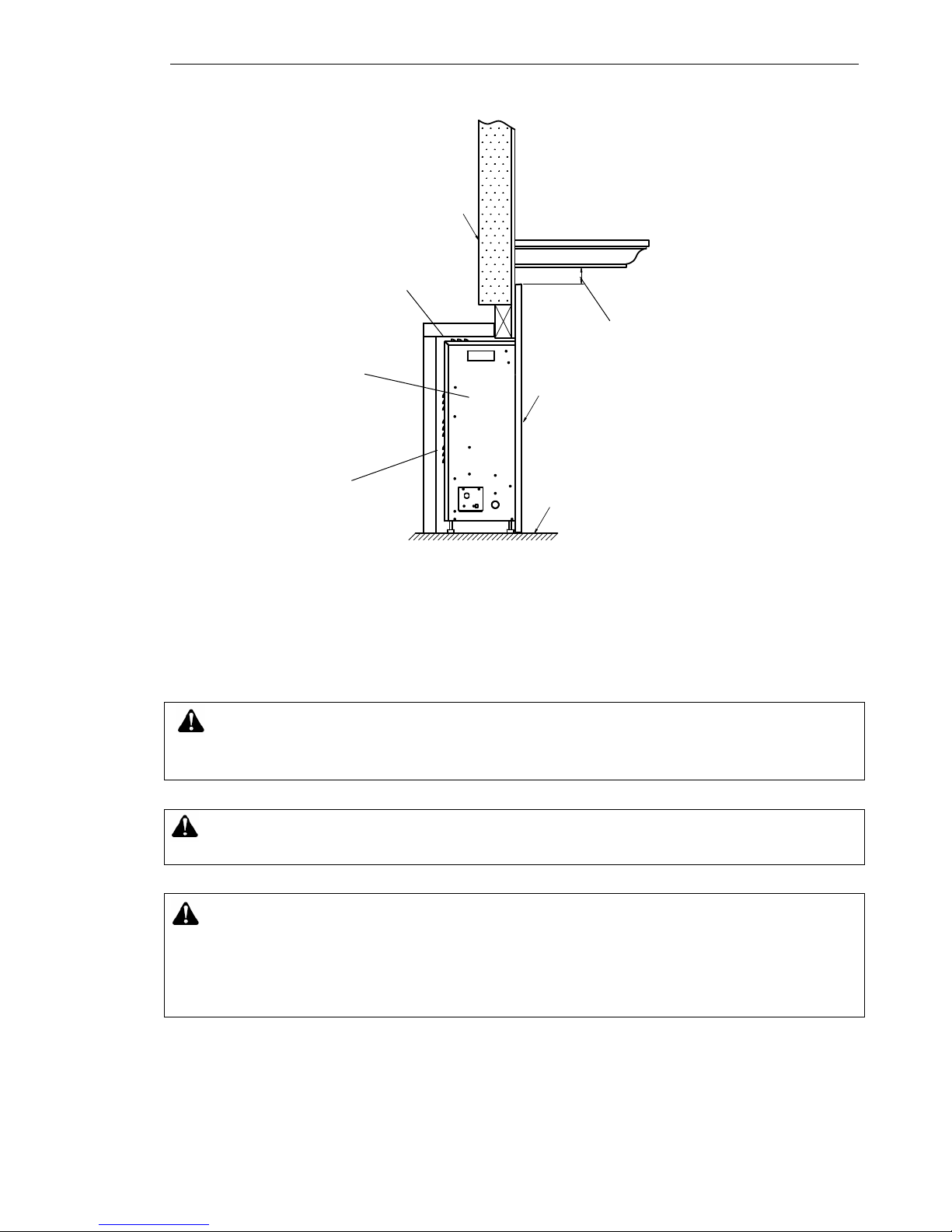

CLEARANCES WHEN BUILT-IN

WALL

FLOOR

FACE (required)

APPLIANCE

SIDE VIEW

1/2"[13 mm]

The fireplace insert may be placed within a framed enclosure that is level, dry, and capable of supporting the weight of the appliance

and front glass. It may be placed directly on wood or a non-combustible surface (not on linoleum or carpet).

MINIMUM 1/4" (7mm) CLEARANCE TO TOP

OF APPLIANCE( combustible or non-combustible)

MINIMUM 1" (25.4mm) CLEARANCE

TO BACK OF APPLIANCE

(combustible or non-combustible)

MINIMUM 1/2" (13mm) CLEARANCE

TO SIDES OF APPLIANCE

(combustible or non-combustible)

Make sure the mantel ( combustible or non-combustible)

is 1/2" (13mm) above the face. This allows for face

installation and removed.

INSTALLATION OVERVIEW – MASONRY FIREPLACES







HINT:

Paint the interior of the fireplace with

latex paint to prevent fireplace odors

from entering the home.

Silicone

























































































Leveling Bolts

HINT:

Close and seal the damper

to prevent air infiltration.

Cover plate is required if chimney

does not have suitable rain cap.

A Code-Conforming

(jacketed, grounded)

receptacle may be placed

within the fireplace. Do not

place it above the fireplace

insert.

Attach the "This fireplace has been altered..." plate

to the fireplace (use two screws or other suitable

method). You may wish to place it in a location

where it will be covered by the surround panels.

Use the optional surround panels (sku

96100298) to cover the fireplace opening.

The panels are 44-1/4" (1124mm) wide

and 34-3/8" (874mm) tall.

INSTALLATION OVERVIEW – ZERO-CLEARANCE (METAL) FIREPLACES

































































































The log shelf, screen, and

doors (if present) must be

removed.





HINT:

Paint the interior of the

fireplace with latex paint to

prevent fireplace odors

from entering the home.

HINT:

Close and seal the damper

to prevent air infiltration.

Cover plate is required if chimney

does not have suitable rain cap.



If the firebox steps down greater than

1", place shims (plywood, tile, etc.)

under the leveling bolts to provide

adequate leveling.

Silicone





A Code-Conforming (jacketed, grounded)

receptacle may be placed within the fireplace. Do

not place it above the fireplace insert.

Leveling Bolts

Attach the "This fireplace has been altered..."

plate to the fireplace (use two screws or other

suitable method). You may wish to place it in

a location where it will be covered by the

surround panels.

Use the optional surround panels (sku

96100298) to cover the fireplace opening.

The panels are 44-1/4" (1124mm) wide

and 34-3/8" (874mm) tall.

OPTIONAL DECORATIVE INTERIORS

This insert is shipped with an under-lit log pre-installed. Glowing embers are also included with the fireplace insert

if you want a different appearance.

Glowing Embers

Removing The Log

The under-lit log is shipped in place. On newer units, the log has tabs on each side that hold it in place. Remove

Installing the Glowing Embers

Pour the glowing embers onto the tray as shown below. Feel free to use the combination of glowing embers you

find most appealing.

Orange Platinum Mixed

the black interior side panel (or carefully remove the tabs) to remove the log set. This is done by removing the two

screws holding the panel in place.

Autres manuels pour 564

Table des matières

Autres manuels Travis Industries Cheminée intérieure

Travis Industries

Travis Industries Flush Wood Insert Manuel utilisateur

Travis Industries

Travis Industries Fireplace Xtrordinair 864 Deluxe Manuel utilisateur

Travis Industries

Travis Industries 21 TRV GreenSmart Manuel utilisateur

Travis Industries

Travis Industries Freedom Bay Manuel utilisateur

Travis Industries

Travis Industries 564 DF GSR2 Manuel utilisateur

Travis Industries

Travis Industries 864 HH Manuel utilisateur

Travis Industries

Travis Industries 864 ST GSR2 Manuel utilisateur

Travis Industries

Travis Industries 21 TRV GreenSmart Manuel utilisateur

Travis Industries

Travis Industries Xtreme 6020 Manuel utilisateur

Travis Industries

Travis Industries 33 DVI Manuel utilisateur

Travis Industries

Travis Industries DVS Insert EF II Manuel utilisateur

Travis Industries

Travis Industries 564 Clean Face GSR2 Manuel utilisateur

Travis Industries

Travis Industries 864 HO GSR2 Manuel utilisateur

Travis Industries

Travis Industries DVS GSR2 NB Insert Manuel utilisateur

Travis Industries

Travis Industries Small Flush Manuel utilisateur

Travis Industries

Travis Industries 430 Manuel utilisateur

Travis Industries

Travis Industries Lopi 1250 Republic Manuel utilisateur

Travis Industries

Travis Industries 21 TRV GreenSmart Manuel utilisateur

Travis Industries

Travis Industries 564 DF GSR2 Manuel utilisateur

Travis Industries

Travis Industries DVS GSR NB Insert Manuel utilisateur

Travis Industries

Travis Industries Maverick Manuel utilisateur

Travis Industries

Travis Industries 21 TRV GreenSmart Manuel utilisateur

Travis Industries

Travis Industries 864 HO NB GSR2 Manuel utilisateur

Travis Industries

Travis Industries GreenSmart Fireplace 564 SS Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
