TravelGo HD Manuel utilisateur
TABLE OF CONTENTS
Welcome…………………………………………………………. 2
TravelGo Chair Components……………………………......... 3
Shipping Contents…………………………………………….… 4
Specifications………………………………………………….....5
Installation and Use……………………………………………...6
Charger and Battery……………………………………………..8
Main Operational Functions…………………………………….9
Troubleshooting and Maintenance…………………………….11
Warranty Information…………………………………………....12
1
Welcome
Dear Users,
First and foremost, thank you very much for choosing TravelGo Canada! You will not
be disappointed. This power wheelchair is suitable for driving at lower speeds, with
better road conditions and less slope. This manual is to assist you in your operation
and maintenance of a TravelGo Chair. Please read it entirely, prior to operation.
After reading the manual, if you have any questions or concerns, please feel free to
contact us.
Do not attempt to charge or operate this vehicle until you have attained adequate
knowledge of its features and controls, and you have been trained in safe riding
techniques. Failure to do so could result in serious injury or death and/or damage to
the vehicle and/or denial of warranty coverage. Once you have finished reading this
manual, it is recommended that you practice operating the TravelGo Chair in a
private place, rather than public, until you are comfortable with its operation.
In our constant efforts to improve and upgrade our products, your TravelGo Chair
may incorporate updated components and/or features that are not specifically
covered by this version of the Owner’s Manual. If you are not clear on how to
operate or make use of any components or features, TravelGo for clarification.
Product design, features, and specifications are subject to change without notice.
We strongly believe that your new TravelGo Chair will provide with the independence
and convenience that you have been looking for!
How to Read this Manual:
A “WARNING!” label indicates that failure to abide by the following instructions may
result in serious personal injury or death to the rider or others, as well as damage to
equipment.
A “CAUTION!” label indicates that failure to abide by the following instructions may
result in damage to your TravelGo and related equipment and/or legal consequences
and/or fines and/or denial of warranty coverage.
A “Note:” label indicates information that is especially useful but does not have
safety consequences.
2

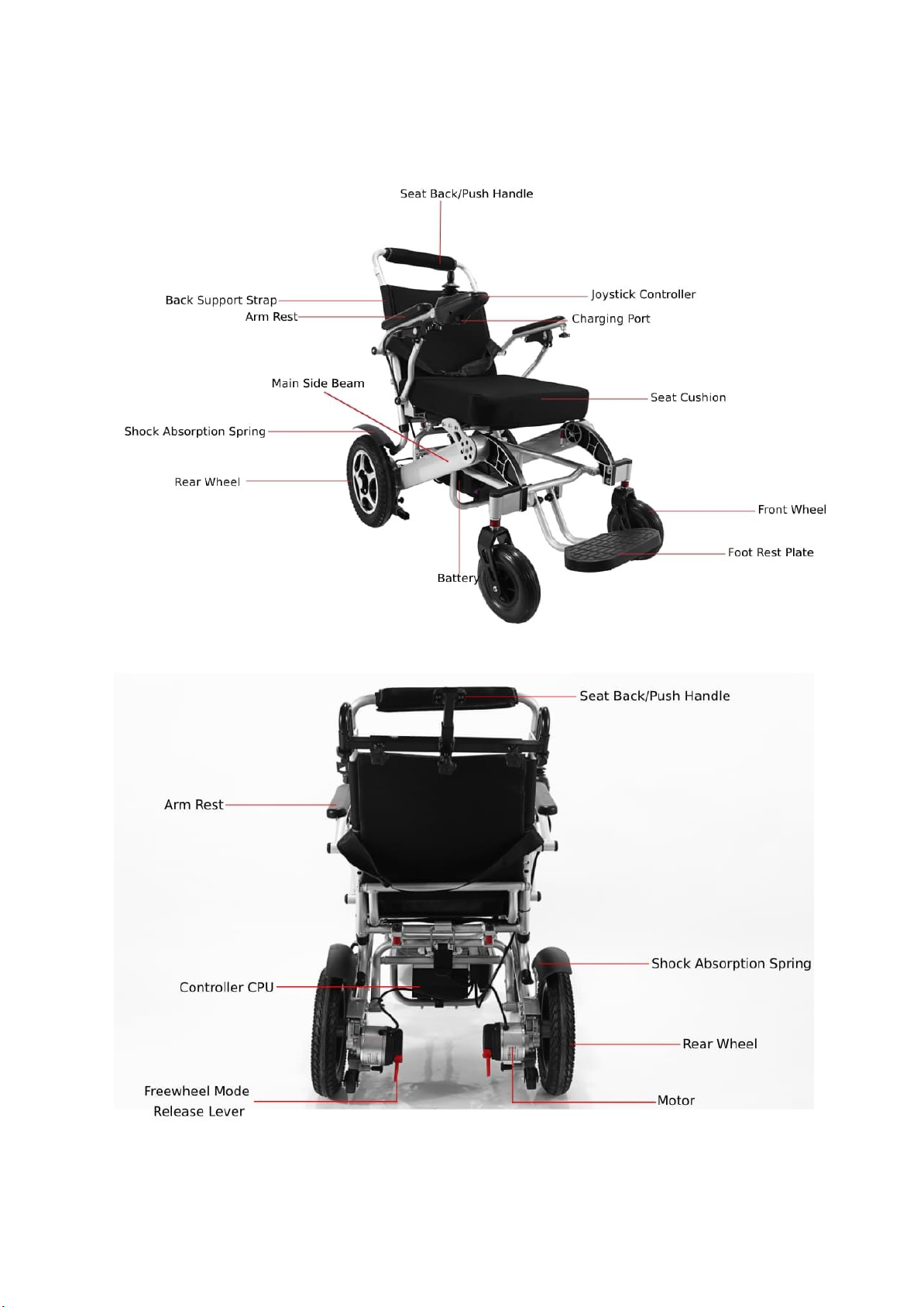

TravelGo Chair Components
3

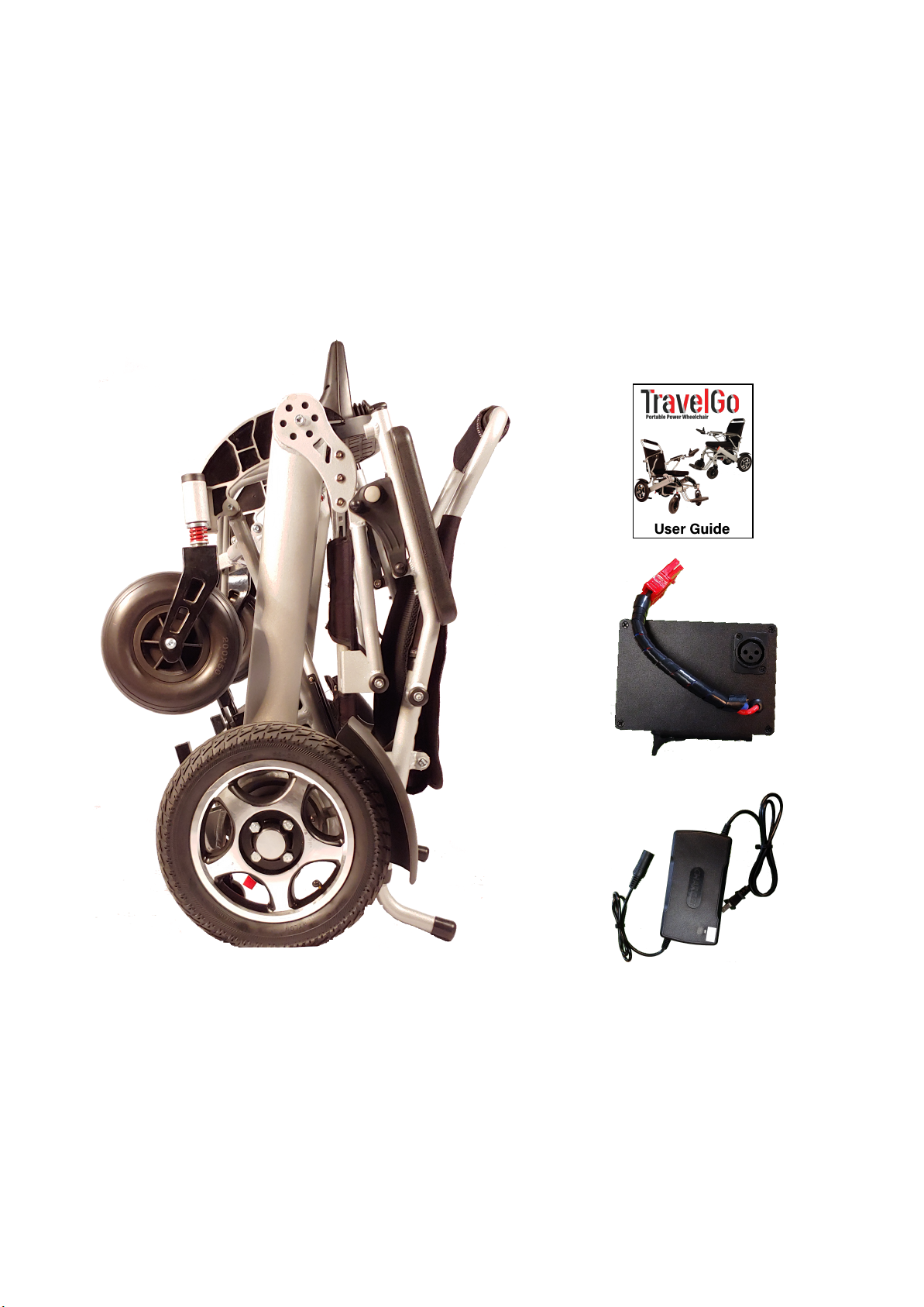

Shipping Contents
Upon receipt of your TravelGo Chair, please open the packaging to ensure the
following is included, the TravelGo Chair, one lithium-ion battery, a charger, and a
manual.
4
SPECIFICATIONS
TravelGo HD Powerchair
TravelGo S Powerchair
Product Weight
55 Lbs
53 Lbs
Armrest Height From Ground
29″
27″
Batteries Type & Weight
1 Lithium-ion 2.2kg
1 Lithium-ion 2.2kg
Brakes
Electro-Magnetic
Electro-Magnetic
Dimensions (Length – Width – Height)
Folded: 14″L – 22″W – 38″H
Unfolded: 38″L – 22″W – 38″H
Folded: 14″L – 20″W – 36″H,
Unfolded: 34″L – 23″W – 37″H
Frame Material
Aluminum
Aluminum
Front Wheels (Diameter – Width)
Diameter 7″ – Width 2″
Diameter 7.3″ – Width 1.7″
Ground Clearance (Footrest To Ground)
Pulled In: 3.3″, Pulled Out: 3.1″
Pulled In: 3.3″, Pulled Out: 3.1″
Joystick Height From Ground
30″
28″
Maximum User Weight Capacity
350 Lbs.
245 Lbs.
Maximum Speed (Adjustable)
6.5 km/h
6.5 km/h
Motor
Two 150 Watt Brushless HUB
Two 150 Watt Brushless HUB
Rear Wheels (Diameter)
12″
12″
Seat & Backrest Material
Comfort fabric
Comfort fabric
Seat Height From Ground
20″
18″
Seat Size (Width – Depth)
18.9″ Depth 14.6″ Width
18″ Depth 14″ Width
Travel Distance
22 kms
22 kms
Turning Radius
31″
31″
5
Installation and Use
1. The TravelGo Chair ships upright; carefully open the top of the box then turn
the box on the side for easier removal of the contents.
Note: It is recommended to complete this process with two individuals.

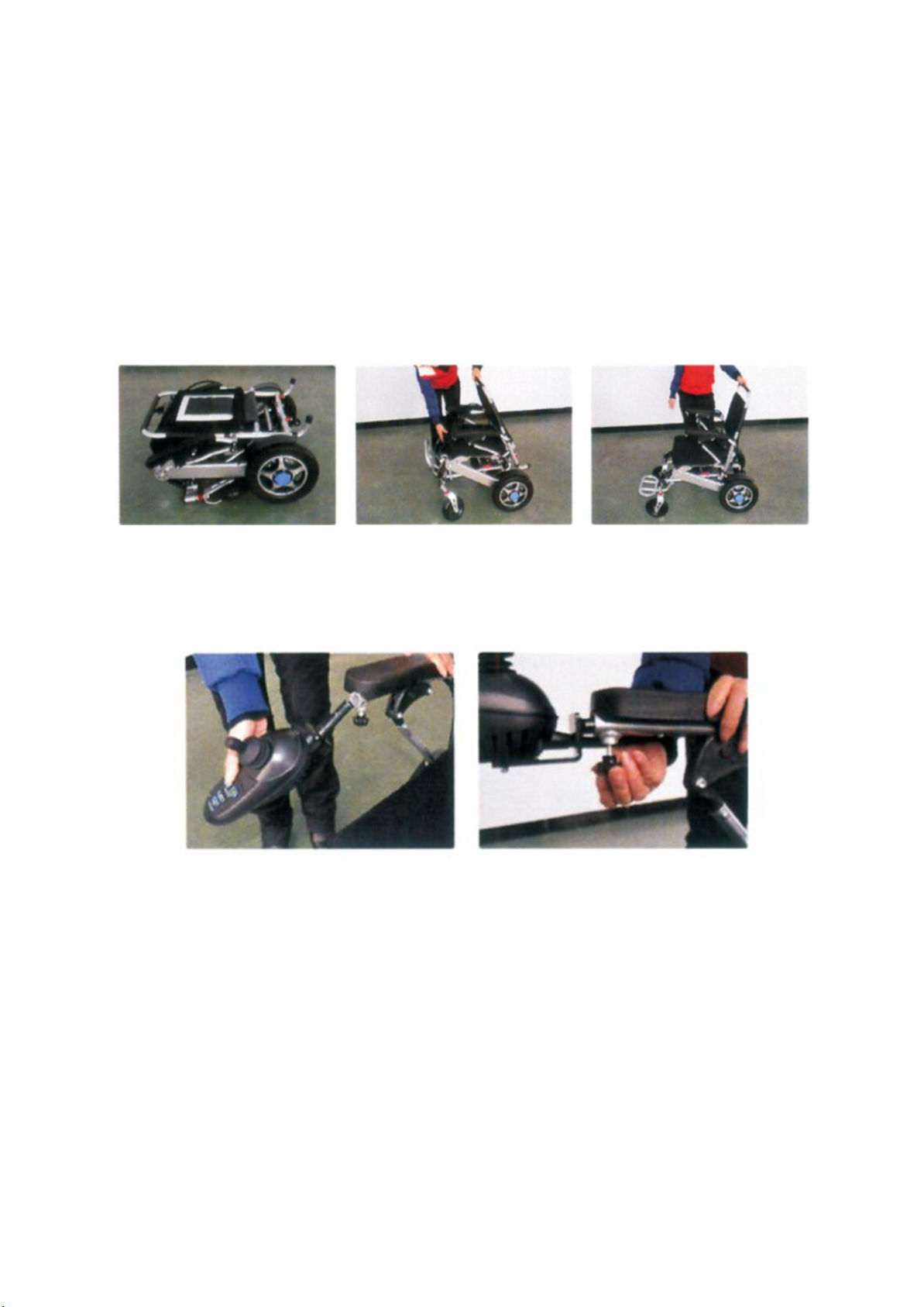

1. Unfold the TravelGo Chair: Place the chair on the ground, hold the top cross
bar in one hand, and the cushion with the other. Open firmly until the
TravelGoChair is fully open.
2. Attach the Joystick: Slide the controller into the open splot on the arm of the
TravelGo Chair. Tighten knob located under the arm rest to secure the
joystick.
3. Fasten the Lock: Once the TravelGo Chair has been opened, there is a
U-shaped lock on the back. Push down on the lock to ensure the chair is
locked and will not fold or unfold.
WARNING!: Prior to operating the TravelGo Chair, the lock should be
checked regularly to ensure the safety of the user and the TravelGo Chair.
6
4. Adjust the kickstand: Adjust the kickstand leg to the position shown in the
figure below.
5. Ensure that your TravelGo Chair is not in free wheel mode. The two red
levers should be facing away from the TravelGo Chair.
1. Ensure joystick power control is set to off prior to getting in the TravelGo
Chair.
2. Once sitting comfortably, turn on and enjoy.
7
Charger and Battery
The TravelGo Chair is designed to be low maintenance with long-term use of the Lithium Ion
Battery.
CAUTION!: The charger that is sent to you with the TravelGo Chair is the only charger that
should be used to charge the chair.
For optimal battery use:
- Fully charge the battery for more than 12 hours.
- Charge the battery at least once every three months.
- If the TravelGo Powerchair will not be used for a longer period of time, charge the
battery until full and remove from scooter.
Charging Steps:
1. Ensure the charging jack is clean and dry.
2. Turn off the TravelGoChair.

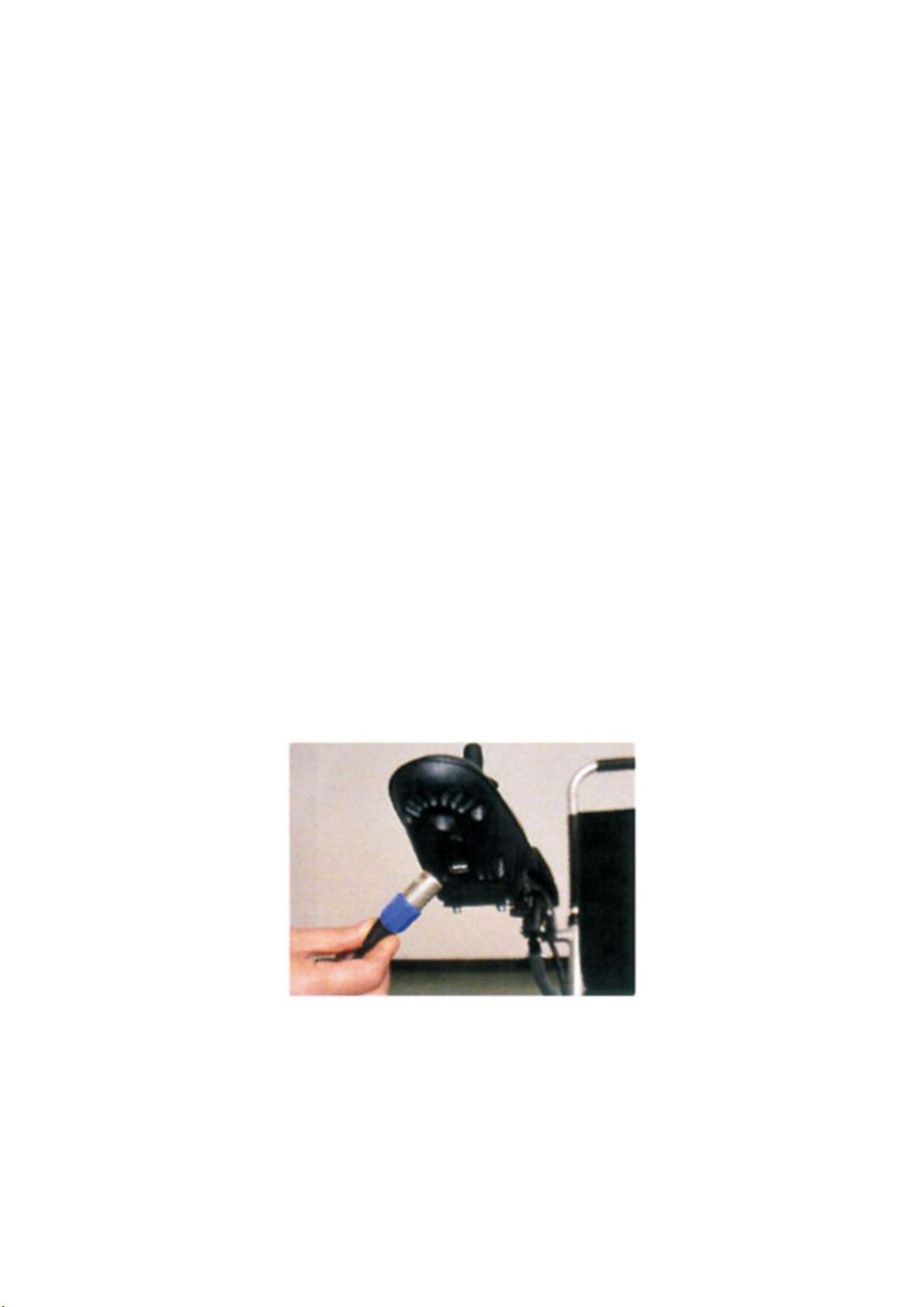

3. Plug the charger's output plug into the charging port on the bottom of the joystick by
lining up the three pins.
WARNING! Make sure the charger plug is fully plugged in the charging port of
TravelGo Chair.
4. When the charger’s light is green, the battery has been charged.
5. Pull out the charger's output plug from the charging port.
8
Main Operational Functions

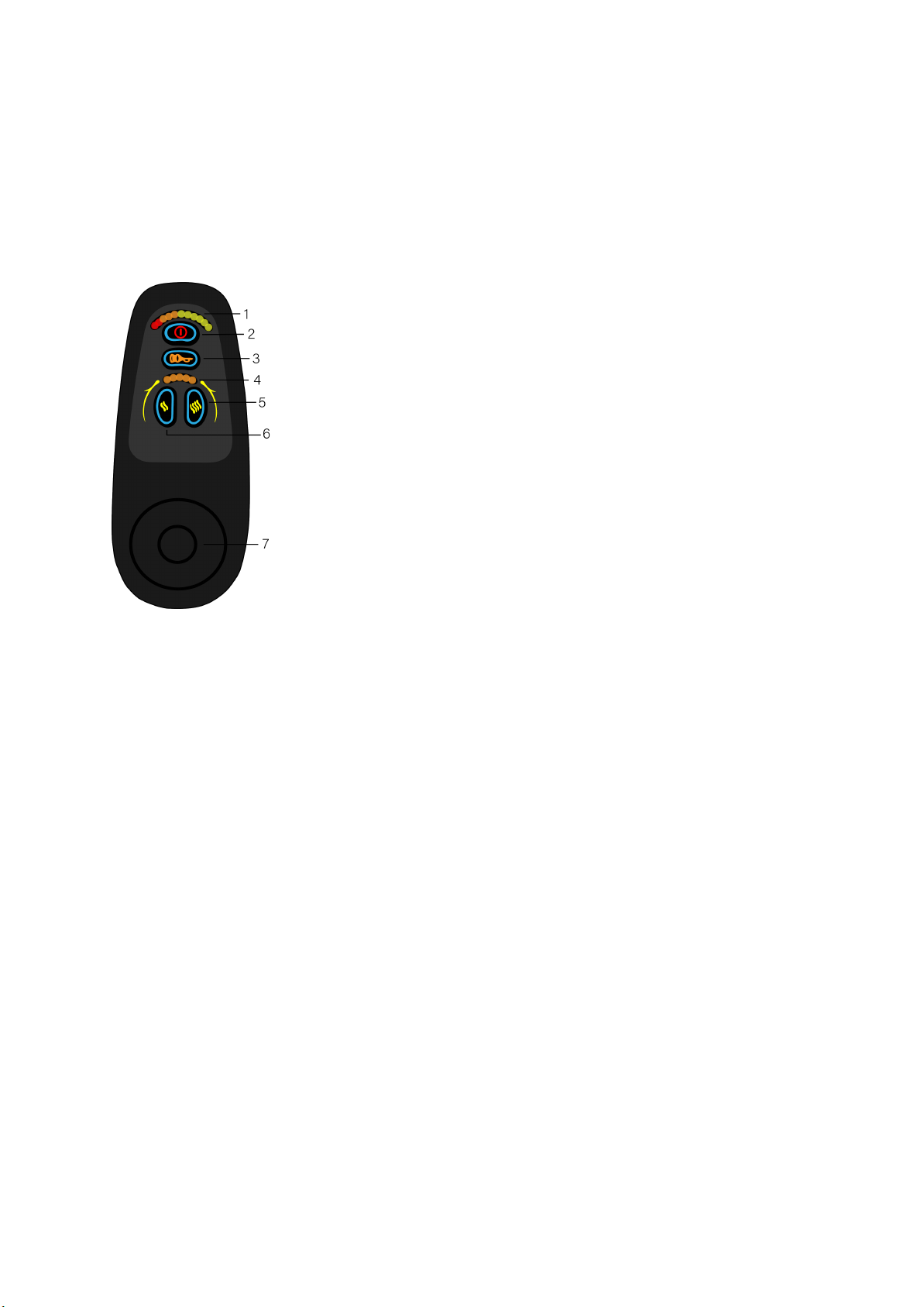

Joystick
Joystick Display
1. Battery charge level display
2. Power on and off button
3. Horn
4. Speedometer level display
5. Increase speed
6. Decrease speed
7. Joystick Control
Power On/Off TravelGo Chair
Power On:
1. Ensure TravelGo Chair is in drive mode.
2. User must be seated in chair prior to turning chair on.
3. Press power button.
4. When fully powered on, chair will emit a light beeping noise and battery and speed
levels will be visible.
Power Off:
1. User must remain seated until chair is fully powered off.
2. Press power button.
3. When powered off, chair will emit a light beeping noise and battery and speed levels
will no longer be visible.
4. At this point, it is safe to get off the chair.
Adjustment of Driving Speed
According to the user's habits and environment, the user can adjust the maximum speed of
the TravelGo Chair. The currently selected maximum speed will be displayed on the 5-speed
9
