Transmitter Solutions iGAZER50LR Manuel utilisateur
1] Specifications
2] Features & Applications
3] Mounting the Sensor
4] Wiring
iGAZER50LR-10K/NC
LONG RANGE PHOTO EYES
INSTRUCTIONAL MANUAL
RoHS
5002680
Retro-Reflective & Long Range Type
Specifications
NOTE: For gate operators that require 10k use
common and N.O. from the photo eye to the gate
operator input.
Input Volt. 12-30 VDC/AC 60 Hz (Non Polarity)
Current consumption 100 mA
Tx LED Element Infrared LED/Wave length 740 nm
Beam Spreading angle 5˚
Contact Capacity 30VDC/AC, 0.5A
Response Time 10 msec
Delay Time of Relay 10 msec
Sensing Range 10 meters
LED Indicators:
Red LED Off: Beam aligned / Red LED On: Beam broken
Red LED flash: Beam alignment signal weak (Re-align)
Green LED on: Beam aligned proper
Additional Function Tamper switches
Wiring Connection Terminal block / Cable gland (IP-55)
IP IP-55
Environment/Storage Temp -13˚F to 140˚F / -31˚F to 176˚F
Dimension 4.8 (L) x 2.4 (W) x 2.4 (D) inches
Cable wires 2517 / 24AWG / 5~7 cores
Approvals UL325-2016 & CE
1
Features & Applications
FEATURES:
•Long Range Photo Eye
•Retro-reflective
•Infrared LED element
•IP-55 water proof/cable gland
•PC casing, anti fog/dew/rains
•Round shape reflector-Dia.: 82.1mm
•Input Volt.: 12-30V DC/AC 60 Hz (Non Polarity)
•Twin colors led indicator for beam alignment
•Tamper switches included
APPLICATIONS:
•Gateopener •Overhead door
•Swing gate •Sliding door
•Window •Terrace
•Warehouse •Parking lot
•Automation control
M12x1.5 3-6.5 12 918/15
Cable Range
(mm)
Thread O.D.
C1(mm)
Thread Length
C2(mm)
Spanner Size
A&F(mm)
Thread
Nut Body Tight Ring Knob

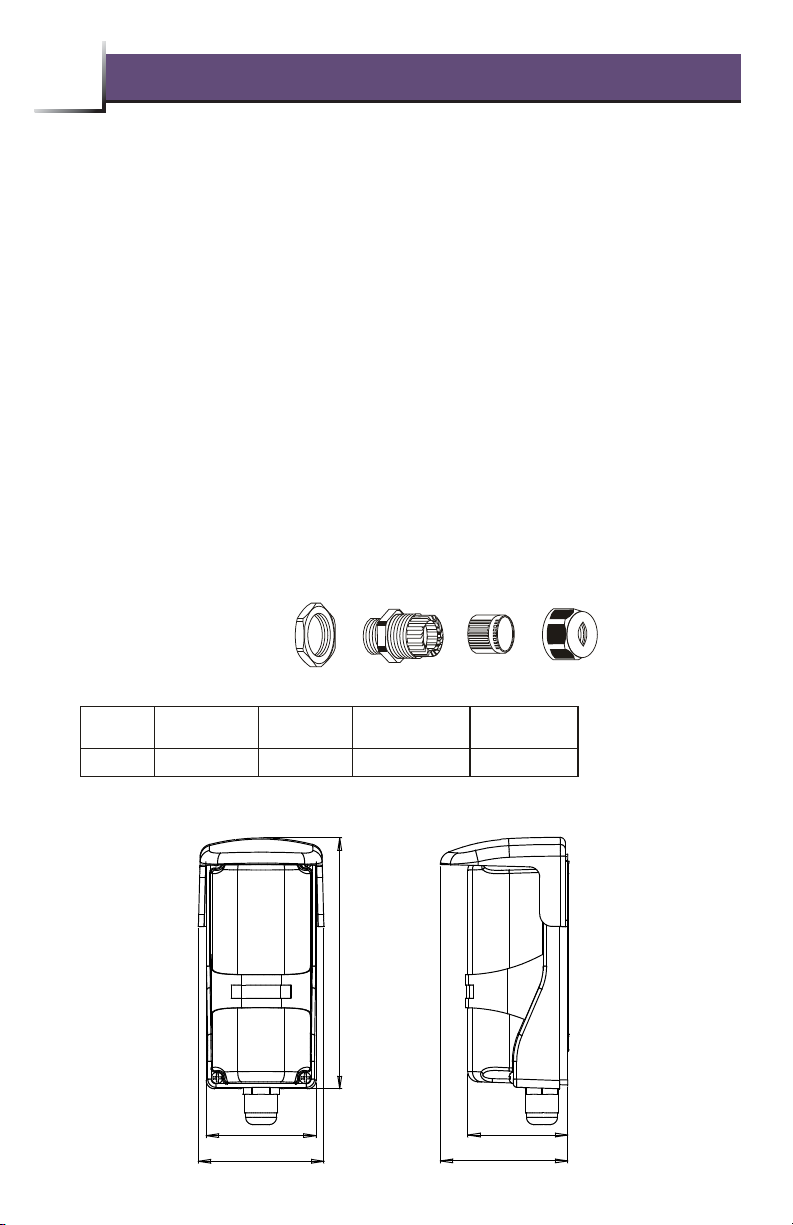

CABLE GLAND
DIMENSIONS
122
53
61 62
49
UNIT: mm
2
Mounting the Sensor
1. Unscrew the 4 screws and remove the cover.
2. Loosen the captive screw to free the sensor from the mounting plate.
3. Using the included screws, mount the mounting plate to the wall.
4. Use the breakout and cable gland at the bottom of the sensor to run the
wires.
5. Remove the terminal block using longnose pliers and wire the unit
according to the wiring diagram above.
6. Hang the sensor back on to the plate, and use the captive screw to
secure it in place.
7. Re-attach the cover, and use the included small screws to secure it.
8. Attach the hood to the top of the sensor.
1234567
12-30V
DC/AC60Hz
NC
NC
NO
C
OM
TP1
TP2
Nonpolarity
3
Wiring
WIRING
A
1
2
A
A
Knob
Nut
Clockwise
123 4 567
12- 30V D C/AC 60 H z
NC
NC
NO
COM
TP1
TP2
Non polarity
123 4 567
12- 30V DC/AC 60 Hz
NC
NC
NO
COM
TP1
TP2
Non polarity
Break down & remove plastic pack
Install the cable gland
3
Finish the wiring connection:
Please use screwdriver & hammer to break plastic pack
down and remove pack . Then insert the cable gland into the
empty hole. (See diagram 2)
A
A
A
Screw the knob with
the nut till fixed.
a. Insert the cable wires into the cable gland.
b. Connect the lead wires to the proper position
of terminal block.
c. Use spanner to tight the cable gland clock-
wise until tight.
PWR/
Beam Alignment
LED Indicator
Additional function:
TP1/TP2 - Tamper Switches,
can be connected to control
panel or siren as burglar alarm.
4
1. Unscrew the 4 screws and remove the cover.
2. Loosen the captive screw to free the sensor from the mounting plate.
3. Using the included screws, mount the mounting plate to the wall.
4. Use the breakout and cable gland at the bottom of the sensor to run the
wires.
5. Remove the terminal block using longnose pliers and wire the unit
according to the wiring diagram above.
6. Hang the sensor back on to the plate, and use the captive screw to
secure it in place.
7. Re-attach the cover, and use the included small screws to secure it.
8. Attach the hood to the top of the sensor.
TO MAKE THE PHOTO EYE WORK WITH N.O.
Take the following steps to remove the 10K resistor. This only removes
the 10K resistor, the photo eye is still UL certified.
Removing the 10K resistor
STEP 1:
Remove 4 screws as shown.
STEP 2:
Cut the R42 resistor on the
board as shown.
BEFORE
AFTER
This process must be followed for pre-2016 legacy operators that
require normally open.
TRANSMITTER SOLUTIONS WARRANTY
The warranty period of Transmitter Solutions photo eye is twenty-four (24)
months. This warranty shall begin on the date the photo eye is manufac-
tured. During the warranty period, the product will be,repaired or replaced
(at the sole discretion of Transmitter Solutions) if the product does not
operate correctly due to a defective component. This warranty does not
extend to (a) the photo eye case, which can be damaged by conditions
outside the control of Transmitter Solutions, or (b) battery life of the photo
eye. This warranty is further limited by the following disclaimer of warranty
and liability:
EXCEPT AS SET FORTH ABOVE, TRANSMITTER SOLUTIONS MAKES NO
WARRANTIES REGARDING THE GOODS, EXPRESS OR IMPLIED, INCLUDING
WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICU-
LAR PURPOSE. BUYER MAKES NO RELIANCE ON ANY REPRESENTATION OF
TRANSMITTER SOLUTIONS, EXPRESS OR IMPLIED, WITH REGARD TO THE
GOODS AND ACCEPTS THEM “AS-IS/WHERE-IS”. TRANSMITTER SOLUTIONS
SELLS THE GOODS TO BUYER ON CONDITION THAT TRANSMITTER SOLUTIONS
WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT OF THE SALE. BUYER
AGREES THAT TRANSMITTER SOLUTIONS SHALL HAVE NO LIABILITY FOR
DAMAGES OF ANY KIND, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, INCLUDING INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS
EMPLOYEES OR AGENTS, AS A RESULT OF THE SALE. BUYER ALSO AGREES TO
HOLD TRANSMITTER SOLUTIONS HARMLESS FROM ANY CLAIMS BUYER, OR
ANY THIRD PARTY, MAY HAVE AS A RESULT OF BUYER’S USE OR DISPOSAL OF
THE GOODS. BUYER HAS READ THIS DISCLAIMER AND AGREES WITH ITS
TERMS IN CONSIDERATION OF RECEIVING THE GOODS.
2480 South 3850 West, Suite B
Salt Lake City, UT 84120
(866) 975-0101 • (866) 975-0404 fax
www.transmittersolutions.com
