Trane TR15REG-DB Manuel utilisateur
oTR15REG-DB (15Kw single-phase)
oTR20REG-DB (20Kw single-phase)
oTR20REG-DB-3 (20Kw three-phase)
Note: “Graphics in this document are for representation only.
Actual model may differ in appearance.”
March 2017 032-5095-1A-EN
Operations Guide
Home Standby Generator
Operations Manual
For licensed authorized personnel only.
oTR15REG-DB oTR20REG-DB oTR20REG-DB-3
Read all instructions carefully before installation
WARNING: Only qualied technicians and contractors
are to perform installation
NOT INTENDED FOR USE IN CRITICAL LIFE
SUPPORT APPLICATIONS!
Save all instructions!
It is recommended that the Serial Number # be recorded for future warranty, parts and service needs. It can be
located, inside the back-panel on the stamped ID plate or on the outside of original shipping carton. This sys-
tem requires a password to unlock controller for operation and programming. Call 844-367-5660 for password.
Engine ID # __________________________________________
Controller Password ___________________________________
2032-5095-1A-EN
Table Of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Danger and Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 1: Technical Features 8
Technical Features of your Generator 8
Specications 9
Chapter 2: Important Safety Instructions 10
Fuel System 11
Servicing the Exhaust System 11
Servicing the Engine 11
Grounding Electrical Equipment 11
Gas Vapors and Fuel Leaks 12
Engine Noise 12
Short Circuits 12
Moving Parts 13
Operating System Functions and Denitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Engine Prestart & Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 3: Long Term Care & Storage of Generator 20
Chapter 4: Maintenance of Generator 21
Engine Oil 22
Replacement of Old Engine Oil 22
Replacement of Oil Filter 23
Maintenance of Cooling System 24
Routine Radiator Maintenance 25
Routine Belt Inspection 25
Chapter 5: Specications 26
Basic Dimensions 28
Control Features 29
Emission System and Maintenance 32
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3
032-5095-1A-EN
PREFACE
Thank you for purchasing this high performance, liquid-cooled, automobile engine-driven generator.
This generator set is designed for use in stationary (permanent) applications where unreliable utility
power may occur. Keep and read this manual carefully and follow all safety precautions and procedures
in this manual to ensure proper equipment operation and to avoid bodily injury or property damage.
Operating instructions presented in this manual assume that the standby electric and gas system has
been installed by an authorized Service dealer or licensed and qualied contractor.
This is not a “Do-It-Yourself” (DIY) project!
ATTENTION! Follow all safety precautions and instructions as outlined in this manual in its entirety.
If any portion of this manual is not completely understood, please contact an authorized service dealer
near you for installation, starting, operating and servicing procedures or, contact us at 844-367-5660.
Common sense and strict compliance with these special instructions while performing service are es-
sential to preventing accidents.
For professional advice on this product and its operating requirements, please contact a dealer near
you or contact us directly at the information provided below. If you have any questions or sugges-
tions, please contact us any time between 8:00am and 5:00pm CST.
“Customer satisfaction is our mission”
Phone: 844-367-5660
www.lifanpowerusa.com
4032-5095-1A-EN
Warning Announcements
Because this generator can be used as a single fuel or multi-fuel unit, pay close attention to factory settings.
This unit can run on natural gas (NG) or propane (LPG). Please pay attention to all factory settings! Unit
comes already preset to one fuel or the other.
Before starting generator:
• Read the user manual carefully and operate generator according to factory recommendations.
• If you do not operate according to the instructions, it can cause personal injury or loss of life.
Danger and Warning Labels
Danger and Warning labels are provided to indicate the possibility of damage and personal injury when using
this generator. Pay attention to all labels closely. This information also indicates what kind of damage could be
experienced.
NOTE: If you don’t follow the operational requirements, it could result in damage to the engine or
related generator equipment.
CAUTION: If you don’t follow the instructions of the operating requirements, it could result in personal
injury or death.
5
032-5095-1A-EN
WARNING
If you don’t adhere to all state and local codes or follow the instructions closely outlined in the operating
requirements, it could result in nes along with serious injury or loss of life. Manufacturer not responsible
for damage.
Users must operate in accordance with all state and local code requirements; otherwise it could damage the
engine and genset.
This manual contains the following International ISO Graphical Symbols:
6032-5095-1A-EN
NOTE
Save These Instructions – The manufacturer suggests that these rules for safe operation be copied
and posted in potential hazard areas. Safety should be stressed to all operators, potential
operators and service technicians for this equipment.
NOTE
Save These Instructions – This manual contains important instructions that should be followed
during installation and maintenance of the generator and battery.
How to Obtain Installation, Parts and Service
Contact us at
EQUIPSOURCE, LLC. D/B/A Lifan Power USA
2205 Industrial Park Road
Van Buren, Arkansas 72956
TEL: 844-367-5660
FAX:479-471-7466
www.lifanpowerusa.com
7
032-5095-1A-EN

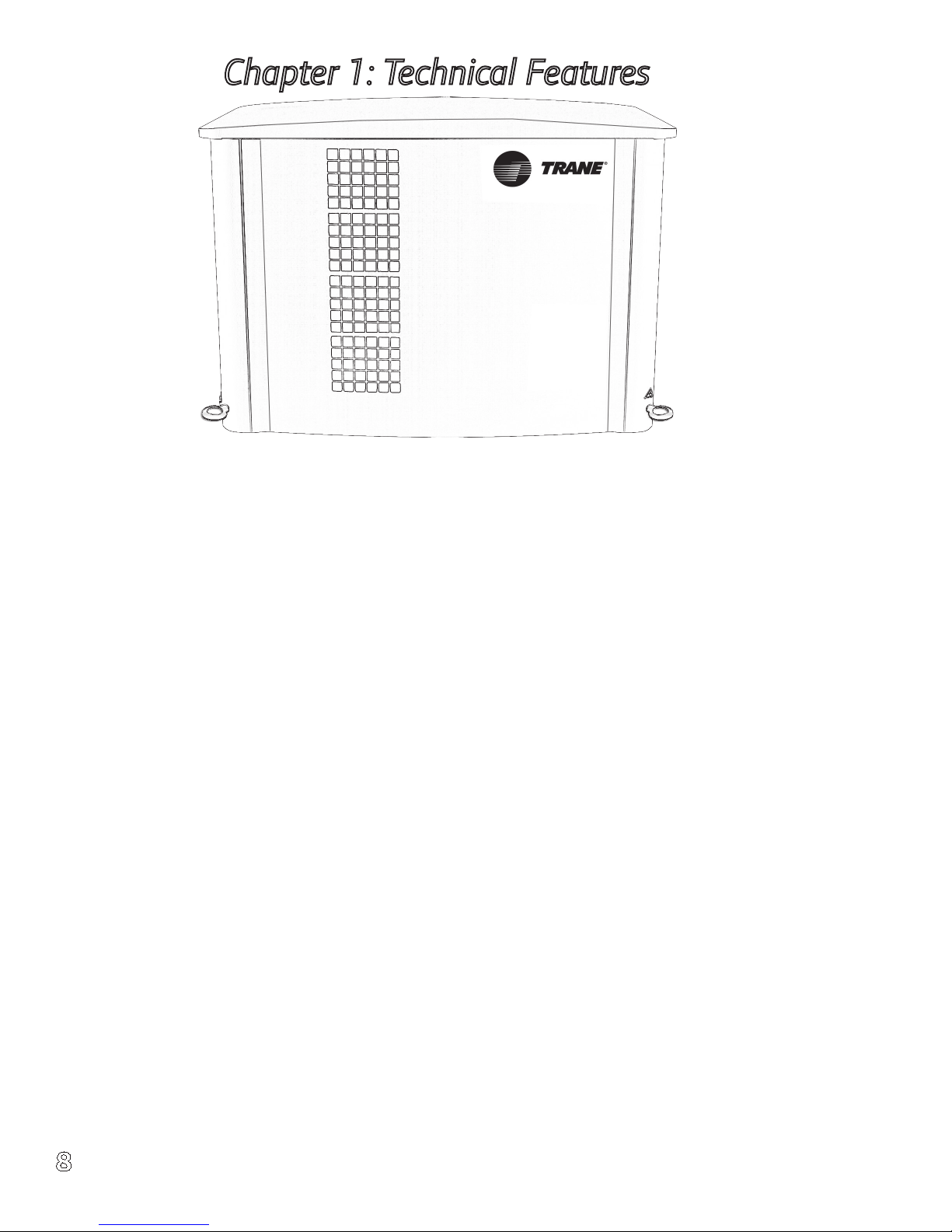

Chapter 1: Technical Features
I. Technical Features of the 15 and 20kW Single and Three-Phase, Dual-Fuel Generators
This gas generator is Dual-fuel and able to utilize both Natural Gas (NG) and Liquid Propane (LPG).
It is a versatile multi-fuel engine. Based on our standards, we have designed this unit to operate in
an environmentally safe and user friendly manner:
1. Speed Regulating System: This gas generator uses an internally designed electronic speed
control system, allowing for quick and easy adjustments to the engine speed that can be set to
specic speed ranges. This control system allows the engine to run more smoothly and respond
quickly to sudden increases or decreases in required engine speed and electrical output.
2. Silent Air In-take System: Extra-large air intake cross-sections in the housing enclosure ensures
ample air ow for the engine and air intake. This unique housing enclosure design leads to a
signicant reduction in operating noise.
3. Large Liquid Cooled Radiator and Reservoir: The use of an oversized radiator and coolant
reservoir, like those used in automobile engines, allows for additional radiator coil surface and
helps maintain a more ambient and stable engine temperature even in the hottest climates.
Utilizing this liquid cooled system adds to the life and long term operating dependability of your
liquid cooled gas generator investment.
4. Automatic Transfer Switch (ATS) and Function: Our Automatic Transfer Switches are specically
designed to work with our systems and have proprietary connections. The ATS is a critical
component of any emergency or standby power system. They are used for transferring essential
loads and electrical distribution from one power source to another automatically, without
personal involvement.
5. Intelligent Hazard Control System and Function: The Intelligent Hazard Control System warns
of dangerous conditions that exist to the engine or generator. This system continually checks and
monitors the unit’s operating conditions and will automatically shut down if a problem is
detected, to help avoid costly damage. This system uses a visual control panel that can be preset
according to the user’s needs.
8032-5095-1A-EN
II. Specications - for more detailed specications see installation manual.
Item Unit TR15REG-DB TR20REG-DB TR20REG-DB-3
Rated Power (KW)
LPG 15 20 20
NG 15 18 18
Frequency (Hz) Hz 60 60 60
Speed (RPM) 3600 3600 3600
Rated Voltage (V) 120/240 120/240 120/208
Rated Current (A)
LPG 62.5 83.3 69.5
NG 62.5 75 62.5
Phase Single Single Three
Power Factor 1.0 1.0 .08
Protection Level IP 23 IP 23 IP 23
Insulation FFF
Pole 223
9
032-5095-1A-EN
Chapter 2: Important Safety Instructions
SAVE THESE INSTRUCTIONS – This manual contains important instructions for the following models
TR15REG-DB, TR20REG-DB / TR20REG-DB3 that should be followed completely during installation and main-
tenance of the generator and battery.
I. Technical Features of the 15 and 20kW Single and Three-Phase, Dual-Fuel Generators
1. Generator set operation - Carbon monoxide can cause severe nausea, fainting, or even death. Carbon
monoxide is an odorless, colorless, tasteless, non-irritating gas that can cause death if inhaled for even a
short time. Avoid breathing exhaust fumes when working on or near the generator set. Never operate
the generator set inside a building. Never operate the generator set where exhaust gas could seep inside
or be drawn into a potentially occupied building through windows, air intake vents, or other openings.
10 032-5095-1A-EN
