Trane BAYBRFBX100A Instructions de montage

INSTALLER'S

GUIDE

IMPORTANT—This Document is customer property and is to remain with this unit. Please return to service information

pack upon completion of work.

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES

18-GJ39D1-2A-EN

Fits Models:

HyperionTM and

ForeFrontTM

Air Handlers

Section 1. Safety Information

ssWARNING

SAFETY HAZARD! This information is intended for use

by individuals possessing adequate backgrounds of electrical

and mechanical experience. Any attempt to repair a central air

conditioning product may result in personal injury and/or prop-

erty damage. The manufacturer or seller cannot be responsible

for the interpretation of this information, nor can it assume any

liability in connection with its use.

SAFETY HAZARD! Sharp Edge Hazard. Be careful of

sharp edges on equipment or any cuts made on sheet metal

while installing or servicing. Personal injury may result.

CAUTION

Section 2. General Information

Open and inspect contents for damage or

missing items.

Each kit will contain:

1 - Frame assembly

1 - Door assembly

1 - Gasket material

1- 16" x 20" Filter

6 - Phillips pan head screws

1- Installer's Guide

Filter Box Kit:

BAYBRFBX100A For GAF2 Series

A Cabinet Air Handlers

17.5”

2.25”

21.8”

Page 2

INSTALLER'S GUIDE

Section 3. Installation

Step 1 - Remove the filter box door and slide the

filter out of the filter box.

NOTE: A 2" filter cannot be used if also installing

a BAYWMKIT001. This wall mount kit has a flange

which will interfere with a 2" filter. The flange does

not have an effect on the 1" filter.

Step 2 - Optional - If installing a two inch media filter,

remove the four screws on the sides of the filter box

and then remove the two vertical filter guides.

Apply the gasket material to create a seal between

the air handler and the filter box

Step 3 - Apply the gasket material to the outer edges

of three sides of the filter box. The fourth side should

follow along next to the flange.

Step 4 - Apply a second piece of the gasket material

along the side with the flange so that the gasket will

have double the thickness on this one side only.

Page 3

INSTALLER'S GUIDE

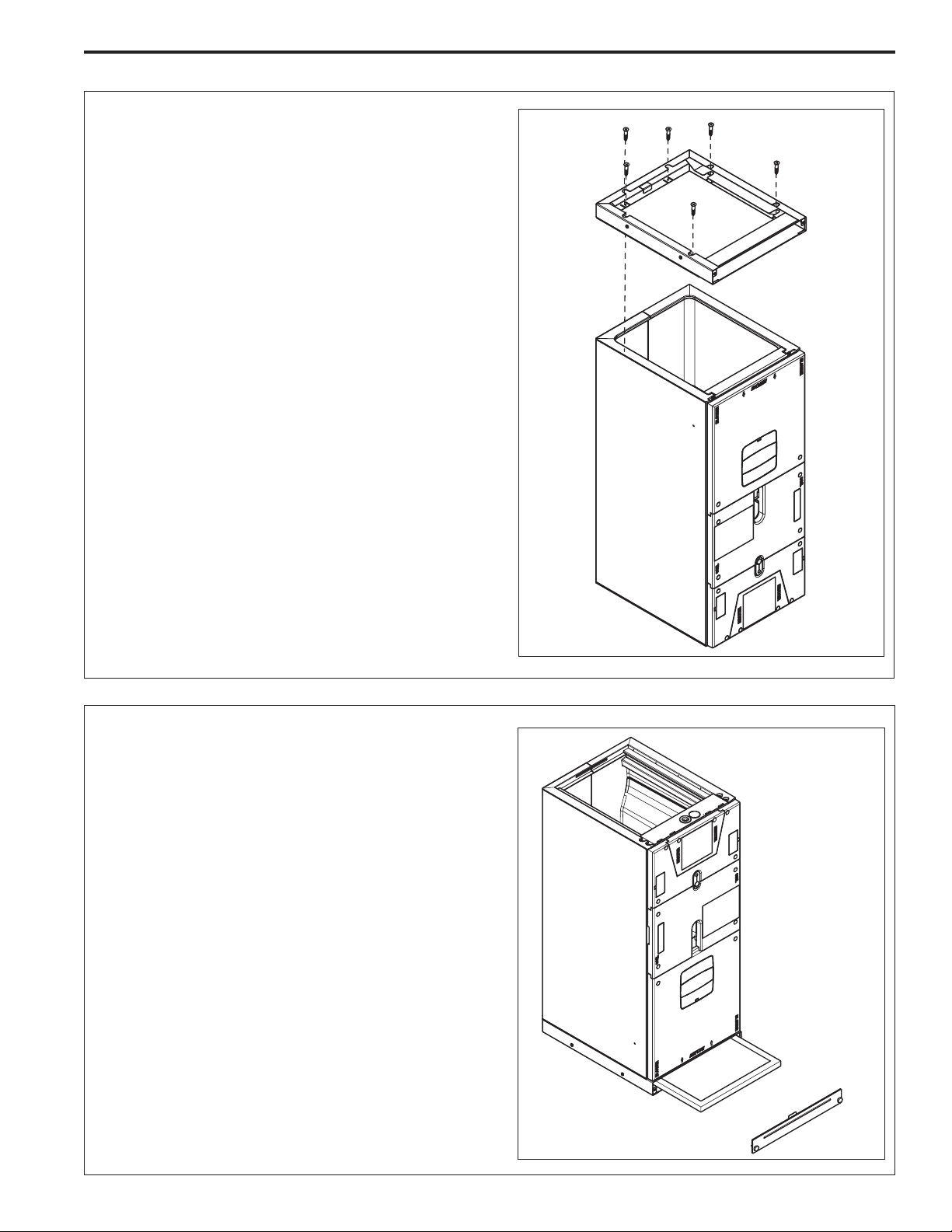

Step 5 - Turn the air handler upside down.

Step 6 - Align the filter frame assembly for a flush

fit with the back of the air handler cabinet. Using

six of the supplied Phillips pan head screws, attach

the frame assembly to the bottom of the air handler

cabinet.

NOTE: Very little torque is required. A high torque

setting may strip out the cabinet frame.

Step 7 - Insert the filter into the frame assembly.

Step 8 - Attach the front door assembly to the frame

assembly with the two screws on the door assembly.

INSTALLER'S GUIDE

About Trane and American Standard Heating and Air Conditioning

Trane and American Standard create comfortable, energy efficient indoor environments for residential applications.

For more information, please visit www.trane.com or www.americanstandardair.com

The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are

committed to using environmentally conscious print practices.

18-GJ39D1-2A-EN 05 Aug 2020

Supersedes 18-GJ39D1-2 (April 2012)

Step 9 - Pictured is the finished filter box kit

assembly. Continue the installation using the air

handler Installer's Guide.
