Features and Properties
Developed for DCC systems
Control for two independent servos
No external power supply needed
Extremely small size
Simple and quick address entry method
Low stand-by current consumption
Technical Parameters
Input supply voltage: 7-24 V DCC
Stand-by current consumption: 20 mA
Maximum current consumption: 1000 mA
Size: 62x58 mm

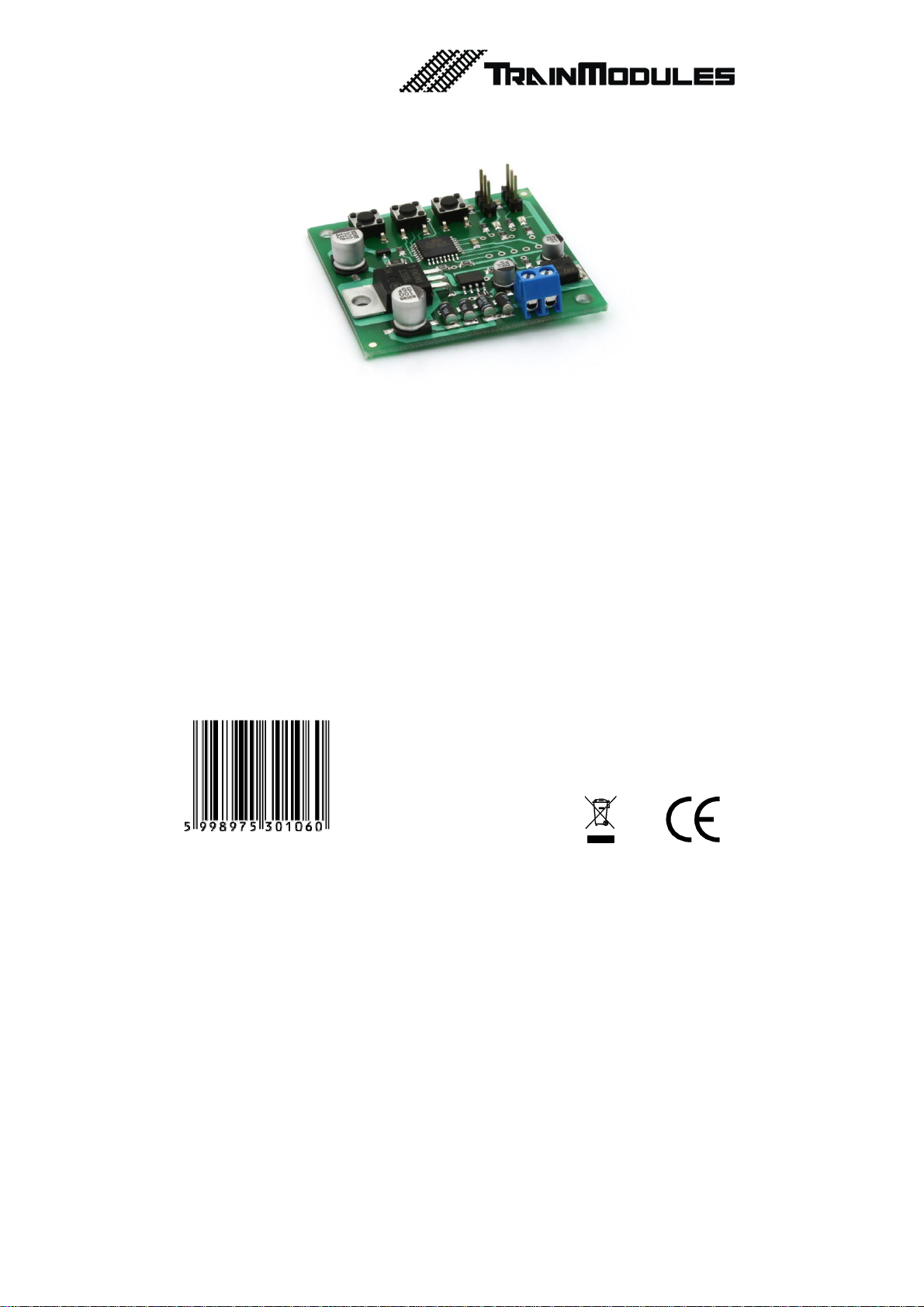

Short description
A small size control circuit ideal for controlling the servo motor of switches.
Thismoduleisaservocontrolleranddecoderinone.
Connection
Both the input voltage and the digital signal connect to the points labeled
"DCC IN" .
Connection of servo motor
Servo motors may be connected at the points indicated on the drawing. Make
sure to observe polarity! (Figure 1)
Setting of end-positions and the speed of movement
1. Power on the module, and make sure that the servo(s) is/are
connected
2. Hold "PROG" for max. 1 second
3. "LED1" lights up to indicate that "Servo 1" is being programmed
4. Use UP/DOWN to set the first end-position
5. Briefly press "PROG"
6. Use UP/DOWN to set up the second end-positions
