Trailer Vision DR-400 Manuel utilisateur

Instruction Manual

Thank you for purchasing this product.

For proper usages and application,

Please read this instruction manual thoroughly.

DR-400

4CHANNEL DRIVING VIDEO RECORDER

* Design and Specifications are subject to change without notice.

PRINTED IN KOREAver. 1.0

2 3

CONTENTS

......................................................................................................................... 3

........................................................................................................................................... 5

...................................................................................................................................................... 5

....................................................................................................................................................................... 6

.......................................................................................................................................................... 6

.......................................................................................................................................... 6

...................................................................................................................................... 7

..................................................................................................................................... 8

................................................................................................................................................. 8

........................................................................................................................ 8

............................................................................................................................... 9

............................................................................................................................................... 9

.......................................................................................................................................... 14

.................................................................................................................................... 15

.............................................................................................................................. 15

........................................................................................................... 16

............................................................................................................................... 17

............................................................................................................................................................. 18

.................................................................................................................................................. 19

................................................................................................................................................ 20

............................................................................................................................................... 21

............................................................................................................................................. 21

........................................................................................................................................... 22

.......................................................................................................... 23

................................................................................................................................................... 24

.............................................................................................................................. 24

................................................................................................................................................ 25

..................................................................................................................................... 29

........................................................................................... 30

SAFEGUARD INSTRUCTIONS

PRODUCT FEATURE

COMPONENTS

PARTS

- DVR body

- Remote controller

INSTALL IN YOUR CAR

PRODUCT OPERATION

- Power ON/OFF

- Abnormal Condition Check

RECORDED VIDEO CHECK

- Real time check

- Check in your PC

PC VIEWER MANAGER

- PC VIEWER Installation

- PC VIEWER MANAGER Execution

- Interface Introduction

- File List

- File Attribute

- Video Control

- Mode Change

- Screen Capture

- Video Exporting

- 3G Sensor / TIME / TACHOGRAPH

- Route Check

- GPS Information Check

- Conguration

- System Information

CHECK POINT BEFORE SERVICE REQUEST

SAFEGUARD INSTRUCTIONS

Please read the “Safety Rules” carefully before using this product. Following the safety rules prevents us-

ers from damages related with the misuse of the product. It is very important to follow these safety rules.

We state “Caution”and “Warning” to clarify any potential risk for a damage associated with the misuse of

the product.

This information is for preventing bodily harm or even death and use should follow this safety rules.

WARNING

This information is for preventing damage or shorten the life time of the products.

CAUTION

This information is for user’s reference for better usability.

NOTICE

Do not place near of air bag effective range.

- It may cause malfunction of air bag or accident, injury due to hitting monitor by air bag.

Keep clean dust on power socket.

- It may cause electronic shock and fire by bad connection.

Do not put a pin or needle on the hole or crack in the body.

- In case of inserting them, stop to operate, it may cause electronic shock, fire and malfunction.

Do not use in problem condition as like smoking, smell something burn.

- It may cause fire. Stop to use and make inquiries to agency.

Should install while power off. (After install products, connect DC jack)

- It may cause to electronic shock or malfunction.

Do not operate the product while driving.

- It may cause an accident. Stop in a safe place and operate.

Do not put the product in place where sudden temperature increasing and should use on optimum voltage,

temperature and humidity. - It may cause to electronic shock or malfunction.

Do not pull cord with a jerk, should catch a plug and pull. Do not use damaged cord.

- It may cause cord malfunction, electronic shock and fire.

Do not clean exterior with alcohol, volatility or oily solvent. Neither keep touching rubber and plastic for

long time. - It may cause change of surface, fall of paint, malfunction and fire.

Please do not install the product where has lots of vibration or not fixed securely. - It may cause traffic ac-

cident and injury due to an interruption from detaching the product by vibration during driving.

Please avoid wiring of connected codes from high fever.

- It may cause electric shock and fire from melting of covering for codes.

WARNING

Please confirm the caution according to a kind of vehicle if the vehicle has an air bag.

- It may cause malfunction of air bag if it installed and wired at the wrong place.

4 5

PRODUCT FEATURE

COMPONENTS

When install ordinary power cable, should contact to a specialty store. (The place of fuse box is varying

depending on each car manufacturer. Please check the car manual before installation)

To safe usage on battery, please disassemble ordinary power cable when you do not drive for a long time

(over 3 days). We recommend disassemble to safe driving even though this cable contains a function for

preventing battery dead.

Do not disassemble, repair and remodeling. - It may cause malfunction and injury, can not get warranty.

Make inquiries to agent for repair and checkup.

- Application of exclusive DVR chip, Stable Operation

- Application of M-JPEG Compression Method

- Application of exclusive PC VIEWER MANGER (Max. support of 12 languages)

- Consecutive Recording Time : Approximative 8 days Recording with 320GB HDD

- Selection of Memory Type (2.5” HDD or CF card type)

- Emergency Recording (Compulsion Recoding about 1 minute by using remote control)

- Parking Surveillance Mode (Ordinary Power Cable - Optional)

- Data Download direct connection with PC and USB

- Assignment of frame(0~15fps, 0~30fpc) within total 60fps at each camera (fps : Frame rate per second)

- The management of driving recording, door sensor, motion sensor through connection of exterior sensor

- Trace of trajectory interlocked with map

- Water-mark for protecting counterfeit of the capture screen

* If the body and parts mentioned below are not included when you purchase this product, contact the shop

where you purchased the product.

* The shape of each component may be changed without notice for the better quality.

DVR body

(including the Key)

Remote controller

(including battery)

Remote Controller

Receiver

GPS antenna

(optional)

Video output cable

(optional)

Ordinary power

cable

(optional)

USB download

cable

Ext. sensor cable

(optional)

PC VIEWER

install CD Instruction Manual

Bracket set

Cable

(Water proof type)

HDD case

(2.5” HDD or CF card)

CAUTION

Do not place near magnet.

- It may cause malfunction and trouble.

Keep the internal GPS without any obstacle near of it like high pass, navigation.

- It may cause problem on GPS signal receipt rate.

GPS function needs loading time when it power on.

- It needs from few seconds to minutes depending on signal receipt environment.

The vehicle which has metallic tinting on front window could be caused poor GPS reception.

In case of suddenly changing of brightness such as tunnel enter/exit or extremely dark place, the recording

quality may be low.

When you drive dark place, recommend you to turn on the headlight (fog light) to record with high quality.

Do not shock to the product.

- It may cause damage or malfunction for product.

Please use only the specified components.

- If it is used with non-specified components, it’ll be caused an accident or breakdown of the product because

it damaged the components inside of product or is not fixed properly.

After wiring for the codes, please move it to the location where is not interrupted of driving and coil the

codes with friction tape and fix it by clamp.

- It may cause electric shock or fire as the codes are contacted with the part of car frame.

- It may cause traffic accident if the steering or selector or brake pedal is twined.

Please wire the codes without the contact with moving parts such as seat rail, screw parts and car frame.

- It may cause electric shock and fire by disconnection of short circuit.

After installation and wiring, please make sure that Brake, Light, Horn, Etc. are operated properly.

- It may cause electric shock and fire, if the product used as above functions are not operated properly.

Please careful do not interfere with electric wiring when product is installed in the upper part of dashboard.

- It may cause ignition from a bundle of electric wiring and it makes product damaged.

Please install the product at a level with HDD.

- If the product installed as standing, HDD cannot be read and be recorded.

6 7

PARTS

DVR body

Remote controller

3INSTALL IN YOUR CAR

1Insert and installation of memory to the HDD case

34 5

HDD or CF card

(Optional)

Front of DVR body

Back of Hard case

Back of DVR body

1. Camera Operation LED

2. Recording LED (Parking mode/ Event mode)

3. Remote Controller Sensor

4. Hard Case (2.5”HDD or CF card - Optional)

5. HDD LOCK (Power ON)

6. External Input Terminal

(GPS antenna/ Remote controller)

7. Cable Terminal Socket (Camera/ Video Out/ Power)

8. Sensor Input Terminal

(AVL/ Door Open Sensing/ Move Sensing, etc.)

9. SATA

10. USB download port

11. Motion Cognition LED

1. Emergency recording

- Normal recording for about 1 minute

2. Turns ON/OFF the parking monitoring mode.

3. Saves the set value of the menu.

4. Moves the menu and adjust the level value.

5. Menu (Camera setting /Time setting /System information display)

6. Video search (Event list search /Time list search)

7. Reve rse

8. Play /pause

9. Forward

10. Converts video of the camera and turns ON/OFF the recording.

- If clicked shortly, it converts into camera video; if clicked long, it

turns ON/OFF recording of the camera.

11. Displays split screen mode and turns ON/OFF recording of all cam-

eras.

- If clicked shortly, it displays split screen mode; if clicked long, all the

four cameras turn ON/OFF the recording simultaneously.

12. Displays screen information (Recording time, Proper channel, GPS-

related information when connecting GPS)

Please check the following points prior to installation:

- Turn off the product before installation, and install the product with the car key taken out.

- Do not use any other unverified cable except for the supplied cable.

- The vehicle which has dark sunting or metallic sunting can be influenced on low GPS receiver rate.

- Make sure of eliminating wave interference around an external GPS antenna and fully separate from

other units such as hi-pass, navigation, etc.

A HDD or CF card is available when buying this product, at user’s option. There is no data damage from direct

separation with product because the memory card keeps in private card case. Also, it is convenient to connect

with PC directly using the USB port at the back of case.

8 9

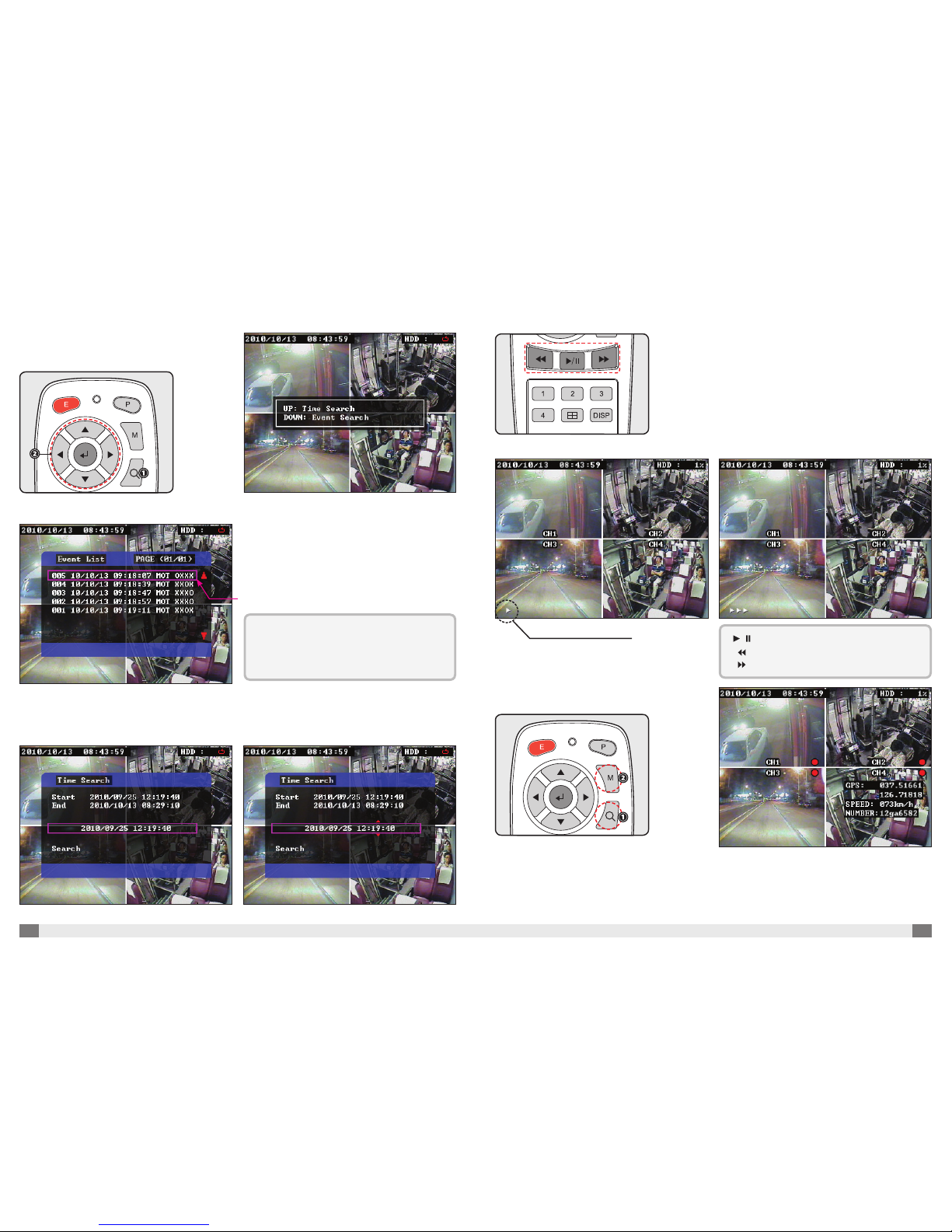

RECORDED VIDEO CHECK

Real time check

PRODUCT OPERATION

Power ON/OFF

Abnormal Condition Check

- If connected to a separate monitor, the recorded video can be viewed real time. At initial use, check the basic setting

by connecting to an external monitor prior to use to make sure of proper product use.

1. Basic Video Check

4-Channel Split ScreenWhole Screen

- Shortly press the Number key on the remote controller, and then it converts into the whole screen of the channel, and it may convert

into a split screen with the Split Screen button.

- The icon indicates that it is being recorded. As pushing the Number key or division button more than 2 seconds to make recording

ON/OFF, and if recording becomes OFF, the icon disappears, and then the recording release icon appears.

Please be fully familiar with the followings before operating the product.

- Operation of the remote controller is possible only when an external monitor is connected. (VIDEO OUT)

- All settings except for simple operations of the camera settings are available in the setting window of PC VIEWER.

(Please refer to page 25)

- Regardless of the setting on PC viewer, the motion sensing is “on”automatically when it is switched to the park-

ing mode. So, if it detected some movements, REC/EVENT LED can be turned off with lighting of PARK LED at

intervals of 1second same as occurrence of EVENT.

- If the power cable(optional) is directly connected to the car battery, power will not turn off even if the car is

turned off. If the product should be fully turned off, separate the hard case mounted on the product.

1. This product has no separate power button. After installation and wir-

ing, it’ll be stand-by condition once insert a hard disk. (Turn on the REC/

EVENT LED and CAM 1 ~ 4)

1. If the camera has an error at recording, LED of the camera becomes off.

In this case, the camera video will not be recorded, so be sure to check

any abnormal condition. ex ) CAMERA2

4. Upon an emergency, click the Emergency Recording button on the re-

mote controller, and recording begins. Recording is made for about 1

minute from the start of recording, it the REC / EVENT LED turns off until

the end, and CAM1~4 LED will be off at an interval of 1 second.

3. REC / EVENT LED is blinking at intervals of 1second from start to the

end of Event.

5. When it converts into parking monitoring mode while the power cable

(optional) is connected, Park LED is on and recording begins in parking

mode.

2. If an HDD is not recognized while the product is normally connected

and power is on, PAK and EVT LED become fast off.

3. If there are no images at the all channels or all recordings of cameras

were turned off, REC / EVENT LED were turned off and CAM1 ~ 4 LED

are fast off.

If HDD is un-locked, the recording does not execute. If HDD locked during leaving it as it is stand-by, there could

be happened the error on the product. So, please start recording as soon as insert a HDD into the Hard Case.

2. When receiving the GPS signal, the GPS / PARK LED is flickering at a

intervals of 1second for 30seconds. and if it is converted into parking

surveillance mode, the LED lights. When receiving GPS signal at park-

ing surveillance mode, the LED is flickering at a interval of 1second for

30seconds and then the LED lights along with parking surveillance

mode. If the parking surveillance mode is converted with normal mode,

the LED lights at a interval of 1second.

10 11

- Click the [M] button on the remote controller to enter the menu window. Select the time setting icon shown at the bottom of the

monitor to enter the setting change window.

- Reset time with the Operate button.

* The set value applies to the recorded video from the changed time, and top priority is given to GPS time when mounting GPS.

2. Check and Change of Camera Setting

- Click the [M] button on the remote controller to enter the menu window. Select the camera icon shown at the bottom of the monitor

to enter the setting change window.

- Use the Operate button to change the basic settings such as brightness/color of each camera image.

* The set value applies to the recorded video from the changed time.

3. Time Reset

12 13

4. Recorded Video Search

- Click the Search button on the remote controller to search only

the event list or all the lists by order of time.

(UP : Time Search / DOWN : Event Search)

- Click the [Yes] button, and then an arrow appears, enabling the user to select the desired time zone. After it is selected, click the

Search button at the bottom to search the video.

- It played the latest video if there is no recorded video at the time slot for searching or if it searches the video before/after the recorded

time.

- Search the event list, and then you can view the event occur-

rence time and attribute. (GPS / Motion sensing / External sens-

ing / Overspeed, etc.)

- Select the desired video with the Operate button.

- The event lists was marked as “DATA NO. - DATE - TIME - EVENT

ATTRIBUTE - CHANNEL”

Video Control Icon : Play/Pause (Toggle)

: Reverse (4 steps – gradually fast reverse)

: Forward (4 steps – gradually fast forward)

5. Video Control

MOT : Motion Sensing

G-SENSOR : Shock Sensing

SENSOR : Exterior Sensing

SPEED : Over speed Sensing

EMERGENCY : Emergency Recording

(e.g.) ”YY/MM/DD Hour : MINUTE : SECOND MOT 1CH”

- It can check recorded video which was searched by the event or time lists by using video control button.

- If you want the function to get out to the recording condition,

please press the menu button in search screen.

14 15

1. Install the dedicated VIEWER in your PC. (please refer to page 15)

2. Separate the hard case from the product and directly connect to your PC using the USB port on the back.

3. If it is exceuted the installed VIEWER, the product recognize exterior HDD automatically and read a video to the file

list of VIEWER.

4. Click the Play button of VIEWER to see the recorded video.

PC VIEWER Installation

Check in your PC

PC VIEWER MANAGER

: Recording

: Cancellation Recording

: Motion Perception

: Sensor Perception

Check whether or not the shortcut

icon is installed on your desktop.

- According to the user’s pc condition, the supported USB’s power supply is different with each computer. So,

please connect USB at the two ports so that it can be read the external HDD.

- Search the recorded HDD in Windows Explorer, and then the message ‘Empty disk’ appears, and it is actually

recorded, although no data can be found. This is for data security, so be sure to use the dedicated PC VIEWER to

view the recorded video.

- Basically, information about the recorded video appears as shown below, however, click the [DISP] button on the remote controller,

and then you can turn off all the information. Click once again, and then the information appears again.

- If the HDD capacity is full, it’ll be showed up ‘ ‘. The elder data is deleted sequentially and saves as overwriting form.

HDD Recording Capacity

Recording Date and Time

GPS Info. and Registration Marks

(when connecting the GPS antenna)

Recording Channel

Specifications of PC VIEWER MANAGER

CPU : Pentium 4 2.0 GHz at least

OS : WINDOW 98 /ME / 2000/ XP/ VISTA/ WINDOW 7

VIDEO : Geforce Grade 4 at least

Memory : 1GB RAM at least

HDD: 1GB at least

User Authority : Administrator

PC VIEWER MANAGER needs separate installation. Put the enclosed CD in your PC, double-click the setup.exe file, and go on the fol-

lowing installation.

- If a graphic card that is not supported in your PC is mounted

or a graphic card of low specification is used, the message

shown in the right is displayed in a message window when

installing this program. This means that DirectDraw is not

supported by your PC so GDI will be used.

- Click the OK button, and the program is run again the PC

viewer program.

6. Video Information ON/OFF

16 17

Double-click the icon shown in the left on the desktop, and then the following screen appears and PC VIEW-

ER MANAGER is executed.

PC VIEWER MANAGER Execution Interface Introduction

File Play

Import Disk

Select the file from the file list and double-click, or click the

Play button at the bottom, and then the video plays.

When you set the password on setting menu this screen

is appeared. Input a password, then program is executed.

(Please refer to Page 26)

If the password is not correct, above message is appeared.

If your PC and a hard disk are normally connected to execute the viewer program, the message‘A new drive device is detected’

appears as shown below. Click the OK button, and the viewer program opens, and the recording video saved in the disk auto-

matically appears in the file list.

Please select the HDD as DVR-MOBILE

form and then press OK button so that it

can be open the file lists.

If there is no initially recorded video or several HDDs are connected to your PC, or connection between

your PC and disk is not well done, the file list may not be imported. Then, click the [Import Disk] button,

and the hard disk can be directly selected.

If the HDD has recorded video or can record the video, it should be showed the DVR-MOBILE form when

it pressed OPEN DISK button. If it is selected the HDD as other form, it cannot read the file lists. So, please

confirm the HDD that it is DVR-MOBILE form.

Displays recorded video.

Displays 3G sensor / recording date and time search / Tachometer (car driving speed information).

Adjusts sound. (mute/volume +,-)

Reverse (~x2048) / previous frame / play(pause)/next frame/forward(~x2048)

Adjusts play speed (x1/4 ~ x4)

Minimizes the program. (with the Taskbar)

Displays the recording video suitably to 1:1 size.

Displays just the recording video in form of a full screen. (It gets out to normal screen once push the ESC key.)

Maximizes the program. (Maximizes the program suitably to the monitor screen size.)

Ends the program.

Displays a displayable le in the hard disk. (an extension list to be displayed by right-clicking)

Searches the le list by date and time.

Displays the route at the driving time on the map. (displayable with a popup window by right-clicking)

Displays GPS information at the driving time.

Saves the screen being currently played in a picture le. (*.bmp)

Selects start point and end point of the video to be exported to your PC and saves in AVI.

Selects the screen split mode.

Repeatedly plays the video.

Displays the conguration window where detailed setting of the product is available.

Displays version and information of the program.

1. Play screen

2. 3G/TIME/TACHO

3. Volume control

4. Movie control

5. Play speed control

6. Minimize

7. 1:1 screen

8. Full screen

9. Maximization

10. Exit

11. File list / Extend le list

12. File search

13. Map info.

14. GPS info.

15. Screen capture

16. Export to movie

17. Split mode Selection

18. Auto reverse

19. Conguration

20. Program info.

18 19

File List File Attribute

General File List Extension File List

1. Import the file saved in your PC.

* Only available if importing the separately saved JVP file to be exported to your PC.

(For an AVI file, it cannot be read by the viewer program.)

2. Open an external HDD.

* Once a hard disk including recorded video is just connected to your PC at initial

use, a file list automatically appears, however, it is used if there are several HDDs

connected to your PC or if connection to a hard disk is well done but an initial file

list does not appear.

1. Click the [Import Disk] button in the file list.

2. Select the disk including the video to be imported, and then click the Yes button.

3. If it is not indicated, click the [View All Forms] button and select the disk.

4. Upon an opening error, “Execute under administrator’s authority.”

Execute under administrator’s authority due to strengthening

of Windows security in versions of Windows 7 or Vista or higher,

certainly. (when connecting to a HDD) Please press the OK but-

ton after shows up the Administrator rights message on the

screen when it is connected with HDD.

3. File sort

1. A file list can be divided into all files, event files, and log files for sorting.

4. View file attribute

1. All the saved files are in form of [second-minute-hour-day-month-year].

2. The attribute information is divided for indication with file sorting. (Please refer to

Page19)

5. Extend file list

1.Click the [Extend List] button to extend the list, and then more resources can be

viewed at a time with a separate window on the right.

2. Click once again, and it returns to a general list screen.

6. Time search

1. It is differently viewed according to OS language setting. (e.g.) PM 12:03:02

2. The initial time value is the value at the top of the list, and when the file list is clicked, search time is changed into the clicked time.

3. Find the date and time and click the Search button, and then it searches for the time.

* In case of an overwritten hard disk, it may pause at the last point of the hard disk.

[ALL]

Shows the time list of all recorded files, and knows the

event files easily.

* The information about the setting of over speed is

displayed by red letters instead of color box and it is

classified according to the limited speed that users set

on the configuration of Viewer. So, please press the

LIMIT SPEED button at the TACHO so that it is displayed.

(Please refer to page 23 ; 27)

Green - 3G event

Yellow – Sensor event

Blue – Motion event

[EVENT]

It displays the attribute of the event in front of the time list

as classify in a color box.

* It does not marked twice same as [ALL] because it is

based on the time and it can move to the starting time

of event once presses the list.

[LOG]

Shows power supply and recording ON/OFF time informa-

tion.

* The log list is only supported on an external HDD.

Green - POWER ON

Yellow – REC ON

Blue – POWER OFF

When the cursoris placed on file list and extended file list, it doesn’t match between the movie on the screen and file

list. Please use mouse wheel to move up and down on the list.

Table des matières

Autres manuels Trailer Vision DVR

Trailer Vision

Trailer Vision Recorder-Cam Manuel utilisateur

Trailer Vision

Trailer Vision Recorder-Cam Manuel utilisateur

Trailer Vision

Trailer Vision DR-400N Manuel utilisateur

Trailer Vision

Trailer Vision DR-220N Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
