TRAFFIC LOGIX®

SAFEPACE® EVOLUTION 15SD INSTALLATION MANUAL

Radar Sign Installation

SafePace® Evolution 15SD Installation Manual

This manual may not be copied in whole or in part, nor transferred to any other media or language, without the express

written consent of Traffic Logix Corporation.

This document is supplied as a guide for the SafePace Evolution 15SD product. Reasonable care has been taken in

preparing the information it contains. However, it is possible that this document contains omissions, technical

inaccuracies, or typographical errors. Product specifications are subject to change without notice and should not be

considered commitments by Traffic Logix Corporation. Traffic Logix Corporation does not accept responsibility of any

kind for customers’ losses due to the use of this document.

Trademarks

Traffic Logix® and SafePace® are registered trademarks of Logix ITS Inc. All other product and company names are

trademarks or registered trademarks of their respective owners.

This document may contain confidential and proprietary information of Traffic Logix Corporation and/or other third

parties which is protected by copyright, trade secret and trademark law and may not be provided or otherwise made

available without prior written authorization.

Document created: 12:25 PM on Wednesday, October 17, 2018

Document version: 1.0

Traffic Logix Corporation

3 Harriet Lane

Spring Valley, NY

USA 10977

Tel: 1 (866) 915-6449

Fax: 1 (866) 995-6449

Web: www.trafficlogix.com

Email: info@trafficlogix.com

SafePace® Evolution 15SD Installation Manual p. 2

TABLE OF CONTENTS

Chapter 1 4

Introduction 4

Description 5

About this Manual 6

Documentation Conventions 6

Using Additional Customer Resources 7

Online Customer Area 7

Contacting Technical Support 7

Chapter 2 8

Installing the SafePace EV15SD 8

Selecting a Site for the Sign 9

Choosing a Position for the Sign 10

Mounting SafePace EV15SD Signs 11

Chapter 3 14

Power Options for your Sign 14

Solar Power 15

Mounting the Solar Panel 15

Wiring the Solar Panel to the Sign 16

Battery Power 18

Charging the Batteries 18

Installing Lead Acid Batteries in SafePace Evolution Signs 18

Chapter 4 20

Sign Operation and Maintenance 20

Opening and Closing the Sign 21

Operating Your Sign 22

Turning the Sign On and Off 22

Replacing Key Components 23

Warranty 24

SafePace® Evolution 15SD Installation Manual p. 3

Chapter 1

INTRODUCTION

SafePace® Evolution 15SD Installation Manual p. 4

Description

The SafePace EV15SD sign is a compact, lightweight, entry-level radar speed sign intended for private

communities or local roads. It has a bright three-digit speed display. It also offers speed-activated digit color

changes to alert speeders as well as a speed-activated "SLOW DOWN" message.

SafePace® Evolution 15SD Installation Manual p. 5

About this Manual

This manual describes the installation of the SafePace EV15SD sign, along with an optional solar panel, to

the side of a pole. This manual also describes the wiring specifications for solar and battery powered

configurations.

Documentation Conventions

This document uses the following formatting conventions:

Format Description

Bold Gray Used in procedures to indicate menu commands, interface controls

and dialog box options.

Italics Used to place emphasis on certain words.

Monospace text Used for code samples and any information that the user enters.

Italicized

monospace text

Used to indicate text that you should replace with your own. For

example: In the Save As text box, enter c:\filename.ext where

filename.ext is the name of the file you want to save.

> Used to indicate a sequence of commands (and sub commands) to be

carried out in the displayed order. For example File > Exit means to

open the File menu then choose the Exit command. This applies to

menus from the main menu bar, context menus that appear when you

right-click on the interface, and tiles in a tiled interface.

NOTE: Notes are used as reminders or to provide information of interest that supplements or

emphasizes important points of the main text.

TIP: Tips are used to suggest alternative methods, workarounds and/or shortcuts that are not essential

but that you may find useful in a given situation.

CAUTION: Cautions are used to advise users of specific actions that could result in a loss of data.

WARNING: Warnings are used to advise users of specific actions that could result in personal physical

injury or damage to equipment.

SafePace® Evolution 15SD Installation Manual p. 6

Using Additional Customer Resources

The following topics give you more information about additional resources available to our customers:

»Online Customer Area below

»Contacting Technical Support below

Online Customer Area

Visit the Online Customer Area at (https://trafficlogix.com/customer-area/) to gain access to a range of

resources including product documentation, software downloads and support videos, that will allow you to

get up to speed with your Traffic Logix product.

NOTE: The Customer Area is password protected so you may need to apply for a password if you

haven't already obtained one.

Software Downloads

Provides convenient access to the latest versions of our software applications and utilities.

Support Videos

Provides access to several videos that can help you get up to speed with your Traffic Logix product.

Product Documentation

Provides access to the most recent versions of our product documentation. If you are unable to access our

online documentation, please contact our Technical Support Department to discuss alternatives.

Contacting Technical Support

If you have questions or comments regarding this document or SafePace Evolution 15SD, please feel free

to contact our technical support center by phone: 1 (866) 915-6449, or by email: support@trafficlogix.com

SafePace® Evolution 15SD Installation Manual p. 7

Chapter 2

INSTALLING THE SAFEPACE EV15SD

There are several methods and hardware options available for the installation of the SafePace EV15SD

sign.

SafePace® Evolution 15SD Installation Manual p. 8

Selecting a Site for the Sign

The site you select for the sign may vary with the application in which the SafePace EV15SD radar sign is

being used. However, you should generally adhere to the following guidelines:

»Choose a location where the line of sight from the radar sign to the vehicle will be uninterrupted. Give

consideration to how the location may develop with time. The following types of questions should be

considered:

•Will any trees grow directly in the line of vision?

•Is it likely that road traffic signs will be erected in a position that could obstruct the field of view?

•For solar-powered signs, are the solar panels likely to be blocked by any trees or other structures?

»Install the radar sign directly adjacent to the lane of traffic being targeted since an interfering lane of

traffic may cause inaccurate speed readings.

»Mount the radar sign to a stable and firm structure. Avoid structures that are likely to be affected by

wind or rain. We suggest that you use a 4-inch to 5-inch diameter circular metallic pole, ideally, or a 4-

inch × 4-inch wooden pole. .

SafePace® Evolution 15SD Installation Manual p. 9

Choosing a Position for the Sign

Similar to other road signs, the SafePace EV15SD radar sign should be installed near the closest lane of

traffic, although off the actual road. The recommended height of the lower edge of the radar speed sign is

approximately 7 feet above the surface of the road. The display should be turned towards oncoming traffic

so that it is clearly visible to approaching drivers.

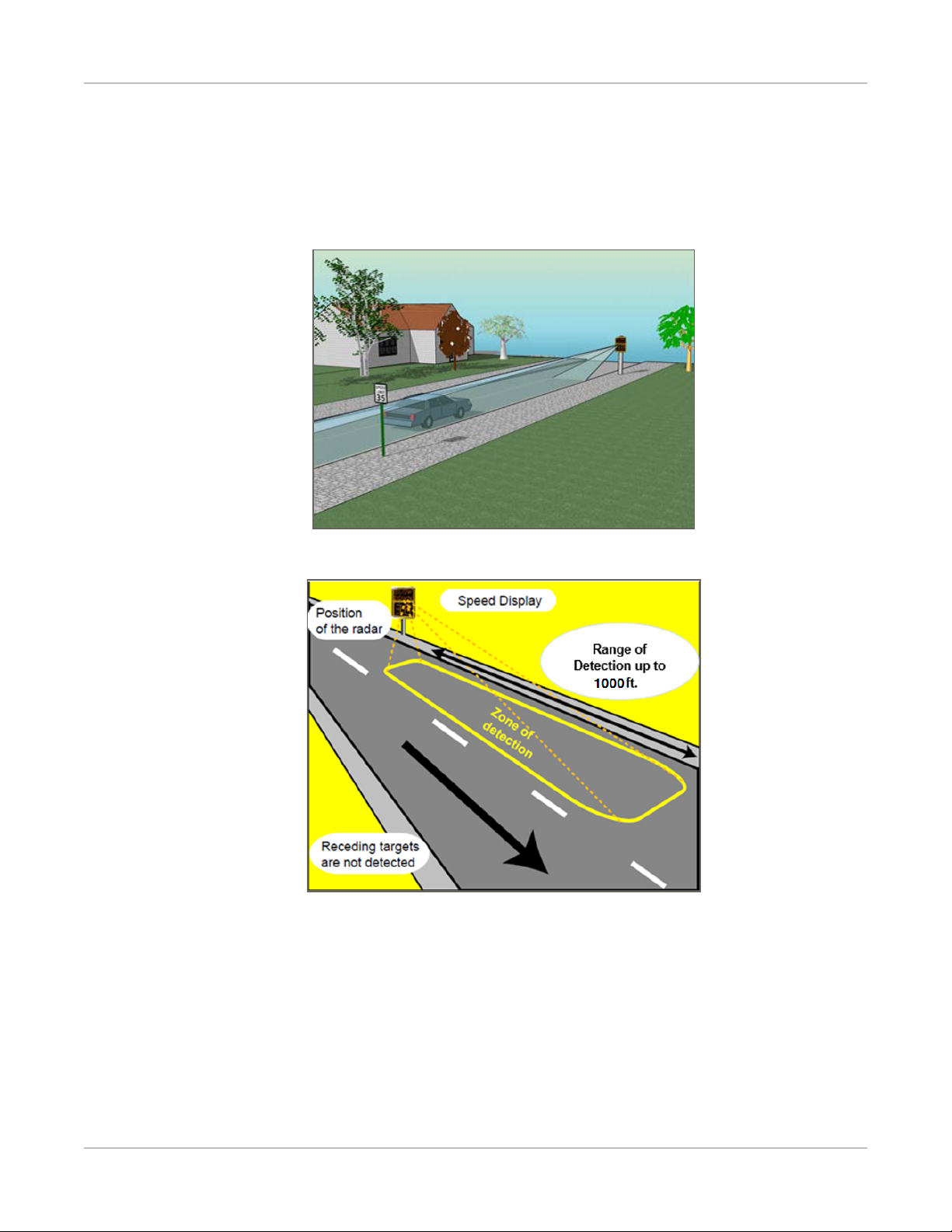

Figure 1: Example of Sign Location

Figure 2: Zone of Detection

SafePace® Evolution 15SD Installation Manual p. 10
