Operation Quick Start Guide V1.0 for

S5/S7-TimeServer - EU OPE

S5/S7-TimeServer - WO LD

This page contains the brief instructions for the S5/S7-TimeServer-devices. Here you will find an overview of

the various components on the front and back, basic hardware installation, initial login information, device

specifications and general safety instructions. It is highly recommended that you familiarize yourself with the

quick start guide before using the device. If you have a C NNECT-C NTR L-device, you will also find a

printed version of the quick start guide in the device packaging or online on the device's product page.

The only difference between the devices is the used built-in LTE modem. The Europe variant can only be used

in Europe, the World variant anywhere in the world.

Connections:

Frontside:

9367-TimeServer-EUROPE

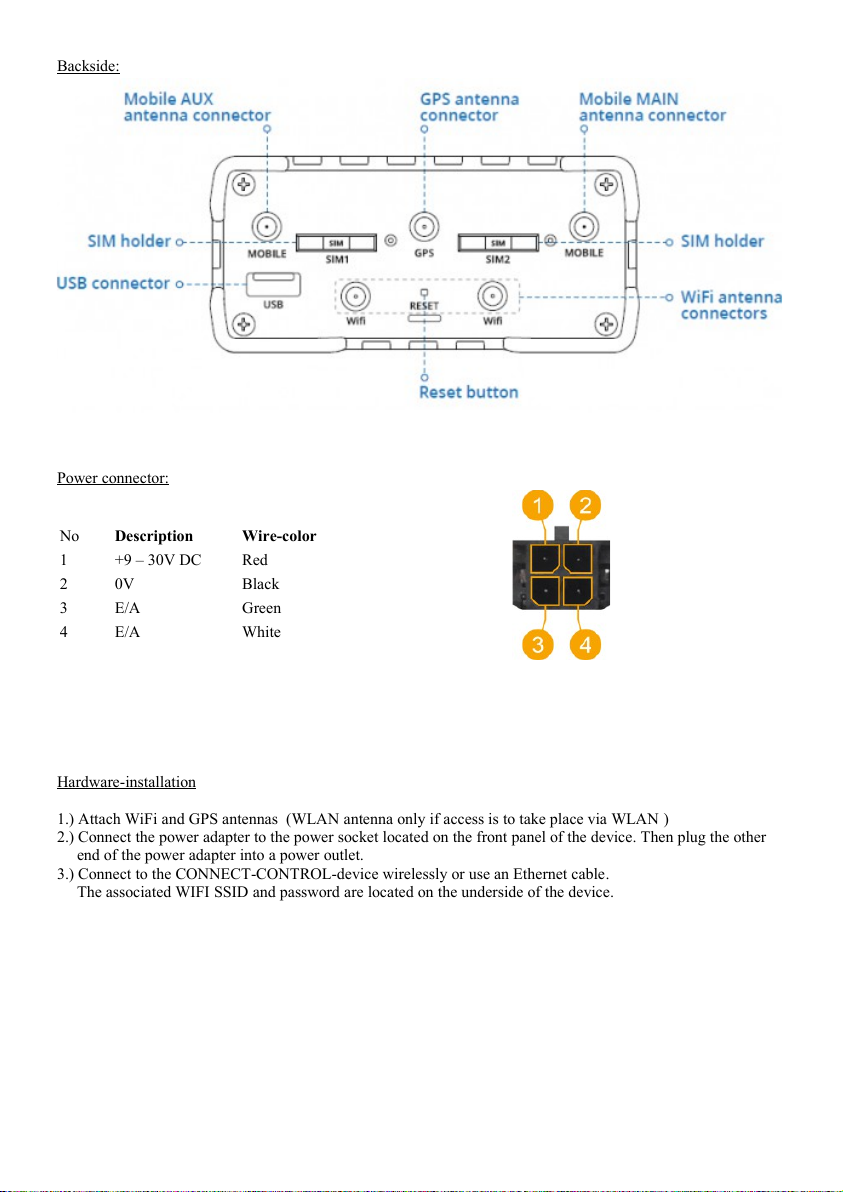

Backside:

Power connector:

No Description Wire-color

1 +9 – 30V DC Red

2 0V Black

3 E/ Green

4 E/ White

Hardware-installation

1.) ttach WiFi and GPS antennas (WL N antenna only if access is to take place via WL N )

2.) Connect the power adapter to the power socket located on the front panel of the device. Then plug the other

end of the power adapter into a power outlet.

3.) Connect to the CONNECT-CONTROL-device wirelessly or use an Ethernet cable.

The associated WIFI SSID and password are located on the underside of the device.

Computer-configuration (Windows):

1.) Enable the wireless network connection (go to Start → Control Panel → Network and Internet →

Network and Sharing Center. n the left panel click the Change adapter settings link. Right click on

Wireless Network Connection and select Enable).

2.) Setup wireless network adapter on your computer (right click on Wireless Network Connection and select

Properties. After that select Internet Protocol Version 4 (TCP/IP) and click Properties).

3.) Select btain IP address and btain DNS server address automatically if they are not selected. Click

4.) Right click on Wireless Network Connection and select Connect to see available wireless networks.

5.) Choose the wireless network RUT955_**** from the list and click Connect. Enter the WiFi password

located on the device's label

Commissioning:

–Connect laptop to this WiFi network or LAN cable in one of the 3 LAN port and open with

browser webserver with IP: http://192.168.1.1

The navigation is done by clicking on the navigation symbol ( ).

The WLAN parameters and the IP address of the S5 / S7 TimeServer can be adjusted in the configuration menu.

The integrated NTP server for network devices can also be switched on and off.

Create a PLC station to set the time :

Click on the navigation symbol in the web interface and then on "Station". In the menu that is now open, you can

see the stations that have already been created and you can add more by clicking on "Add station".

Parameter:

name: Name of this connection

IP address: IP address of S7-PLC (or S7-LAN-module or S5-LAN++)

chanel-ty e: OP-, PG-, or uns ecific connection (de ending on which connection is free

in the HW-Config of an S7-PLC )

rack number: Rack number of S7-PLC (usually 0)

slot number: Slot number of CPU-assembly, usually slot 2

(for S7-400 with wide ower-su ly slot 3)

automatic: If activated, the time is u dated according to the interval-information in the PLC

interval: Time-interval in which the time is automatically u dated when automatic is selected

target / format: PLC-clock: write the time directly to the PLC (only S7-300/400)

DB S7 Date_and_Time: time in DB in Date_and_Time-format

DB S7 LDT: S7-1500: time in DB in LDT-format

DB S7 DTL: S7-1x00: time in DB in DTL-format

DB binary: time in DB, binary

Year: word

Month: byte [1...12]

Day: byte [1...31]

Weekday: byte [0...6]

Hour: byte [0...23]

Minute: byte [0...59]

Second: byte [0...59]

Sommer time: byte [0...1]

U dated: byte [0...1]

DB ASCII: time in DB, ASCII

Year: 4 Char

Month: 2 Char

Day: 2 Char

Hour: 2 Char

Minute: 2 Char

Second: 2 Char

Sommer time: Byte [0...1]

U dated: Byte [0...1]

block number: for DB- arameter number of data-block

block offset: for DB- arameter offset of time-information

With „save“ the entry is acce ted and the entry is com leted , with „close“ without saving the window closed.

In the overview you can see the defined stations:

sto ing of time-connection

configuration of connection

delete of connection

show diagnosis

set time manually

Stations with a light gray background are sto ed, no time is u dated here:

More about this roduct can be found in the download area on the roduct age.

https://www.tpa-partner.de

QR-Code Website:Menutree Website:

+ Products / docu / downloads

+ Hardware

+ Time

+ S5/S7-TimeServer

Please make sure to update your drivers before using our products.
