TP-Link Kasa smart EC71 Manuel utilisateur

User Guide

Kasa Spot Pan Tilt, 24/7 Recording

EC71

Contents

About This Guide ···················································· 1

Introduction ······························································· 2

Appearance ······························································· 3

Set Up Your Camera·············································· 4

Authentication·························································· 6

About This Guide

This guide provides a brief introduction to the Kasa Spot Pan Tilt and the Kasa Smart app, as well as regulatory information.

Features available in Kasa Smart may vary by model and software version. Kasa Smart availability may also vary by region or ISP. All images, steps, and

descriptions in this guide are only examples and may not reect your actual Kasa Smart experience.

Conventions

In this guide, the following convention is used:

Convention Description

Teal Key information appears in teal, including management page text such as menus, items, buttons and so on.

Underline Hyperlinks are in teal and underlined. You can click to redirect to a website.

More Info

• Specications can be found on the product page at https://www.tp-link.com.

• Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support/.

• A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com.

• Frequently Asked Questions (FAQs) can be found at https://www.tp-link.com/support/faq/.

Introduction

With the Kasa Spot Pan Tilt connected to your home network, you can get the full picture of any space in your apartment, dorm or home. With a 360°

horizontal view and 113° vertical view, the Pan Tilt has everything covered. With Motion Tracking and Patrol Mode, track activity from beginning to end

and set multiple distinct viewpoints for your camera to monitor at set intervals.

• Crystal Clear Video – Sharp and clear 1080p Full HD provides high-quality video right in the palm of your hand.

• Pan and Tilt – Swipe up, down, left and right on your phone to rotate and set the camera’s point of view.

• Motion Tracking – When motion activity is detected, Kasa Spot Pan Tilt tracks and follows the subject to keep it within the camera’s eld of view.

• Secure Local Storage – Save your footage on a microSD card and play back with your Kasa Smart app.

• Patrol Mode – Set 4 distinct viewpoints and program your pan tilt camera to keep an eye on each region at intervals of your choosing.

• Night Vision – Even in the dark, the camera has Night Vision up to 30 feet. Never miss a thing at night and still get the same high-quality video you’re used to.

• Instant Activity Alerts – No need to check your Kasa Spot Pan Tilt throughout the day. Get automatic alerts when it detects motion. Take quick

action when you see your pet on the couch, a roommate walking through your room, or an intruder enter your front door.

• Two-Way Audio - Use crisp two-way audio to communicate with nosy roommates, family or even mischievous pets.

• Activity Zones - Control what alerts you receive by creating up to 16 custom activity zones, at no charge, around areas that are important to you.

• 24/7 Recording -Support continuous video recording with a SD card inserted to your Kasa Spot Pan Tilt.

360°

Horizontal View

113°

Vertical View

Appearance

Kasa Spot Pan Tilt has a system LED that changes color according to its status, a lens, microphone, speaker, micro USB port, a SD card slot and a

RESET button. Refer below for details.

Micro SD RESET

RESET Button

Tilt your camera lens up to

nd the RESET button.

Press and hold the reset

button for 5 seconds until

the LED blinks orange and

green.

System LED

• Solid orange:

Rebooting

• Blinking orange and green:

Ready for setup

• Blinking red:

Connecting to Wi-Fi

• Blinking green:

Connected to Wi-Fi

• Solid green:

Connected to the cloud

• Blinking orange:

Camera resetting

Speaker

The sound comes

out of the camera.

Microphone

Built-in internal

microphone.

Note: Do NOT insert

objects into the hole.

Power Port

Connect the power

adapter provided.

Lens

microSD Card Slot

Insert a microSD

card* for recording.

*microSD cad not

included.

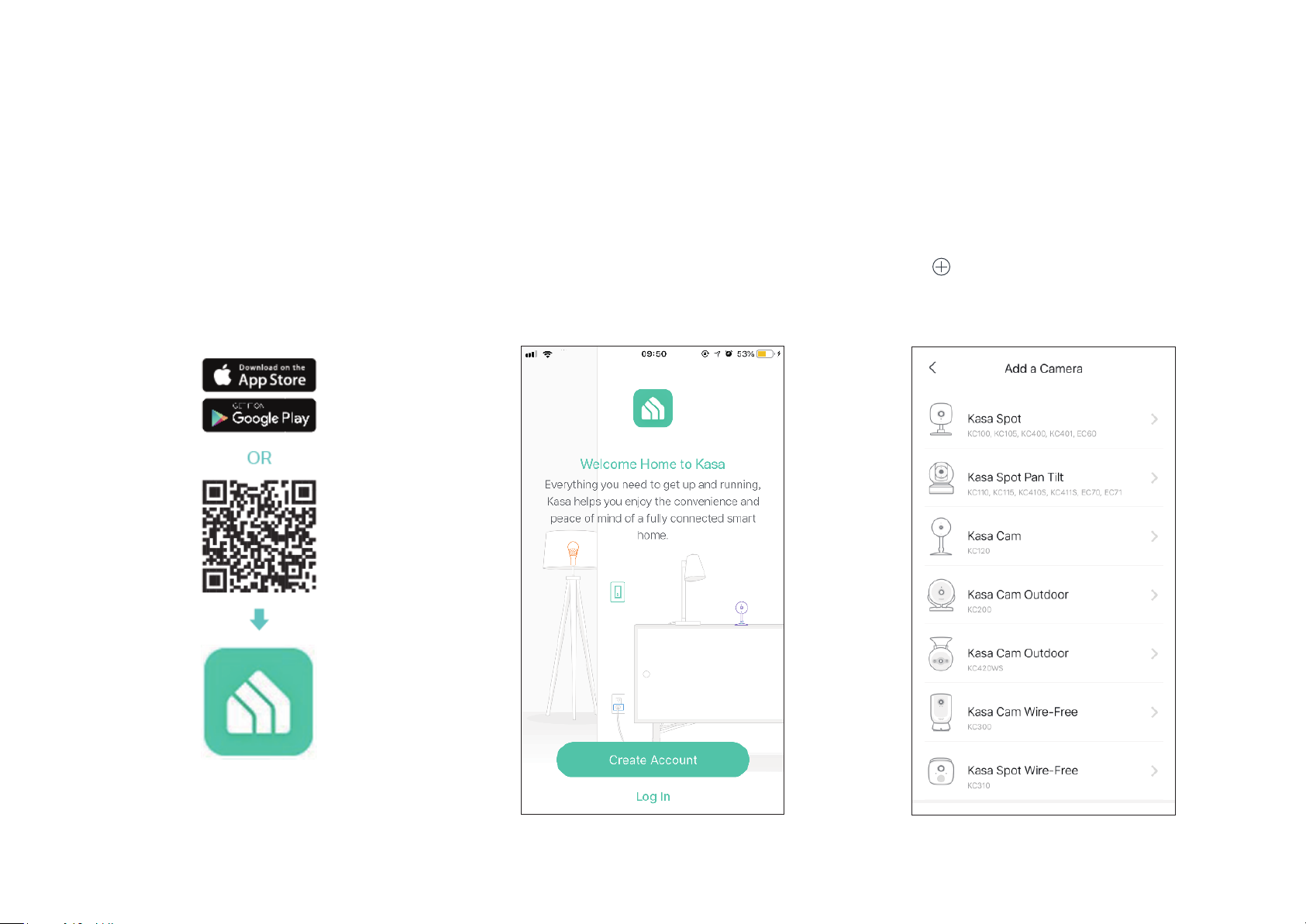

Set Up Your Camera

Follow the steps below to get started with your new camera.

Step 1. Download Kasa

Get the Kasa Smart app from the App Store

or Google Play, or by scanning the QR code

below.

Step 2. Log In

Open the app, and log in with your TP-Link ID.

If you don't have an account, create one rst.

Step 3. Start Setup

Tap the button in the Kasa app and select

Cameras > Kasa Spot Pan Tilt.

Step 4. Congure Camera

Follow app instructions to configure your camera and add it to your

home network.

Step 5. Place Camera

Place your camera on a at surface, or install it on a wall or ceiling with

the provided indicator label and mounting screws.

• For soft surface: Directly screw the screws in.

• For cement wall: Drill two holes* with the help of indicator label, insert the plastic

expansion tubes into holes and screw the mounting screws into the expansion tubes.

* Diameter of the holes: 6 mm (15/64 in.)

Unit: mm

Authentication

FCC compliance information statement

Product Name: Kasa Spot Pan Tilt, 24/7 Recording

Model Number: EC71

Component Name Model

I.T.E. Power Supply T090060-2B1

Responsible Party:

TP-Link USA Corporation

Address: 10 Mauchly, Irvine, CA 92618

Website: http://www.tp-link.com/us/

Tel: +1 626 333 0234

Fax: +1 909 527 6804

E-mail: [email protected]om

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications

could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be

co-located or operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this

transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction

with any other antenna or transmitter.”

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,

FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2023-05-10

FCC compliance information statement

Product Name: I.T.E. Power Supply

Model Number: T090060-2B1

Responsible Party:

TP-Link USA Corporation

Address: 10 Mauchly, Irvine, CA 92618

Website: http://www.tp-link.com/us/

Tel: +1 626 333 0234

Fax: +1 909 527 6804

E-mail: [email protected]om

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,

FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2023-05-10
