TP-Link TF-3239DL Manuel utilisateur

TF-3239DL

10/100Mbps PCI Network Adapter

Rev: 1.1.0

1910010553

Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may

cause undesired operation.

Any changes or modifications not Expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.

TP-LINK TECHNOLOGIES CO., LTD

TP-LINK TECHNOLOGIES CO., LTD.

Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,

Shennan Rd, Nanshan, Shenzhen, China

DECLARATION OF CONFORMITY

For the following equipment:

Product Description: 10/100Mbps PCI Network Adapter

Model No.: TF-3239DL

Trademark: TP-LINK

We declare under our own responsibility that the above products satisfy all the technical

regulations applicable to the product within the scope of Council Directives:

Directives 2004 / 108 / EC, Directives 2006 / 95 / EC

The above product is in conformity with the following standards or other normative documents

EN 55022:2006+A1:2007

EN 55024:1998+A1:2001+A2:2003

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2008

EN 60950-1:2006+A11:2009+A1:2010

The product carries the CE Mark

Person is responsible for marking this declaration:

Yang Hongliang

Product Manager of International Business

Date of Issue:2012

CONTENTS

Package Contents .................................................................................................... 1

Chapter 1. Introduction ........................................................................................ 2

1.1 Overview of the product...................................................................................................... 2

1.2 Features ............................................................................................................................. 2

1.3 LED Status ......................................................................................................................... 3

Chapter 2. Installation Guide ............................................................................... 4

2.1 Hardware Installation.......................................................................................................... 4

2.2 Software Installation ........................................................................................................... 5

2.2.1 For WindowsXP.......................................................................................................... 5

2.2.2 For Windows 7 .......................................................................................................... 12

2.2.3 For Windows Vista .................................................................................................... 18

Appendix A: Specifications................................................................................... 26

Appendix B: Troubleshooting............................................................................... 27

TF-3239DL 10/100Mbps PCI Network Adapter

Package Contents

The following contents should be found in your box:

¾One TF-3239DL 10/100Mbps PCI Network Adapter

¾Quick Installation Guide

¾One Resource CD for TF-3239DL, including:

•Drivers

•User Guide

•Other Helpful Information

)Note:

Make sure that the package contains the above items. If any of the listed items is damaged or

missing, please contact your distributor.

Conventions

The “Adapter” mentioned in this user guide stands for TF-3239DL 10/100Mbps PCI Network

Adapter without any explanations.

TF-3239DL 10/100Mbps PCI Network Adapter

Chapter 1. Introduction

1.1 Overview of the product

The TF-3239DL is highly integrated and cost-effective single-chip Fast Ethernet Adapter that

provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3u

100Base-TX specifications and IEEE 802.3x Full Duplex Flow Control. It also supports ACPI, PCI

power management for modern operating systems that is capable of Operating System Directed

Power Management (OSPM) to achieve the most efficient power management. The TF-3239DL

keeps network maintenance cost low and eliminates usage barriers. It is the easiest way to

upgrade a network from 10 to 100Mbps. The product is highly integrated and requires no "glue"

logic or external memory.

The TF-3239DL also supports full-duplex operation, making possible 100Mbps of bandwidth at no

additional cost. It supports both 10Mbps and 100Mbps network speed, 100Base-TX operated on

twisted pairs of Category 5 UTP and 10Base-T operate on Category 3, 4, 5 UTP. The TF-3239DL

uses Auto-Negotiation technology to detect the network speed.

Whatever your requirements are ease of installation, superior performance, or responsive support

backed up by unlimited technical support, the Product is the superior choice.

1.2 Features

¾Integrated Ethernet MAC, Physical chip and transceiver in one chip

¾Compliant to PCI Revision 2.1/2.2

¾PCI local bus single-chip Ethernet controller

¾Supports PCI clock 16.75MHz-40MHz

¾Supports a 32-bit general-purpose timer, referenced by the external PCI clock source, and

timer-interrupt

¾Includes a programmable, PCI burst size and early Tx/Rx threshold

¾Supports PCI target fast back-to-back transaction

¾Supports digital and analog loopback capability on both ports

¾Supports ACPI, PCI power management

¾Complies with the IEEE802.3u Fast Ethernet, 100Base-TX standard and IEEE802.3

CSMA/CD 10Base-T standard

¾Supports Full Duplex Flow Control (IEEE 802.3x)

¾Full duplex design to double the performance

TF-3239DL 10/100Mbps PCI Network Adapter

¾Supports Auto-Negotiation function

¾Auto-setups IRQ and I/O address

¾Contains two large (2Kbyte) independent receive and transmit FIFOs

¾One STP/UTP connector for 10Mbps or 100Mbps network Speed

¾Provides diagnostic software and one LED to indicate network Link/activity

¾Supports Drivers for Linux-2.4.x, Windows 7 (32bit / 64bit), Windows Vista (32bit / 64bit),

Windows 2000 and Windows XP

1.3 LED Status

A red LED indicates if the 10 or 100Mbps STP/UTP has been link OK or not and is working or not.

When the light is OFF, it indicates that the STP/UTP port has not been connected or link not OK;

When the light is ON, it indicates that the STP/UTP port link OK. When the light is BLINKING, it

indicates that the STP/UTP port is receiving data or transmitting data.

TF-3239DL 10/100Mbps PCI Network Adapter

Chapter 2. Installation Guide

2.1 Hardware Installation

To install the adapter, please follow these steps listed below:

1. Turn off your computer and unplug the power cord and all cables.

2. Remove your computer’s case cover.

3. Locate an available PCI slot.

4. Remove the screw that secures the back plate (the small piece of metal that covers the

opening for PCI card on the back panel of your computer), then remove the back plate.

5. Carefully insert the adapter into the PCI slot. Do not touch the metal connector on the

adapter.

6. Secure the adapter to the case using the screw you removed from the back plate.

7. Reinstall your computer’s case cover.

8. Plug in the power cord and other cables, and then turn on your computer.

)Note:

When the hardware has been successfully installed on your computer, you will be prompted

'Found New Hardware Wizard' (as shown in Figure 2-1 and Figure 2-2); please click Cancel,

and then follow the Software Installation steps to install driver for your adapter.

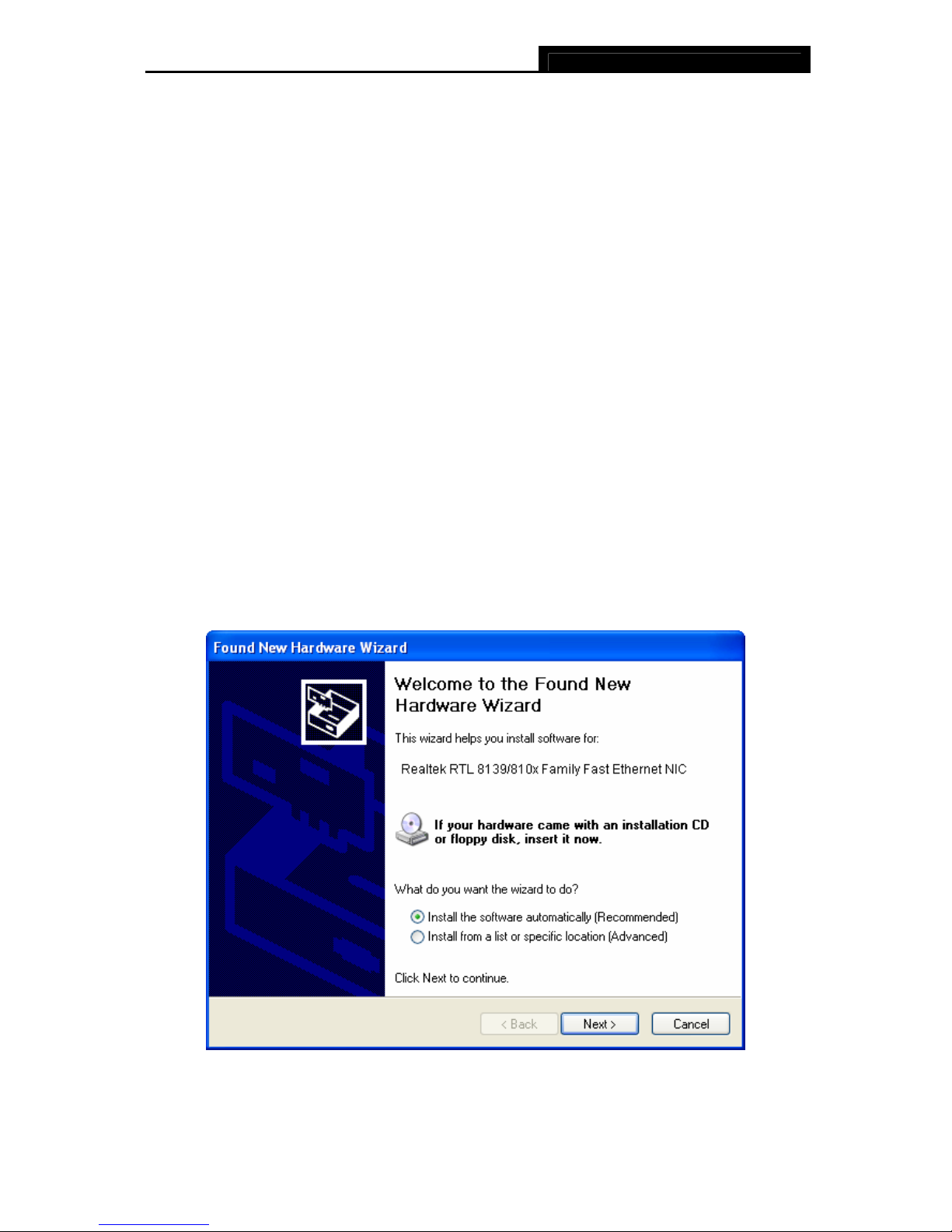

Figure 2-1 Found New Hardware Wizard in Windows XP

TF-3239DL 10/100Mbps PCI Network Adapter

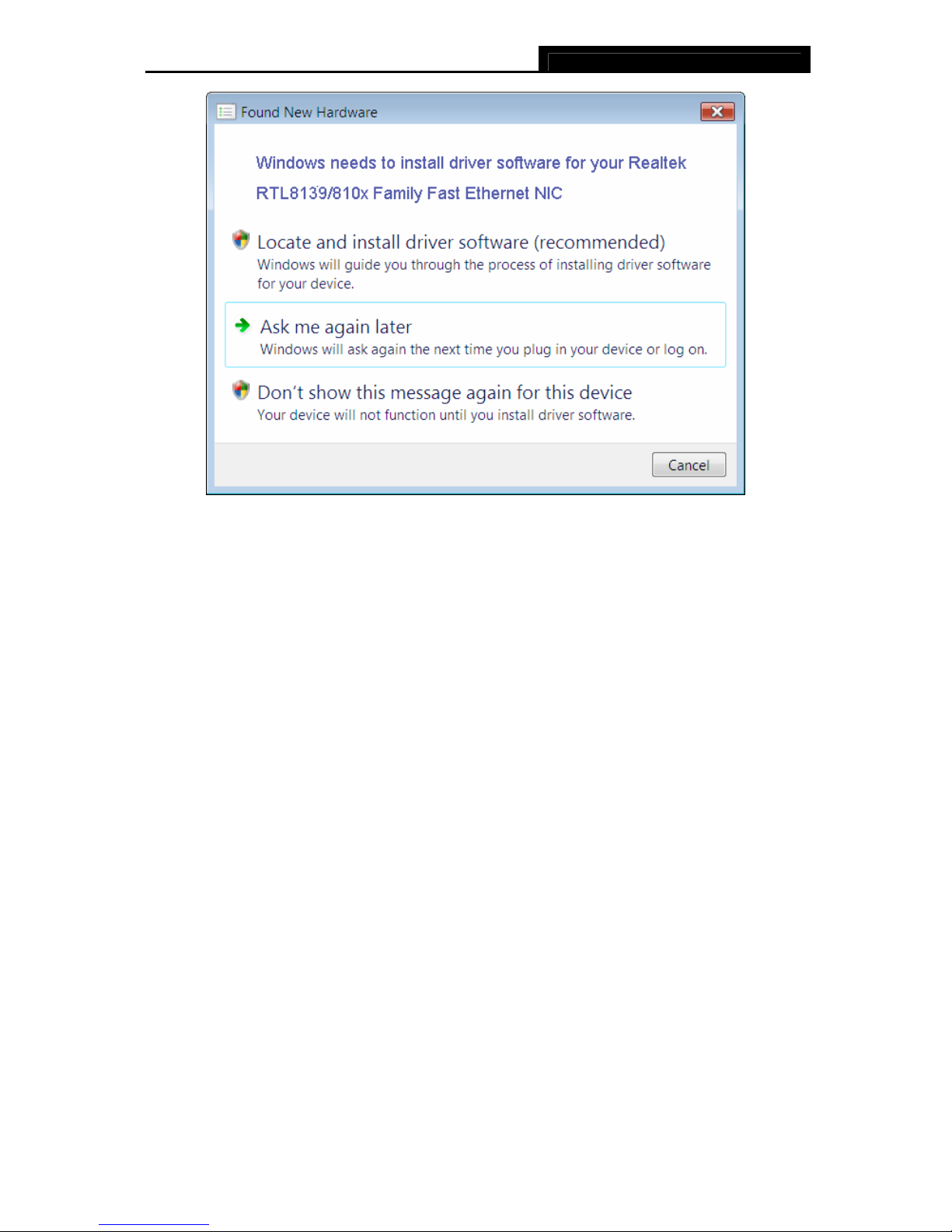

Figure 2-2 Found New Hardware Wizard in Windows Vista

2.2 Software Installation

The section will guide you through the installation procedures for Windows XP, Windows 7, and

Windows Vista. Please carefully follow the steps.

2.2.1 For Windows XP

1. Insert the TP-LINK Resource CD into the CD-ROM drive.

2. Right-click the icon My Computer on the desktop, and then click Manage.
