Installation Guide
Outdoor Wireless Base Station
WBS210 / WBS510
COPYRIGHT & TRADEMARKS
is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands
and product names are trademarks or registered trademarks of their respective holders.
used to make any derivative such as translation, transformation, or adaptation
without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2015 TP-LINK
TECHNOLOGIES CO., LTD. All rights reserved.
Website: http://www.tp-link.com
Tel: +86 755 26504400
E-mail: support@tp-link.com
7106505975 REV2.0.1
Specifications are subject to change without notice.
No part of the specifications may be reproduced in any form or by any means or
Contents
Overview
Hardware Installation
Connect cables
Mount Antenna
Power On
Lightning and ESD Protection
Specification
FAQ
1
3
4
5
7
8
12
13
9
Configuration with PharOS
Log in to the PharOS
Configure the Base Station
9
10
Overview
TP-LINK's Outdoor Wireless Base Stations of the Pharos series
products are designed for outdoor wireless network solutions,
aiming at long-distance transmission and large coverage of wireless
network.
Package Contents
1
Base Station Metal Strap
Passive PoE Adapter
Power Cord
Waterproof Rubber Insert
Installation Guide
Installation Guide

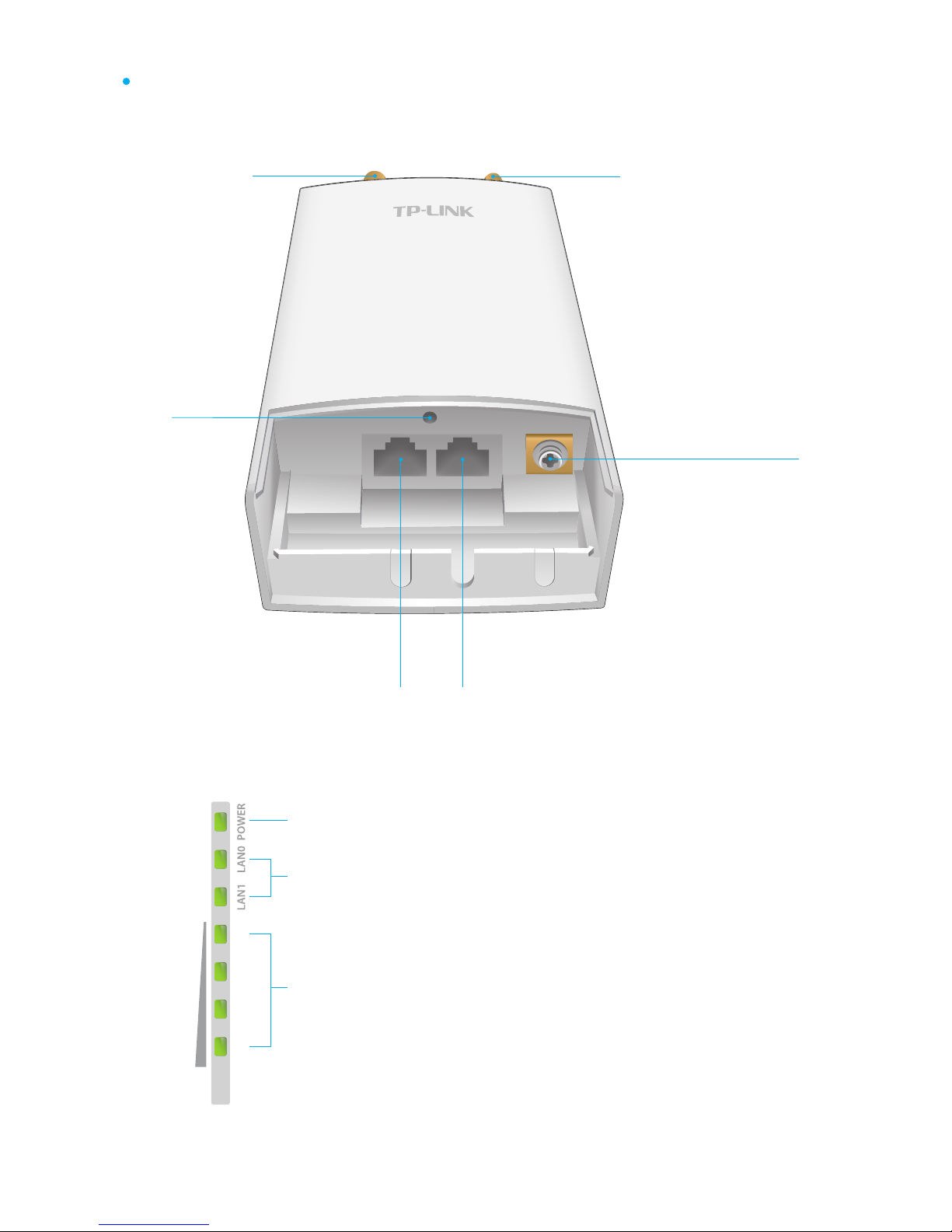

The panel of Base Station
Panel Layout
RESET
Shielded Ethernet
Port LAN1
Shielded Ethernet
Port LAN0(POE IN)
Grounding Terminal
2
AP/AP Router mode: All four LEDs remain solid.
Client/Bridge/Repeater/AP Client Router mode:
The more lit LEDs indicate the better wireless signal strength.
On: The port is connected but not active.
Flashing: The port is transmitting data.
On: The Base Station is powered on.
LED Explanation
LAN1 LAN0(POE IN) GND
Chain1 Chain0
Passive PoE Adapter
Hardware Installation
3
The Outdoor Wireless Base Stations require external antenna that
corresponds to your network environment. It is recommended to buy
and use TP-LINK’s matching antennas.
Power LED:
The Power LED indicates the status
of the electric current:
Green: 0-0.8A , Red: 0.8-1A
Remote Reset:
Press and hold for 8 seconds to reset
the Base Station to its factory defaults.
TP-LINK's Matching
Antenna
Recommended
Antenna Type
Sector Antenna
Dish Antenna TL-ANT2424MD (2.4GHz)
TL-ANT5830MD (5GHz)
TL-ANT2415MS (2.4GHz)
TL-ANT5819MS (5GHz)
4
Affix the waterproof rubber insert to
the underside of the device for
waterproofing and replace the cover
until it firmly locks into place.
Use an adequate Ethernet cable to
connect the LAN0 (POE IN) port. The
length of cable is up to 60m for
steady power supply. Shielded CAT5e
(or above) cable with an integrated
ground wire is recommended.
2
Connect the RF Cables to the Base
Station.
4
3
Firmly grasp the rear of the interface
cover and pull it downward.
1
Connect Cables
Attach the protective cap. Push and
slide the protective cap down over the
Base Station until it firmly locks into
place.
Align the mounting tabs on the back
of the Base Station with the four slots
of the mounting bracket. Push and
slide the Base Station downward
until it locks into place.
Connect the RF cables from the Base
Station to the corresponding
connectors on the antenna.
5
Sector antenna is used as a demonstration below.
1
2
3
Mount Antenna
Option1: Mounting the Base Station on an Antenna
Mount the Base Station on an antenna with a suitable mounting
bracket or on a pole for the antenna without the mounting bracket.
6
Loosen and completely remove the
end of the metal strap by turning the
captive screw counterclockwise with
a flathead screwdriver.
Position the Base Station and wrap
the metal strap around the pole.
Feed the end back through the
screw-block and turn the screw
clockwise to tighten the metal strap
using a flathead screwdriver until
the Base Station is secure.
Connect the RF cables from the Base Station to the corresponding
connectors on the antenna.
Lead the end of the metal strap
through the back of the Base Station.
1
2
3
4
Option 2: Mounting the Base Station on a Pole
7
Connect the Ethernet cable from the Base Station to the POE port
of the PoE adapter.
Connect an Ethernet cable from your LAN device (a computer,
router or switch) to the LAN port on the PoE adapter.
Connect the power cord to the power port on the PoE adapter
and plug it into an electrical outlet.
Connect the Base Station to a Power over Ethernet (PoE) adapter as
follows:
1
2
3
Power On
Lightning and ESD Protection
Use a shielded CAT5e (or above) cable with an integrated
grounding wire for connection.
If you have the standard CAT5e cable for the connection,
use a separate grounding cable to connect the grounding
Terminal (GND) to earth ground.
Proper grounding is extremely important for outdoor devices. There are
two effective techniques for grounding the Base Station.
8
Grounding
Terminal
Grounding Cable
Base Station
Grounded 3-wire
Power Outlet
Earth Ground
A
Grounded PoE Adapter
Option
Option
A
B
B
Grounding Wire
Shielded CAT5e (or above) Cable
with
an Integrated Grounding Wire
