TP-Link RE200 Manuel utilisateur

7106506449 REV1.0.1

› English

› Français

AC750 WiFi Range Extender

RE200

Quick Installation Guide

Specifications are subject to change without notice. TP-LINK is a registered

trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names

are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or

used to make any derivative such as translation, transformation, or adaptation

www.tp-link.com

TP-LINK TECHNOLOGIES CO., LTD.

Contents

English ..................................................................................................................1

Français ................................................................................................................9

English

LEDs

5G and 2.4G (Power)

Red: The extender is connected

to the 2.4GHz/5GHz wireless

network of the router, but is too

away from it.

Green: The extender is

connected to the 2.4GHz/5GHz

wireless network of the router

and is in a good location.

Off: The extender isn't

connected to the router.

On: The exxtender is on.

Off: The extender is off.

(Wireless Signal) (RE)

On: The wireless function is

enabled.

Off: The wireless function is

disabled.

On: WPS connection is established.

Blinking: WPS connection is in

process.

Off: No active connection .

RESET: Press this button to reset

the extender to its factory defaults.

Ethernet port: Connect your

Ethernet-enabled device to this

port to enjoy the Internet.

(Ethernet)

On: A device is connected the

Ethernet port, but there is no

activity.

Flashing: A device is connected

to the Ethernet port, and is

active.

Off: No device is connected to

the Ethernet port.

Two easy setup options:

ONE: Using a Web Browser

TWO: Using WPS(Wi-Fi Protected Setup)

Reset

Ethernet port

English

Option1: Using a Web Browser

①Power on

②Connect

Unplug the Ethernet cable from

your computer (if any). Click the

Wireless Network Connection

icon on your taskbar and connect

to the extender's network

TP-LINK_Extender_2.4GHz/5GHz.

③Login

http://tplinkrepeater.net

admin

Username:

Password:

Cancel

④Configure

Go to Quick Setup Wizard to configure your extender.

Connection are available

Not connected

Wireless Network Connection

Connect automatically Connect

TP-LINK_Extender_XXGHz

√

Launch a web browser and type

http://tplinkrepeater.net in

the address bar. Use admin (all

lowercase) for both Username and

Password to log in.

Plug the extender into a power

outlet near your router, and wait

until the Wireless LED is lit and

solid green.

English

A. On the Start screen, click Next.

Please click Next to set up the Range Extender or click Exit to go to the Device Management Page.

Main Router/AP WiFi Network Name(SSID):

Exit

Wi-Fi Network Name_2.4GHz:

Wi-Fi Network Name_5GHz:

Connection Status:

N/A

Disconnected

Wireless Settings Review SettingsStart

B. Select your router’s 2.4GHz wireless network name (SSID) and click

Next. If the SSID is hidden, select the Set SSID and MAC manually

option.

Signal MAC Channel Security

00-0A-EB-74-06-06 1 WPA-PSK

0C-72-2C-B3-A5-2C 1 WPA-PSK

Available Wireless Networks (2.4GHz): 24

Choose SSID

TP-LINK_2.4GHz_XXX

TP-LINK_XXX

Back

Rescan

√

Wireless Settings Review SettingsStart

Set SSID and MAC Manually

C. Enter the router’s Wi-Fi password and either choose Copy from

Main Router or Customize to create a new network name for the

extender. Click Next.

English

TP-LINK_2.4GHz_XXX

00-0A-EB-74-06-06

Most Secure(WPA-PSK/WPA2-PSK)

123456789

Back

TP-LINK_2.4GHz_XXX_EXT

Wireless Settings Review Settings

Start

Main Router/AP Network (2.4GHz)

Main Router/AP WiFi Network Name(SSID):

Main Router/AP MAC Address(BSSID):

WiFi Security Option:

Fill in the WiFi Password of your Main

Router/AP:

Range Extender Network (XXGHz)

Range Extender WiFi Network Name(SSID): Copy from Main Router/AP TP-LINK_2.4GHz_XXX

Customize

D. Select your router’s 5GHz wireless network. Click Next and repeat

step C. Click Next to continue.

TP-LINK_5GHz_XXX

00-0A-EB-74-06-06

Most Secure(WPA-PSK/WPA2-PSK)

123456789

Back

TP-LINK_5GHz_XXX_EXT

Wireless Settings Review SettingsStart

Main Router/AP Network (5GHz)

Main Router/AP WiFi Network Name(SSID):

Main Router/AP MAC Address(BSSID):

WiFi Security Option:

Fill in the WiFi Password of your Main

Router/AP:

Range Extender Network (XXGHz)

Range Extender WiFi Network Name(SSID): Copy from Main Router/AP TP-LINK_5GHz_XXX

Customize

E. Verify your Wireless Settings and click Finish. Both 2.4G and 5G LEDs

should turn on and stay solid green.

Wireless Setting

Main Router/AP WiFi Network Name (2.4GHz):

Main Router/AP WiFi Network Name (5GHz):

Range Extender WiFi Network Name (2.4GHz):

WiFi Security Option:

WiFi Password:

Range Extender WiFi Network Name (5GHz):

WiFi Security Option:

WiFi Password:

TP-LINK_2.4GHz_XXX

TP-LINK_5GHz_XXX

TP-LINK_2.4GHz_XXX_EXT

Most Secure (WPA/WPA2-PSK)

123456789

TP-LINK_5GHz_XXX_EXT

Most Secure (WPA/WPA2-PSK)

123456789

Wireless Settings Review SettingsStart

Back

Finish

Export Settings

⑤Relocate

Plug in the extender about halfway between your router and the Wi-Fi

English

dead zone.

Wait for the extender to reconnect and the 2.4G/5G LED should turn

green. If not, relocate it closer to the router to achieve better signal

quality.

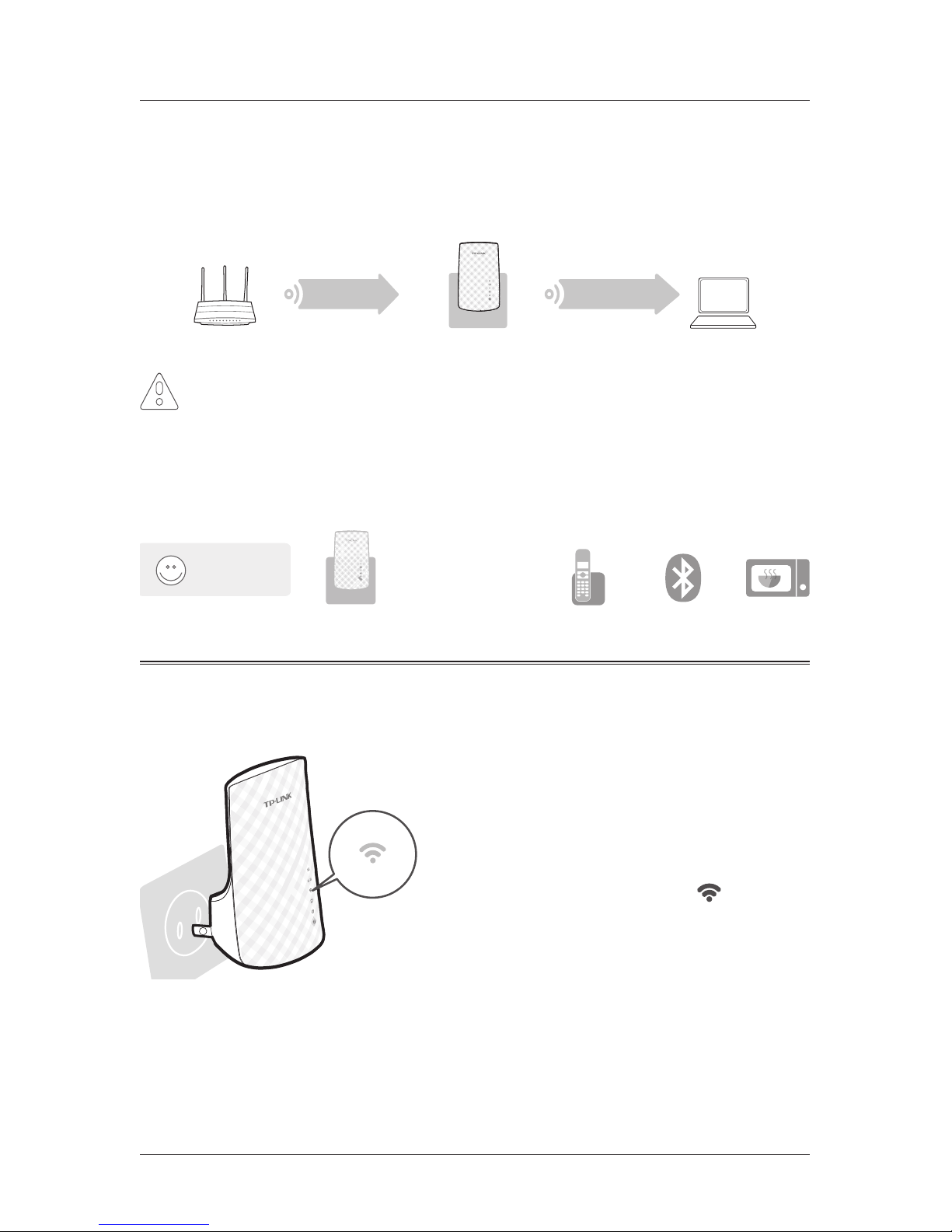

Ideal Extender PlacementRouter Clients

Extended Network

Host Network

Both extended networks share the same Wi-Fi passwords as those of your host

networks, but may have different wireless network names if you have customized

them during the configuration.

To minimize wireless interference, place your extender in an open

space area, away from other bluetooth devices or radioactive devices

such as cordless phones, microwaves, etc.

Enjoy! Keep away from

Option2: Using WPS(Wi-Fi Protected Setup)

Important:In order to use this option, your router must support WPS.

①Power on

Plug the extender into a power

outlet near your router, and wait

until the Wireless LED is lit and

solid green.

②Connect

A. Press the WPS button on your router.

English

B. Press the WPS button on the extender. Once the connection is

established, the RE, 2.4G and 5G LEDs will turn solid green.

③Relocate

Refer to Step 5 of Option 1 to relocate your extender.

Enjoy!

Ideal Extender PlacementRouter Clients

Extended Network

Host Network

The extended networks share the same wireless network names (SSIDs) and

wireless passwords as those of the host networks.

Note: For more information about

using WPS on your router, please

refer to the router manufacturer's

user guide.

If either the 2.4G or 5G LED is not

on, repeat step Aand B to connect

the other band.

If the RE LED does not switch from

blinking to a solid green, please refer

to Option 1.

English

Entertainment Adapter

The extender can be used as a wireless adapter to connect any

Ethernet-enabled device, such as a Blu-ray player, game console, DVR,

or smart TV, to your wireless network.

First, connect the extender to your Wi-Fi network following the

instructions in Option 1 or Option 2, and then connect your Ethernet-

enabled device to the extender via an Ethernet cable.

Ethernet

Connection

Smart TV Game Console Desktop

Wireless

Connection

Laptop Smartphone Tablet

Troubleshooting and Support

1. My router has no WPS button, how do I connect the extender?

Your router does not support WPS, please use Option 1 to setup the

extender using a web browser.

2. Why does the RE LED not change from blinking to solid green after

completing Option 1?

•You may have entered the wireless password of your router

incorrectly during the configuration. Please login to the extender’s

web management page, and double-check your router’s wireless

password.

•If the RE LED still keeps blinking, please reset the extender and go

through the configuration again.

3. What should I do when the RE LED is on, but only one band is

connected?

It depends on your router capabilities. If either the 2.4G or 5G LED is

not on while the extender connected to your router/network, press

the WPS button on the router and the extender again to connect

the other band.

4. What should I do if I cannot access the web management page of

the extender?

English

•Make sure your computer is connected to the extender’s network.

•Change the computer’s fixed IP address to Obtain an IP Address

Automatically.

5. How do I restore the extender to its factory default settings?

With the extender powered on, use a pin to press and hold the

Reset button at the bottom of the unit, until all LEDs start flashing

once then release the button.

Technical Support

For detailed troubleshooting instructions, visit:

www.tp-link.com/en/support/faq

For all other technical support, please contact us at:

USA / Canada

Tell Free: +1 866 225 8139

E-mail: [email protected]om(USA)

[email protected]om(Canada)

Support Availability:24 hours a day, 7 days a week
