TP-Link TL-POE150S Manuel utilisateur
User Guide
TL-POE150S
PoE Supplier Adapter
Rev:1.0.0
71035991
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD.
Other brands and product names are trademarks or registered
trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any
means or used to make any derivative such as translation, transformation,
or adaptation without permission from TP-LINK TECHNOLOGIES CO.,
LTD. Copyright © 2008 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
¾Reorient or relocate the receiving antenna.
¾Increase the separation between the equipment and
receiver.
¾Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
¾Consult the dealer or an experienced radio/ TV technician
for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
CE Mark Warning
This is a class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
CONTENTS
Package Contents...........................................................................1
Chapter 1. Introduction ............................................................1
1.1 Overview of the production .......................................1
1.2 Features....................................................................2
Chapter 2. Identifying External Components .........................2
Chapter 3. Connecting the PoE Supplier Adapter...................3
Appendix A: Specification ..............................................................6
1
Package Contents
The following items should be found in your package:
¾TL-POE150S PoE Supplier Adapter
¾One Power Adapter
¾One Power Cable
¾One Ethernet (CAT5 UTP) Cable
¾This User Guide
)Note:
Make sure that the package contains the above items. If any of the
listed items are damaged or missing, please contact with your
distributor.
Chapter 1. Introduction
1.1 Overview of the production
Thank you for choosing the TL-POE150S PoE Supplier Adapter.
The Power over Ethernet (PoE*) Supplier Adapter is able to supply
steady power to Powered Device (PD*) or PoE Receiver Adapter
over the Ethernet cable. The Ethernet equipment can work as a
Power Sourcing Equipment (PSE*) with the help of the TL-POE150S
connection.
PoE technology allows the existing Ethernet infrastructure to
transmit electrical power, along with data, to remote IP endpoints
over the Ethernet cables, which can greatly save the cost of the
external power cables. Your network can benefit from PoE
2
technology for it will ensure the normal working status of your
network while keep the existing Ethernet infrastructure secure.
1.2 Features
¾Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3af standards
¾Compatible with PoE compliant PDs and PoE Receiver Adapters
¾Transmits electrical power along with data in one single cable
¾External 48V DC power supply
¾Supports Plug-and-Play for the devices, without any configuration
¾Elegant appearance with space-saving mini size
Chapter 2. Identifying External Components
*PoE: This technology describes a system to transmit electrical power, along
with data, to remote devices over standard twisted-pair cable in an
Ethernet network.
*PD: a device powered by a PSE and thus consumes energy. Examples include
powering IP telephones, wireless LAN access points, network cameras,
network hubs, embedded computers etc.
*PSE: a device (switch or hub for instance) that will provide power in a PoE
setup.
POWER+DATA OUT: Connect to the PD or PoE Receiver
Ada
p
ter with a CAT5 UTP cable.
3
Chapter 3. Connecting the PoE Supplier Adapter
You can use TL-POE150S PoE Supplier Adapter with PD or PoE
Receiver Adapter to expand your network to where there are no
power lines or outlets, where you wish to fix devices such as APs, IP
Cameras or IP Phones, etc. The following steps will tell you how to
connect the PoE Supplier Adapter correctly.
1. Use a CAT5 UTP cable to connect port of Ethernet device
(such as a switch, hub or router) to the LAN IN port.
2. Please connect the power adapter properly to a power socket
with provided power cable, and then connect the other end of
the power adapter to the DC 48V port of the TL-POE150S.
LAN IN: Connect to a
network device (such as
a Switch or Router ) with
CAT5 UTP cable.
DC 48V: Connect to the
provided power adapter
which can supply steady
power of 48V DC.
PWR: Power LED, a steady green
light indicates that the PoE system
has detected the PD or PoE
Receiver Adapter and the power
adapter is working properly.
4
3. Connect the POWER+DATA OUT port of the TL-POE150S to
a PD or a PoE Receiver Adapter with CAT 5 UTP cable.
Now, the device can work normally with data and power.
There are two schemes to realize the PoE.

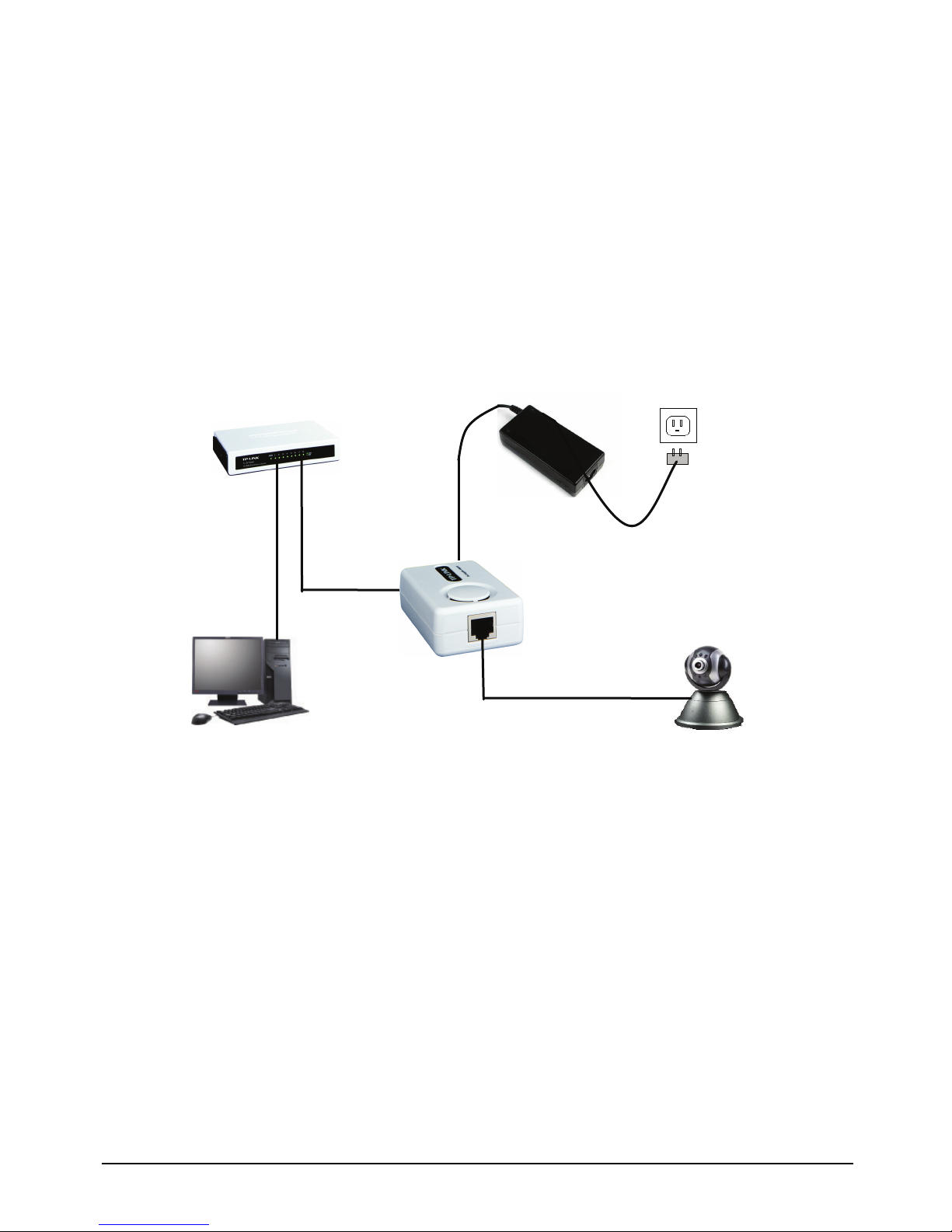

1. If the device supports PoE (take an IP camera with PoE for
example), following topology will work:
`
2. If the device does not support PoE, it is necessary to have a
PoE Receiver Adapter to separate the power and data,
transmitting them detached in one UTP cable and one power
cable. Here we take TP-LINK TL-POE10R Receiver Adapter
for example. You can use following topology:
IP camera with PoE
PC
Switch
TL-SF1008D Power Adapter
TL-POE150S
CAT5 UTP Cable
(Data)
Power Cable
(Power)
CAT5 UTP Cable
(Power & Data)
5
)Note:
¾Do not mistake the power port of the TL-POE150S and
TL-POE10R when choosing the scheme 2, or else it will cause
serious damage to your network device.
¾If you want to know more details about TL-POE10R Receiver
Adapter, please refer to “TL-POE10R User Guide” on our
website http://www.tp-link.com.
Wireless AP
TL-WA601G
Switch
TL-SF1008D
CAT5 UTP Cable
(Data)
CAT5 UTP Cable
(Data)
TL-POE10R
Power Cable
Notebook
With Wireless Adapter
CAT5 UTP Cable
(Power & Data)
TL-POE150S
Power Cable
(Power)
Power Adapter
