TP-Link TL-PA101 Manuel utilisateur

Quick Installation Guide

TL-PA101

85Mbps Powerline Ethernet Adapter

Rev:1.0.0

7106500613

Specifications are subject to change without notice. is

a registered trademark of TP-LINK TECHNOLOGIES CO., LTD.

Other brands and product names are trademarks or registered

trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any

means or usedto make any derivative suchas translation, transformation,

or adaptation without permission from TP-LINK TECHNOLOGIES CO.,

rights reserved.

http://www.tp-link.com

* All contents and specifications are subject to change without

notice. Other brands and product names are trademarks or

registered trademarks of their respective owners.

Congratulations on your purchase of this outstanding Ethernet

Powerline Adapter. This device is an 85Mbps Powerline Ethernet

Adapter which transforms your house’s existing electrical wiring into

an ubiquitous networking infrastructure. Simply plug this 85Mbps

Ethernet Powerline Adapter into an ordinary AC power outlet which

will easily extend your Cable/xDSL broadband connection or

existing Ethernet (LAN) network to any other electrical outlet in any

room of a house without the need of any new cabling.

This Ethernet Powerline Adapter supports up to 85Mbps data rate

over the existing household power circuit. With data rates of 85Mbps,

full multimedia application can easily be supported throughout the

whole house in addition to Internet access. This Ethernet Powerline

Adaptor uses the existing power lines installed in a home as a path

to transmit digital data, voice, audio and video between devices.

A. System Requirement

a) At least two AC 100V ~ 240V power outlets with standard

home power wiring

b) A computer with the following:

Operating System with TCP/IP installed

Pentium III compatible processor and above

Ethernet LAN card installed with TCP/IP protocol

64 MB RAM or more

50 MB of free disk space (Minimum)

CD-ROM Drive

B. Package Contents

The 85Mbps Ethernet Powerline Adapter package contains the

following items:

One 85Mbps Ethernet Powerline Adapter

One Quick Installation Guide

One CAT-5 Ethernet Cable

One CD-ROM (Utility / Manual / Quick Installation Guide)

If any of the above items are damaged or missing, please contact

your dealer immediately.

C. Hardware Connection – Computer

Following are the steps to properly connect the Ethernet Powerline

Adapter to your computer:

1. Power off your PC or Notebook.

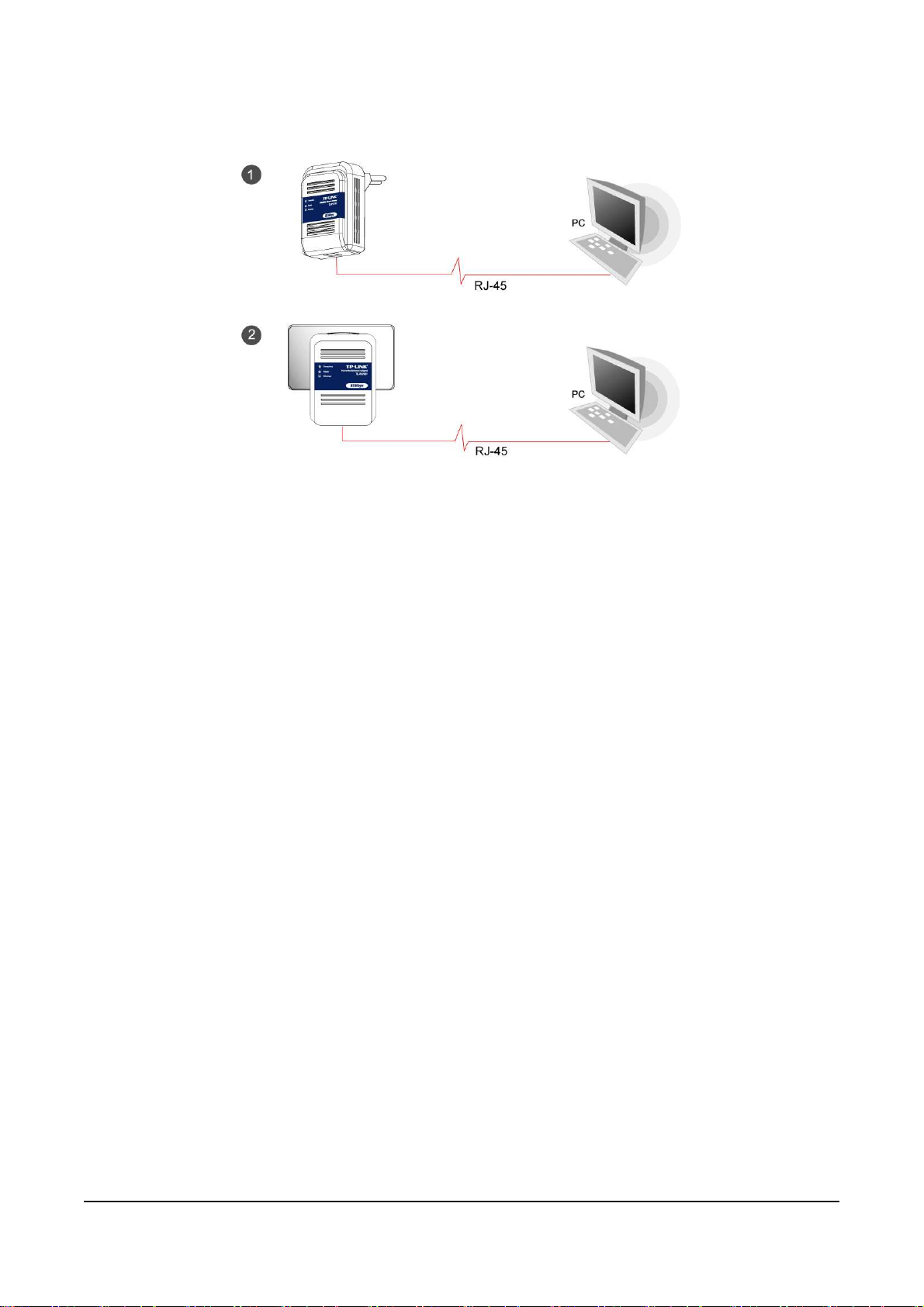

2. Connect the provided Ethernet (RJ-45) cable to the Ethernet

Powerline Adapter’s Ethernet port.

3. Connect the other end of the Ethernet (RJ-45) cable to you

computer’s LAN port.

4. Plug the Ethernet Powerline Adapter into a wall socket next to

the computer.

5. Turn on your computer.

6. Check and confirm that the Power and Ethernet LEDs on the

Ethernet Powerline Adapter are ON.

D. Hardware Connection – Internet

Follow the procedures describe below to connect the Ethernet

Powerline Adapter to your ADSL broadband connection:

1. Power off your PC or Notebook.

2. Connect the provided Ethernet (RJ-45) cable to the Ethernet

Powerline Adapter’s Ethernet port.

3. Connect the other end of the Ethernet (RJ-45) cable to an

available Ethernet port of your ADSL broadband Router.

4. Plug the Ethernet Powerline Adapter into a wall socket next to

the computer.

5. Turn on your computer.

6. Check and confirm that the Power, Powerline and Ethernet

LEDs on the Ethernet Powerline Adapter are ON.

E. Management Utility Install

Follow the following procedures to properly installing the provided

Management Utility:

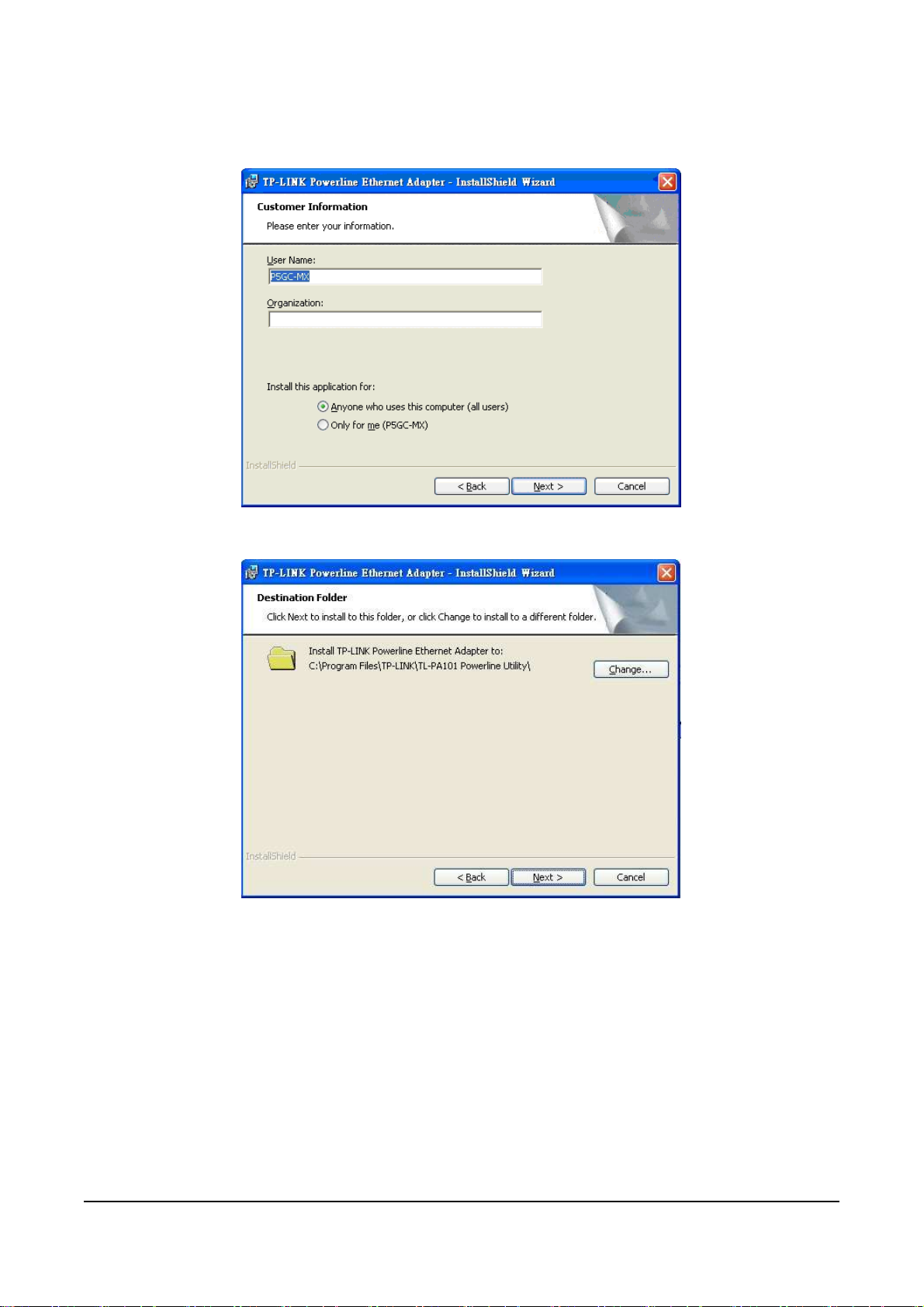

Step 1: The program installation process will carry out and

copying all the necessary files to your system.

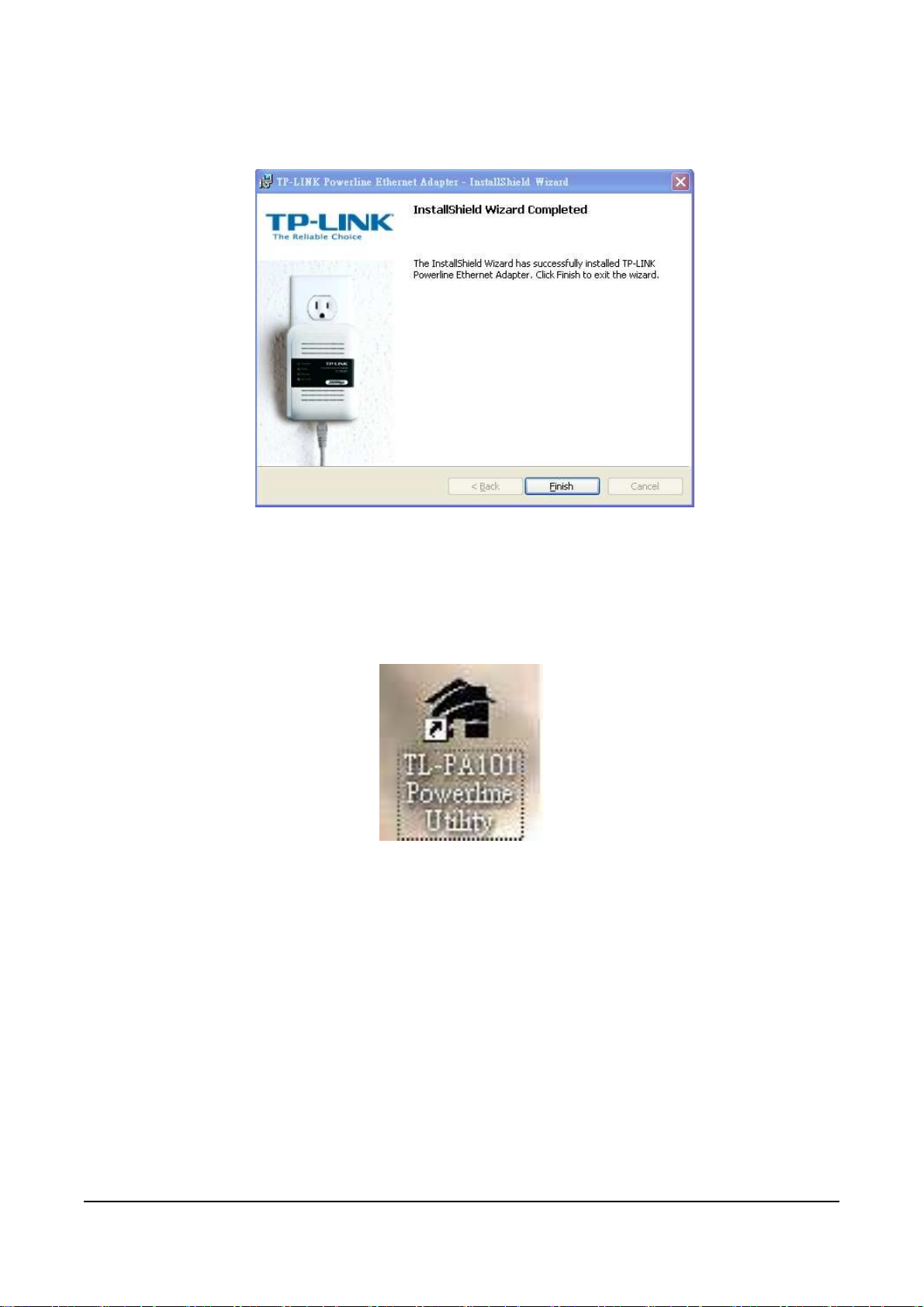

Step 2: After the installation, a shortcut to the “TL-PA101

Powerline Utility” application icon is provided on the

windows desktop.

Step 3: Finally, there is an “Auto install Finish” icon on the

windows desktop.
