Outdoor Wireless Base Station
Installation Guide
› English
› Български
› Čeština
› Қазақша
› Lietuvių
› Magyar
›Polski
› Русский язык
› Română
› Slovenčina
› Srpski jezik
› Українська мова
CONTENTS
1
7
13
19
25
31
37
43
49
55
61
67
English
Български
Čeština
Қазақша
Lietuvių
Magyar
Polski
Русский язык
Română
Slovenčina
Srpski jezik
Українська мова
Hardware Installation
1
Use an adequate Ethernet cable to
connect the LAN0 (POE IN) port. The
length of cable is up to 60m for
steady power supply. Shielded CAT5e
(or above) cable with an integrated
ground wire is recommended.
2
Firmly grasp the rear of the interface
cover and pull it downward.
1
The Outdoor Wireless Base Stations require external antenna that
corresponds to your network environment. It is recommended to buy
and use TP-LINK’s matching antennas.
Connect Cables
TP-LINK's Matching
Antenna
Recommended
Antenna Type
Sector Antenna
Dish Antenna TL-ANT2424MD (2.4GHz)
TL-ANT5830MD (5GHz)
TL-ANT2415MS (2.4GHz)
TL-ANT5819MS (5GHz)
English
Align the mounting tabs on the back
of the Base Station with the four slots
of the mounting bracket. Push and
slide the Base Station downward
until it locks into place.
2
Affix the waterproof rubber insert to
the underside of the device for
waterproofing and replace the cover
until it firmly locks into place.
Sector antenna is used as a demonstration below.
Connect the RF Cables to the Base
Station.
4
3
1
Mount Antenna
Option1: Mounting the Base Station on an Antenna
Mount the Base Station on an antenna with a suitable mounting
bracket or on a pole for the antenna without the mounting bracket.
English
Attach the protective cap. Push and
slide the protective cap down over the
Base Station until it firmly locks into
place.
Connect the RF cables from the Base
Station to the corresponding
connectors on the antenna.
Loosen and completely remove the
end of the metal strap by turning the
captive screw counterclockwise with
a flathead screwdriver.
Lead the end of the metal strap
through the back of the Base Station.
3
1
2
2
3
Option 2: Mounting the Base Station on a Pole
English
4
Position the Base Station and wrap
the metal strap around the pole.
Feed the end back through the
screw-block and turn the screw
clockwise to tighten the metal strap
using a flathead screwdriver until
the Base Station is secure.
Connect the RF cables from the Base Station to the corresponding
connectors on the antenna.
Connect the Ethernet cable from the Base Station to the PoE port
of the PoE adapter.
Connect an Ethernet cable from your LAN device (a computer,
router or switch) to the LAN port on the PoE adapter.
Connect the power cord to the power port on the PoE adapter
and plug it into an electrical outlet.
Connect the Base Station to a Power over Ethernet (PoE) adapter as
follows:
1
2
3
3
4
Power On
English
Open a web browser, type http://192.168.0.254 into the address
field and press Enter (Windows) or Return (Mac). It is recommended
to use the latest version of Google Chrome, Firefox or Safari.
Configuration with PharOS
Log in to the PharOS
Before accessing the PharOS Web Interface, you need to assign a
static IP address 192.168.0.X (X ranges between 2 and 253,e.g.
192.168.0.10) to your computer.
5
Configure the Base Station
1
2
192.168.0.254

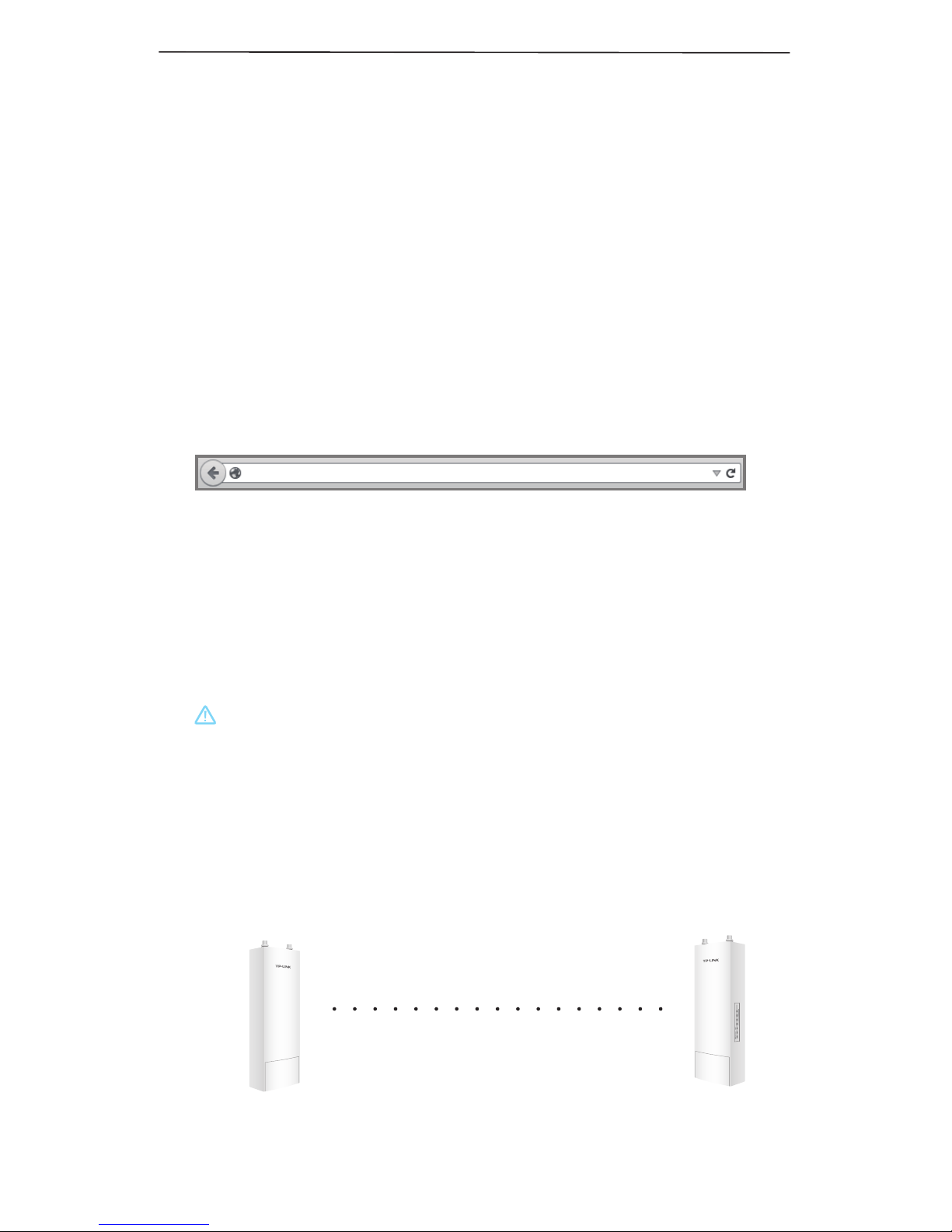

The typical topology is as follows. A wireless bridge is built between
two locations that are far from each other. Follow the instructions
below to configure the Access Point and the Client.
Access point
LAN:192.168.0.254
Client
LAN:192.168.0.2
Enter admin for both User Name and Password, then select the
Language from the drop-down list. Read and agree the terms of
use, then click Login.
Change
the
default
User
Name
and
Password
to
protect
your
Base Station. Let’s start configuring the Base Staion.
3
4
For subsequent logins, use the new username and password.
English
6
1. Log in to PharOS and go to the Quick Setup page.
2. Operation Mode: Select Access Point and click Next.
3. LAN Settings: Click Next.
4. Wireless AP Settings:
a. Create a new SSID (Network name) for your wireless
network.
b. Select WPA-PSK/WPA2-PSK for the Security method and
create a PSK Password to protect your AP.
c. Enter the distance between the Access Point and the Client
into the Distance Setting field.
d. Select the MAXtream checkbox, and click Next.
5. Finish: Verify your settings and click Finish to complete the
configuration.
Configure the Access Point (AP)
Configure the Client
1. Log in to PharOS and go to the Quick Setup page.
2. Operation Mode: Select Client and click Next.
3. LAN Settings: Change the IP Address to 192.168.0.X (X ranges
between 2 and 253), the same subnet with the access point,
and click Next.
4. Wireless Client Settings:
a. Click Survey and select the SSID of the Access Point in the
AP list, then click Connect.
b. Select WPA-PSK/WPA2-PSK from the Security option, enter
the same PSK password and distance value of the Access
Point, then click Next.
5. Finish: Verify your settings and click Finish to complete the
configuration.
English
Инсталация на хардуера
7
Използвайте достатъчно дълъг
Ethernet кабел, за да го свържете
към LAN0 порта (вход за POE).
Дължината на кабела е до 60m за
стабилно подаване на захранване.
Препоръчва се екраниран кабел
категория CAT5e (или по-висока) с
вграден заземителен проводник.
2
Хванете здраво задната страна на
капака на портовете и я издърпайте
надолу.
1
За работата на безжичните базови станции за външен монтаж са
необходими външни антени, които да съответстват на мрежовата
среда. Препоръчва се закупуването и използването на
съответстващите антени на TP-LINK.
Свързване на кабелите
Съответстваща антена на
TP-LINK
Препоръчителен
тип антена
Секторна антена
Параболична антена
(тип "чиния")
TL-ANT2424MD (2.4GHz)
TL-ANT5830MD (5GHz)
TL-ANT2415MS (2.4GHz)
TL-ANT5819MS (5GHz)
Български
Подравнете монтажните крачета на
гърба на базовата станция с
четирите отвора на монтажната
скоба. Натиснете и плъзнете
базовата станция надолу, докато
щракне в мястото си.
8
Поставете гумената вложка за
осигуряване на водоустойчивост
на долната страна на устройството
и сложете обратно капака докато
щракне в мястото си.
В илюстрациите по-долу е показана секторна антена.
Свържете радиочестотните кабели
към базовата станция.
4
3
1
Монтиране на базовата станция
Опция 1: Монтиране на базовата станция върху антената
Монтирайте базовата станция върху антената с подходящата
монтажна скоба, или върху стълба на антената без използване на
монтажната скоба.
Български
