SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY

T513004/ T513004BLG

RVL40 PRO

22.2V Cordless

3 in 1 Vacuum Cleaner

This box contains:

Instruction Manual

3 in 1 Vacuum Cleaner

Vacuum Cleaner

Battery Pack

AC Adaptor

Filter

Floor Head with interchangeable brush bar for hard ﬂoors and carpets

Turbo Pet Brush

2 in 1 Brush and Crevice Tool

Crevice Nozzle

Wall Mounting Kit

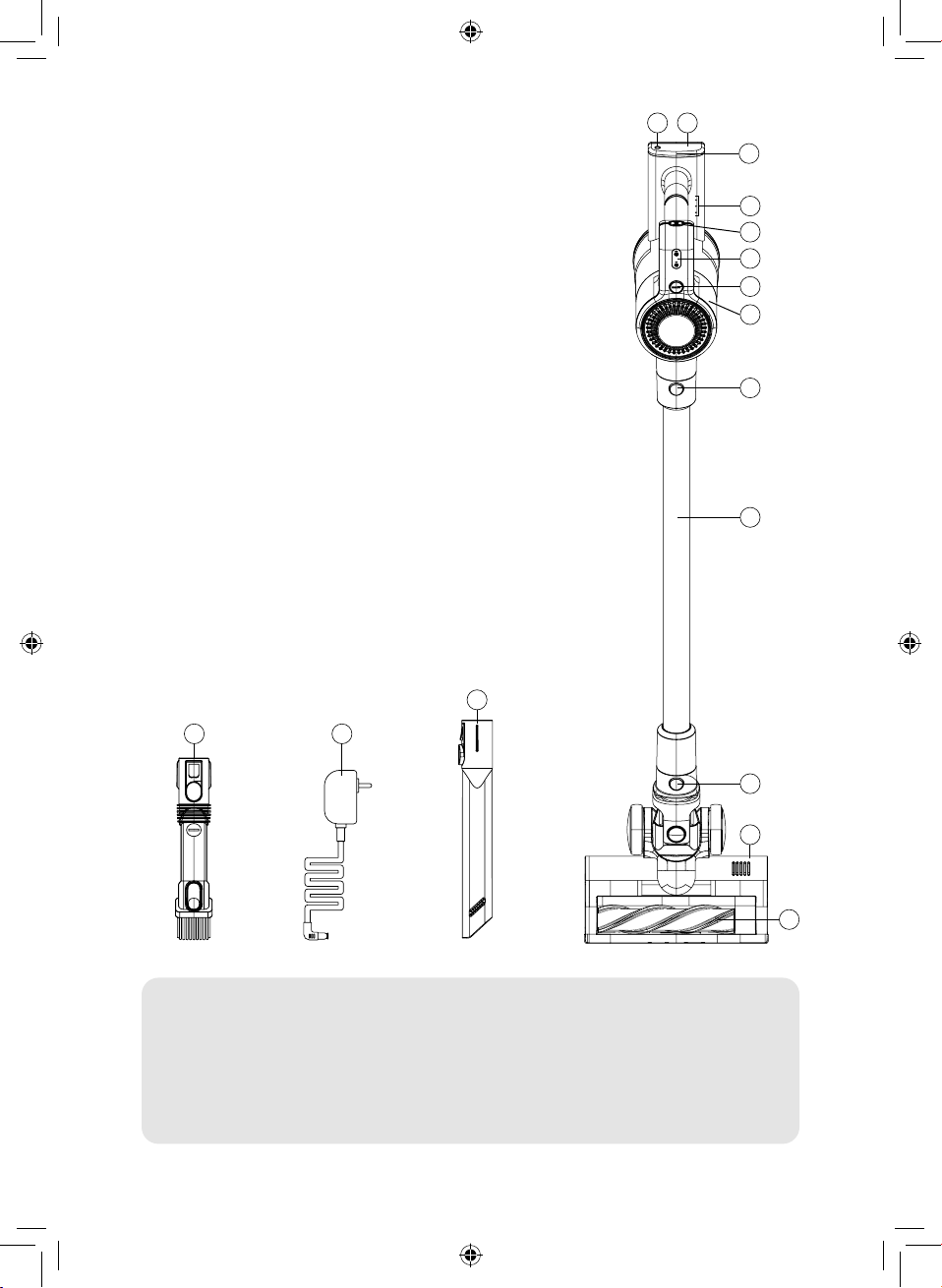

1. Charging port

2. Battery Pack

3. Battery release switch

4. Charging Indicator Lights

5. Power ON/OFF Speed Selection button

6. Speed Indicator

7. Dust tank lock button

8. Dust tank

9. Extension Pole release button

10. Extension pole

11. Floor Head Release Button

12. Floor head

13. Brush Roller

14. 2 in 1 Crevice Brush

15. Adaptor

16. Crevice Tool

Speciﬁcations:

1514

Technical Data:

Description: 22.2V Cordless 3 in 1 Vacuum Cleaner

Model: T513004/ T513004BLG

Adaptor Input: 100-240V, 50/60Hz 0.4A

Adaptor Output: 27V 0.5A

Battery: 22.2V 2000MaH Li-Ions

Rated Power: 150W

Charging Time: Approx. 4 hours

Run Time: Approx. 35 minutes on the lowest setting

DISPOSAL OF THE UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish.

You are required to dispose of old electrical and electronic appliances like this separately.

Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the

recycling of electrical items.

Please visit www.weeeireland.ie for access to information about the recycling of

electrical items purchased in Ireland.

The WEEE directive, introduced in August 2006, states that all electrical items must be

recycled, rather than taken to landﬁll.

Please arrange to take this appliance to your local Civic Amenity site for recycling,

once it has reached the end of its life.

(Power adapters only)

Never open the power adapter, you risk getting an electric shock.

Only use the power adapter that is supplied with your product.

You must always connect the power adapter to the product before connecting to the mains power

supply.

The power adapter must be used indoors only, and must not be subjected to damp conditions.

The power adapter does not have any user serviceable parts.

If in doubt, consult a qualiﬁed electrician who will be pleased to do this for you.

If you need to remove the plug – disconnect it from the mains – and then cut it off of the mains lead

and immediately dispose of it in a safe manner. Never attempt to reuse the plug or insert it into a

socket outlet as there is a danger of an electric shock.

WARNING:

Do not attempt to open any part of the power adaptor or plug.

Please read these notes carefully BEFORE using your

Tower appliance

Important Safety Information:

• Check that the voltage

of the main circuit

corresponds with the

rating of the appliance

before operating.

• If the supply cord or

appliance is damaged,

stop using the appliance

immediately and

seek advice from the

manufacturer, its service

agent or a similarly

qualiﬁed person.

• DO NOT let the cord

hang over the edge of a

table or counter or let it

come into contact with

any hot surfaces.

• DO NOT place the

appliance near a heat

source.

• •The use of accessory

attachments is not

recommended by the

appliance manufacturer

apart from those

supplied with this

product.

• DO NOT pull the plug

out by the cord as this

may damage the plug

and/or the cable.

• Switch off and

unplug before ﬁtting

or removing tools/

attachments, once

charged and before

cleaning.

• Close supervision is

necessary when any

appliance is used by or

near children.

• Children should not play

with the appliance.

• This appliance can

be used by children

aged from 8 years and

above and persons

with reduced physical,

sensory or mental

capabilities or lack

of experience and

knowledge if they have

been given supervision

or instruction

concerning use of the

appliance in a safe way

and understand the

hazards involved.

• Cleaning and user

maintenance should

not be undertaken

by children without

supervision.

• Take care when any

appliance is used near

pets.

• Not suitable for carpets

with long ﬁbres as the

bristles will damage the

ﬁbres.

• Keep the vacuum

cleaner moving over

the carpet surface

at all times to avoid

damaging the carpet

ﬁbres.

• DO NOT use this

product for anything

other than its intended

use.

• DO NOT immerse cords,

plugs or any part of the

appliance in water or

any other liquid.

• This appliance is for

household use only.

• DO NOT use the

appliance outdoors.

• DO NOT handle the

appliance or plug with

wet hands.

• Keep hair, loose

clothing, ﬁngers and all

body parts away from

moving parts.

• DO NOT use to pick up

hazardous or abrasive

liquids (solvents,

corrosive products,

detergents, etc),

ﬂammable liquids such

as alcohol, gasoline or

use in an area where

they might be present.

• DO NOT use the

appliance without the

dust container ﬁlter in

place.

• DO NOT pick up

anything that is burning

or smoking such as

cigarettes, matches or

hot ashes.

• DO NOT vacuum any

large, sharp, or broken

objects, such as pieces

of glass.

• DO NOT vacuum water

or any other liquid.

• Use extra care when

cleaning on stairs.

• Use only manufacturer’s

recommended

accessories.

• This product is ﬁtted

with a thermal cut-out,

which will activate if the

motor overheats due

to blocked air inlets. If

the appliance cuts out,

allow it to cool for 1 hour,

then empty the dust

container and clean all

of the ﬁlters.

• In the unlikely event

the appliance develops

a fault, stop using

it immediately and

seek advice from the

Customer Support

Team:

+44 (0) 333 220 6066

Before First Use:

Read all instructions and safety information carefully before ﬁrst use. Please retain this information

for future reference.

1. Remove the product from the box.

2. Remove any packaging from the product.

3. Please retain all packaging until you have checked and counted all the parts and the contents

against the parts list.

4. Charge the rechargeable battery

5. Dispose of the packaging in a responsible manner.

Charging the Unit:

1. This unit can be charged directly from the mains using the included mains adaptor.

2. Connect the adaptor’s jack to the unit’s charging port and plug the other end into an active

mains socket, ensuring the socket switch is turned to the ON position.

3. During charging the 3 LED indicators illuminate incrementally until all lights are illuminated.

4. To disconnect the battery from the unit press the battery release switch and slide the battery

up and away from the unit.

5. To replace the battery slide back in to place until there is an audible click.

Turning the Appliance ON/OFF and Speed Selection:

1. Once the appliance is fully charged, press the On/Off/Speed Selection button located on the

handle to turn the unit on. The unit will operate at the low speed setting.

2. Press the ON/OFF/Speed Selection button again while the unit is in operation to select the

turbo speed setting.

3. Press the ON/OFF/Speed Selection button again while operating at the turbo speed setting to

turn the unit off.

Using the Extension Pole:

1. To connect the pole to the vacuum cleaner, push it into the corresponding slot on the main

body of the unit until it locks into place.

2. To remove the extension pole and use the vacuum cleaner as a handheld cleaner, press the

extension pole release button on the main body of the unit and pull the pole away.

Using the Accessories:

This vacuum cleaner comes with a 2 in 1 Brush and Crevice tool and a Crevice Nozzle for vacuuming

corners and cleaning delicate surfaces and a turbo pet brush for upholstery and pet hair.

Note: Keep the brush free of ﬁbres, hairs, and other objects that could impede proper functioning.

Always remove these types of objects when the brush picks them up.

Connecting an accessory to the extension pole:

Attach the accessory to the end of the extension pole. Ensure the accessory clicks in to place and is

ﬁrmly connected before turning on the appliance, to prevent it from falling off whilst in use.

Connecting an accessory to the handheld unit:

Attach the accessory to the slot at the front of the main body of the unit until it clicks into place.

Removing Accessories:

To remove the accessory press the release button on the accessory tool and pull away from the

extension pole or main unit.

Note: Use only on short-haired carpet. It should NOT be used on long-haired carpets as the ﬁbres

will damage the system.

Interchangeable ﬂoor head brush bar:

Select the correct brush bar for the ﬂoor type:

• Soft brush for smooth, hard surfaces such as wood, ceramic, tiles and marble

• Hard brush for soft surfaces such as carpets and rugs

To change the brush bar:

• Slide the switch at the edge of the underside of the ﬂoor head and lift out the soft topped

retainer.

• Lift out the brush bar and replace with the required brush bar (keep the round edge to the

bottom and ﬂatter tabbed edge uppermost). Push down ﬁrmly.

• Place the tab of the retainer into the slot on the brush head and press down until the retainer

locks back in to place.

Note: Use only on short-haired carpet. It should NOT be used on long-haired carpets as the ﬁbres

will damage the system.

Troubleshooting

Problem Possible Solution

The vacuum will not

work Ensure the vacuum cleaner is fully charged.

Check that there are no blockages to the dust tank or ﬁlter and remove

as necessary.

This appliance is equipped with a motor protective thermo¬stat. If for

some reason it overheats, the thermostat will automatically turn the

suction motor off. Should this occur, allow it to cool for 1 hour, then

empty the dust container and clean all of the ﬁlters.

Vacuum will not

pick-up or suction

power is weak

The dust container may be full, or the ﬁlter may require cleaning. Empty

the dust container and clean the ﬁlter.

There may be blockages in the ﬁlter or dust tank. Check for blockages

and clean the ﬁlter and dust tank.

Dust is escaping from

the vacuum The ﬁlter may installed incorrectly, or the dust container may be full.

Empty the dust container and reassemble the ﬁlter system.

There is a strange

noise coming from

the vacuum.

The airﬂow may be restricted or blocked. Check for blockages and clean

the ﬁlter and pole.

Cleaning & Care

Emptying the Dust Tank:

Hold the unit over a bin and press the dust quick release button. Empty the

contents of the dust tank. Once empty, push the cover back into place until

there is an audible click.

Cleaning the Filter:

1. Press the ﬁlter release button to open the ﬁlter housing.

2. Remove the ﬁlter from the dust tank.

3. Tap it lightly against a dustbin or sink to remove particles.

4. Wash the ﬁlter regularly to ensure maximum suction

performance. Allow to dry thoroughly before replacing it

into the unit.

Cleaning the Unit Body:

1. Before cleaning the unit body, ensure the unit is disconnected from the mains supply and not

in operation.

2. Use a damp cloth to clean the unit body. Never use any abrasive cleaning materials or solvents,

as these could cause damage to the surface of the unit.

WARNING! DO NOT allow any liquids into the unit, as this could cause damage to the electrical

components and cause it to malfunction.

Cleaning the Interchangeable ﬂoor head brush bar:

Remove the brush bar.

Remove ﬂuff, hairs and other dirt from the brush.

Reﬁt the brush bar.

Clearing Blockages:

If the dust tank is overﬁlled, the ﬁlter is clogged up, or the vacuum picks up a larger piece of debris,

the vacuum may become clogged.

Should this occur, carry out the following steps to unclog the vacuum:

1. Check the dust tank and empty it if necessary.

2. Check the ﬁlter for any debris and rinse it under running water if necessary, as detailed in the

sections above.

3. Detach any attachments from the unit and check for blockages.

Storing the Appliance:

1. Store the appliance in a cool, dry place, preferably inside its original packaging, and out of the

reach of children.

Notes

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tower Hobbies Aspirateur

Tower Hobbies

Tower Hobbies VL30 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies CP10 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies RHH11 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies T113000 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies RXEC10 Manuel utilisateur

Tower Hobbies

Tower Hobbies XP10PET Manuel de l'opérateur

Tower Hobbies

Tower Hobbies F1PRO PERFORMANCE Manuel de l'opérateur

Tower Hobbies

Tower Hobbies F1PRO 29.6V Manuel de l'opérateur

Tower Hobbies

Tower Hobbies RXP10 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies T527000 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies PERFORMANCE PET VL50PRO Manuel utilisateur

Tower Hobbies

Tower Hobbies TCWS AQUAJET PLUS Manuel utilisateur

Tower Hobbies

Tower Hobbies ZT1PRO Manuel de l'opérateur

Tower Hobbies

Tower Hobbies T113003BLG Manuel utilisateur

Tower Hobbies

Tower Hobbies SC70 Manuel utilisateur

Tower Hobbies

Tower Hobbies XEC10 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies T513001BLG Manuel utilisateur

Tower Hobbies

Tower Hobbies TXP30 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies VL100 OPTIMUM Manuel utilisateur

Tower Hobbies

Tower Hobbies XSV50 Manuel utilisateur

Tower Hobbies

Tower Hobbies ZT40 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies T113002 Manuel de l'opérateur

Tower Hobbies

Tower Hobbies T28003BM Manuel de l'opérateur

Tower Hobbies

Tower Hobbies VL30 Manuel de l'opérateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
