HDMI 1.3 Extender over Signal

CAT5/CAT6 Cable

Model #: HDMI-C5-3-SET

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 5

1.6 Before Installation.................................................................................................................. 5

1.7 Panel Description................................................................................................................... 6

1.8 Installation ............................................................................................................................. 9

1.9 EDID Learning......................................................................................................................... 9

1.10 General Troubleshooting ..................................................................................................... 10

Section 2: Specifications....................................................................................................................... 10

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The HDMI-C5-3-SET, HDMI 1.3 Extender over Signal CAT5 has been tested for conformance to safety

regulations and requirements, and has been certified for international use. However, like all electronic

equipments, the HDMI-C5-3-SET should be used with care. Read the following safety instructions to protect

yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

The Avenview HDMI-C5-3-SET HDMI 1.3 over Single CAT5 Extender boosts up your video/audio transmission

distance up to 60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV

1080p with 36 bit color depth. With only one cost effective LAN cable, users can easily extend HDTV sources

from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI sources compliant with TMDS to distant

display monitors including HDMI/DVI enabled TV sets or LCD PC monitors. With the state-of-the-art Silicon

Image chipsets equipped, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP supports and

compatibility are all further insured. This flexibility makes HDCP compliant DVD players or PS3 transmit utmost

high quality video and audio with a greater distance at the minimal cost, when integrating several components

apart.

The HDMI-C5-3-SET consists of Transmitter (HDMI-C5-3-S) and Receiver (HDMI-C5-3-R). The Transmitter

(HDMI-C5-3-S) captures the input HDMI/DVI signals and carry the signals through one RJ-45 connector into

one cost effective CAT-5/5e/6 LAN cable. The Receiver (HDMI-C5-3-R) equalizes the sent TMDS multimedia

data. The transmission distance between the sending and receiving units can be up to 60m (200ft) under HD

(720p/1080i) or 40m (130ft) under Full HD (1080p). With an 8-level equalization control knob on the receiving

unit, users can adjust the equalization strength to the received TMDS signals accordingly, and therefore

optimize the transmission distance between source and destination.

-Silicon Image chipset embedded for best compatibility and reliability HDMI video input supports up to

1080p resolution

-HDMI 1.3c Compliant

-HDCP 1.1 compliant

-Extend the transmission length up to 60m (200ft) from the HDMI sources under HD resolution (1080i

or 720p at 8 bit color depth)

-Extend the transmission length up to 40m (130ft) from the HDMI sources under Full HD resolution

(1080p at 8 bit color depth)

-Extend the transmission length up to 20m (65ft) from the HDMI sources under Full HD resolution

(1080p at 12 bit color depth)

-Minimize the cable skew by adjustable 8-level equalization control

-Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission

-DTS-HD and Dolby True HD high bit rate audio support

-Allows cascading

-Perfectly integrated with other HDMI-C5-3 Series products

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-HDMI-C5-3-S x 1

-HDMI-C5-3-R x 1

-Power Adapter (+5VDC, 4A) x 1

-User’s Manual x 1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

1.7 Panel Description

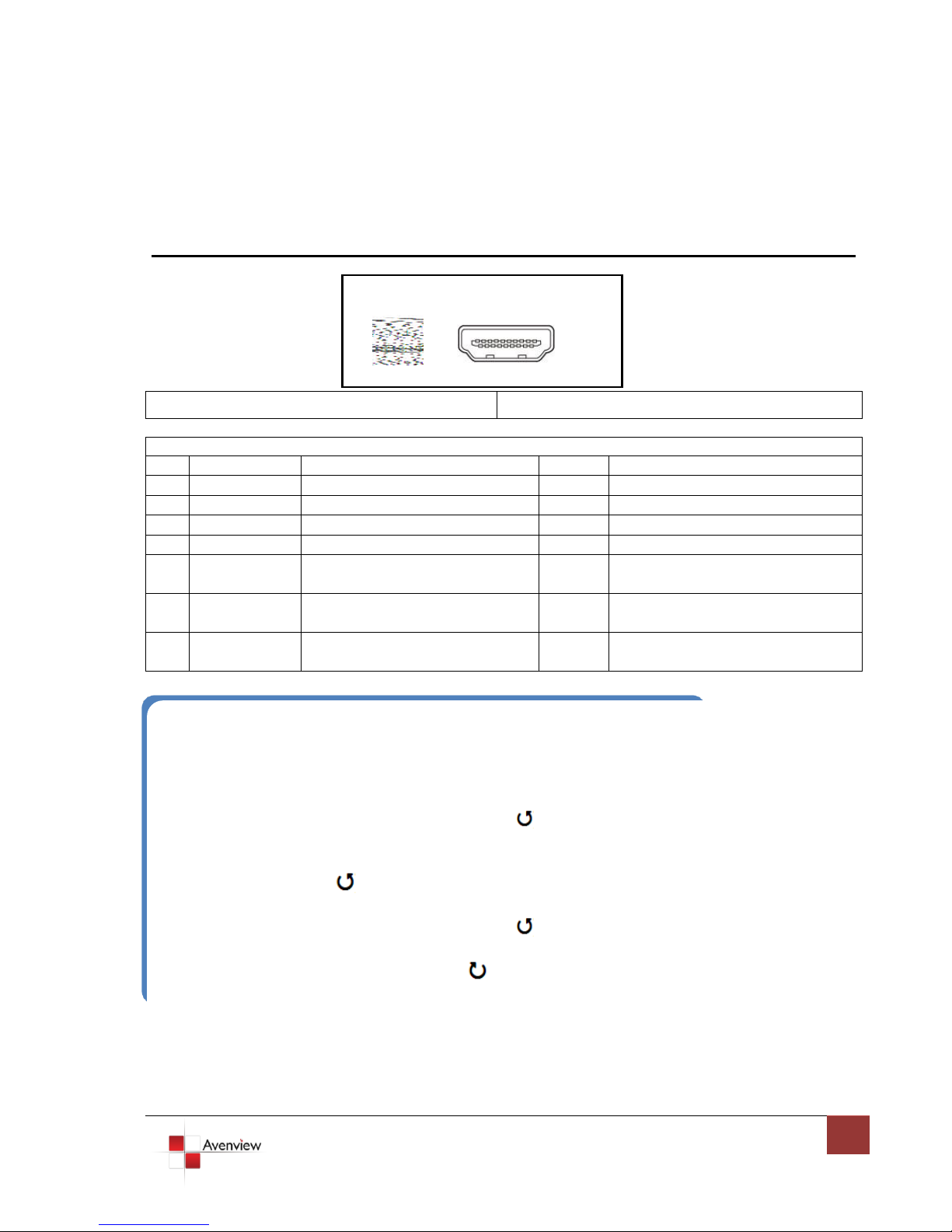

FRONT PANEL (Transmitter, HDMI-C5-3-S)

1. Rotary Switch

2. HDMI Input

Rotary Mode SWITCH

VIDEO

Supports up to HDMI 1.3 Output

AUDIO

Supports up to 7.1 Channel Output

VIDEO

Supports up to HDMI 1.3 Output

AUDIO

Locks to Stereo Audio Output

VIDEO

Locks to HDMI 1.2 Output

AUDIO

Supports up to 7.1 Channel Output

VIDEO

Locks to HDMI 1.2 Output

AUDIO

Locks to Stereo Audio Output

VIDEO

DVI Display Mode

AUDIO

No Audio Output

Safe Mode

Uses default EDID with video

supports up to 1080p

AUDIO

Stereo Audio

Default Mode

Uses default EDID with video

supported up to 1080p

AUDIO

7.1 Channel

EDID Learning

Mode

Learns EDID from Display

HDMI-IN

Mode

Note for EDID (Extended Display Identification Data) learning

1. If you cannot get the audio/video output from the connected display from the first time setup. Please

follow the instructions below to check if the extender is OK:

Step 1 –Please set the rotary arrow on Transmitter at “Mode 5” for Safe Mode, and wait for the LED of the

RJ-45 connector blinks for a couple seconds.

Step 2 –Please turn the rotary arrow counterclockwise [ ] from Mode 5 to Mode 3. If you can get

audio/video from the display, you can stay tune at this setting for 720p or 1080i and stereo

audio. If you need to get 720p/1080i with 7.1ch audio output, please turn the rotary arrow

counterclockwise [ ] from Mode 3 to Mode 2. For better audio/video output, please check

Note#2. If you still cannot get the audio/video out normally, please go on the next step.

Step 3 –Please turn the rotary arrow counterclockwise [ ] from Mode 3 to Mode 7. Wait a few

seconds until the LED of the RJ-45 connector dims and then lights again.

Step 4 –Please turn the rotary arrow clockwise [ ] from Mode 7 to Mode 1. You should have normal

audio/video output. If not, please contact technical support.

2. For desirable 1080p video output, please follow the instructions below:

Step 1 –Please set the rotary arrow at “Mode 6” for Default Mode, and wait for the LED of the

RJ-45 connector blinks for a couple of seconds.

Note for EDID (Extended Display Identification Data) learning continued:

Step 2 –Please turn the rotary arrow clockwise [ ] from Mode 6 to Mode 1. If you can get audio/video

from the display, you can stay tune at this setting for 1080p and stereo audio. If you need to get 1080p

with 7.1ch audio output, please turn the rotary arrow counterclockwise [ ] from Mode 1 to Mode 0. If

you cannot get the audio/video out normally, please go to next step.

Step 3 –Please turn the rotary arrow counterclockwise [ ] from Mode 0/1 to Mode 7. Wait a few

seconds until the LED of the RJ-45 connector dims and then lights again.

Step 4 –Please turn the rotary arrow clockwise [ ] from Mode 7 to Mode 0/1. You should have your

desirable audio/video output. If not, please follow the instruction in Note#1.

3. To learn EDID from the HDMI display, please follow the instruction below:

Step 1 –Please connect the display which you want to read EDID with a HDMI cable to the transmitter’s

HDMI IN and set the rotary arrow at Mode 7 so the TX can learn the EDID information from the connected

display. The LED on the RJ45 connector of TX will dim and light again in a few seconds, which indicates the

EDID learning procedure, is complete.

Step 2 –Please turn the rotary arrow clockwise [ ] from Mode 7 to Mode 0 or Mode 1 for desirable

audio setting and enjoy the experience. DO NOT let the rotary arrow pass by Mode 5 and Mode 6 which

will erase the EDID just learned and restore the default EDID.

REAR PANEL (Transmitter, HDMI-C5-3-S)

1. 5V 4A DC Power Connector

2. RJ45 Out

FRONT PANEL (Receiver, HDMI-C5-3-R)

1. Rotary Switch

2. HDMI Out

REAR PANEL (Receiver, HDMI-C5-3-R)

1. 5V 4A DC Power Connector

2. RJ45 In

RJ45-OUT

+5V DC

HDMI-OUT

EQ: Adjust the 8-level equalization control knob to the received HDMI signals.

0 –7 = Strongest –Weakest.

It is recommended to switch from 7 to 0 to find the optimal visual experience.

RJ45-IN

+5V DC

1.8 Installation

To setup Avenview HDMI-C5-3-SET follow these steps for connecting to a device:

1. Connect your HDMI/DVI source (such as a Blu-ray Disc player) to Transmitter (HDMI-C5-3-S).

2. Connect your HDMI/DVI display (such as a LCD TV) to the receiving unit HDMI-C5-3-R.

3. Connect your CAT-5/5e/6 LAN cable between the transmitting and receiving units.

4. Make sure CAT-5/5e/6 LAN cable is tightly connected and not loose.

5. Plug in 5V DC power cord to the power jack of the receiving unit HDMI-C5-3-R.

6. Plug in 5V DC power cord to the power jack of the transmitting unit HDMI-C5-3-S.

1.9 EDID Learning

To learn EDID from the monitor/TV following these steps

1. Turn on HDMI-C5-3-S.

2. Turn the Mode of HDMI-C5-3-S counterclockwise from 0 (for surround sound) or 1 (for stereo) to 7.

3. Use a HDMI cable to connect HDMI-C5-3-S & the display (better not connect to video source). The

LED on the RJ-45 of HDMI-C5-3-S will dim and light again, which indicates the EDID learning process is

finished.

4. Turn the Mode of HDMI-C5-3-S clockwise from 7 to 0 (for surround sound) or 1 (for stereo).

5. Connect HDMI-C5-3-S and the video source through a HDMI cable and enjoy the experience.

If a flickering or a blinking image is seen, try to adjust the rotational switch to improve the cable

skew. 0 stands for the strongest EQ while 7 stands for the weakest. Try adjusting the EQ from 7 to 0

The most important thing is don’t let the rotary arrow pass through 6 which will erase the EDID just

learned and restore to default EDID.

1.10 General Troubleshooting

Problem

Possible Solution

No Image

Check if connection to the source and the display are correct.

Ensure that display device supports 480p, 720p and 1080p

resolution

Screen Defects Appear

This product supports up to 1080p (1920x1200) resolution.

Check the DVI and HDMI connection

If outputting from a PC. Check the maximum resolution range

of the graphics card.

Section 2: Specifications

Item

Description

Units

HDMI-C5-3-S

HDMI-C5-3-R

Unit Description

HDMI 1.3 Transmitter

HDMI 1.3 Receiver

HDMI Compliance

HDMI 1.3c

HDCP Compliance

Yes

Video Bandwidth

Single Link 340 MHz (10.2Gbps)

Supported Resolutions

480i / 480p / 720p / 1080i / 1080p60

Resolution and Distance

(8-bit)

Full HD: (1080p) ~40meter (130feet) (CAT5e) / 50meter (165feet) (CAT6)

HD: (720p/1080i)-50meter (165feet) (CAT5e) / 60meter (200feet) (CAT6)

Audio Support

Surround Sound (up to 7.1 Ch) or Stereo Digital Audio

Equalization

8 Level Digital Control

Input TMDS Signal

1.2 Volts (peak-to-peak)

Input DDC Signal

5 Volts (peak-to-peak, TTL)

ESD Protection

-Human body model —±15kV (air-gap discharge) & ±8kV (contact discharge)

- Core chipset —±8kV

Input

1 x HDMI

1 x RJ45

Output

1 x RJ45

1 x HDMI

HDMI Connector

Type A (19 pin female)

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

Rotary Switch

Mode

Dimensions

3.3” X 2.4” x 1” (L x W x H)

Power Supply

5V 4A DC

Power Consumption

1 Watt (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Tempearture

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

Table des matières

Autres manuels Touchboards Extenseur

Touchboards

Touchboards CS-HDSCOAX Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
