OPERATING MANUAL
ERGONOMIC STACKER
SLRSE0008
Original operating
manual
07/2023 – V01
2/28
© 07-2023. TVH®and TotalSource®are registered trademarks. TVH Parts NV, Brabantstraat 15, B-8790 Waregem. All rights reserved. No
part of this publication may be reproduced or communicated in any form or by any means, electronic or mechanical, including copying,
recording or use in an information storage or retrieval system, without prior and explicit permission of TVH Parts NV. Printing errors reserved.
Photographs and illustrations are included for reference purposes only.Responsible editor: TVH Parts NV, Brabantstraat 15, BE-8790 Waregem.
TVH is a supplier of after-market spare parts and accessories that are suitable for the maintenance and repair of OEM-equipment.
3/28
www.tvh.com/SLRSE0008_RV02
BG Bulgarian Можете да намерите това ръководство на Вашия език чрез линка, посочен по–
долу.
CS Czech Tento návod najdete ve svém jazyce prostřednictvím odkazu níže.
DA Danish Du kan finde denne vejledning på dit sprog via nedenstående link.
DE German Sie finden diese Bedienungsanleitung in Ihrer Sprache unter folgendem Link.
EL Greek Μπορείτε να βρείτε αυτό το εγχειρίδιο στη γλώσσα σας μέσω του παρακάτω
συνδέσμου.
EN English You can find this manual in your language via below link.
ES Spanish Encontrarás este manual en su propio idioma a través del siguiente enlace.
ET Estonian Oma emakeelse juhendi leiate allolevalt lingilt.
FI Finnish Löydät tämän manuaalin omalla kielelläsi alla olevan linkin takaa.
FR French Vous trouverez ce manuel dans votre langue via le lien ci-dessous.
GA Irish Tá an lámhleabhar seo ar fáil i do theanga tríd an nasc thíos.
HR Croatian Ovaj prirucnik mozete pronaci na svom jeziku putem donjeg linka.
HU Hungarian Ez a kézikönyv az Ön nyelvén az alábbi link alatt található.
IS Icelandic Hægt er að finna þessa handbók á þínu tungumáli á tenglinum hér að neðan.
IT Italian Cliccando sul link sottostante troverai il manuale nella tua lingua.
LT Lithuanian Šį vadovlėlį savo kalba rasite spustelėję žemiau esančią nuorodą.
LV Latvian Rokasgrāmatu latviešu valodā Jūs varat atrast izmantojot zemāk esošo saiti.
MT Maltese Tista’ ssib dan il-manwal bil-lingwa tiegħek permezz tal-link ta’ hawn taħt.
NL Dutch Je vindt deze handleiding in jouw taal via onderstaande link.
NO Norwegian Du finner denne håndboken på ditt språk via linken nedenfor.
PL Polish Niniejsza instrukcja obsługi dostępna jest w Twoim języku za pośrednictwem
poniższego linku.
PT Portuguese Pode encontrar este manual no seu idioma através do link abaixo.
RO Romanian Puteți găsi acest manual în limba dvs. prin link-ul de mai jos.
SK Slovak Manuál vo vašom jazyku môžete nájst v priloženom vysvietenom riadku.
SL Slovenian Ta priročnik najdete v svojem jeziku preko spodnje povezave.
SV Swedish Du kan hitta denna manual på ditt språk via länken nedan.
TR Turkish Bu kılavuzu aşağıdaki bağlantıdan kendi dilinizde bulabilirsiniz.
4/28
Thank you for using our product. For your safety and to ensure a correct operation, we would
like to bring to your attention some aspects of this manual:
• This booklet supplies useful instructions for the correct operation and maintenance of the
product. It is therefore necessary to pay the utmost attention to all of the paragraphs that
illustrate the most simple and secure way to operate and use this product.
• This booklet must be considered an integral part of the machine and must be included
with the deed of sale.
• Neither this publication, nor part of it, can be reproduced without written authorisation on
the part of the manufacturer.
• All of the information reported herein is based on data available at the moment of printing;
the manufacturer reserves the right to carry out modifications to its own products at any
moment, without notice and without incurring in any sanction. It is therefore suggested to
always check for possible updates.
The person responsible for the use of the product must make sure that all of the safety rules
in force in the country of its use are applied, to guarantee that the equipment is used in
conformity with the use for which it is destined and to avoid any dangerous situation for the
user.

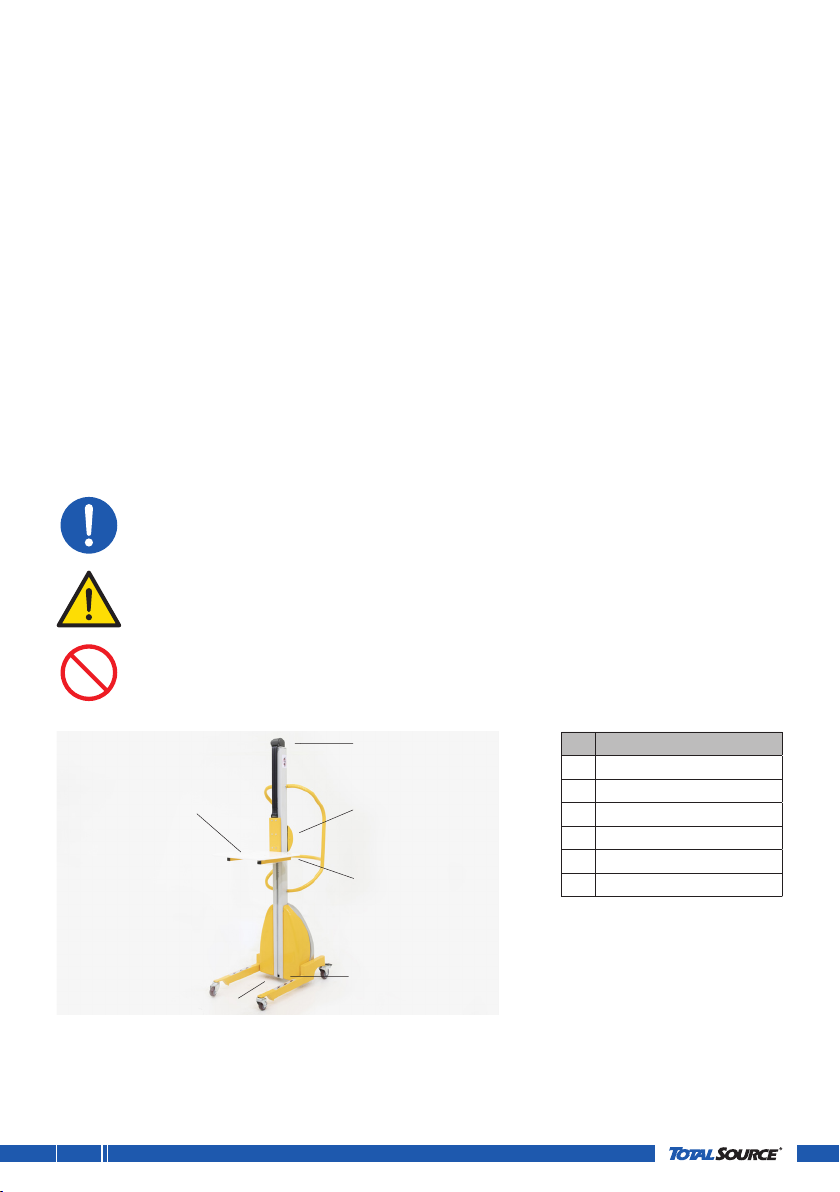

The following warning signs are used in this manual to warn you for dangers and risks:
Informative, be careful.
Warning, can lead to injury and damage if instructions aren’t followed.
Danger, can lead to serious or fatal injury and serious damage if instructions
aren’t followed.
N°
1 Right
2 Left
3Front
4 Back
5Top
6 Bottom
14
3
5
2
6
5/28
TABLE OF CONTENTS
1. INTRODUCTION..................................................................................... 6
2. DESCRIPTION....................................................................................... 7
2.1 Technical data .......................................................................................7
2.2 Main components of the product.................................................................8
2.3 Placement of the decals...........................................................................9
2.4 Type plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3. SAFETY INSTRUCTIONS.........................................................................11
3.1 General safety instructions ......................................................................11
3.2 Safety instructions for the use of batteries ...................................................12
4. TRANSPORT AND STORAGE ....................................................................13
4.1 Parking the ergonomic stacker .................................................................13
4.2 Transporting the stacker .........................................................................14
5. ASSEMBLY AND INSTALLATION ...............................................................15
5.1 Packing list..........................................................................................15
5.2 Safety instructions.................................................................................15
5.3 Required materials for assembly ...............................................................15
5.4 Assembly of the product..........................................................................15
6. OPERATION.........................................................................................16
6.1 Safety instructions for operating the product ................................................16
6.2 Operating instructions ............................................................................17
7. MAINTENANCE ....................................................................................19
7.1 Safety instructions for the maintenance of the product....................................19
7.2 Maintenance schedule............................................................................19
7.3 Maintenance instructions ........................................................................19
8. TROUBLESHOOTING .............................................................................21
9. TEMPORARILY OUT OF ORDER.................................................................23
9.1 Decommissioning the ergonomic stacker ....................................................23
9.2 Use of the ergonomic stacker after temporary decommissioning........................23
10. FINAL DECOMMISSIONING AND DISPOSAL ................................................23
11. ANNEXES ...........................................................................................24
6/28
1. INTRODUCTION
This manual contains all the necessary information on the installation and operation of the
semi-electrical ergonomic stacker. Some of the maintenance operations should only be
carried out by professional technicians.
If you require this information and the maintenance steps, please contact your dealer.
Also included in this manual are a number of safety instructions to create a safe working
environment.
The ergonomic stacker is a semi-electric stacker designed to lift and transport goods
on level surfaces. The ergonomic stacker lifts electrically and drives manually. Suitable
ambient temperature is 5 °C up to 40 °C.
This ergonomic stacker may be unsafe if adequate maintenance is neglected.
Therefore, adequate maintenance facilities, trained personnel and procedures
should be provided.
Maintenance and inspection shall be performed in conformity with the following
practices:
1. A scheduled planned maintenance, lubrication and inspection system should be
followed. (See maintenance instructions in chapter 7).
2. Only qualified and authorised personnel shall be permitted to maintain, repair,
adjust, and inspect the ergonomic stacker.
3. Modifications and additions which affect capacity and safe operation shall not
be performed by the customer or user without the manufacturer’s prior written
approval. Capacity, operation and maintenance plates or decals shall be changed
accordingly.
4. If modifications are made without the written approval of the manufacturer, the
warranty will no longer apply.
We guarantee a long period of trouble-free operation if the unit is operated and
maintained correctly.
7/28
2. DESCRIPTION

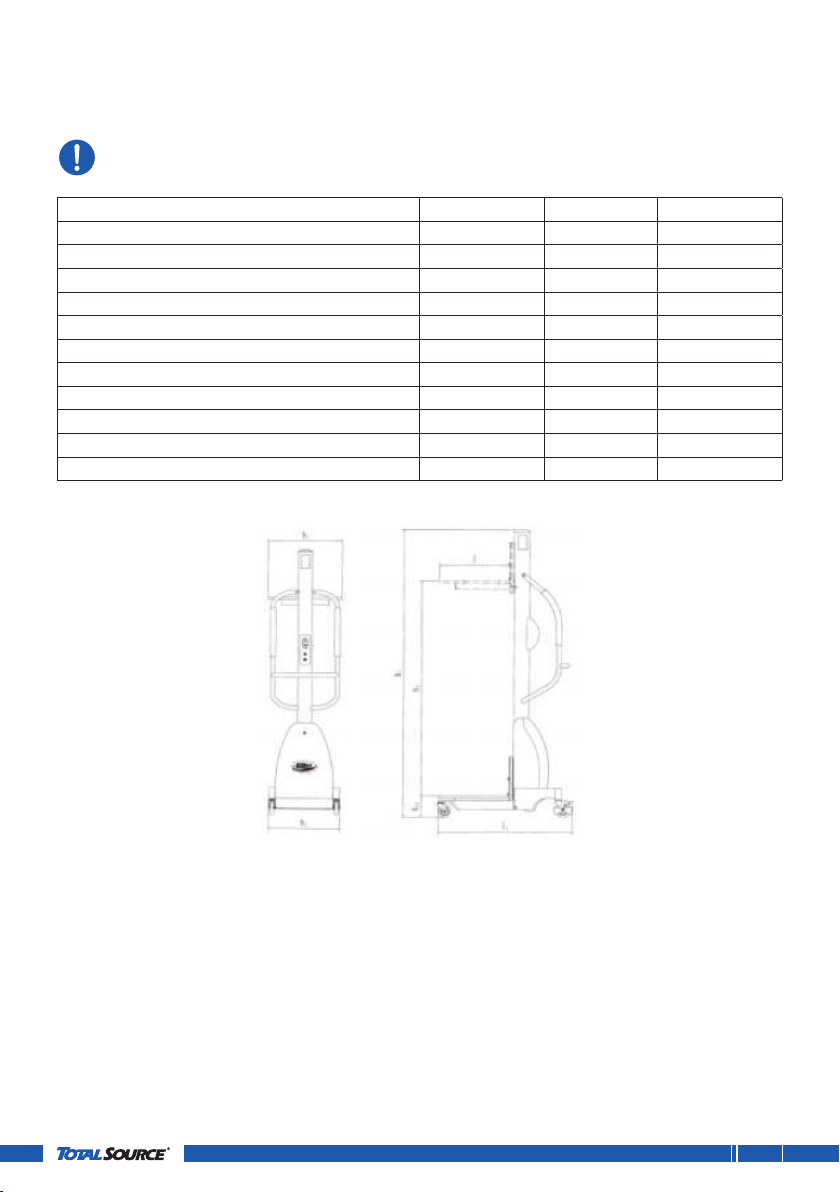

2.1. Technical data
Always check the type plate for the correct information.
Model 127TA3160 165TA8072 165TA8071
Edition With platform With 2 booms With 1 boom
Load capacity (kg) 150 150 150
Lifting height (mm) 1420 1420 1420
Minimum height (mm) 1958 1958 1958
Platform dimensions (L X W) (mm) 460 x 520 N/A N/A
Total width of the ergonomic stacker (mm) 520 520 520
Lenght of the booms (mm) N/A 460 460
Number of wheels 4 4 4
Material of the wheels Polyurethane Polyurethane Polyurethane
Weight (kg) 58 58 58
Type of charger External External External
8/28
2.2. Main components of the product
N° Component
1 Handle
2Operating panel
3Motor compartment
4Rear wheels with brake
5Front wheels
6Support legs
7 Platform
8 Booms
9Lifting belt
91
2
7
3
4
6
8
5
9/28
2.3. Main components of the product
The safety and warning labels should be placed as described in the pictures below. See
chapter 3 for the explanation of the safety warnings. If the decals are damaged or missing,
replace them.
N° Decal Explanation Reference
1Max load capacity
2Do not step under
the ergonomic
stacker.
3Brand decal 166TA2311
4Type
Manufactured outside the EU for:
TVH PARTS NV
Brabantstraat 15 • 8790 Waregem • Belgium
Imported in the UK by TVH UK
National Distribution Centre • Zortech Avenue
Kidderminster, Worcestershire • DY11 7DY
xxxxxx Fork length xxxx mm
Serial n° xxxxxx Total width xxx mm
Capacity xxxx kg Lifting height xxx
Net weight xx kg Year of manufacturing xxxx
1 6
7
8
9
10
2
3
4
11
5
Type plate Please
contact your
dealer
5Do not stand on the
forks
2
21
3
4
5
5
5
10/28
2.4. Type plate
Type
Manufactured outside the EU for:
TVH PARTS NV
Brabantstraat 15 • 8790 Waregem • Belgium
Imported in the UK by TVH UK
National Distribution Centre • Zortech Avenue
Kidderminster, Worcestershire • DY11 7DY
xxxxxx Fork length xxxx mm
Serial n° xxxxxx Total width xxx mm
Capacity xxxx kg Lifting height xxx
Net weight xx kg Year of manufacturing xxxx
1 6
7
8
9
10
2
3
4
11
5
N° Component
1 Type
2Serial number
3 Capacity
4 Weight
5Name and address of the
manufacturer
6Total length
7Total width
8Lifting height
9Year of manufacture
10 UKCA logo
11 CE logo
