Toshiba M-5010 Manuel utilisateur

ivusl

SHOULD YOUR UNIT REQUIRE SERVICE, PLEASE REFER

TO "TOSHIBA SERVICE PROCEDURE" ON BACK COVER.

Thank you for purchasing the Toshiba M-5010 Video Cassette Recorder. It will accept any VHS

cassette tape and can be used to record TV programs with its built-in tuner or to make home video

shows with a Toshiba video camera. However, before using the unit, please read this owner's

manual carefully to ensure optimum, trouble-free performance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-

POSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS

HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT

OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSON-

NEL ONLY.

Record in the spaces provided below the Model and Serial No. located at the rear of your video

cassette recorder.

Model No. Serial .No.

Retain this information for future reference

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR SACK). NO USER-SER-

VICEABLE PARTS INSIDE. REFER SER-

VICING TO QUALIFIED SERVICE

PERSONNEl.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to

the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of suffi-

cient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle

is intended to alert the user tothe presence of impor-

tant operating and maintenance (servicing) instruc-

tions in the literature accompanying the appliance.

( ACCESSORIES )

Check to make sure that the following accessories before disposing of the packing materials.

(_ ANTENNA CABLE (_) 300 ohm/75 ohm

(_) CHANNEL NUMBER

SHEET

MATCHING TRANS-

FORMER

(_) SAFETY

INSTRUCTIONS

(_) 300 ohm

TWIN-LEAD CABLE

(_) REMOTE CONTROL

UNIT (Wireless)

WITH BATTERIES

2 PCS. "AA" SIZE

(_) QUICK REFERENCE

CARD

(_ 75-300 ohm

MATCHING

TRANSFORMER

NOTE:ThisVideoCassetteRecorderis compatiblewithanyVideoCassetteRecorderbearing

the1_ mark.

Save the original shipping carton and packing materials; they will come in handy if you ever have

to ship your VCR. For maximum protection, repack the set as it was originally packed at the

factory.

(TABLE OF CONTENTS

ANTENNA CONNECTION ...................................................... 3

SET YOUR TELEVISION TO THE VCR CHANNEL ............................. 4

NORMAL TV VIEWING ........................................................ 4

IDENTIFICATION OF CONTROLS ............................................. 5

SETTING THE PRESENT TIME ................................................ 7

CHANNEL SELECTION ....................................................... 8

VIDEO CASSETTE ............................................................ 9

RECORDING A TV PROGRAM ................................................ 10

PLAYBACK ................................................................... 11

OTHER PLAYBACK MODES .................................................. 12

Slow playback .............................................................. 12

Still picture ................................................................. 12

Picture search .............................................................. 1 2

PROGRAMMABLE TIMER ..................................................... 13

SETTING THE PROGRAMMABLE TIMER ...................................... 14

OI_E TOUCH TIMER RECORDING ............................................. 16

REMOTE CONTROL OPERATION ............................................. 18

CAMERA RECORDING ........................................................ 19

BEFORE CALLING SERVICE PERSONNEL .................................. .. 20

SPECIFICATIONS ............................................................. 21

)

1. One touch timer recording function.

2. Quick search.

3. Slow and still picture.

4. 1 17 channels cable compatibility.

5. Auto rewind facility.

6. Electronic Counter.

7. Electronic Tuner.

(ANTENNA CONNECTION

(_) ANTENNA CABLE

(_) 300 ohm/75 ohm

MATCHING TRANS-

FORMER

(_) 300 ohm

TWIN-LEAD CABLE (_) 75-300 ohm

TRANSFORMER

1. Remove the Antenna Cable from the TV set. Connect itto the "VHF IN", "UHF IN" Terminal of the VCR.

2. Connect one end of the Antenna Cable and Twin-lead cable to the "VHF OUT", "UHF OUT" Terminal of the

VCRo

3. Connect the other end to the "VHF", "UHF" Terminal of the TV.

VHF Antenna UHF Antenna

(A) L(B)

300 ohm

to 75 ohm

Transformer

(supplied)

FConnector

UHF

Twin-Lead

Cable

(supplied)

VHF

TV Set

O0 O0

t t

_ni: iqS:neSiegn:dte_t;nmeatnh?cMaideBsaend:nndSuper-

75 ohm-

300 ohm

Matching

Transformer

(supplied)

• If you are unable to use the

Coaxial Cable with one-touch

Type F connector, use a 75

ohm-300 ohm matching

transformer.

Coaxial Cable with one-touch

type F connector (supplied)

AC 120V, 60Hz

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV system installer's attention to Article 820-22 of the NEC that

provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be con-

nected tothe grounding system of the building, as close to the point of cable entry as practical.

In the above configuration, you can record programs from CATV channels as well as VHF channels 2 through

13. You can record programs from 117 CATV channels except scrambled channels.

(SET YOUR TELEVIS

CHANNEL

1. Set your TV to channel 3unless channel 3 is one of the TV stations in your area. If channel 3 is used in your

area, set your TV to channel 4 and slide the VCR/VHF OUTput Channel Selector toward channel 4. The

VCR/VHF OUTput Channel Selector is located on the rear panel at left side of the antenna connector. This is

the VCR channel on your television set. Your television receiver must be tuned to this channel any time a

video cassette is played ba(:k on the VCR.

VCR/VHF OUTput

Channel Selector

VCR

II 1111111111111111rrll 1111111111111111

1111111111111111

D2J rrrrrrrr t111111111111111

Ch 3 or Ch 4

2. Plug the VCR power cord into a 120V electrical outlet and press the "POWER" button. The "POWER" lamp

will light. The clock will flash repeatedly. This is not a malfunction (see page 7).

3. Press the "TV/VCR" button. The VCR lamp will light. Select an active TV channel by pushing the VCR Chan-

nel Selector Buttons. The picture fromthat channel should now be displayed on your television.

Power ON Ch 3 or Ch 4TV/VCR Button

(NORMAL TV VIEWING )

1. Turn ON your TV receiver. There is no need to turn the POWER switch ofVCR ON.

2. Tune your TV receiver to the channel you want to watch.

* The TV/VCR button should be set to TV position (The VCR Indicator lamp goes OFF.) if the POWER button is

turned ON.

(IDENTIFICATION OF CONTROLS

(FRONT) When acassette is

inserted, the flap appears

with the display as

shown below. Cassette Compartment

EJECT Button

POWER Button M

Channel Indicators

Channel Selector Buttons

'_7

TIMER SELECTOR

(CLOCK, START, END) Switch

CAUTION

Never operate the machine right after

having transported it from a cold loca-

tion directly to a warm location.

Wait for about two hours.

This is because, in such a case, mois-

ture may condense on the head cylin-

der inside the machine.

The tape will tend to stick to the

head cylinder and will be damaged.

FRONT LOMmNG SYSTEM

-l_._rfl._,@.@_

|iIRI

I--. ._J

RECORD MODE Switch

"SET"Is_T_Butt°n s__a,

TIMER Button

L"CLEAR"

Button

"MIN" Button

"HOUR" Button

"DAY" Button

"PGM" Button

4,V.T,,O.Y I=" Oi TOSHIBA

1?CHANNEL

_BIm m

TV/VCR Button

EP Speed Indicator

Indicates EP in REC and PLAY modes.

RESET Button

Used to set the tape counter to the "0000"

position in counter display.

TIMER/COUNTER Button

Used to change the clock display

and the counter display.

Cassette Indicator Lamp

TIMER/COUNTER Display

PLAY Button

Button

(FORWARD PICTURE SEARCH)

REW Button

(REVERSE PICTURE SEARCH)

PAUSE/STILL Button

STOP Button

Infrared Remote Control Receiver

REC Button

OTR (One Touch Record)

Button

TRACKING Control Knob

When noise stripes occur on the playback picture,

turn this knob to the right or left to minimize the

noise.

EAR)

VIDEO IN jac

AUDIO IN

VHF IN terminal

UHF IN terminals

AC OUTLET

This terminal supplies AC power (120V

AC 60 Hz 400W MAX.)

Power is supplied regardless of the power

switch on or off.

1111111

AUDIO OUT jack

VIDEO OUT jack

VCR/VHF OUTput Channel Selectol

, VHF OUT terminal

cord

UHF OUT terminals

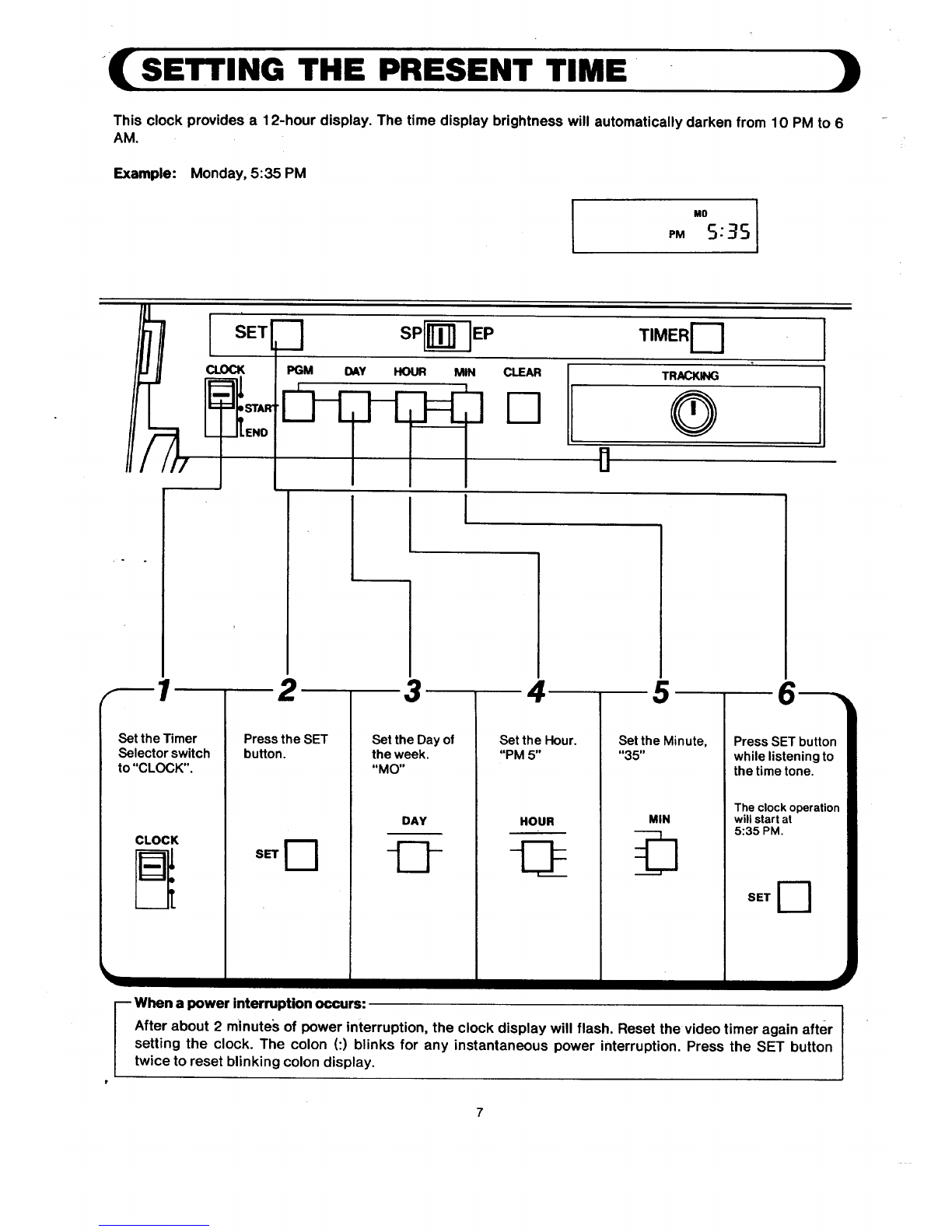

'(SETTING THE PRESENT TIME )

This clock provides a12-hour display. The time display brightness will automatically darken from 10 PM to 6

AM.

Example: Monday, 5:35 PM

SET[_ SP_--" EP

;LOCK I PGM DAY HOUR MIN CLEAR

TIMERr" _

TRACKING

_1 2 3 4 5 6---',

Set the Timer

Selector switch

to "CLOCK".

CLOCK

Press the SET

button. Set the Day of

the week.

"MO"

DAY

Set the Hour.

"PM 5"

HOUR

Set the Minute,

"35"

MIN

Press SET button

while listening to

the time tone.

The clock operation

will start at

5:35 PM.

When a power interruption occurs:

After about 2 minute,s of power interruption, the clock display will flash. Reset the video timer again after

setting the clock. The colon (:) blinks for any instantaneous power interruption. Press the SET button

twice to reset blinking colon display.

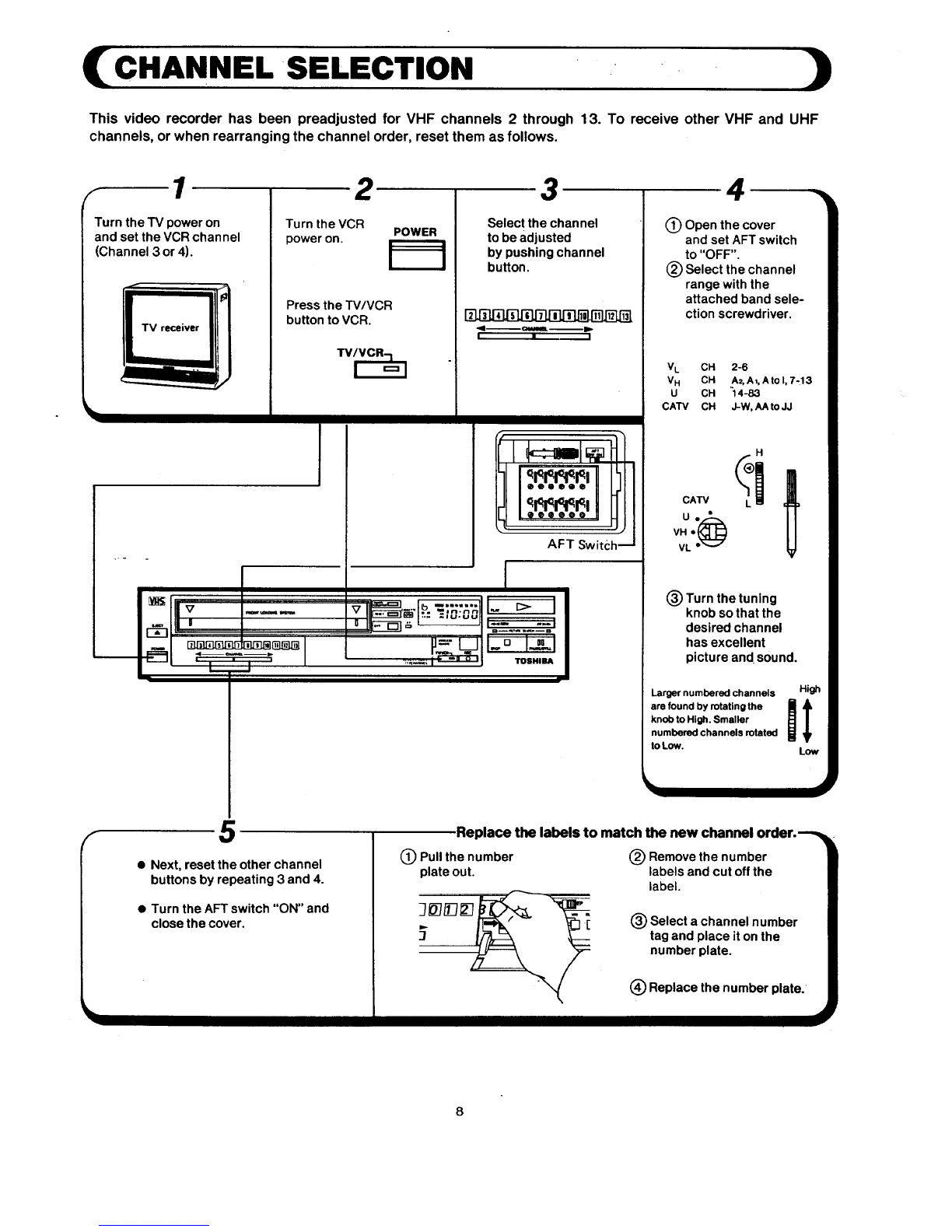

(CHANNEL SELECTION ])

This video recorder has been preadjusted for VHF channels 2 through 13. To receive other VHF and UHF

channels, or when rearranging the channel order, reset them as follows.

r/ 2 3 4

Turn the TV power on

and set the VCR channel

(Channel 3 or 4).

Turn the VCR POWER

power on.

Press the TV/VCR

button to VCR.

Select the channel

to be adjusted

by pushing channel

button.

•91-- CxNII. --Ip_

III

_i L__J i P_._II-oI_II

L ;;_'_'_ I _I TOSHIBA ]

0Open the cover

and set AFT switch

to "OFF".

(_) Select the channel

range with the

attached band sele-

ction screwdriver.

VL CH 2-6

VH CH A2,A1, Ato I, 7-13

u CH "14-83

CATV CH J-W, AA to JJ

U••

VH ,,_

VL """

(_) Turn the tuning

knob so that the

desired channel

has excellent

picture and sound.

Larger numbered channels

are found by rotating the _ I

knob to High. Smaller

numbered channels rotated

to Low.

High

Low,

• Next, reset the other channel

buttons by repeating 3 and 4.

•Turn the AFT switch "ON" and

close the cover.

Pull the number

plate out.

Replace the labels to match the new channel order.---,

(_) Remove the number

labels and cut off the

label.

(_ Select achannel number

tag and place iton the

number plate.

(_) Replace the number plate.

(VIDEO CASSETTE

Recording And Playback

•Only video cassettes with _ mark can be used.

This VCR can record at two different speeds (EP

mode: 1.11 cm/sec, and SP mode: 3.34 cm/sec.).

It is preset for SP speed. The correct playback

speed is selected automatically from among three

speeds (EP, LP and SP) by the recorder.

Note: Other playback modes (Slow, Still, Picture

Search) can be performed in EP mode.

Performance]

EP LP SP

Recording 0-©

Playback © 0 0

)

•When an important recording is to be made, make a trial recording to confirm that picture and sound I

are normal. I

• Video recording can only be performed on one

side of a video cassette unlike an audio cassette.

•If a new recording is made on a cassette that was

previously recorded, the previous picture and

sound are erased, and a new picture and sound

are recorded. Remove the tab on the back of the

video cassette to prevent accidental erasure of

recorded materials.

Video recording cannot be performed on a

• - cassette with the tab removed.

•Video cassettes are equipped with,a safety tab to

prevent accidental erasure. When the tab is

removed, recording cannot be performed. If you

wish to record on a cassette whose tab has al-

ready been removed, use adhesive tape to block

the hole.

•Cassettes and maximum recording time

:_assette T-160 T-120 T-60 T-30

Mode

EP 480 rain. 360 min. 180 rnin. 90 min.

SP 160min. 120min. 60min. 30min.

Table des matières

Autres manuels Toshiba Système de magnétoscope

Toshiba

Toshiba M760 Manuel utilisateur

Toshiba

Toshiba M456 Manuel utilisateur

Toshiba

Toshiba M-774 Manuel utilisateur

Toshiba

Toshiba M661 Manuel utilisateur

Toshiba

Toshiba M449 Manuel utilisateur

Toshiba

Toshiba W412C Manuel utilisateur

Toshiba

Toshiba M-784 Manuel utilisateur

Toshiba

Toshiba W-403 Manuel utilisateur

Toshiba

Toshiba M-624 Manuel utilisateur

Toshiba

Toshiba W-707 Manuel utilisateur

Toshiba

Toshiba KV-5124A Manuel utilisateur

Toshiba

Toshiba M-622 Manuel utilisateur

Toshiba

Toshiba D-KVR20U Manuel utilisateur

Toshiba

Toshiba SD-23VB Manuel utilisateur

Toshiba

Toshiba W501 Manuel utilisateur

Toshiba

Toshiba W603C Manuel utilisateur

Toshiba

Toshiba V-632EF Manuel utilisateur

Toshiba

Toshiba M-752 Manuel utilisateur

Toshiba

Toshiba SD-22VB Manuel utilisateur

Toshiba

Toshiba W-704 Manuel utilisateur

Toshiba

Toshiba M-653 Manuel utilisateur

Toshiba

Toshiba M769 Manuel utilisateur

Toshiba

Toshiba M-474 Manuel utilisateur

Toshiba

Toshiba SD-K220 Manuel utilisateur

Manuels Système de magnétoscope populaires d'autres marques

Sony

Sony GV-500 Primary Manuel utilisateur

JVC

JVC HR-J282EU Manuel utilisateur

Sony

Sony HDCAM-SR SRW5800 Manuel utilisateur

Magnavox

Magnavox VRU242AT Manuel utilisateur

Sony

Sony HVR-M10C Manuel utilisateur

RCA

RCA VR634HF - Hi-Fi VCR Manuel utilisateur

JVC

JVC HR-5910U Manuel utilisateur

Panasonic

Panasonic ProLine AG-1320 Manuel utilisateur

JVC

JVC HR-S8600EU Manuel utilisateur

JVC

JVC HR-FS1U Manuel utilisateur

Sharp

Sharp VC-H9888U Manuel utilisateur

FUNAI

FUNAI LC-950 Manuel utilisateur

Sharp

Sharp VC-S2000GM Manuel utilisateur

Sony

Sony Video8 EV-A60 Manuel utilisateur

Panasonic

Panasonic Omnivision PV-V4523S Manuel utilisateur

Aiwa

Aiwa HV-E212 Manuel utilisateur

JVC

JVC HR-J3006UM Manuel utilisateur

GE VG4271 Manuel utilisateur
