100CS 1-1

1.1 Features

The 100CS is one of the lightest and most advanced portable computers available. Utilizing

advanced technology and high-speed components, the computer offers multimedia functions,

excellent display legibility, battery operation, and IBM PC/AT compatibility. The unit con-

sists of the following features:

❑Microprocessor

A Pentium ®processor with Voltage Reduction Technology (VRT) that operates at 75

MHz and 3.3/2.9 volts.

❑Memory

Standard 8 MB of CMOS RAM. This includes 640 KB of conventional memory and

7360 KB of extended memory.

❑Hard Disk Drive (HDD)

An internal 528 million byte (520MB) HDD.

❑Floppy Disk Drive (FDD)

A 3.5-inch FDD supports 2HD (1.44 MB) floppy disks and 2DD (720 KB) floppy

disks.

❑Display

A 10.4-inch Dual-scan Supertwist Nematic (DSTN) color LCD with 640 x 480 pixels.

The built-in display controller supports 640 x 480 resolution with 64k colors capability

on the internal LCD and up to 1024 x 768 resolution with 256 colors on an external

CRT.

❑Keyboard

An easy-to-use 82/84-key keyboard provides a numeric keypad overlay for fast nu-

meric data entry or for cursor and page control. The keyboard supports software that

uses a 101- or 102-key enhanced keyboard.

❑Batteries

Three different batteries: a main battery, a backup battery (for memory backup), and

an RTC battery (for Real Time Clock).

❑Expansion memory slot

An optional 8, 16, or 32 MB memory module can be installed in the memory slot.

1-2 100CS

❑Parallel port

This port can be used to connect a Centronics compatible printer or other parallel

device. The port supports ECP (Extended Capabilities Port) conforming to

IEEE·1284.

❑Serial port (9-pin)

The serial controller is 16550UART compatible. This port can be used to connect such

serial devices as a serial printer, serial mouse, or external modem.

❑RGB port

The female, 15-pin, D-shell connector can be connected to an external SVGA monitor.

❑Ext. Keyboard/Mouse port

Either a PS/2 compatible keyboard or a PS/2 compatible mouse can be connected to

this port. The computer automatically recognizes which device is connected.

❑PC card slot

A PC card slot supports up to two Personal Computer Memory Card International

Association (PCMCIA) standard version release 2.0 cards. The upper and lower slots

can each accommodate one Type II (5.0 mm) card, or the lower slot can accommo-

date one Type III (10.5 mm) card when the upper slot is empty.

❑Enhanced port replicator port

This port enables connection of an enhanced port replicator. The enhanced port

replicator has two PC card slots (Type III), and expands connections to the following

devices: PS/2 keyboard, PS/2 mouse, serial port, parallel port, external CRT, AC-in,

and AC-out. The NoteDock does not support the following ports: floppy disk, audio

in - audio out, joystick, and selectable ID.

❑AccuPoint

A pointer control stick, located in the center of the keyboard, provides convenient

control of the cursor without requiring desk space for a mouse.

100CS 1-3

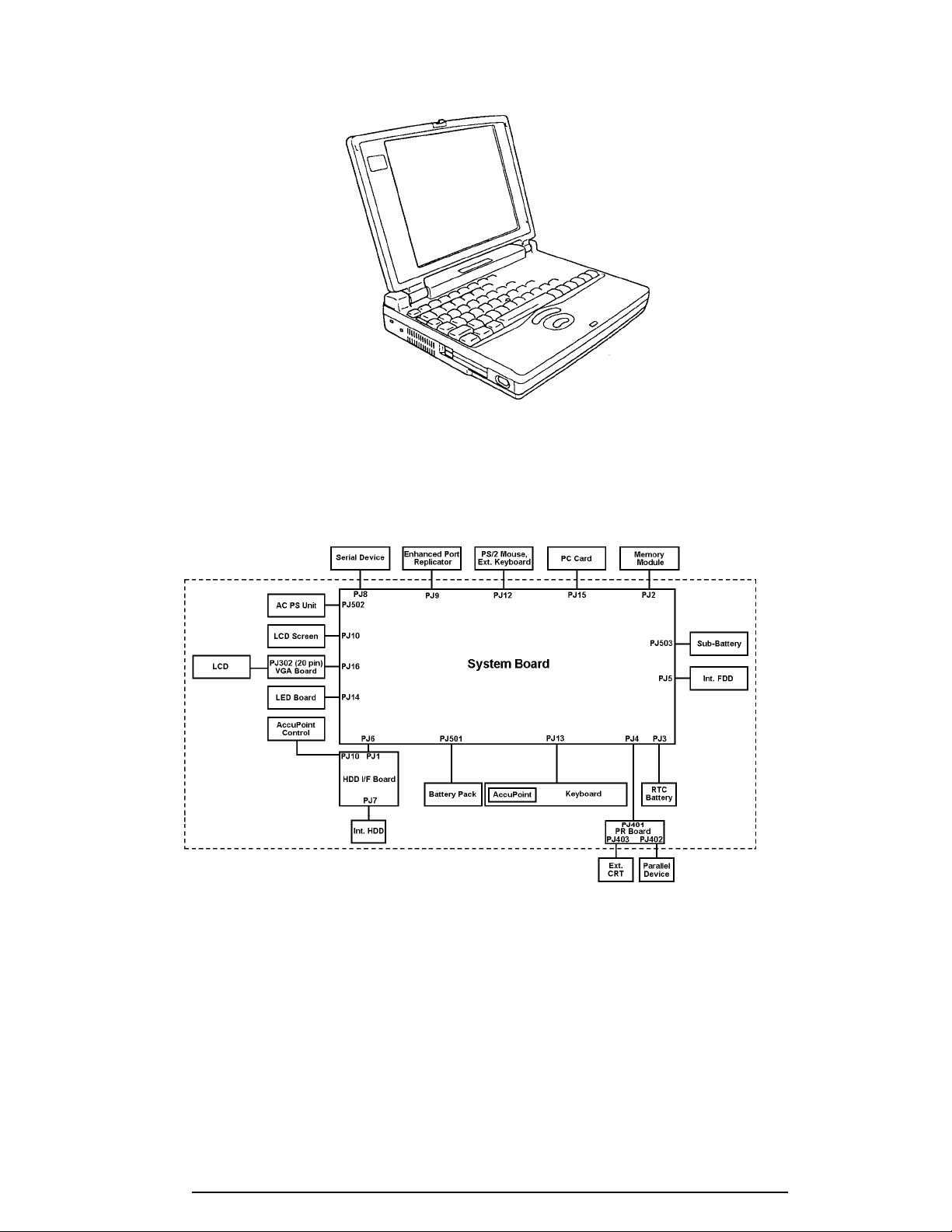

The 100CS Personal Computer is shown in figure 1-1.

Figure 1-1 100CS personal computer

The system configuration is shown in figure 1-2.

Figure 1-2 System unit configuration

1-4 100CS

1.2 System Unit Block Diagram

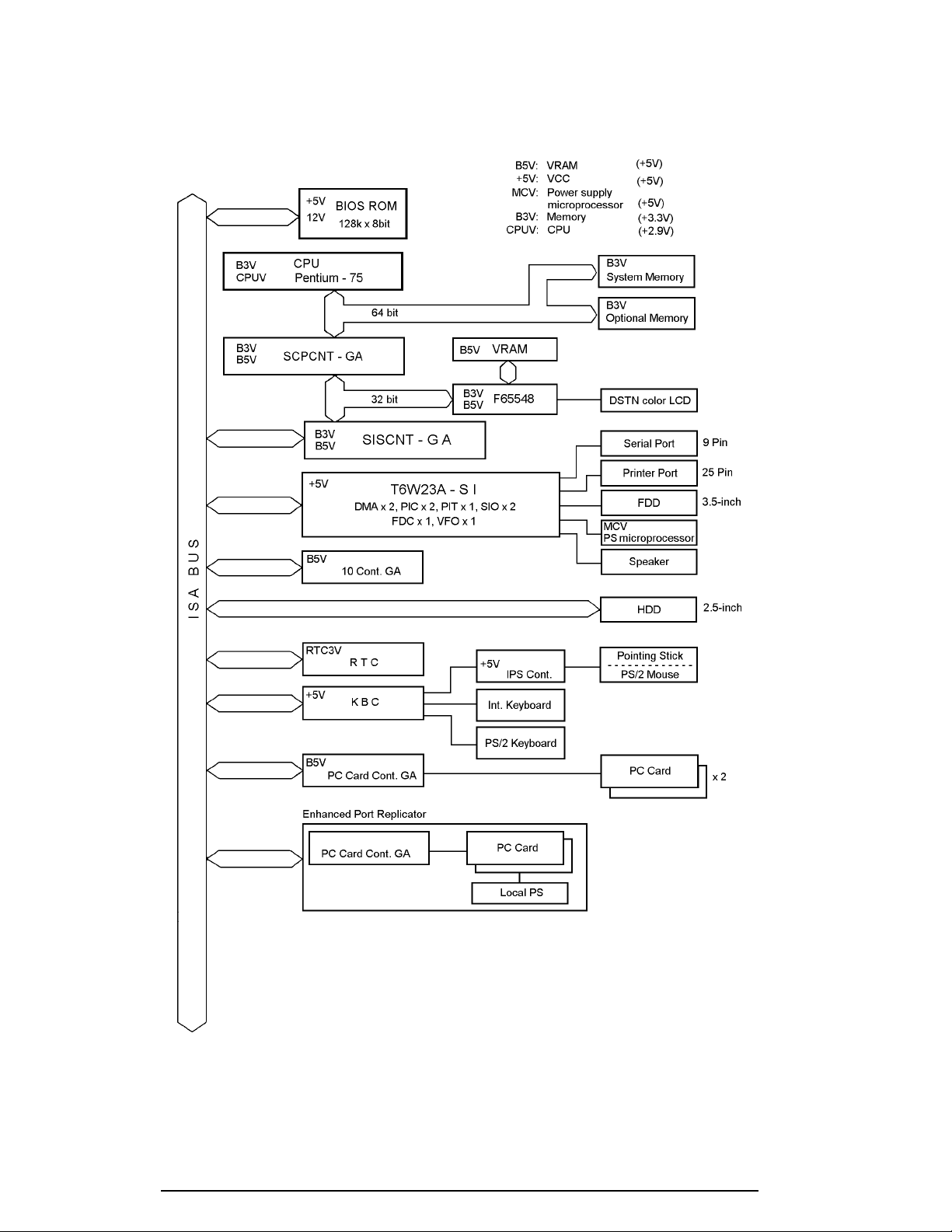

Figure 1-3 is a block diagram of the system unit.

Figure 1-3 System board block diagram

100CS 1-5

The system board is composed of the following major components:

❑Microprocessor

One Pentium processor with VRT 64-bit microprocessor

Pentium processor operates at 75 MHz and 3.3/2.9 volts

The math co-processor and 16KB cache memory are integrated into Pentium

❑Standard RAM

8 MB, four 1Mx16-bit chips

3.3 volt operation

No parity bit

Access time 70 ns

Data transfer is 64-bit width

EDO (extended data output) supported

❑BIOS ROM (Flash EEPROM)

128 KB (one 128Kx8-bit chip) memory

64 KB in the ROM are used for system BIOS

48 KB in the ROM are used for VGA BIOS

16 KB in the ROM are reserved

Access time 150 ns

Data transfer is 8-bit width

❑Video RAM

1 MB (Two 256Kx16-bit DRAM)

5 volt operation

❑Optional memory

One expansion memory slot is available for 8, 16, and 32 MB memory modules, which

consist of 1 MBx16-bit chips

Total maximum memory size is 40 MB (if a 32 MB memory module is installed)

3.3 volt operation

No parity bit

Access time 60 ns

Data transfer is 64-bit width

EDO (extended data output) supported

❑One super integration (SI)

The following components:

- Two DMACs 82C37 equivalent

- Two PICs 82C59 equivalent

- Two SIOs 16550 equivalent (One SIO is not used)

- Two UARTs 16550 equivalent

- One PIT 82C54 equivalent

- One FDC TC8565 equivalent

- One VFO TC8568 equivalent

- One I/O port decoder

- One SIO port control

- One printer port control supported ECP

- One FDD control

- One speaker control

- One power communication control

1-6 100CS

❑System Controller Gate Array (SCPCNT-GA)

This gate array has the following functions:

•CPU control

-SMI control

-CPU clock control

•Memory control

-64-bit bus memory control

- 32-bit bus memory control

•Bus control

-64-bit data bus <==>32-bit data bus

-32-bit local bus control

•Address latch control

•I/O register control

•Processing speed control

❑ISA Bus Controller Gate Array (SISCNT3-GA)

This gate array has the following functions:

•Bus control

-32-bit data bus <==> 16-bit data bus

-ISA bus interface control

-ISA bus access control

-DMAC control

-DMA address generation

-I/O control

-Suspend/Resume sequence

•Memory control

-ISA bus interface control

-Refresh address generation

•I/O register control

•Suspend/Resume sequence

❑PC Card Controller Gate Array (PCMCIA CNT-GA)

This gate array has the following functions:

•PCMCIA memory card control

•PCMCIA I/O card control

❑I/O Controller Gate Array (IOCNT-GA)

This gate array has the following functions:

•Internal Communication controller

-KBC, main CPU communication register file

-KBC interrupt controller

-KBC communication controller

- I2C bus control (Not used)

•Others

-Speaker volume adjust PWM control

-Sound board interface (Not used)

-BIOS-ROM interface

-SMI control

-IrDA (SIR) control (Not used)

100CS 1-7

❑Video Controller

C&T F65548 is used.

This video controller controls internal DSTN color LCD and external SVGA compat-

ible CRT.

❑Keyboard Controller (KBC)

One M38802M4 chip is used.

This KBC includes the keyboard scan controller and keyboard interface controller.

The KBC controls the internal keyboard, external keyboard, PS/2 mouse.

❑Real Time Clock (RTC)

One T9934 chip is used.

The T9934 has 128 bytes of memory. Fourteen bytes of memory are used for the

calendar and clock. The remaining 114 bytes are used for the system configuration

data.

1-8 100CS

1.3 3.5-inch Floppy Disk Drive

The 3.5-inch FDD is a thin, high-performance reliable drive that supports 720-KB (formatted)

2DD and 1.44-MB (formatted) 2HD 3.5-inch floppy disks.

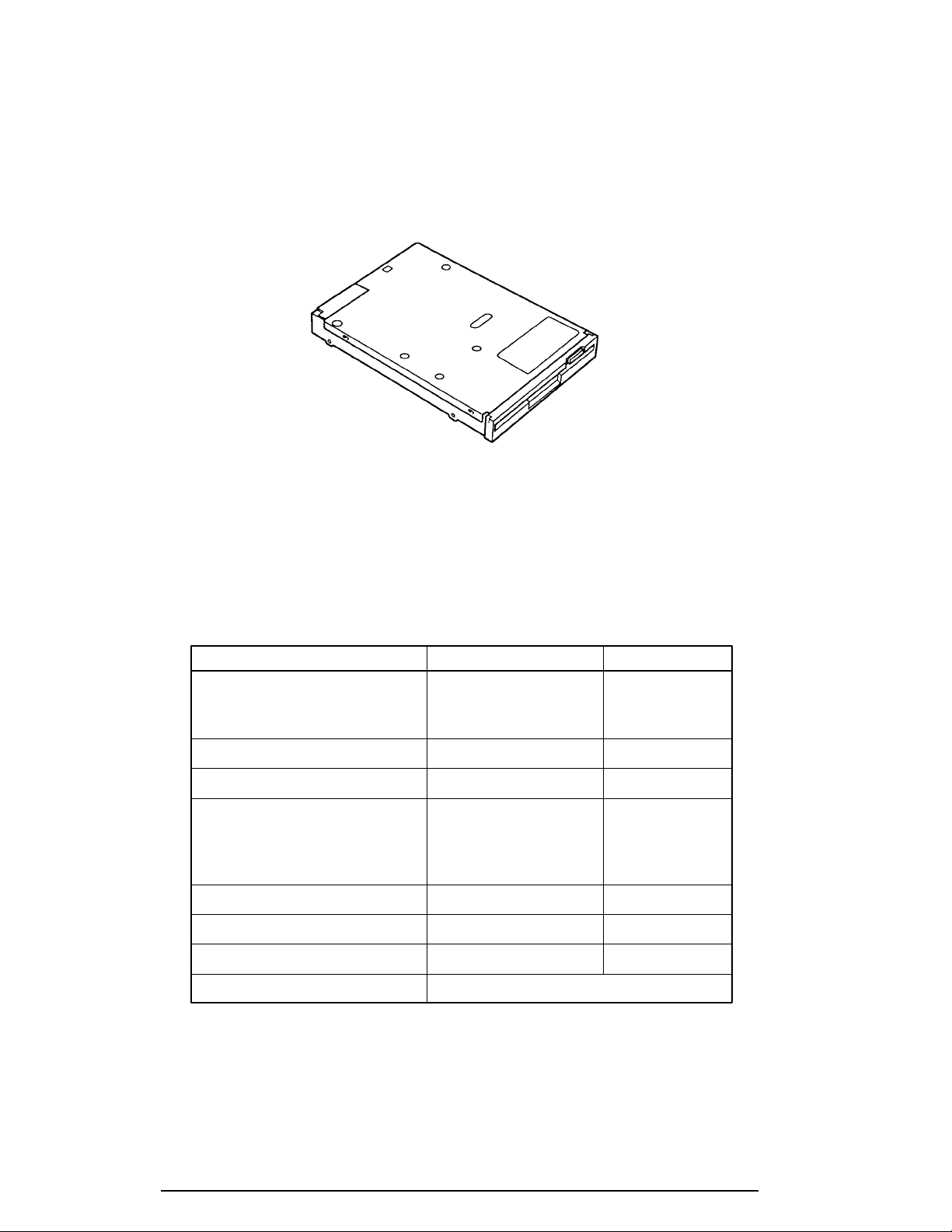

The FDD is shown in figure 1-4.

Figure 1-4 3.5-inch FDD

The specifications for the FDD are listed in table 1-1.

Table 1-1 3.5-inch FDD specifications

Item 2-MB mode 1-MB mode

Storage capacity (KB)

Unformatted 2,000 *1 1,000 *2

Formatted 1,311 655

Number of heads 2 2

Number of cylinders 80 80

Access time (ms)

Track to track 3 3

Average 181 181

Head settling time 15 15

Recording track density (tpi) 135 135

Data transfer rate (Kbps) 500 250

Rotation speed (rpm) 300 300

Recording method Modified Frequency Modulation (MFM)

*1:32 sector/track (256bytes per sector)

*2:16 sector/track (256bytes per sector)

100CS 1-9

1.4 2.5-inch Hard Disk Drive

The HDD is a random access non-volatile storage device. It has a non-removable 2.5-inch

magnetic disk and mini-winchester type magnetic heads.

The computer supports the 520 MB.

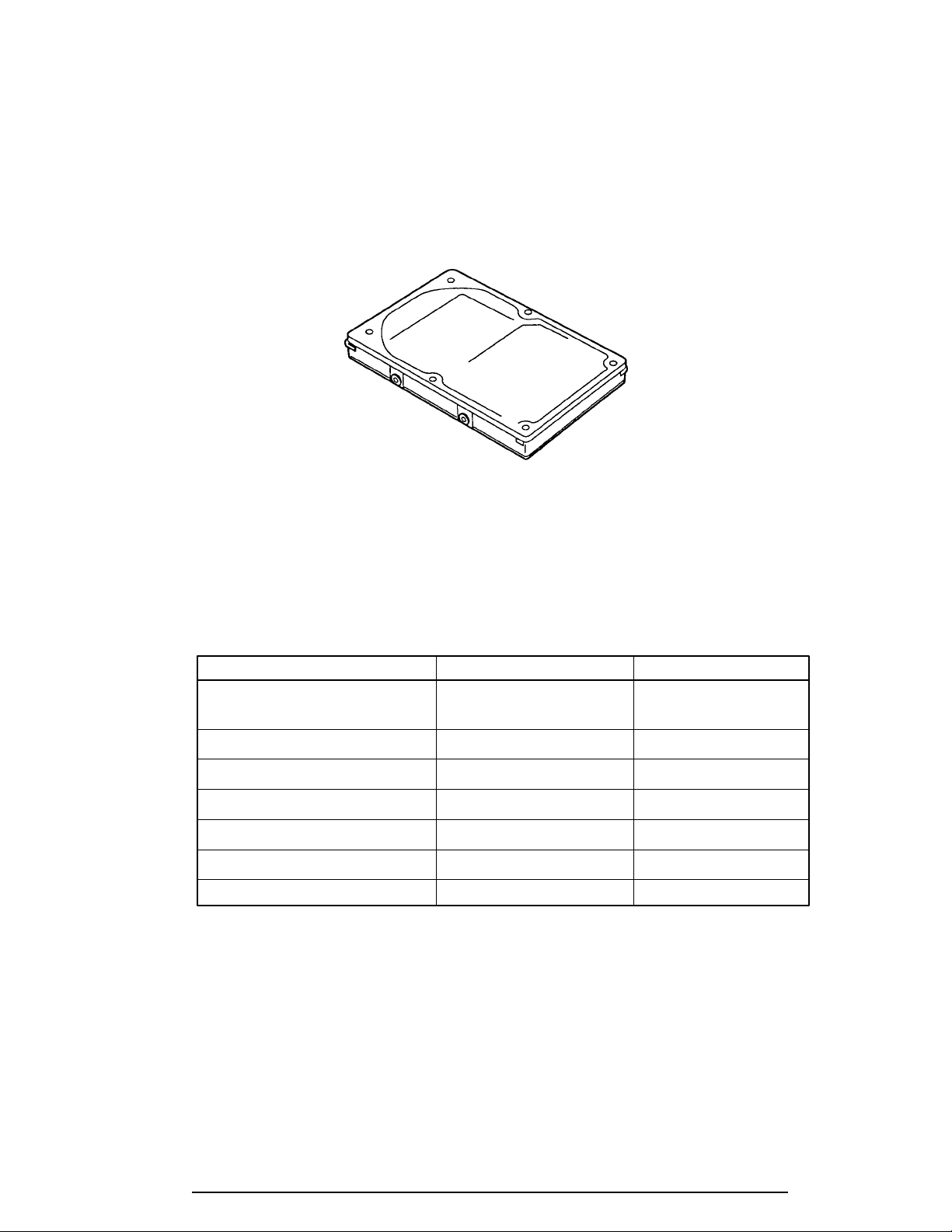

The HDD is shown in figure 1-5.

Figure 1-5 2.5inch HDD

Specifications for the HDD are listed in table 1-2.

Table 1-2 2.5-inch HDD specifications

Items Toshiba MK1924FCV IBM DBOA-2528

Storage capacity (million byte)

Formatted 528 528

Number of disks 2 2

Data heads 4 3

Data surfaces 4 4

Bytes per sector 512 512

Rotation speed (rpm) 4200 4000

Recording method 8-9 RLL 1-7 RLL

1-10 100CS

1.5 Keyboard

The 82-(USA) or 84-(European) keyboard is mounted on the computer’s system unit. The

keyboard is connected to the keyboard controller on the system board through a 25-pin flat

cable. The computer pointer control stick, located in the center of the keyboard, provides

convenient control of the cursor without requiring desk space for a mouse. The keyboard is

shown in figure 1-6.

See Appendix E for optional keyboard configurations.

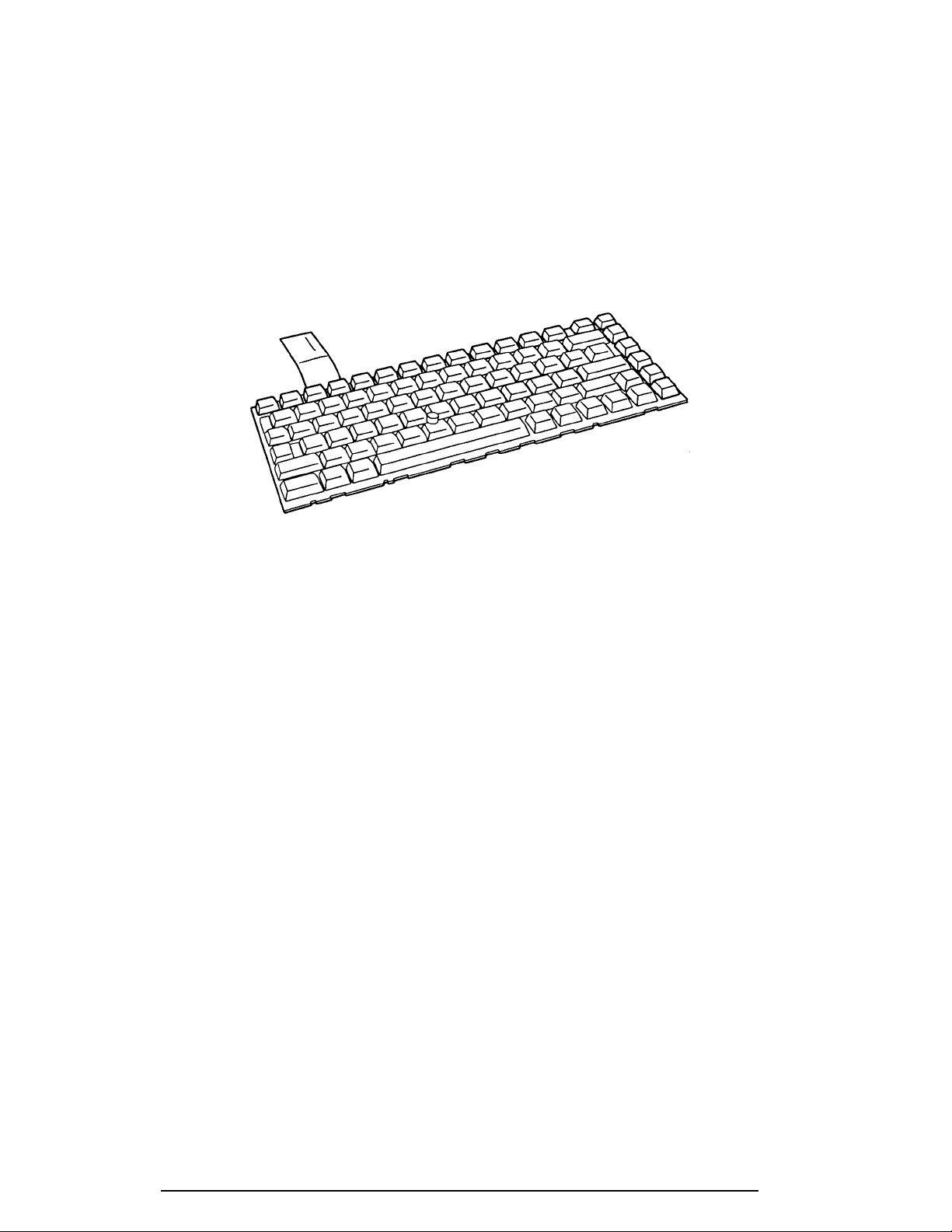

Figure 1-6 Keyboard
