Toshiba RD-XS30SB Manuel utilisateur

HDD/DVD VIDEO RECORDER

SERVICE MANUAL

May, 2003

FILE NO. 810-200314

RD-XS30SB

DIGITAL VIDEO

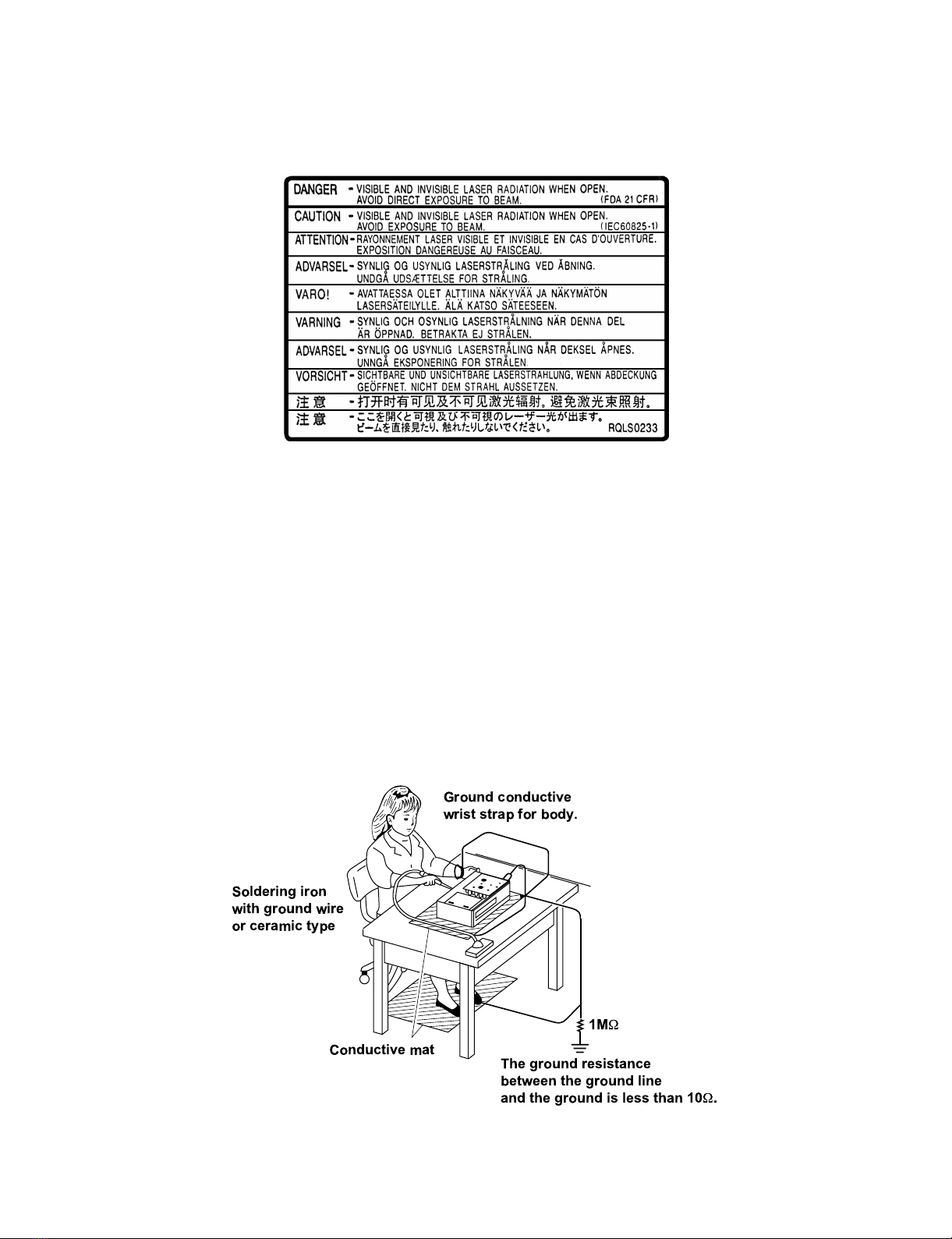

LASER BEAM CAUTION LABEL

When the power supply is being turned on, you may not remove this laser beam caution label. If it removes, radiation of a

laser may be received.

PREPARATION OF SERVICING

Pickup Head consists of a laser diode that is very susceptible to external static electricity.

Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement,

its life might be shortened. When replacing, use a conductive mat, soldering iron with ground wire, etc. to

protect the laser diode from damage by static electricity.

And also, the SI and IC are same as above.

Ground conductive

wrist strap for body.

Soldering iron

with ground wire

or ceramic type

Conductive mat The ground resistance

between the ground line

and the ground is less than 10

SECTION 2

PART REPLACEMENT AND ADJUSTMENT PROCEDURES

SECTION 3

SERVICING DIAGRAMS

1. CIRCUIT SYMBOLS AND

SUPPLEMENTARY EXPLANATION

1-1. Precau ions for Par Replacemen

1-2. Solid Resis or Indica ion

1-3. Capaci ance Indica ion

1-4. Induc or Indica ion

1-5. Waveform and Vol age Measuremen

1-6. O hers

2. PRINTED WIRING BOARD AND

SCHEMATIC DIAGRAM

3. BLOCK DIAGRAMS

3-1. Overall Block Diagram

4. CIRCUIT DIAGRAMS

4-1. Power Supply Circui Diagram

4-2. Jack Circui Diagram

4-3. Fron Circui Diagram

4-4. Mo her Circui Diagram

4-4-1. Tuner Circui Diagram

4-4-2. Timer Circui Diagram

4-4-3. Audio Circui Diagram

4-4-4. Video Circui Diagram

4-5. Digi al Circui Diagram

5. PC BOARDS

5-1. Jack PC Board

5-2. Fron PC Board

5-3. Mo her PC Board

5-4. Digi al PC Board

CONTENTS

SECTION 1

GENERAL DESCRIPTIONS

1. OPERATING INSTRUCTIONS

Specifica ions

1. REPLACEMENT OF MECHANICAL PARTS

1-1. Cabine Replacemen

1-1-1. Top Cover

1-1-2. HDD

1-1-3. Fron Panel

1-1-4. Tray Door

1-1-5. Opera ion Panel Door

1-1-6. RAM Drive

1-1-7. Fan

1-1-8. Rear Panel

1-2. PC Board Replacemen

1-2-1. Digi al PC Board

1-2-2. Mo her PC Board

1-2-3. Power PC Board

1-2-4. Fron and Jack PC Board

2. LOCATION OF MAIN PARTS

2-1. Loca ion of Main Par s

2-2. Loca ion of PC Boards

SECTION 4

PARTS LIST

SAFETY PRECAUTION

NOTICE

ABBREVIATIONS

1. In egra ed Circui (IC)

2. Capaci or (Cap)

3. Resis or (Res)

4. EXPLODED VIEWS

4-1. Packing Assembly

4-2. Chassis Assembly

5. PARTS LIST

SECTION 1

GENERAL DESCRIPTIONS

1. OPERATING INSTRUCTIONS

Please refer to the owner's manual about the contents.

SECTION 1

GENERAL DESCRIPTIONS

2. LOCATION OF MAIN PARTS

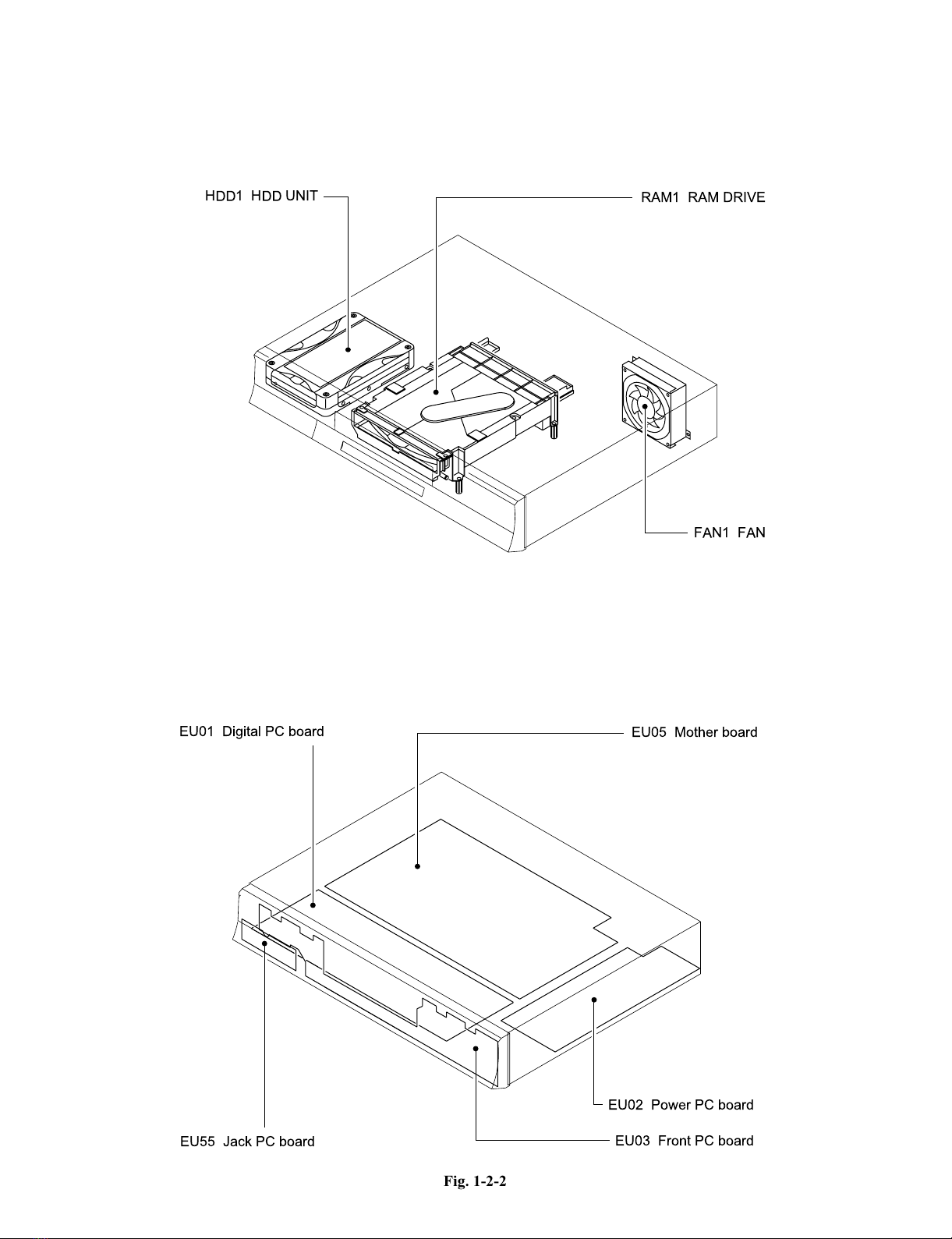

2-1. Location of Main Parts

Fig. 1-2-1

2-2. Location of PC Boards

FAN1 FAN

RAM1 RAM DRIVE

HDD1 HDD UNIT

Fig. 1-2-2

EU05 Mother board

EU01 Digital PC board

EU02 Power PC board

EU03 Front PC board

EU55 Jack PC board

SECTION 2

PART REPLACEMENT AND

ADJUSTMENT PROCEDURES

CAUTIONS BEFORE STARTING PART REPLACEMENT

Electronic parts are susceptible to static electricity and may easily damaged, so do not forget to ground as required.

Many screws are used inside the unit. To prevent the screws from missing or dropping, etc. always use a magnetized

screwdriver in servicing. Several kinds of screws are used and some of them need special cautions. That is, take care of

the tapping screws securing molded parts and fine pitch screws used to secure metal parts. f they are used improperly,

the screw holes will be easily damaged and the parts can not be fixed.

1. REPLACEMENT OF MECHANICAL PARTS

1-1. Cabinet Replacement

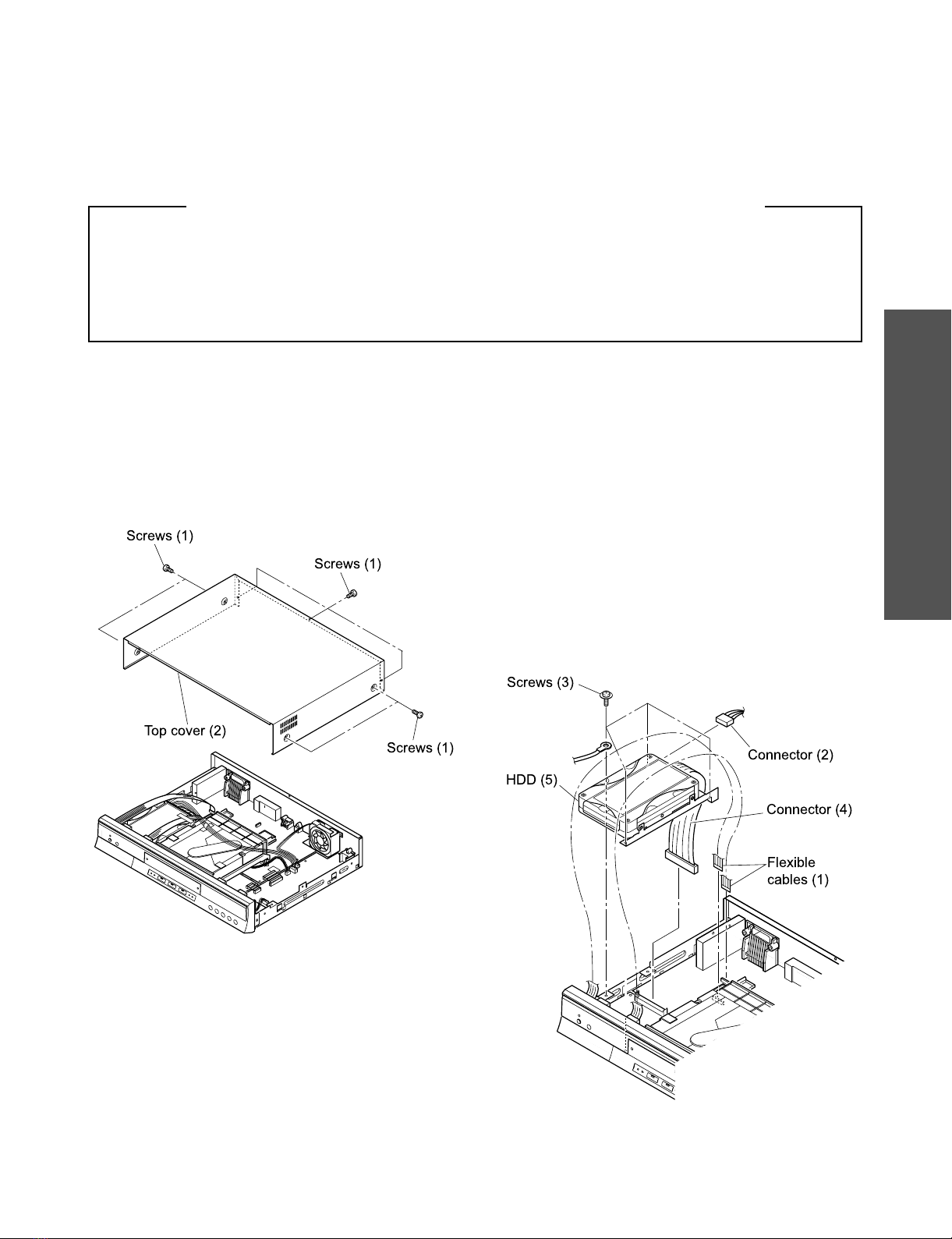

1-1-1. Top Cover

1. Remove seven screws (1), then remove the top cover

(2).

Fig. 2-1-1

1-1-2. HDD

1. Disconnect two flexible cables (1).

2. Disconnect a connector (2).

3. Remove four screws (3) and a connector (4), then

remove the HDD (5).

Note:

• After replacing the HDD (5), make sure the connectors

(2), (4) and the flexible cables (1) are connected

securely.

Fig. 2-1-2

SECTION 2

PART REPLACEMENT AND

ADJUSTMENT PROCEDURES

Screws (1)

Top cover (2)

Connector (2)

Connector (4)

Flexible

cables (1)

Screws (3)

HDD (5)

Connector (1)

Screw (2)

Screws(3)

Front panel (4)

Claw

Claws

Claw

Hinge

Front panel

Hinge

Claw

Operation panel door (1)

Spring (1)

Tray door (2)

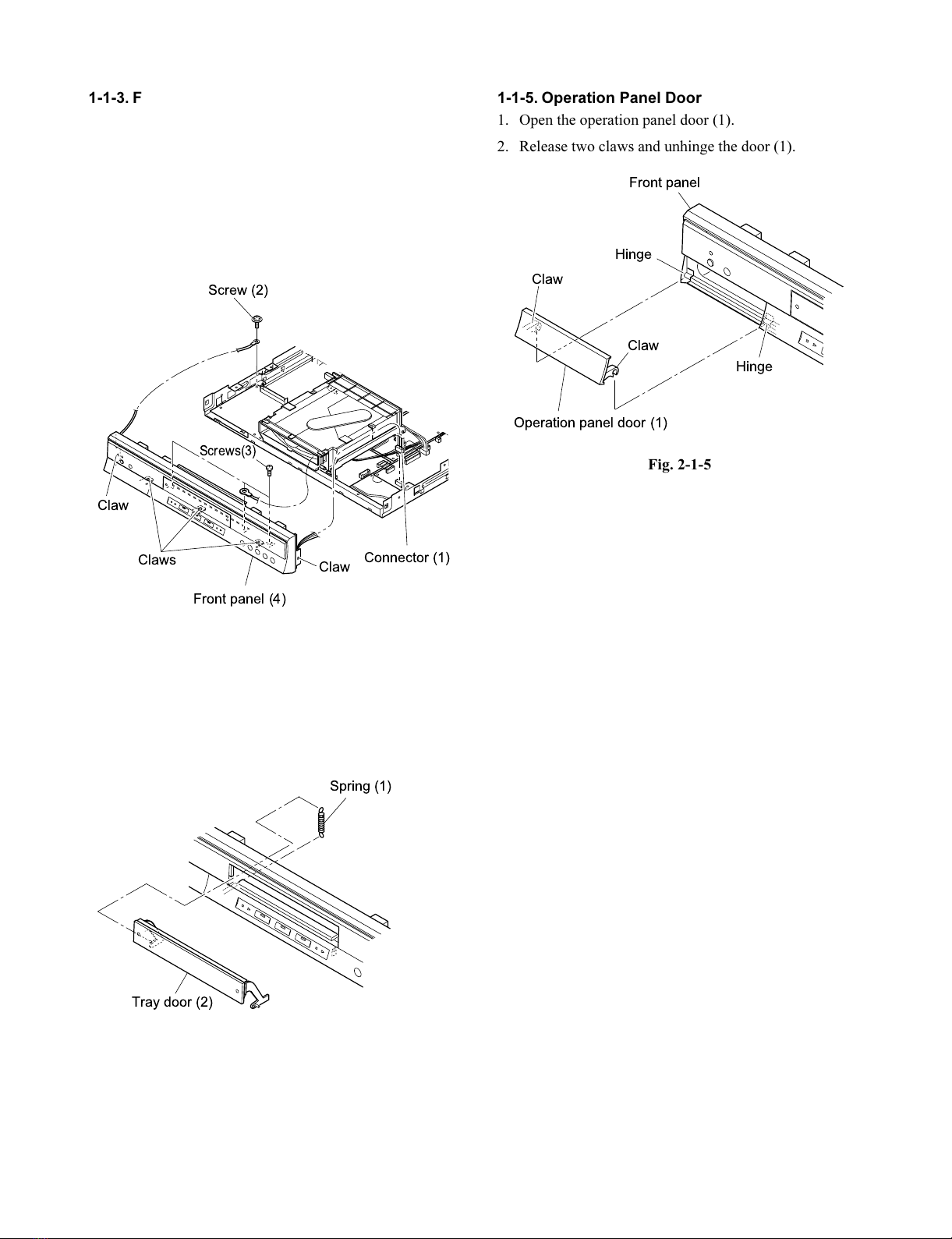

1-1-5. Operation Panel Door

1. Open the operation panel door (1).

2. Release two claws and unhinge the door (1).

Fig. 2-1-5

1-1-3. Front Panel

1. Remove the top cover. (Refer to item 1-1-1.)

2. Remove the HDD. (Refer to item 1-1-2.)

3. Remove a connector (1).

. Remove a screw (2).

5. Remove three screws (3).

6. Release five claws, then remove the front panel ( ).

Fig. 2-1-3

1-1-4. Tray Door

1. Remove a spring (1).

2. Remove the tray door (2) while slightly bending it.

Fig. 2-1-4

Screws (1)

Rear panel (2)

Claw

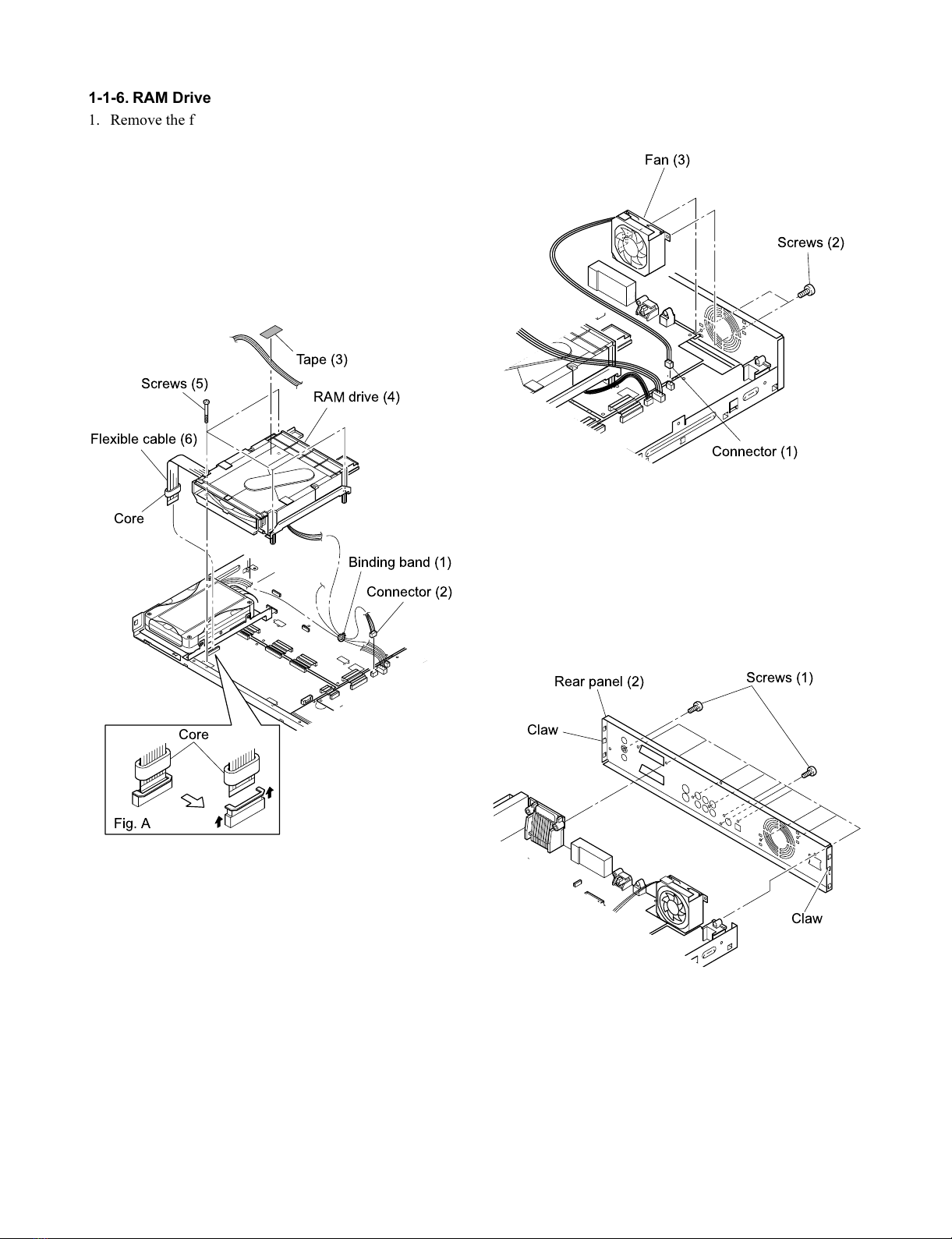

1-1-6. RAM Drive

1. Remove the front panel. (Refer to item 1-1-3.)

2. Loosen the binding band (1) and disconnect a connec-

tor (2).

3. Peel off the tape (3) from the RAM drive (4).

4. Remove four screws (5).

5. Remove the flexible cable (6) by lifting up in the

arrow direction (refer to Fig. A) and remove the RAM

drive (4).

Fig. 2-1-6

1-1-7. Fa

1. Remove a connector (1), two screws (2) and the fan (3).

Fig. 2-1-7

1-1-8. Rear Pa el

1. Remove eleven screws (1).

2. Loosen two claws and remove the rear panel (2).

Fig. 2-1-8

Screws (5) RAM drive (4)

Connector (2)

Binding band (1)

Flexible cable (6)

Core

Fig. A

Tape (3)

Fan (3)

Screws (2)

Connector (1)

1-2. PC Board Replacement

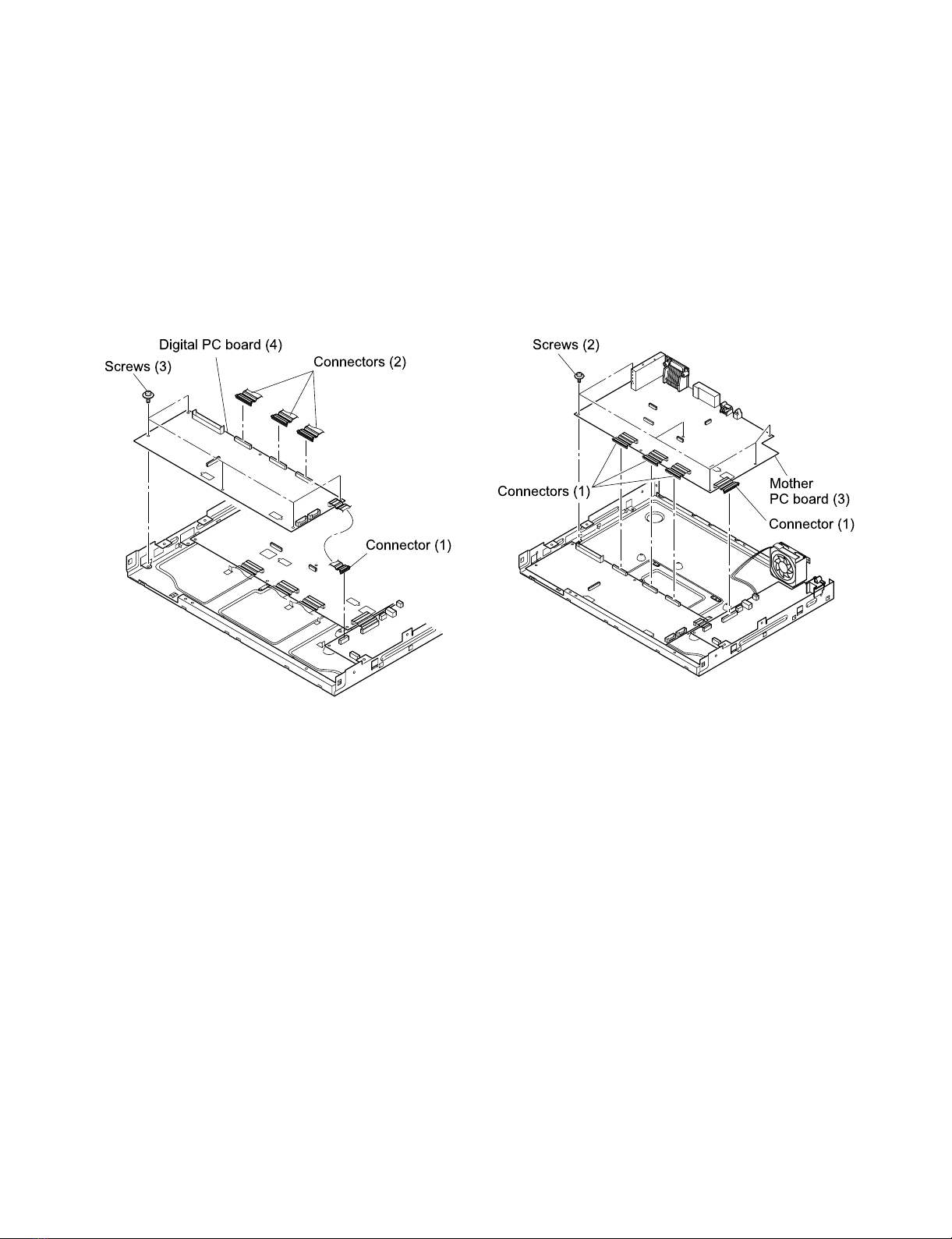

1-2-1. Digital PC Board

1. Remove the HDD. (Refer to 1-1-2.)

2. Remove the front panel. (Refer to 1-1-3.)

3. Remove the RAM drive. (Refer to 1-1-6.)

4. Remove a connector (1).

5. Remove three connectors (2).

6. Remove five screws (3) and the digital PC board (4).

Fig. 2-1-9

1-2-2. Mother PC Board

1. Remove the HDD. (Refer to item 1-1-2.)

2. Remove the front panel. (Refer to item 1-1-3.)

3. Remove the RAM drive. (Refer to item 1-1-6.)

4. Remove the rear panel. (Refer to item 1-1-8.)

5. Remove four connectors (1).

6. Remove six screws (2), then remove the mother PC

board (3).

Fig. 2-1-10

Connectors (2)

Screws (3)

Digital PC board (4)

Connector (1)

Screws (2)

Mother

PC board (3)

Connector (1)

Connectors (1)

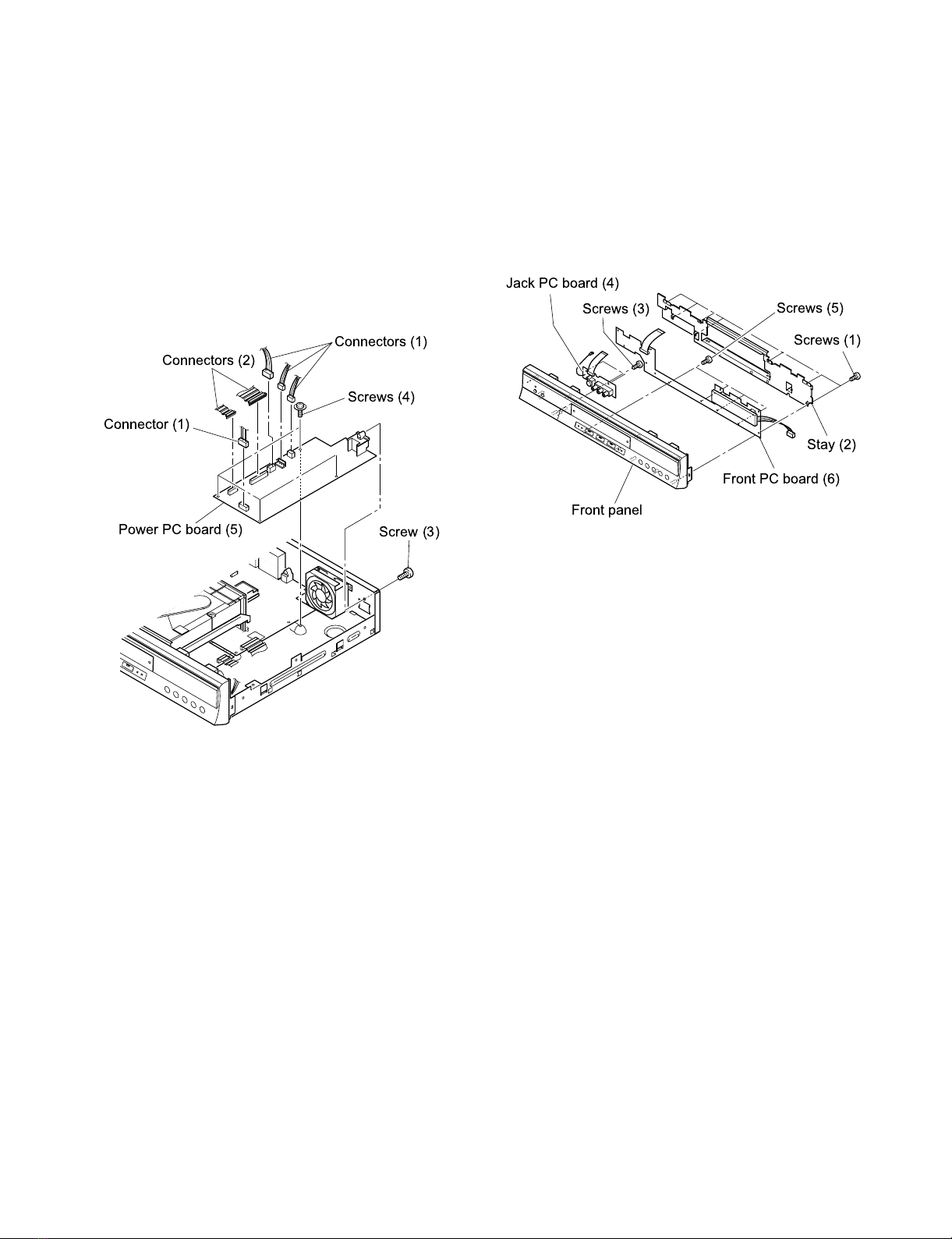

1-2-3. Power PC Board

Cautions :

•Danger of explosion if battery is incorrectly

replaced.

•Replace only with the same or equivalent type.

1. Disconnect four connectors (1).

2. Remove two connectors (2)

3. Remove a screw (3), four screws (4) and the power PC

oard (5).

Fig. 2-1-11

1-2-4. Front and Jack PC Board

1. Remove the front panel. (Refer to item 1-1-3.)

2. Remove seven screws (1), then remove the stay (2).

3. Remove three screws (3), then remove the jack PC

oard (4).

4. Remove four screws (5), then remove the front PC

oard (6).

Fig. 2-1-12

Connectors (1)

Connector (1)

Connectors (2)

Screws (4)

Screw (3)

Power PC board (5)

Screws (1)

Stay (2)

Front PC board (6)

Front panel

Screws (5)

Screws (3)

Jack PC board (4)
