Toshiba SD-K740 Instructions de montage

Step 1 — Top Panel

Step 2

Installing Toshiba SD-K740 Front Flap Tray

Door Spring

Author: John Lokker

Tools used in this guide

Phillips #2 Screwdriver (1)

This guide gives instructions on how to remove the spring connected to the disc drive front flap of the Toshiba SD-K740

DVD player.

Make sure the DVD player is unplugged

before beginning.

Remove the three .303 inch screws from the back

panel using a #0 Phillips head screwdriver.

Turn the DVD player on its side.

Remove the .303 inch screw.

Now flip the DVD player onto its other side.

Remove the .303 inch screw from this side.

Installing Toshiba SD-K740 Front Flap Tray Door Spring

Step 3

Step 4 — Front Panel

Step 5

Flip the DVD player over onto it's front

face.

Remove the back panel by lifting up and pulling it

towards yourself.

Flip the DVD player so its top is sitting on

your working surface.

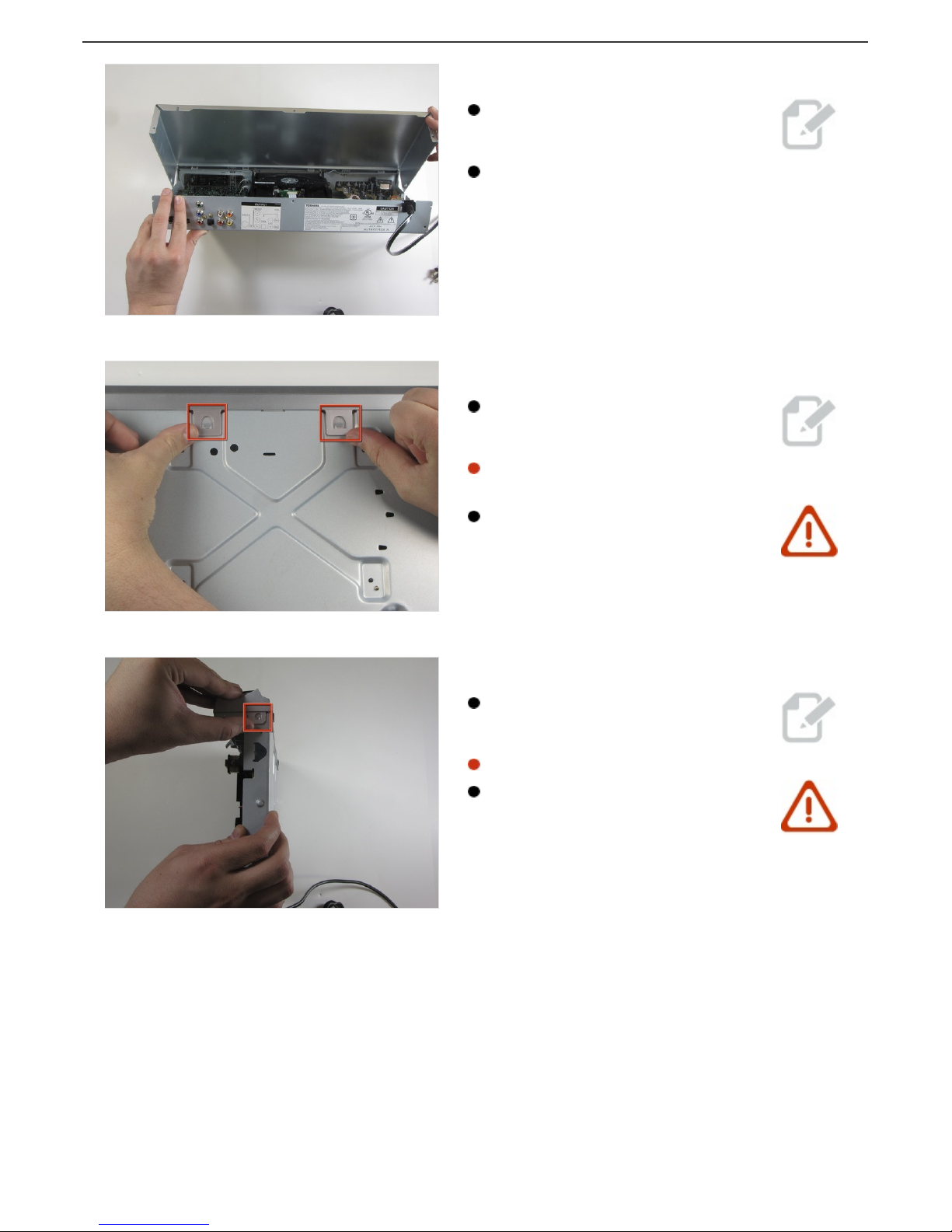

Lift and push away each of the two tabs located in

the middle of the player.

The front panel will not come off during this

step, so do not force it.

Flip the DVD player on its side.

Lift and slide forward a single tab on the side.

The front panel will not come off during this

step, so do not force it.

Installing Toshiba SD-K740 Front Flap Tray Door Spring

Step 6

Step 7 — Front Flap Tray Door

Step 8

Grasp the front panel and pull forward and to your

right to remove.

On back side of front panel very carefully apply

pressure to the left hand side of the flap hinge.

There is just enough tolerance in the plastic

to allow removal, be careful of brittle

plastic.

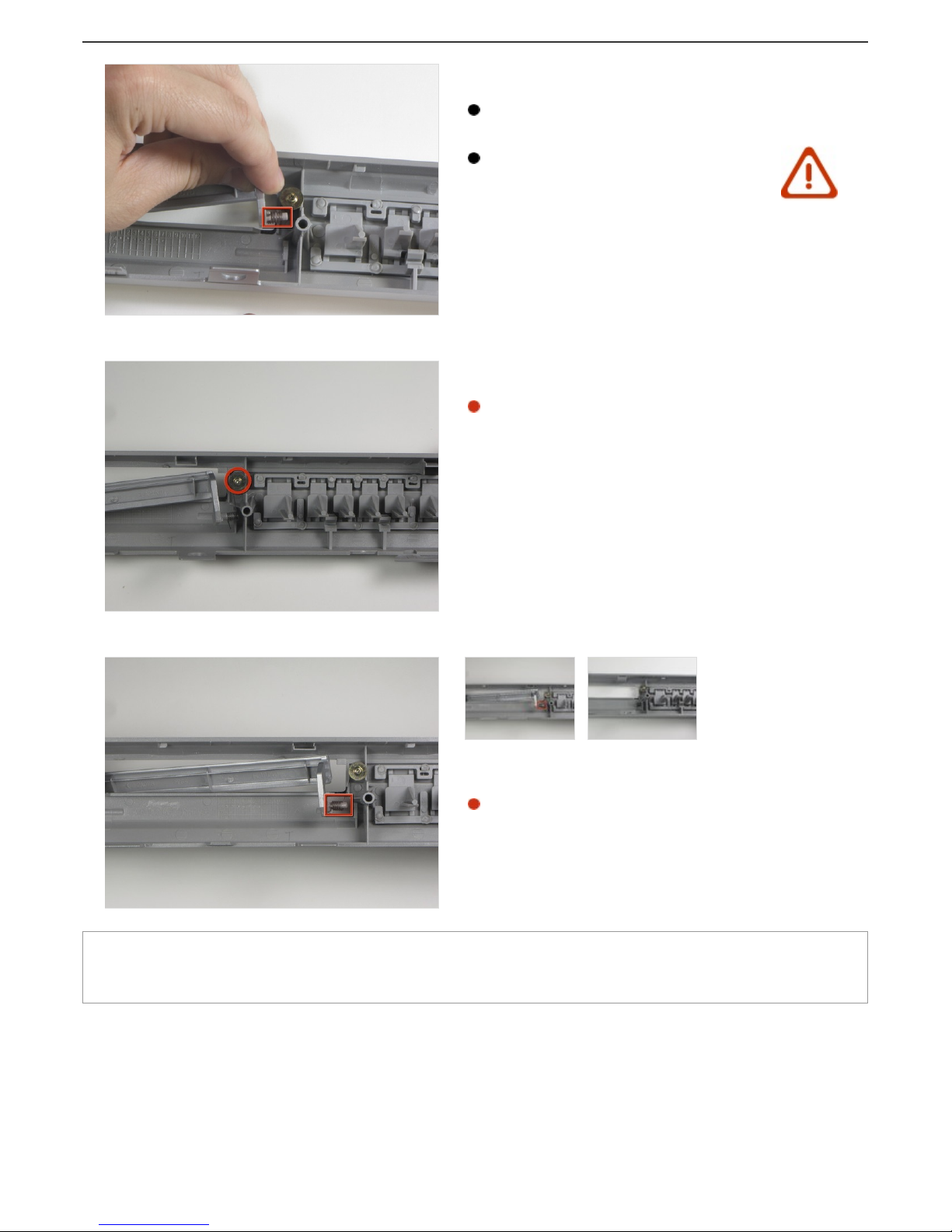

Once the peg is free from the left restraint, carefully

remove the left part of the flap.

Carefully remove the right peg from the restraint.

Do not pull away from the front panel

because the spring is still attached.

Do not force the plastic.

Installing Toshiba SD-K740 Front Flap Tray Door Spring

Step 9

Step 10 — Front Flap Tray Door Spring

Step 11

To reassemble your device, follow these instructions in reverse order.

This document was last generated on Feb 24, 2012.

Remove the spring from the end of the right peg by

pulling the door away from the spring.

Do not pull away from the front panel until

the spring has been removed from the flap.

Remove the .384 inch screw holding the spring to

front panel.

Slide the spring off of the underlying peg.

Installing Toshiba SD-K740 Front Flap Tray Door Spring
