Equium™5160D, 5200D, and 6200D

Series

DDM-2970016-A00

Equium™ Series Maintenance Manual------------------------------------------------------------1-1

Chapter 1

Hardware Overview

Equium™ Series Maintenance Manual-------------------------------------------------------------1-2

System Features

The Equium™ Models 5160D, 5200D, and 6200D are some of the most powerful

microcomputers available today. Models 5160D, 5200D, and 6200D are low-profile desktop

models that deliver the following features:

Microprocessor

The Intel Pentium

®microprocessor operates at three speeds:

• 166 MHz MMX (Model 5160D)

• 200 MHz MMX (Model 5200)

• 200 MHz Pentium

®Pro (Model 6200D)

Memory

Each Equium™ Model 5160D and 5200D computer comes equipped with 32

megabytes (MB) of 60 ns EDO RAM, expandable to 192 MB EDO RAM non-

parity (32-bit).

Each Equium™ Model 6200D computer comes equipped with 32 megabytes

(MB) of 60 ns EDO RAM, expandable to 256 MB EDO RAM non-parity (32-

bit).

Cache memory

Each Equium™ model comes equipped with 256 kilobytes (KB) write-back

SRAM.

Disk storage

Each Equium™ model comes equipped with one 3.5" 1.44 MB / 1.2 MB / 720

KB (formatted) Floppy Disk Drive.

The Equium™ series comes with the following standard Enhanced IDE hard disk

drives:

• 2.1 GB (Model 5160D)

• 2.5 GB (Model 5200D)

• 3.0 GB (Model 6200D)

CD-ROM

Each Equium™ computer comes equipped with one ATAPI 12X CD-ROM drive.

Display system

The Equium™ series monitors are available in 15- and 17-inch versions. The

monitors have the following features:

• .28 mm dot pitch (15 inch), .26 mm dot pitch (17 inch)

• 60 Hz non-interlaced refresh rate at resolutions up to 1280x1024

• EPA Energy Star compliant

• Monitor has integrated speakers and headphone jack

Equium™ Series Maintenance Manual-------------------------------------------------------------1-3

104-key Windows 95 compatible keyboard

PS/2 three-button mouse

Audio system

16-bit stereo Sound Blaster - Pro compatible audio.

145 watt (Models 5160D and 5200D) or 200 watt (Model 6200D) power supply

PCI and ISA expansion slots are supported by a connector on the system board

designed to accept a riser card. The riser card provides three ISA and two PCI

slots.

Back panel connectors are provided for video and audio, the keyboard, the PS/2

mouse, a parallel interface, an RJ45 LAN interface, the serial interface, and a

Universal Serial Bus (USB) connector provides two USB connectors.

Sleep button

The sleep button places the computer in a power saving mode with near-instant

response time to requests by attached devices.

Two expansion bays (one occupied by the CD-ROM drive).

Low-profile, desktop chassis:

• Easy installation of 5.25" and 3.5" devices

• Front access to reset and sleep controls

• Power, HDD, FDD, and CD-ROM indicators displayed on front

Equium™ Series Maintenance Manual-------------------------------------------------------------1-4

System Configuration

The Equium™ Personal Computer is shown in Figure 1-1 and its system configurations are

illustrated in Figure 1-2 andFigure 1-3.

Figure 1-1Equium™ Personal Computer

Figure 1-2Equium™ System Unit Configuration (Models 5160D and 5200D)

Equium™ Series Maintenance Manual-------------------------------------------------------------1-5

Figure 1-3Equium™ System Unit Configuration (Model 6200D)

Equium™ Series Maintenance Manual-------------------------------------------------------------1-6

Equium™ Field Replaceable Units (FRUs)

Each Equium™ computer consists of the following FRU's.

System board

Microprocessor

Single Inline Memory Modules (SIMMs)

Power Supply

3.5" Floppy Disk Drive (FDD)

3.5" Enhanced IDE Hard Disk Drive (HDD)

CD-ROM Drive

Cooling Fan

Keyboard

Mouse

Monitor

Real-Time Clock Battery

A description and specification list for each FRU follows.

Equium™ Series Maintenance Manual-------------------------------------------------------------1-7

System Board

Models 5160D and 5200D System Boards

The Equium™ Models 5160D and 5200D come equipped with Intel CU430HX system

boards. The Models 5160D and 5200D system board supports the following set of features:

Uses a 9-inch by 13-inch LPX form factor.

Uses a type 7 Zero Insertion Force (ZIF) socket to house any of the Intel

Pentiumprocessors.

Intel Pentium

®MMX microprocessor running at 166 MHz (Model 5160D), and

200 MHz (Model 5200D).

Uses Intel's 82430HX PCIset. The Intel 82371SB PCI/ISA IDE Accelerator

(PIIX3) provides an integrated Bus Mastering IDE controller with two high

performance IDE interfaces for up to four devices (such as hard drives or CD-

ROM).

Supports up to 192 MB of Extended Data Out (EDO) RAM (32-bit non-parity)

using six standard 72-pin tin lead SIMM sockets.

Uses a Flash BIOS with the following features:

• Uses both hardware and software Secure Flash features to protect Flash

contents from corruption.

• Uses a BIOS that complies with the Desktop Management Interface (DMI-

compliant).

• Uses the E28F002BX 2 MB Flash EEPROM type BIOS with a capacity of

256 KB.

Uses the National PC87306BV I/O controller to integrate the following standard

PC I/O functions:

• floppy interface,

• two FIFO serial ports,

• one EPP/ECP capable parallel port,

• a Real Time Clock,

• keyboard controller,

• support for an IrDA and Consumer Infra Red compatible interface.

Integrates an ATI RAGE II graphics controller with SGRAM graphics memory to

support SVGA graphics at resolutions up to 1280 x 1024 with 2 MB of SGRAM

installed. Supports up to 4MB of graphics memory using an add-in module from

ATI.

Integrates a business audio solution using a Creative Laboratories Vibra 16C

audio codec on the system board to provide 16-bit stereo, Sound Blaster Pro

compatible audio.

Equium™ Series Maintenance Manual-------------------------------------------------------------1-8

Integrates a complete LAN interface onboard using the Intel 82557 LAN

controller.

Provides an onboard telephony (modem) connection from modem audio to the

system board mic/spkr.

A hardware monitoring ASIC provides the following monitoring functions:

• Integrated temperature sensor

• Power supply voltage monitoring

• Storage of POST results and error codes

Back panel connectors are provided for video, audio I/O, keyboard and PS/2

mouse connectors, one parallel port interface, RJ45 LAN interface, and two

Universal Serial Bus (USB) connectors.

PCI and ISA expansion slots are supported by a connector on the system board

designed to accept a riser card. An on-board jumper allows support of risers with

two PCI and three ISA slots.

The system board has the configuration shown inFigure 1-4.

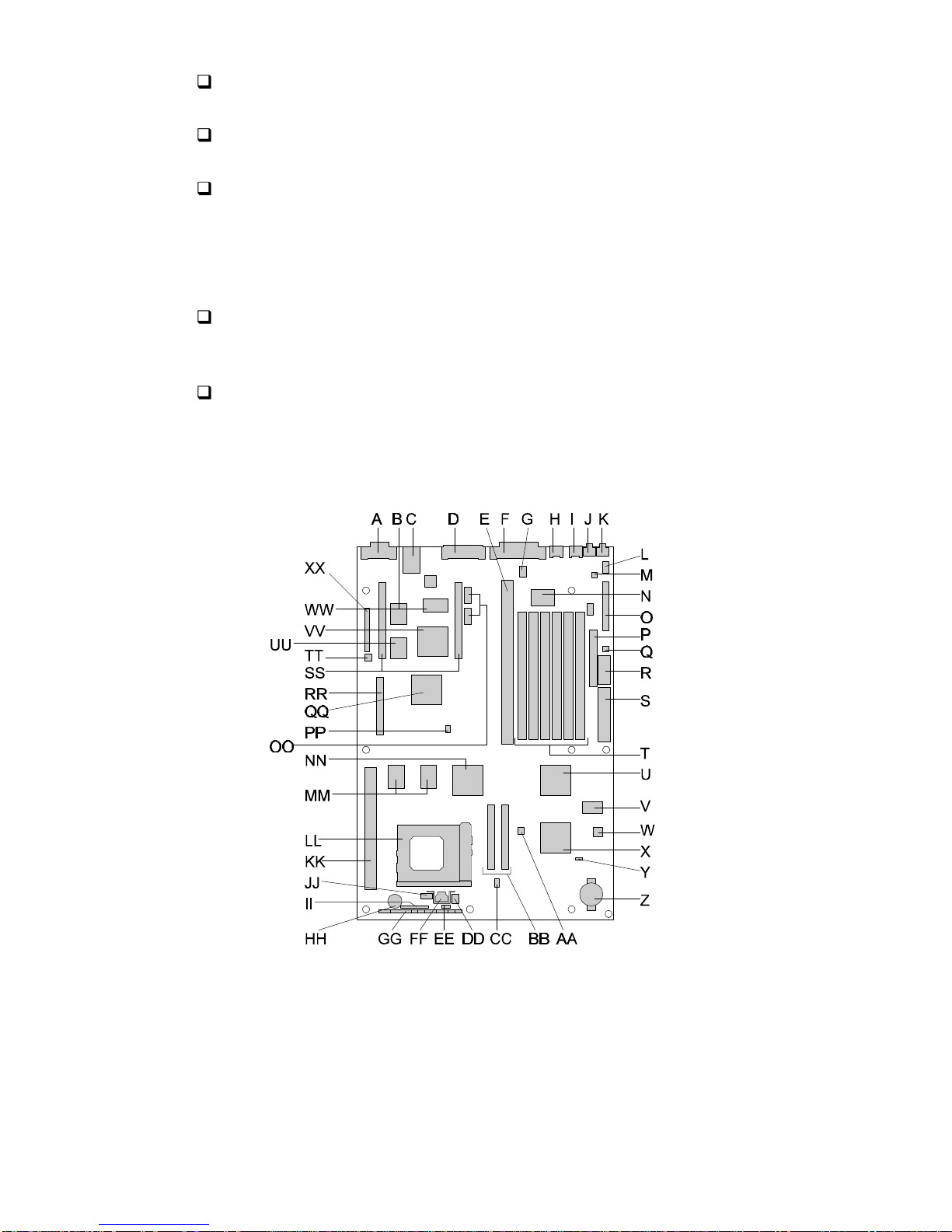

Figure 1-4Models 5160D and 5200D System Board Layout

Equium™ Series Maintenance Manual-------------------------------------------------------------1-9

Table 1-1Models 5160D and 5200D System Board Layout Key

Key Description Key Description Key Description

AVGA connector (15-

pin, J1N1) BSGRAM, video,

128Kx32x2 (U2L2) CLAN connector (RJ45,

J2N1)

DSide-by-side USB

connector option

(4x1x2, J4N1)

EISA/PCI riser socket

(J6J2) FParallel connector

(DB25, J6N1)

GCD Audio header

(1x4, J6N2) HPS/2 Mouse connector

(J7N1) IPS/2 Keyboard

Connector (J8N1)

JMicrophone input jack

(J8N2) KAudio output jack

(J9N2) LWave Table header

(2x4, J9N1)

MTelephony (modem)

header (2x2, J9M1) NCreative Labs Vibra16C

audio controller (U7M1) OMIDI/Audio header

(2x17,J9L1)

PFloppy connector

(J9K1) QSoft-OFF header (1x3,

J9K2) RStd 3.3V power

connector (J9J1)

SMain power

connector (J9H1) TSIMM sockets (J6J1,

J7J1, J7J2, J7J3, J8J1,

J8J2)

UNational PC87306B

Ultra I/O controller

(U7E1)

VFlash BIOS

TSOP/PSOP(E28F00

2, U9D1, U9D2)

WHardware monitor ASIC

(U9C1) XIntel SB82371SB

(PIIX3, U7C1)

YIntrusion-detect

photo-transistor

(Q8B1)

ZReal-time clock battery

(BT9A1) AA Flash recovery jumper

block (2x3, J6C2)

BB IDE connectors

(J5C1, J6C1) CC Vcc regulator header

(2x3, J5B1) DD 3-wire fan header (1x3,

J4A4)

EE Keyboard lock header

(1x3, J4A3) FF Voltage regulator

(U3A1) GG Front panel connector

(1x29, J4A1)

HH Onboard speaker

(LS2A1) II Front panel header 2

(1x9, J2A2) JJ PWR/HDD LED header

(1x4, J3A2)

KK CELP socket (J1D1) LL Socket 7 Pentium®

processor socket

(U3C1)

MM Mcache PBSRAM

(32Kx32, U3E1, U2E1)

NN Intel FW82439HX

(TXC, U4E1) OO COM1/COM2 header

(5x2, J4L1, J4M1) PP Jumper block, 2/3 PCI

slot (2x3, J4G1)

QQ ATI 264GT-B video

controller (U3H1) RR VGA header (2x20,

J1H1) SS Video memory upgrade

header (2x27, J1L1,

J4L2)

TT Security header (1x2,

J1K1) UU SGRAM, video,

128Kx32x2 (U2K2) VV LAN Controller (82557,

U3K1)

WW National DP83840

(U3L1) XX Jumper block header

(J1K2)
