Toshiba TS605 Manuel d'utilisation
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 1 of 103

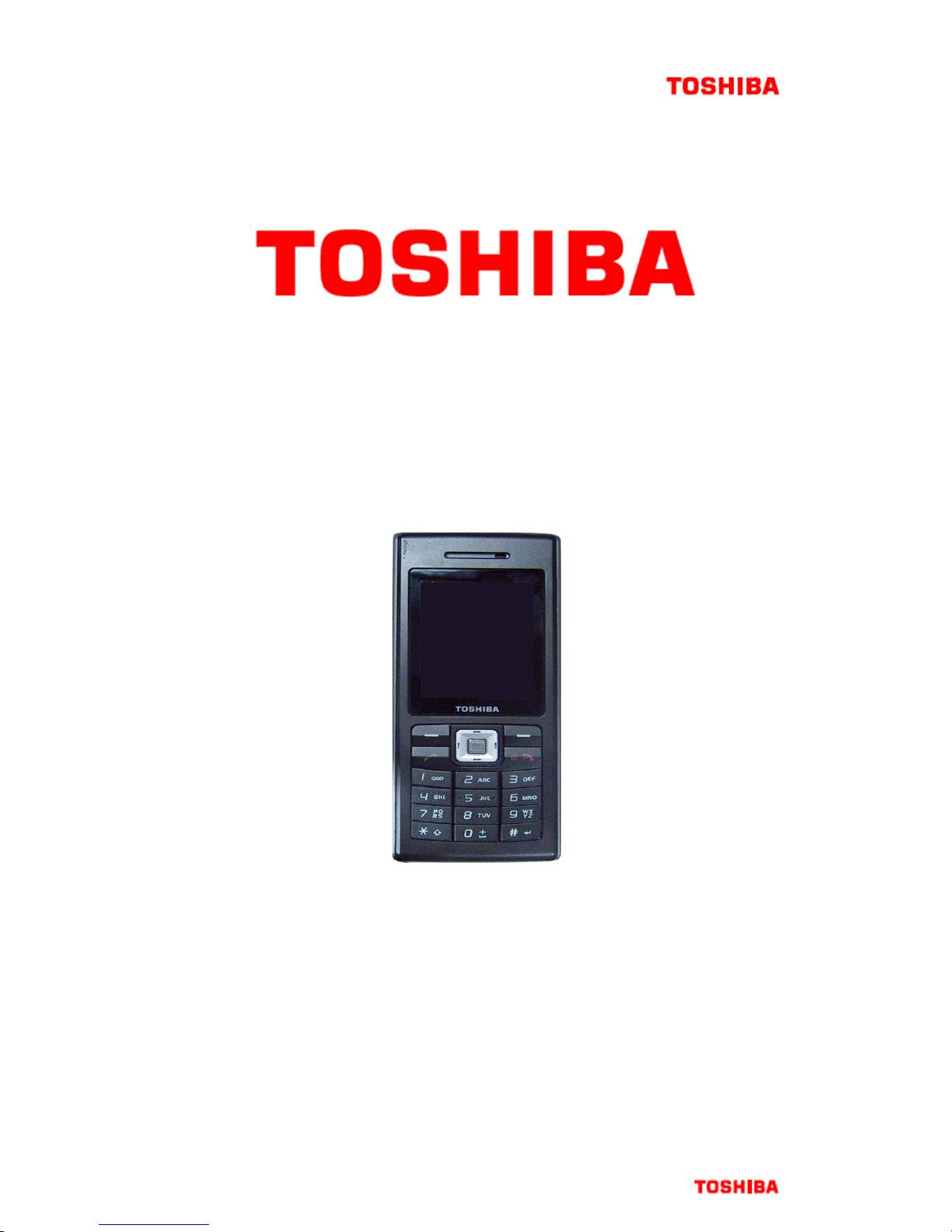

TS605 / TS2050
Technical Service
Manual
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 2 of 103
INDEX PAGE
1.0 GENERAL ADVICE 5
1.1 CUSTOMER CARE SOLUTIONS 6
1.2ESDPROTECTION 7
2.0 HANDSET SPECIFICATION AND INTRODUCTION 8
2.1 HANDSET SPECIFICATION 9
2.1.1 HARDWARE 9
2.1.2 SOFTWARE 10
2.1.3 PHYSICAL 11
2.1.4 VIDEO 12
2.1.5 OTHERS 13
2.1.6 PRODUCT OVERVIEW 15
2.2INTERFACES 16
2.2.1 SIM CARD INTERFACE 16
2.2.2 MEMORY CARD INTERFACE 18
2.2.3 BATTERY INTERFACE 20
2.2.4 CHARGING THE BATTERY 21
2.2.5 CHARGING INDICATOR 22
2.3 HANDSET USER INTERFACE 23
2.3.1 HANDSET DESCRIPTION 23
2.3.2 KEY FUNCTIONS 24
2.3.3 DISPLAY CONCEPT 26
2.3.4 MAIN MENU 27
2.4MMITEST 29
3.0 MECHANICAL CONCEPT 30
3.1 EXPLODED VIEW 31
3.2 MECHANICAL SPARE PARTS LIST 33
3.3 SPARE PARTS PHOTO 34
4.0 DISASSEMBLY AND REASSEMBLY PROCEDURE 35
4.1DISASSEMBLY 36
4.2REASSEMBLY 43
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 3 of 103
INDEX PAGE
5.0 SOFTWARE DOWNLOAD 53
5.1 SOFTWARE DOWNLOAD 54
5.1.1 DOWNLOAD CABLES 54
5.1.2 DOWNLOAD TOOL 55
5.1.3 EQUIPMENT SETTING 56
5.1.4 MAIN PROGRAM INTERFACE 57
5.1.5 BACKUP TOOL 59
6.0 SYSTEM MODULE AND USER INTERFACE 60
6.1 TECHNICAL DESCRIPTION 61
6.1.1 RF OVERVIEW 61
6.1.2 RF FUNCTION BLOCK DIAGRAM 62
6.1.3 FREQUENCY PLAN 63
6.1.4 TRANSMITTER 64
6.1.5 RECEIVER 65
6.2 BASEBAND OVERVIEW 66
6.2.1 INTRODUCTION 67
6.2.2 CPU MEMORY 68
6.2.3 REAL TIME CLOCK (RTC) 68
6.2.4 LCD MODULE 68
6.2.5 CAMERA / BACKEND IC 68
6.3SWITCHES 69
6.3.1 KEYPAD 69
6.3.2 POWER KEY 69
6.4 AUDIO SYSTEM 70
6.4.1 VOICE BAND CODEC 71
6.4.2 MICROPHONE 72
6.4.3 RECEIVER 72
6.4.4SPEAKER 73
6.5 POWER MANAGEMENT 73
6.5.1 POWER ON SEQUENCE 74
6.5.2 POWER SOURCE 75
6.5.3 REGULATOR CONTROL 75
6.5.4VOLTAGE REGULATION 75
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 4 of 103
INDEX PAGE
7.0 TROUBLE SHOOTING 77
7.1 MAIN TROUBLE SHOOTING DIAGRAM 78
7.1.1 NO POWER UP 79
7.1.2 FLASH FAILED 80
7.1.3 WILL NOT READ SIM CARD 81
7.1.4 POOR SERVICE 82
7.1.5 WILL NOT CHARGE 83
7.1.6 LCD FAILURE 84
7.1.7 BUZZER FAULT 85
7.1.8 VIBRATOR FAULT 86
7.1.9 FAULTY KEYPAD 87
7.1.10 FAULTY RTC 88
7.1.11FAULTY MICROPHONE 89
7.1.12 LCD TESTING 90
7.1.13 FAULTY CAMERA 91
7.2 CONNECTIONS 92
7.2.1 CONNECTIONS ON BOARD 92
7.2.2 ACF CONNECTIONS 93
7.2.3 MAIN BASEBAND IC’S 94
7.2.4 MAIN RF IC’S 96
7.2.5 CONNECTORS ON KEYPAD PCB 97
7.3 ACF – ANISOTROPIC CONDUCTIVE FILM 98
7.4 LABEL SPECIFICATION 103
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 5 of 103
1.0 GENERAL ADVICE
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 6 of 103
1.1 CUSTOMER CARE SOLUTIONS
TECHNICAL DOCUMENTATION
Warnings
1- Care must be taken on installation in vehicles fitted with electronic
engine management systems and ABS. Under certain faulty conditions,
emitted RF energy can affect their operation.
2- The handset must not be operated in areas likely to contain potentially
explosive atmospheres, e.g. Petrol/Gas stations.
3- Operation of any radio transmitting equipment may interfere with the
functionality of inadequately protected medical equipment. All
electronic equipment may also be subject to interference.
4- All documentation within this service manual must remain confidential
and should not be shared with any unknown 3rd party, without written
consent from Toshiba MCD, UK.
Cautions
1- Servicing and alignment must be undertaken by qualified personnel
only.
2- Ensure all work is carried out at an ESD protected work station.
3- Ensure that the qualified technician is wearing all necessary ESD
protective clothing such as wrist straps and heel straps.
4- Ensure solder, wire and/or other foreign matter do not enter the
handset as damage may result.
5- Use only approved components as specified in the parts list.
6- Ensure all components are correctly refitted after servicing and
alignment. Ensure all mechanical fittings are reassembled correctly.
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 7 of 103
1.2 ESD (Electro Static Discharge)PROTECTION
SERVICE REQUIRMENTS
1- Toshiba require that all TPSV’s ensure that the technicians work bench
has sufficient ESD protection.
2- Accessories such as batteries, chargers, multimedia cards and sim
cards can be replaced in normal conditions (Non ESD protected
environment).
3- A mobile handset contains many parts such as LCD’s and cameras.
These parts, along with more discreet components such as resistors
and capacitors are susceptible to ESD.
4- Metallised protective bags must be used during any transportation of
ESD sensitive parts, including the PCB.
5- All repair actions other than accessory replacement, must be
conducted under ESD protection.
Should you require any further information on ESD please refer to
www.static-sol.com
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 8 of 103
2.0 HANDSET
SPECIFICATION AND
INTRODUCTION
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 9 of 103
2.1 HANDSET SPECIFICATION
2.2.1 HARDWARE
Item Description Remark
Frequency EGSM-900(880MHz– 960MHz).
GSM-1800(1710MHz– 880MHz)
PCS-1900(1850MHz– 990MHz)
Three-band
Display 1.93" 176X220 TFT Citizen
Camera 1.3 Mega CMOS
w/o Marco
Bluetooth
V1.2
Vender: CSR
Chipset: BC3-ROM
Support: v1.2
Power Class: Class 2 or 3
Max Size of data of phone
memory : 350KB
FM Radio with RDS Silicon Lab SI4701
IrDA N/A
Multimedia Chip AIT 811T Support MP3, 1.3 M, T-flash
Audio Codec Wolfson
System Memory 256Mb(NOR) + 64Mb(SRAM) Study Nuro bit type
Built-In Memory Option
External Memory Card 1024Mb Micro SD Flash
Base Band AD6527 + AD6537B
RF CX74117+CX77328
MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 10 of 103
2.1.2 SOFTWARE
Item Description Remark
WAP WAP 2.0
MMS OMA 1.1
DRM Ver. 1.0 Openwave
IMPS Ver. 1.2 Magic4
Java Yes Esmertec
Doja N/A
KVM yes JTWI 1.0
JSR-75 PDA PIM & FC yes
JSR-120 WMA 1.1 Yes
JSR-135 Yes
JSR-205 WMA 2.0 Yes
JSR-234 Advanced
Multimedia Supplements N/A
JSR-248 Mobile Service
Architecture for CLDC N/A
JSR-185 JTWI
Yes JTWI (Mandatory: JSR-30
CLDC 1.0 + JSR -120
Wireless Messaging API +
JSR-118 MIDP 2.0)
(Conditional: JSR-135
MMAPI (mobile multimedia
API) + JSR-139 CLDC 1.1)
Text Input T9 Input 6.1.3 TBD, define by Toshiba
SynML DS 1.1.2 ExtendSI
SynML DM N/A
Email POP3/SMTP
QR code recognition N/A TBD
