Toshiba E-STUDIO203S Guide de configuration

e-STUDIO203S/203SD

Online Manual

Start

Click this "Start" button.

CONTENTS

INDEX

Introduction

This manual describes the printer and scanner functions of the e-STUDIO203S/203SD Multifunctional Digital Systems.

Trademark Acknowledgments

●Microsoft®, Windows®, Windows®98, Windows®Me, Windows®2000, Windows®XP, Windows Vista®and Internet Explorer®are

registered trademarks or trademarks of Microsoft Corporation in the U.S.A. and other countries.

●Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Reader are registered trademarks or trademarks of Adobe Systems

Incorporated in the United States and other countries.

●All other trademarks and copyrights are the property of their respective owners.

●For information on the following topics, please refer to the Operation Manual for the Multifunctional Digital Systems.

• Basic machine procedures (adding paper, replacing the toner cartridge, removing misfeeds, using peripheral devices)

• Copier functions

• Scanning from the operation panel of the machine

• Specifications

●Where "e-STUDIOXXXX" appears in this manual, please substitute the name of your model for "XXXX".

●This manual refers to the Reversing Automatic Document Feeder as the "RADF".

●The screen images and procedures that appear in this manual are mainly for Windows XP. With other versions of Windows, some

screen images may be different from those in this manual.

●For information on using your operating system, refer to your operating system's manual or online Help.

●For your information, please note that the RADF and the second cassette are provided as an option.

The display screens, messages, and key names shown in the manual may differ from those on the actual machine due to product

improvements and modifications.

Note

CONTENTS

INDEX

How to Use the Online Manual

This section explains how to view the online manual. Please read this section before using the online manual.

For information on using Acrobat Reader, see Acrobat Reader Help.

How to Control the Online Manual

In this manual, the following buttons are displayed at the bottom

of each page. Click these buttons to move quickly to pages that

you wish to view.

Displays the Contents of this manual. Click on a topic in the

Contents to jump directly to that section.

Displays the Index of this manual. Click on a topic in the Index

to jump directly to that section.

Takes you forward page by page.

Takes you back page by page.

Following Links

This manual uses a link function that allows you to jump to a

related page. If you click green, underlined text, the related

page will be displayed. (In the Contents and Index sections, the

linked areas are not underlined.)

Example: ☞Contents

To return to the previous page, click the button on the menu

bar of Acrobat Reader.

Using Bookmarks

Bookmarks have been created on the left side of this manual.

You can click on a bookmark to jump directly to that section.

How to Print Out This Manual

To print this manual, select "Print" from the "File" menu of

Acrobat Reader. Select the desired printer settings in the "Print"

dialog box, and then click the "OK" button.

CONTENTS

INDEX

CONTENTS

INDEX

Contents

Introduction 2

How to Use the Online Manual 3

Basic Printing 5

Opening the Printer Driver From the "Start" Button 7

Printer Driver Settings 8

Printing Multiple Pages on One Page 9

Fitting the Printed Image to the Paper 10

Two-sided Printing (Only for models that support two-sided printing)

Rotating the Print Image 180 Degrees 12

Printing a Watermark 13

Outline of the Print Status Window 14

Sharing the Printer Using Windows Networking 15

Shared Printer Settings 16

Client Settings 17

Scanning Overview 19

Scanning from a TWAIN-Compliant Application 20

Scanning from a WIA-Compliant Application (Windows XP/Vista)

Scanning from the "Scanner and Camera Wizard" (Windows XP)

Outline of Button Manager 30

Button Manager Settings 31

Troubleshooting 33

If a Notice Page is printed 39

Printer Driver Features 40

1PRINT

2PRINTER SHARING

3SCAN

4TROUBLESHOOTING

5PRINTER DRIVER FEATURES

6INDEX

1PRINT

CONTENTS

INDEX

Basic Printing (part 1)

The following example explains how to print a document from WordPad.

Before printing, make sure that the correct size of paper for your document has been loaded in the machine.

1Start WordPad and open the document that you

wish to print.

2Select "Print" from the application's "File"

menu.

The "Print" dialog box will appear.

Make sure that "TOSHIBA e-STUDIOXXXX" is

selected as the printer. If you need to change any

print settings, click the "Preferences" button

("Properties" button in Windows 98/Me) to open

the printer driver setup screen.

The printer driver setup screen will appear.

Windows 2000 does not have the "Preferences" button

in this dialog box. Select settings as needed on each of

the tabs in the setup screen.

☞

Printer Driver Settings,

Printing Multiple Pages on One Page

Fitting the Printed Image to the Paper,

Printing a Watermark

Two-sided Printing (Only for models that

support two-sided printing)

4Click the "Print" button ("OK" button in

Windows 98/Me).

Printing begins. When printing begins, the Print Status

Window automatically opens.

(☞Outline of the Print Status Window)

The print job is delivered to the output tray, with the position of

the paper offset slightly from the previous job (offset function).

1PRINT

CONTENTS

INDEX

Basic Printing (part 2)

If the tray runs out of paper during printing

Printing will automatically resume when paper is loaded in the

tray.

When using the bypass tray, select printer mode with the mode

select key on the machine, load paper as instructed by the

message in the display, and then press the [START] key to

resume printing.

When the 250-sheet paper feed unit is installed:

Note that if the "AUTO TRAY SWITCH" setting in the user

programs is enabled and there is the same size of paper in

another tray, the machine will automatically switch to the other

tray and continue printing.

Cancel a print job

Select printer mode with the [MODE SELECT] key on

the operation panel of the machine, and then press

the [CLEAR] key ( ) or the [CLEAR ALL] key ( ).

2"CANCEL PRINT JOB?" will appear in the

display. Make sure that a checkmark appears in

front of "YES" and press the [ENTER] key.

When "Paper Source" is set to "Auto Select"

If "Paper Source" is set to "Auto Select" in the "Paper" tab of the

printer driver setup screen and the correct size of paper for a

print job is not loaded in the machine, the printing procedure will

vary depending on the "FORCED OUTPUT" setting in the user

programs (see "USER PROGRAMS" in the Operation Manual).

When "FORCED OUTPUT" is set to "OFF"

Select printer mode with the mode select key on the machine,

check the message in the display, load paper in the bypass tray,

and then press the [START] key to begin printing.

When "FORCED OUTPUT" is set to "ON"

Printing takes place on the paper loaded in the machine, even

though the paper size is different from the print image size.

When the machine is connected to your computer using

the USB 2.0 (Hi-Speed) ports on each, be sure to read

"System requirements for USB 2.0 (Hi-Speed mode)" in

the Operation Manual.

Caution

1PRINT

CONTENTS

INDEX

Opening the Printer Driver From the "Start" Button

You can open the printer driver and change the printer driver settings from the Windows "start" button. Settings adjusted in this way

will be the initial settings when you print from an application. (If you change the settings from the printer driver setup screen at the

time of printing, the settings will revert to the initial settings when you quit the application.)

Windows 2000/XP/Vista

1Click the "start" button, and then click "Control

Panel".

On Windows 2000, click the "Start" button and select "Settings".

2Click "Printers and Other Hardware", and then

click "Printers and Faxes".

●On Windows Vista, click "Printer".

●On Windows 2000, click "Printers".

Click the "TOSHIBA e-STUDIOXXXX" printer

driver icon and select "Properties" from the "File"

menu.

On Windows Vista, select "Properties" from the "Organize"

menu.

4Click the "Printing Preferences" button in the

"General" tab.

The printer driver setup screen will appear.

☞Printer Driver Settings

Windows 98/Me

1Click the "Start" button, select "Settings" and

then click "Printers".

Click the "TOSHIBA e-STUDIOXXXX" printer

driver icon and select "Properties" from the "File"

menu.

3On Windows 98/Me, click the "Setup" tab.

The printer driver setup screen will appear.

☞Printer Driver Settings

1PRINT

CONTENTS

INDEX

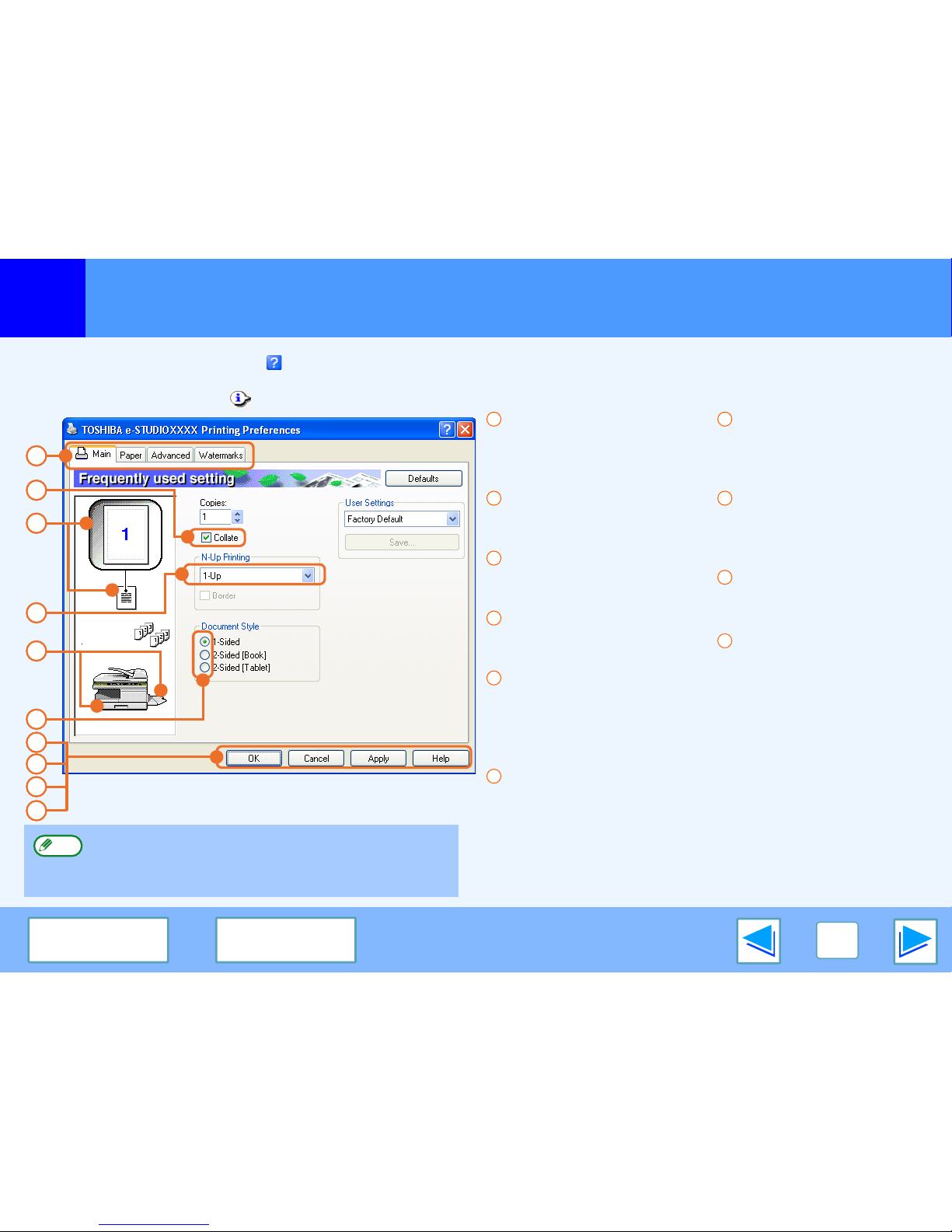

Printer Driver Settings

To view Help for a setting, click the button in the upper right-hand corner of the window and then click the setting.

Some restrictions exist on the combinations of settings that can be selected in the printer driver setup screen. When a restriction is

in effect, an information icon ( ) will appear next to the setting. Click the icon to view an explanation of the restriction.

Tab

The settings are grouped

on tabs. Click on a tab to

bring it to the front.

Checkbox

Click on a checkbox to activate

or deactivate a function.

Print setting image

This shows the effect of the

selected print settings.

Drop-down list

Allows you to make a selection

from a list of choices.

Image of paper trays

The tray selected in "Paper

Selection" in the "Paper" tab

appears in blue. You can also

click on a tray to select it.

Check button

Allows you to select one

item from a list of options.

"OK" button

Click this button to save

your settings and exit the

dialog box.

"Cancel" button

Click this button to exit the

dialog box without making any

changes to the settings.

"Apply" button

Click to save your settings

without closing the dialog box.

"Help" button

Click this button to display the

help file for the printer driver.

The above screen is the printer driver setup screen for

models that support two-sided printing.

The settings and the image of the machine will vary

depending on the model.

Note

1PRINT

CONTENTS

INDEX

Printing Multiple Pages on One Page

This feature allows you to reduce and print two or four document pages on a single sheet of paper.

To use this function, open the printer driver setup screen and select "2-Up" or "4-Up" for "N-Up Printing" on the "Main" tab.

☞See Basic Printing for details on how to open the printer driver.

If you select the "Border" checkbox, borderlines will be printed around each page.

The "N-Up Printing" setting is not available when "Fit To Paper Size" is selected.

☞Fitting the Printed Image to the Paper

N-Up Border Border

"2-Up"

"4-Up"

Note

1PRINT

CONTENTS

INDEX

Fitting the Printed Image to the Paper

The printer driver can adjust the size of the printed image to match the size of the paper loaded in the machine.

Follow the steps shown below to use this function. The explanation below assumes that you intend to print a letter size document on

invoice size paper.

☞See Basic Printing for details on how to open the printer driver.

1Click the "Paper" tab in the printer driver setup

screen.

2Select the original size (Letter) of the print

image in "Paper Size".

3Check the "Fit to Page" box.

4Select the actual size of paper to be used for

printing (Invoice).

The size of the printed image will be automatically

adjusted to match the paper loaded in the machine.

The "Fit To Paper Size" setting is not available when "N-Up Printing" is selected.

☞Printing Multiple Pages on One Page

Note

Paper Size: Letter

Fit To Paper Size: Invoice

Letter size document

(Paper Size)

Invoice size paper

(Fit To Paper Size)

If "A3 [Fit to Page]", "B4 [Fit to Page]", or "Ledger [Fit to Page]"

is selected, the print image is fit to the letter size even if "Fit to

Page" is not selected.

Note

Autres manuels pour e-STUDIO203S

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Toshiba Imprimante tout-en-un

Toshiba

Toshiba e-STUDIO 520 Manuel utilisateur

Toshiba

Toshiba E-Studio 18 Manuel utilisateur

Toshiba

Toshiba e-STUDIO206L Manuel du propriétaire

Toshiba

Toshiba e-STUDIO556 Manuel utilisateur

Toshiba

Toshiba e-studio4520C Manuel de programmation

Toshiba

Toshiba E-STUDIO900 Guide d'installation

Toshiba

Toshiba e-studio 456 series Manuel utilisateur

Toshiba

Toshiba E-studio5540c Manuel utilisateur

Toshiba

Toshiba 230/280 Instructions d'installation et d'entretien

Toshiba

Toshiba E-STUDIO2822AM Mise à jour du firmware

Toshiba

Toshiba E-STUDIO2000AC Manuel utilisateur

Toshiba

Toshiba 352/452 Manuel utilisateur

Toshiba

Toshiba E-studio5540c Manuel utilisateur

Toshiba

Toshiba E-studio230L Comment utiliser

Toshiba

Toshiba e-studio 200s Manuel utilisateur

Toshiba

Toshiba e-STUDIO 452 Manuel utilisateur

Toshiba

Toshiba 1105 Manuel utilisateur

Toshiba

Toshiba e-STUDIO287CS Manuel utilisateur

Toshiba

Toshiba e-Studio 2505H Manuel utilisateur

Toshiba

Toshiba E-STUDIO 2500C Manuel utilisateur

Toshiba

Toshiba e-Studio 350 Manuel utilisateur

Toshiba

Toshiba e-STUDIO163 Manuel utilisateur

Toshiba

Toshiba E-STUDIO2008A Manuel utilisateur

Toshiba

Toshiba e-STUDIO 352 Guide de configuration

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Toshiba e-STUDIO203S Guide de configuration

Manuels Imprimante tout-en-un populaires d'autres marques
