Torrot Electric Citysurfer Manuel utilisateur
User Manual
Maintenance+Warranty
Welcome to Torrot Electric
Thank you for becoming the owner of our
Citysurfer electric bicycle!
In this manual you will nd information about how to
use and how to do the maintenance in your Citysufer.
You will also nd information about theTorrot Electric’s
two years warranty that your new e-bike has.
FROM 12
YEARS OLD
USER
MANUAL
ONLINE
TWO YEARS
TORROT
ELECTRIC
WARRANTY
HYBRID: A
POWERFUL
ELECTRIC
MOTOR AND
YOU
MANTAIN YOUR
HEALTHY BODY
SUSTAINABLE
AND EFFICIENT
URBAN
MOBIILTY
MAXIMUM
ALLOWED
POWER:
250W
5
CITYSURFER
User Manual
Table of
contents
INTRODUCTION 06
THE CITYSURFER 07
SPECIFICATIONS 08
COMPONENTS 10
BEFORE USING IT 11
HOW TO FOLD IT 12
GEAR SHIFTER 13
CONTROL PANEL 14
BATTERY 15

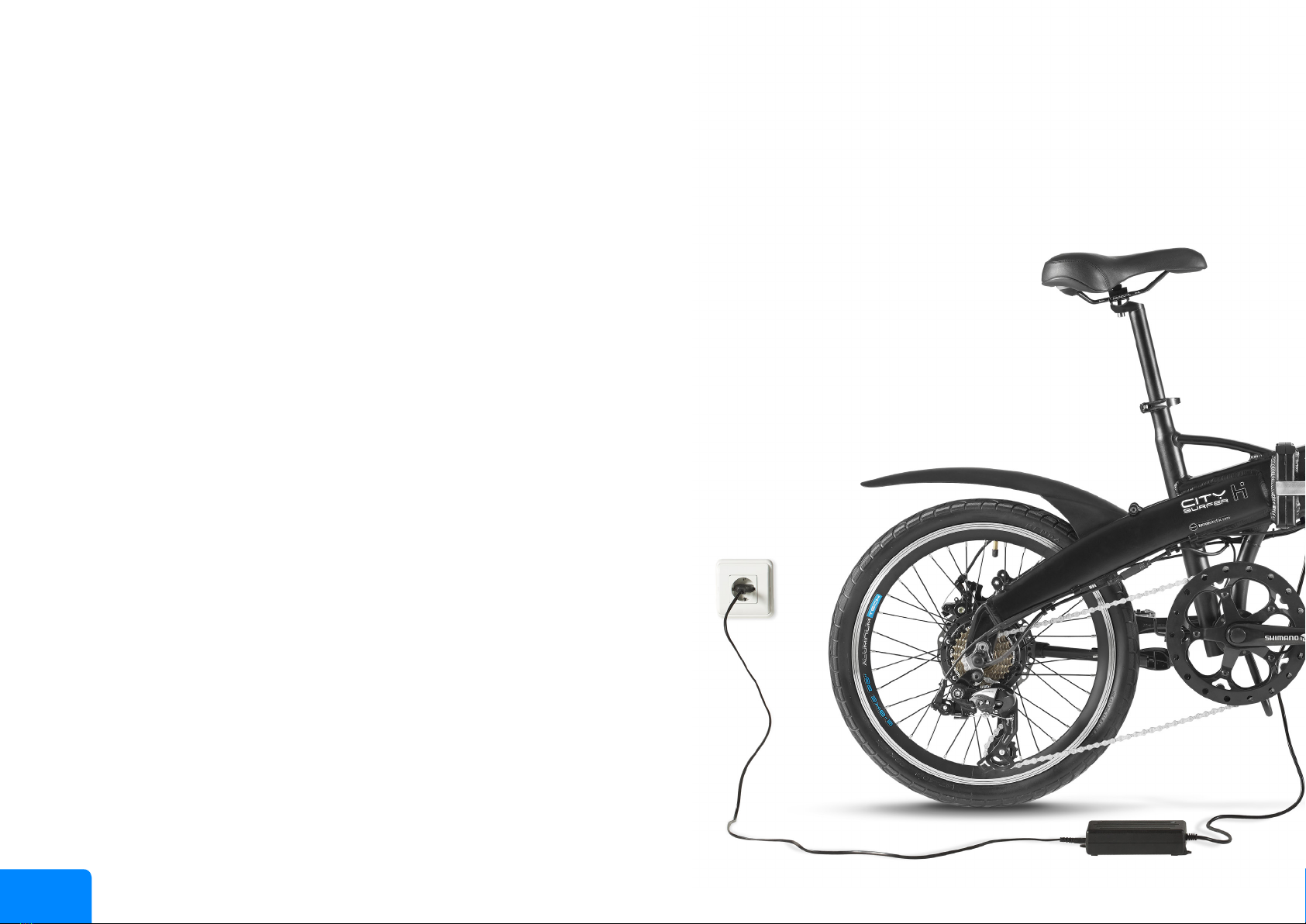

RECHARGE 17
MAINTENANCE 18
TYRE CHANGING 19
WIRING DIAGRAM 20
FAQ 22
WARRANTY 23
6
CITYSURFER
User Manual
INTRODUCTION
The benets of being the owner of a Citysurfer electric bicycle are countless.
From maintain your health to save the enviroment, have fun, efcient mobility,
leave the trafc jams behind...
To experience them with the highest intensisty and safety, we recommend
you to read this manual, this way you will know how and when to recharge the
battery, the basic maintenance of your bike, to check the brakes, how to use
its electric motor... with simple and practical advices.
From Torrot Electric, we insistently advise you to use always a helmet with your
Citysurfer and to obey and respect the trafc regulations to have a satisfying,
funny and 100% safe experience with your e-bike.
If you still have any doubt after consulting this manual, go to your Torrot’s point
of sale or send us an email to [email protected].
*No contractual images. Due to our constant improvement policy, Torrot Electric Europa
reserves its right to introduce changes without notice in products or technical specications.
The images of the products showed here can differ noticeably from the products delivered.
7
CITYSURFER
User Manual
THE CITYSURFER
The Citysurfer is what we colloquially call a pedelec. An electrically assisted
pedal bicycle, following the Standard UNE-EN 15194: 2009 and the
European Normaives that regulates these kind of vehicles, designed for a
sustainable mobility.
It has two brakes, the front one (called v-brake) and the rear one (a disc
brake), shich can be operated sith the handlebat levers, as in any bike or
motorbike. A little digital control apnel in the handlebar allows us to switch
the ebike on and off and to select one of the three different power assistance
modes. The electric motor will only work while pedalling, assisting you more or
less due to a sensor and the operating modeddsfa. The feeling of assistance
in slopes and plains is very pleasant, stopping from working when braking or
not pedalling, getting a natural ‘feeling’. Take into account that the pressure
of the tyres, weight of the cyclist of the load carried will affect the power and
the battery range. We will explain below how to improve the performance of
your Citysurfer ;-)
As far as size is concerned, the Citysurfer is suitable for any gender and age
and easily regulable in handlebar and seat’s height, to adapt it to different
heights, offering a made to measure comfort to each person.
Furthermore, the Citysurfer is easily foldable, so it can be stored anywhere.
ELECTRIC
PEDAL ASSIST
BRAKES
CONTROL PANEL
3 LEVELS
ELECTRIC
AUTOMATIC
UNISEX
REGULABLE
FOLDABLE
8
CITYSURFER
ESPECIFICACIONES CITYSURFER STD CITYSUFER GT
FRAME ALUMINIUM ALLOY 6061 ALUMINIUM ALLOY 6061
FORK HIDRAULIC XCT ALU/STEEL HIDRAULIC XCT ALU/STEEL
GEAR SHIFTER SHIMANO TX35 6 SPEED, BOTTOM BRAKET WITH ONE
SPROCKET
SHIMANO TX35 7 SPEED, BOTTOM BRAKET WITH ONE
SPROCKET
BRAKES V-BRAKE FRONT+DISC REAR DISC FRONT+DISC REAR
MOTOR HIGH SPEED BRUSHLESS GEARED 36V, 250W HIGH SPEED BRUSHLESS GEARED 36V, 250W
BATTERY LI-ION 36V/10.4Ah (374.4Wh) LI-ION 36V/10.4Ah (374.4Wh)
CHARGER 72W WITH AUTOMATIC DISCONNECTION WHEN FULLY
CHARGED
72W WITH AUTOMATIC DISCONNECTION WHEN FULLY
CHARGED
SADDLE/SEATPOST COMFORT SADDLE, SEATPOST MADE OF STEEL COMFORT SADDLE, SEATPOST MADE OF STEEL
RIMS ALUMINIO 20” FRONT/REAR ALUMINIO 20” FRONT/REAR
TYRES MIXTO KENDA 1.75/20” FRONT/REAR
PRESSURE FRONT/REAR: MIN. 3,8 AND MÁX 4,5 BAR
MIXTO KENDA 1.75/20” FRONT/REAR
PRESSURE FRONT/REAR: MIN. 3,8 AND MÁX 4,5 BAR
ASSISTANCE MAX. SPEED 25KM/H 25KM/H
WEIGHT 19KG (WITHOUT) 19KG (WITHOUT)
MAXIMUM WEIGHT SUPPORTED 100KG 100KG
*Designed and made in Barcelona
User Manual
SPECIFICATIONS
9
CITYSURFER

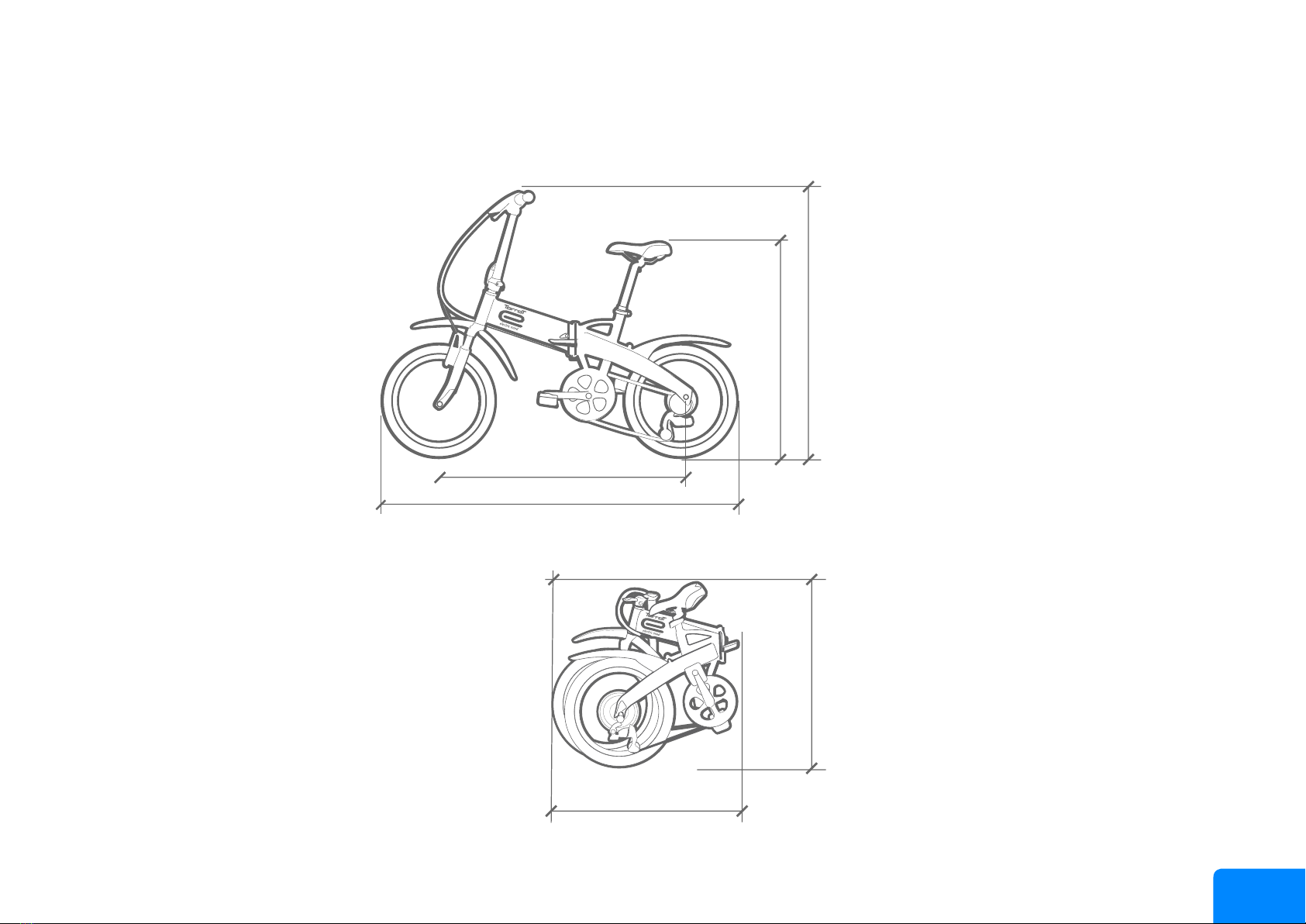

70cm
87cm
WIDTH 47cm
102cm
151cm
MIN. 76,5cm MAX. 102cm
MIN. 110cm MAX. 121,5cm
HANDLEBAR WIDTH 66cm
User Manual
DIMENSIONS
10
CITYSURFER
x
y
z
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
User Manual
COMPONENTS
z
x
y
a
b
c
g
h
i
j
k
l
g
d
f
x z
e
z
o
n

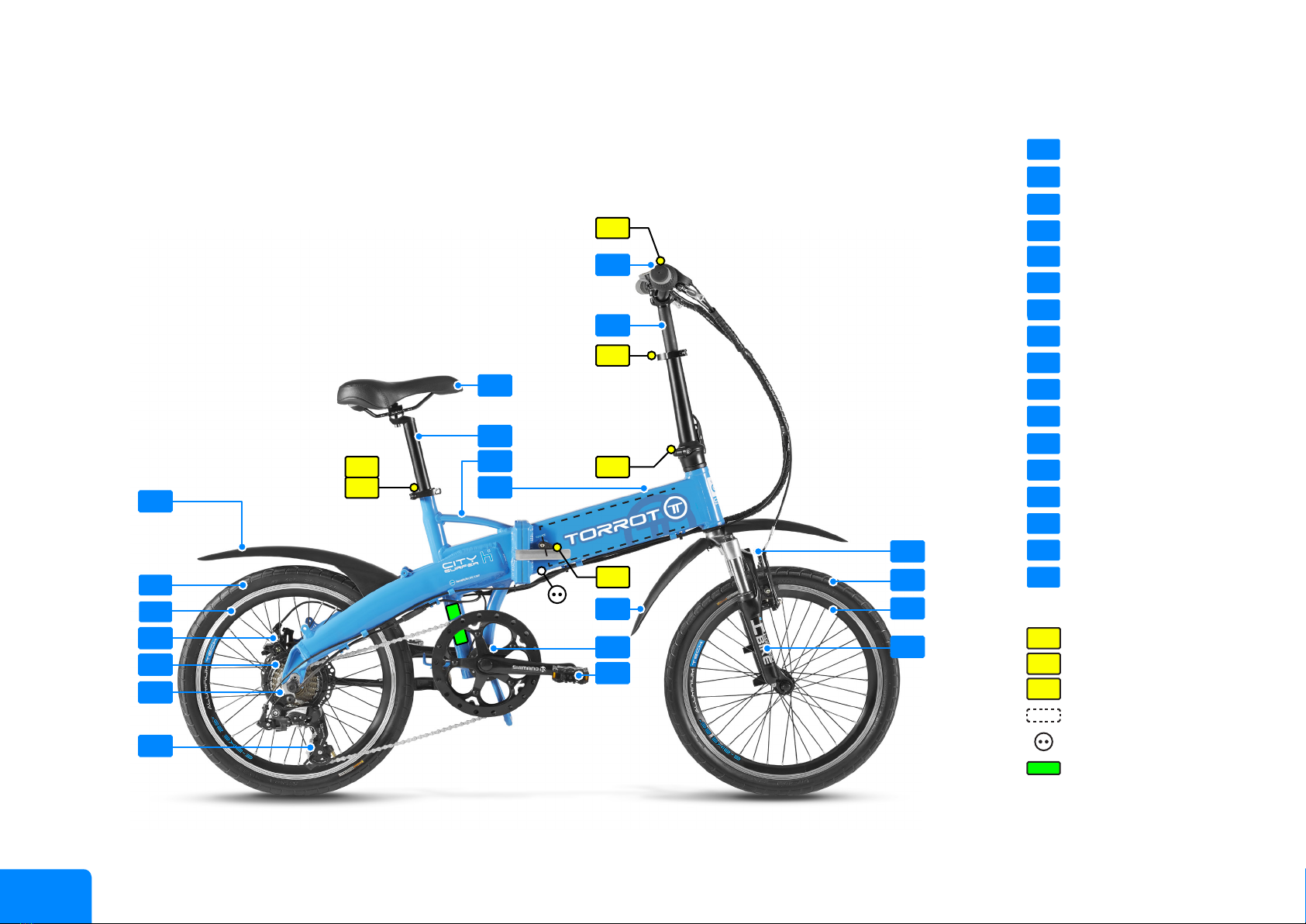

CHASSIS, FRAME
HANDLE
SEATPOST
SADDLE
STEM
HANDLEBAR
MUDGUARD
PEDALLING SENSOR
PEDAL
DERAILLEUR
MOTOR
CASSETTE
FRONT BRAKE
REAR BRAKE
RIMS
FRONT SUSPENSION
TYERS
REGULABLE PARTS
CONTROL PANEL
FOLDING POINTS
REMOVABLE BATTERY (INT)
CHARGING PLUG
SERIAL NUMBER
m
o
p
q
p
q
q
o
